MS123L-SEPQF (1983)
Toyota Crown
(8308- )5MGE,6MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-49655 |
5MGE,6MGE..MS123,125 |
1 | ||
| 16100B - PIN, RING(FOR WATER PUMP SET) | ||||
| 16185-70010 |
5MGE,6MGE..MS123,125 |
2 | ||
| 16100B - PIN, RING(FOR WATER PUMP SET) | ||||
| 16185-70010 |
5MGE,6MGE..MS123,125 |
2 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16129-33030 |
5M,5ME..MS122,123 |
1 | ||
| 16124-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-43040 |
5MGE,6MGE..MS123,125 |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-45110 |
5M,5MGE,6MGE..MS12#..GEN,SAA |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16198-43040 |
5M#,6MGE..MS12# |
4 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-43030 |
5M#..MS12# NO.1 |
1 | ||
| 16174-43030 |
5M#..MS12# NO.2 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-43030 |
5M#..MS12# NO.1 |
1 | ||
| 16174-43030 |
5M#..MS12# NO.2 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-43030 |
5M#..MS12# NO.1 |
1 | ||
| 16174-43030 |
5M#..MS12# NO.2 |
1 | ||
| Common parts | ||||
| 16193-43010 | ||||
| 16198-43010 | ||||
| 90179-08123 | ||||

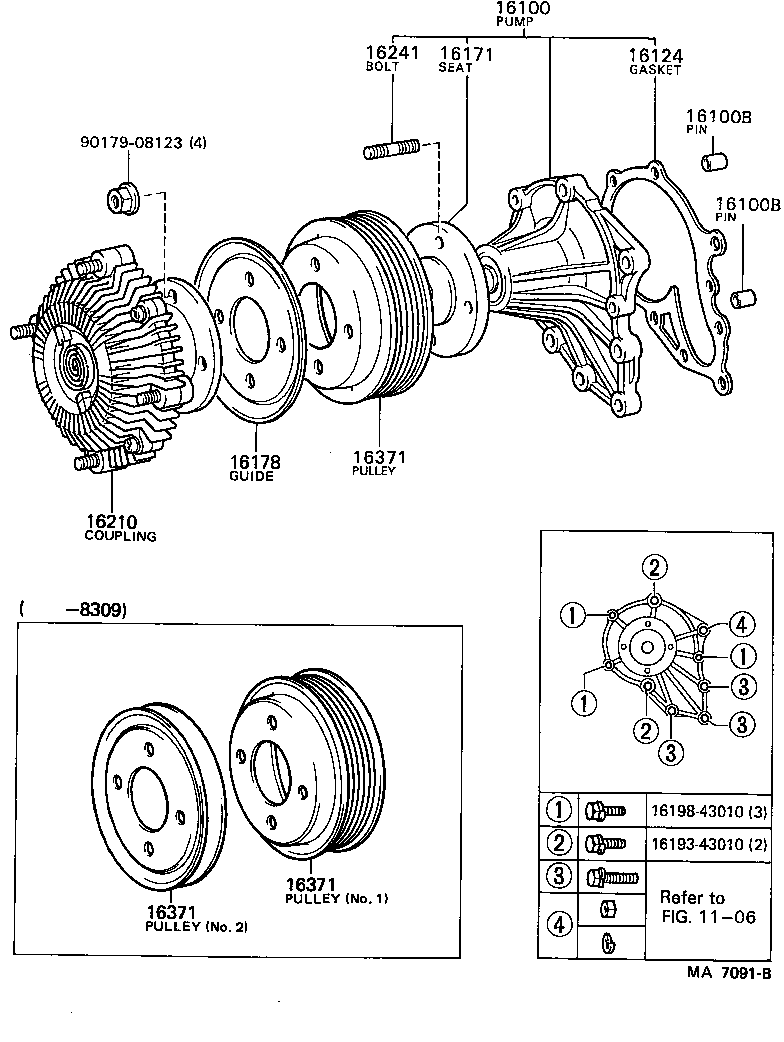

| Linked diagrams | ||||
| 1106 | ||||
(8308- )5M,5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-49655 |
5MGE,6MGE..MS123,125 |
1 | ||
| 16100G - BOLT, STUD(FOR WATER PUMP SET) | ||||
| 90116-08111 |
5M,5ME..MS122,123 L=57,S=13&13 |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-45110 |
5M,5ME..MS12# |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-45110 |
5M,5ME..MS12# |
1 | ||
| 16120 - COVER ASSY, WATER PUMP | ||||
| 16120-45110 |
5M,5ME..MS122,123 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16129-33030 |
5M,5ME..MS122,123 |
1 | ||
| 16124-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-41031 |
5M,5ME..MS122,123 L=42,S=16&20 |
1 | ||
| 16193-45100 |
5M,5ME..MS122,123 |
5 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-41031 |
5M,5ME..MS122,123 L=42,S=16&20 |
1 | ||
| 16193-45100 |
5M,5ME..MS122,123 |
5 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-45110 |
5M,5MGE,6MGE..MS12#..GEN,SAA |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16198-43040 |
5M#,6MGE..MS12# |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-41011 |
5M,5ME..MS122,123 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-43030 |
5M#..MS12# NO.1 |
1 | ||
| 16174-43030 |
5M#..MS12# NO.2 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-43030 |
5M#..MS12# NO.1 |
1 | ||
| 16174-43030 |
5M#..MS12# NO.2 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-43030 |
5M#..MS12# NO.1 |
1 | ||
| 16174-43030 |
5M#..MS12# NO.2 |
1 | ||
| Common parts | ||||
| 90116-08008 | ||||
| 90179-06070 | ||||
| 90179-08044 | ||||
| 90179-08123 | ||||
| 90341-12011 | ||||
| 90430-12010 | ||||
| 91611-60845 | ||||
| Linked diagrams | ||||
| 1603 | ||||
