MS123L-SEPQF (1983)
Toyota Crown

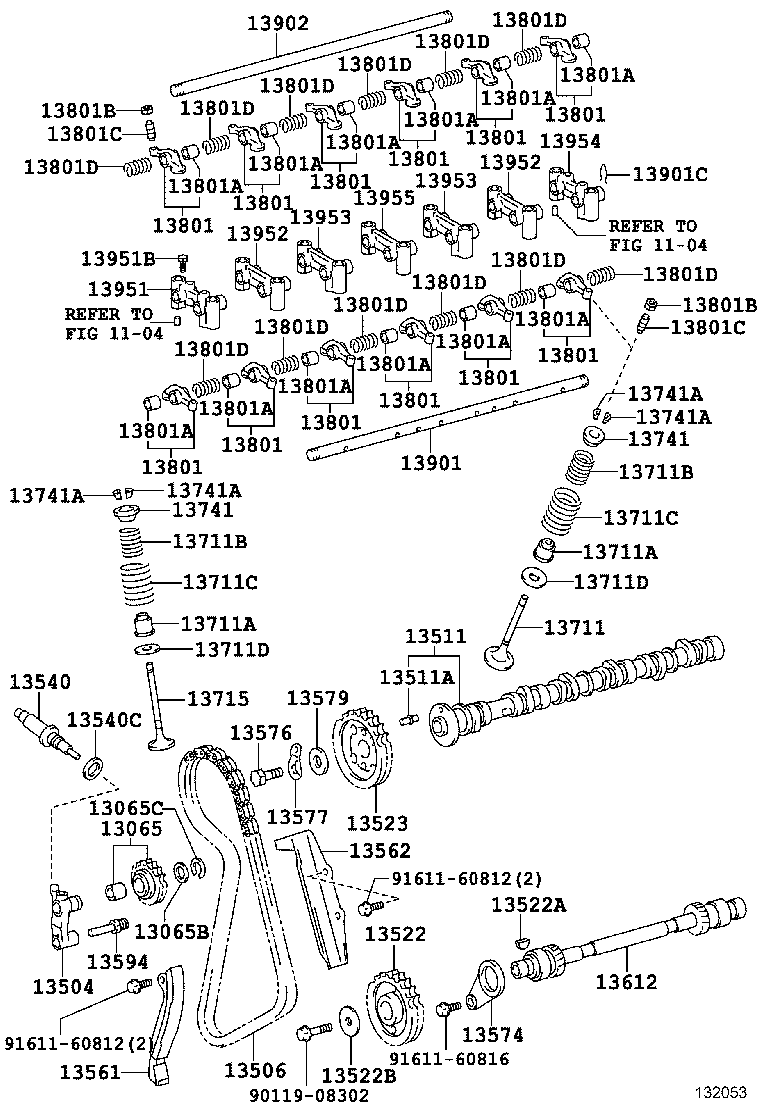

(8308- )5M,5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13065 - GEAR SUB-ASSY, TENSION | ||||
| 13065-45010 |
5M,5ME..MS122,123 |
1 | ||
| 13065B - WASHER, TIMING CHAIN TENSION GEAR CLAW | ||||
| 90214-20017 |
5M,5ME..MS122,123 |
1 | ||
| 13065C - RING, SHAFT SNAP(FOR TENSION GEAR) | ||||
| 96150-02000 |
5M,5ME..MS122,123 |
1 | ||
| 13504 - ARM SUB-ASSY, TENSION | ||||
| 13504-45020 |
5M,5ME..MS122,123 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-41010 |
5M,5ME..MS122,123 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
5MGE,6MGE..MS123,125 L=15,OD=5 |
2 | ||
| 90249-08042 |
5M,5ME..MS122,123 L=23,OD=8 |
1 | ||
| 13522 - GEAR, PUMP DRIVE SHAFT | ||||
| 13522-41011 |
5M,5ME..MS122,123 N=30 |
1 | ||
| 13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR) | ||||
| 90280-05008 |
5M,5ME..MS122,123 |
1 | ||
| 13522B - WASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR) | ||||
| 90201-08020 |
5M,5ME..MS122,123 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-43010 |
5M,5ME..MS122,123 N=40 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-45010 |
5M,5ME..MS122,123 |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 90430-22135 |
5M,5ME..MS122,123 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-45010 |
5M,5ME..MS122,123 |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-45010 |
5M,5ME..MS122,123 |
1 | ||
| 13574 - PLATE, PUMP DRIVE SHAFT | ||||
| 13574-41010 |
5M,5ME..MS122,123 |
1 | ||
| 13576 - BOLT, CAMSHAFT TIMING GEAR | ||||
| 13576-45010 |
5M,5ME..MS122,123 |
1 | ||
| 13577 - PLATE, LOCK | ||||
| 13577-41010 |
5M,5ME..MS122,123 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 90201-16328 |
5M,5ME..MS122,123 |
1 | ||
| 13594 - SHAFT, TENSION GEAR ARM | ||||
| 13594-45010 |
5M,5ME..MS122,123 |
1 | ||
| 13612 - SHAFT, PUMP DRIVE | ||||
| 13612-41010 |
5M,5ME..MS122,123 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-43030 |
5MGE,6MGE..MS123,125 |
6 | ||
| 13711-43020 |
5M,5ME..MS122,123 |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02015 |
5M,5ME..MS122,123 EXHAUST |
6 | ||
| 90913-02022 |
5M,5ME..MS122,123 INTAKE |
6 | ||
| 90913-02053 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02015 |
5M,5ME..MS122,123 EXHAUST |
6 | ||
| 90913-02022 |
5M,5ME..MS122,123 INTAKE |
6 | ||
| 90913-02053 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-26001 |
5M,5ME..MS122,123 WD=2.6,CW=7.75 |
12 | ||
| 90501-45017 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-26001 |
5M,5ME..MS122,123 WD=2.6,CW=7.75 |
12 | ||
| 90501-45017 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45002 |
5M,5ME..MS122,123 WD=4.5,CW=6.2 |
12 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-45002 |
5M,5ME..MS122,123 WD=4.5,CW=6.2 |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-14310 |
5M,5ME..MS122,123 |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-14310 |
5M,5ME..MS122,123 |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-43010 |
5MGE,6MGE..MS123,125 |
6 | ||
| 13715-45020 |
5M,5ME..MS122,123 |
6 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-43010 |
5MGE,6MGE..MS123,125 INTAKE |
6 | ||
| 13740-43010 |
5MGE,6MGE..MS123,125 EXHAUST |
6 | ||
| 13741-41010 |
5M,5ME..MS122,123 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-43010 |
5MGE,6MGE..MS123,125 INTAKE |
6 | ||
| 13740-43010 |
5MGE,6MGE..MS123,125 EXHAUST |
6 | ||
| 13741-41010 |
5M,5ME..MS122,123 |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
5M#,6MGE..MS12# |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
5M#,6MGE..MS12# |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
5M#,6MGE..MS12# |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
5M#,6MGE..MS12# |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73076 |
5M,5ME..MS122,123 |
12 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
5M,5ME..MS122,123 |
12 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08210 |
5M,5ME..MS122,123 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
5M,5ME..MS122,123 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05019 |
5M,5ME..MS122,123 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-14013 |
5M,5ME..MS122,123 WD=1.4,CW=9 |
12 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-45010 |
5M,5ME..MS122,123 |
1 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
5M,5ME..MS122,123 |
1 | ||
| 13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13902-45011 |
5M,5ME..MS122,123 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-45011 |
5M,5ME..MS122,123 |
1 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90109-06014 |
5M,5ME..MS122,123 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-45010 |
5M,5ME..MS122,123 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-45010 |
5M,5ME..MS122,123 |
2 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-45011 |
5M,5ME..MS122,123 |
2 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-45011 |
5M,5ME..MS122,123 |
2 | ||
| 13954 - SUPPORT, VALVE ROCKER, NO.4 | ||||
| 13954-45012 |
5M,5ME..MS122,123 |
1 | ||
| 13955 - SUPPORT, VALVE ROCKER, NO.5 | ||||
| 13955-45010 |
5M,5ME..MS122,123 |
1 | ||
| Common parts | ||||
| 90119-08302 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1104 | ||||

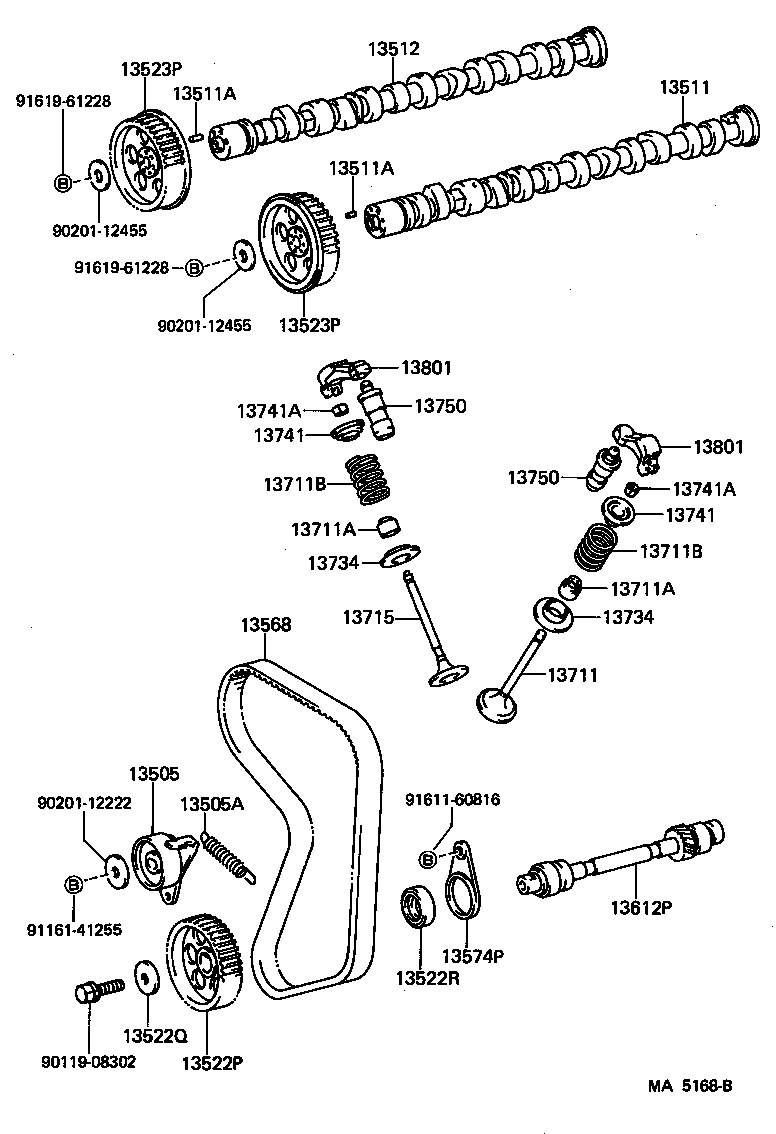

(8308- )5MGE,6MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-18008 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
5MGE,6MGE..MS123,125 L=15,OD=5 |
2 | ||
| 90249-08042 |
5M,5ME..MS122,123 L=23,OD=8 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
5MGE,6MGE..MS123,125 L=15,OD=5 |
2 | ||
| 90249-08042 |
5M,5ME..MS122,123 L=23,OD=8 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13522P - PULLEY, PUMP DRIVE SHAFT | ||||
| 13524-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13522Q - WASHER, PLATE(FOR PUMP DRIVE SHAFT PULLEY) | ||||
| 90201-08020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13522R - COLLAR(FOR PUMP DRIVE SHAFT PULLEY) | ||||
| 90387-26001 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-43040 |
5MGE,6MGE..MS123,125 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-43040 |
5MGE,6MGE..MS123,125 |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-43030 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13574P - PLATE, PUMP DRIVE SHAFT THRUST | ||||
| 13574-41010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 13612P - SHAFT, PUMP DRIVE | ||||
| 13612-43010 |
5MGE..MS123 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-43030 |
5MGE,6MGE..MS123,125 |
6 | ||
| 13711-43020 |
5M,5ME..MS122,123 |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02015 |
5M,5ME..MS122,123 EXHAUST |
6 | ||
| 90913-02022 |
5M,5ME..MS122,123 INTAKE |
6 | ||
| 90913-02053 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02015 |
5M,5ME..MS122,123 EXHAUST |
6 | ||
| 90913-02022 |
5M,5ME..MS122,123 INTAKE |
6 | ||
| 90913-02053 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-26001 |
5M,5ME..MS122,123 WD=2.6,CW=7.75 |
12 | ||
| 90501-45017 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-26001 |
5M,5ME..MS122,123 WD=2.6,CW=7.75 |
12 | ||
| 90501-45017 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-43010 |
5MGE,6MGE..MS123,125 |
6 | ||
| 13715-45020 |
5M,5ME..MS122,123 |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-43010 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-43010 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-43010 |
5MGE,6MGE..MS123,125 INTAKE |
6 | ||
| 13740-43010 |
5MGE,6MGE..MS123,125 EXHAUST |
6 | ||
| 13741-41010 |
5M,5ME..MS122,123 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-43010 |
5MGE,6MGE..MS123,125 INTAKE |
6 | ||
| 13740-43010 |
5MGE,6MGE..MS123,125 EXHAUST |
6 | ||
| 13741-41010 |
5M,5ME..MS122,123 |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
5M#,6MGE..MS12# |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
5M#,6MGE..MS12# |
24 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70010 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-70010 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-43020 |
5MGE,6MGE..MS123,125 |
12 | ||
| 13801-41051 |
5M,5ME..MS122,123 |
12 | ||
| Common parts | ||||
| 90119-08302 | ||||
| 90201-12222 | ||||
| 90201-12455 | ||||
| 91161-41255 | ||||
| 91611-60816 | ||||
| 91619-61228 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
