MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5MGE,6MGE

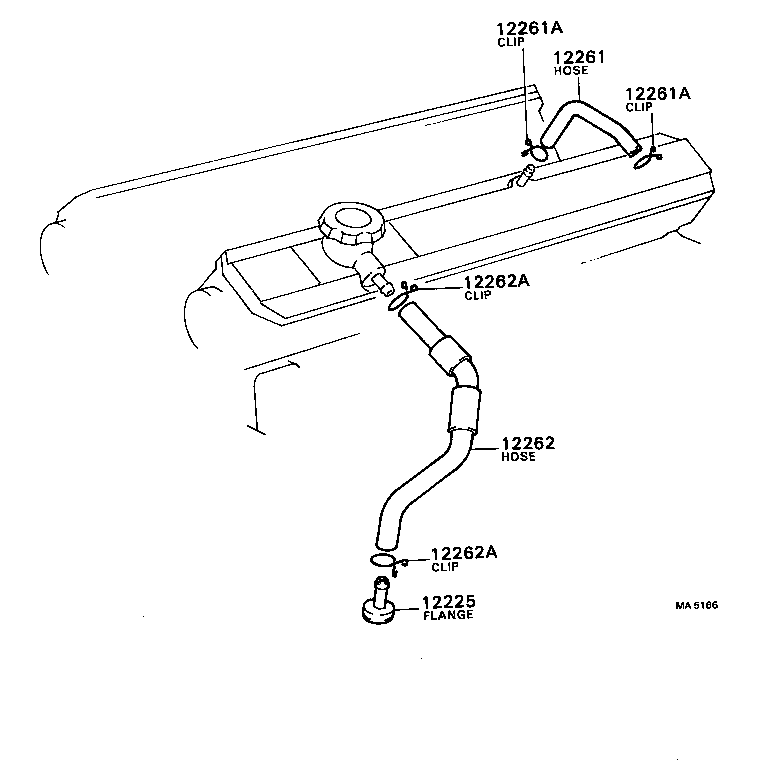

Click highlighted areas on diagram

diagram 12225 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12225 - FLANGE, VENTILATION
12225-43010

5MGE,6MGE..MS123,125

 1
12261 - HOSE, VENTILATION
12261-43010

5MGE,6MGE..MS123,125

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

5M,5MGE,6MGE..MS12#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

5M,5MGE,6MGE..MS12#

 2
12262 - HOSE, VENTILATION, NO.2
12262-43010

5MGE,6MGE..MS123,125

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-20002

5ME,5MGE,6MGE..MS12#

ID=20

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-20002

5ME,5MGE,6MGE..MS12#

ID=20

 2

(8308- )5M

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12263 12263A 12263A 1701
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-43010

5MGE,6MGE..MS123,125

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

5M,5MGE,6MGE..MS12#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

5M,5MGE,6MGE..MS12#

 2
Linked diagrams
1701
