MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5MGE,6MGE

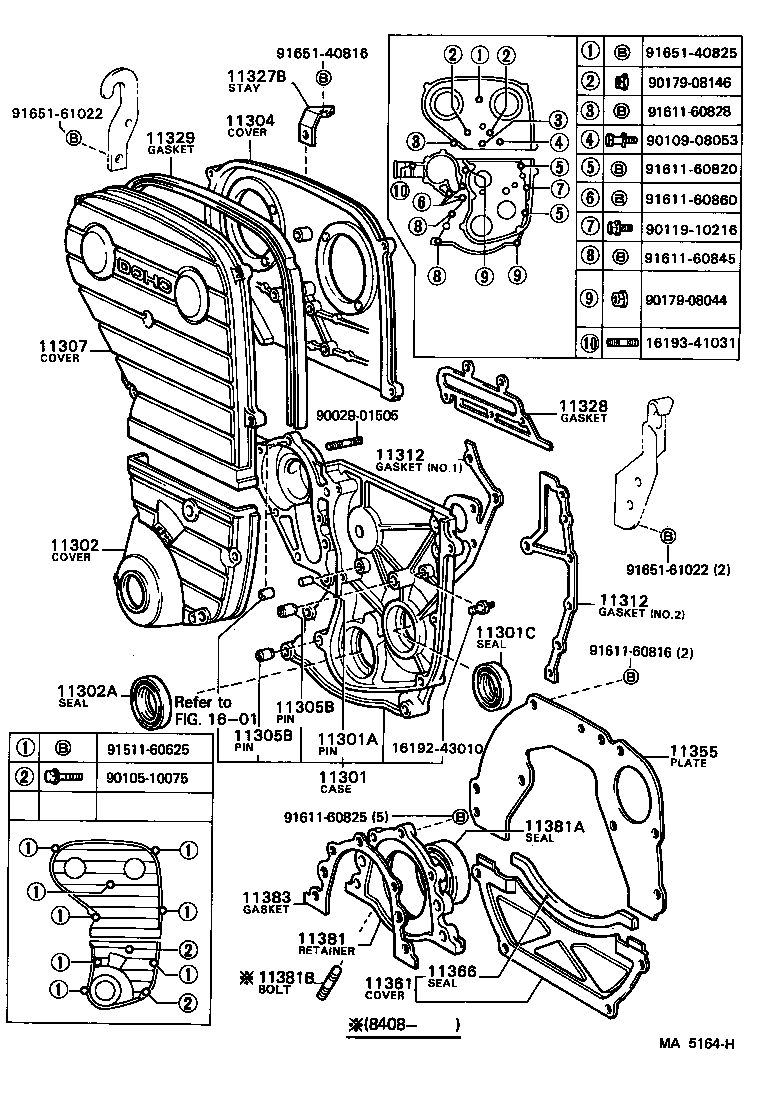

Click highlighted areas on diagram

diagram 11301 11301A 11301C 11302 11302A 11304 11305B 11305B 11307 11312 11312 11327B 11328 11329 11355 11361 11366 11381 11381A 11381D 11383 1601 1619243010 1619341031 9002901505 9010510075 9010908053 9011910216 9017908044 9017908146 9151160625 9161160816 9161160820 9161160825 9161160828 9161160845 9161160860 9165140816 9165140825 9165161022 9165161022
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-43010

5MGE..MS123

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08074

5MGE,6MGE..MS123,125

L=15,OD=8

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42003

5MGE..MS123

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-41020

5M,5ME..MS12#

 1
11321-43010

5MGE..MS123

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

5M,5ME..MS122,123

HTC 3 45 6812

 1
90311-48004

5MGE..MS123

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-43010

5MGE,6MGE..MS123,125

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-13013

5MGE,6MGE..MS123,125

OD=13

 1
90253-11001

5MGE,6MGE..MS123,125

OD=11

 2
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-13013

5MGE,6MGE..MS123,125

OD=13

 1
90253-11001

5MGE,6MGE..MS123,125

OD=11

 2
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-43010

5MGE,6MGE..MS123,125

 1
11312 - GASKET, FRONT END PLATE
11313-43010

5MGE,6MGE..MS123,125

NO.2

 1
11312-43010

5MGE,6MGE..MS123,125

NO.1

 1
11312 - GASKET, FRONT END PLATE
11313-43010

5MGE,6MGE..MS123,125

NO.2

 1
11312-43010

5MGE,6MGE..MS123,125

NO.1

 1
11327B - STAY, TIMING BELT COVER
11327-43010

5MGE,6MGE..MS123,125

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-43010

5MGE,6MGE..MS123,125

 1
11328-41010

5M,5ME..MS122,123

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-43010

5MGE,6MGE..MS123,125

 1
11355 - PLATE, REAR END
11355-41010

5M#,6MGE..MS12#

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-45010

5M#,6MGE..MS12#

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
31131-30010

5M#,6MGE..MS12#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41011

5M#..MS12#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

5M#,6MGE..MS12#

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

5M#,6MGE..MS12#

 1
Common parts
16192-43010
16193-41031
90029-01505
90105-10075
90109-08053
90119-10216
90179-08044
90179-08146
91511-60625
91611-60816
91611-60820
91611-60825
91611-60828
91611-60845
91611-60860
91651-40816
91651-40825
91651-61022
Linked diagrams
1601

(8308- )5M,5ME

Click highlighted areas on diagram

diagram 1104 11302 11302A 11328 11338 11355 11361 11366 11381 11381A 11381B 11383 9011608083 9017908044 9017910026 9111141055 9161160816 9161160816 9161160825 9161160855 9451201000 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-41020

5M,5ME..MS12#

 1
11321-43010

5MGE..MS123

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

5M,5ME..MS122,123

HTC 3 45 6812

 1
90311-48004

5MGE..MS123

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-43010

5MGE,6MGE..MS123,125

 1
11328-41010

5M,5ME..MS122,123

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-41010

5M,5ME..MS122,123

 1
11355 - PLATE, REAR END
11355-41010

5M#,6MGE..MS12#

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-45010

5M#,6MGE..MS12#

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
31131-30010

5M#,6MGE..MS12#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41011

5M#..MS12#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

5M#,6MGE..MS12#

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

5M#,6MGE..MS12#

 1
Common parts
90116-08083
90179-08044
90179-10026
91111-41055
91611-60816
91611-60825
91611-60855
94512-01000
94531-00800
Linked diagrams
1104
