MS123L-SEPQF (1983)
Toyota Crown
(8308- )5MGE,6MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-43040 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02058 |
5M,5ME..MS122,123 *12-1.25PX166.5-21 |
14 | ||
| 90110-12001 |
5MGE,6MGE..MS123,125 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12027 |
5MGE,6MGE..MS123,125 |
14 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-33133 |
5M,5ME..MS122,123 |
3 | ||
| 90430-20004 |
5MGE,6MGE..MS123,125 |
3 | ||
| 11113 - HOUSING, CAMSHAFT, NO.1 | ||||
| 11113-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11113A - SEAL, OIL(FOR CAMSHAFT HOUSING) | ||||
| 90311-38013 |
5MGE,6MGE..MS123,125 |
2 | ||
| 11113A - SEAL, OIL(FOR CAMSHAFT HOUSING) | ||||
| 90311-38013 |
5MGE,6MGE..MS123,125 |
2 | ||
| 11114 - HOUSING, CAMSHAFT, NO.2 | ||||
| 11114-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-08054 |
5MGE,6MGE..MS123,125 L=23,OD=8 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-43021 |
5M,5ME..MS122,123 |
1 | ||
| 11115-43030 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11117 - GASKET, CAMSHAFT HOUSING, NO.1 | ||||
| 11117-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
5MGE,6MGE..MS123,125 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-32031 |
5MGE,6MGE..MS123,125 |
3 | ||
| 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 | ||||
| 90341-36001 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-36001 |
5M#,6MGE..MS12# |
1 | ||
| 11118 - GASKET, CAMSHAFT HOUSING, NO.2 | ||||
| 11118-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11118F - PLUG, TAPER, NO.1 | ||||
| 90072-33614 |
5MGE,6MGE..MS123,125 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-43010 |
5MGE,6MGE..MS123,125 O/S 0.05,O/S 0.05 |
6 | ||
| 11122-41020 |
5M,5ME..MS122,123 STD,STD |
6 | ||
| 11123-41020 |
5M,5ME..MS122,123 O/S 0.05,O/S 0.05 |
6 | ||
| 11122-43010 |
5MGE,6MGE..MS123,125 STD,STD |
6 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
5M#,6MGE..MS12# |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-41040 |
5M,5ME..MS122,123 STD,STD |
6 | ||
| 11122-43010 |
5MGE,6MGE..MS123,125 STD,STD |
6 | ||
| 11127-41040 |
5M,5ME..MS122,123 O/S 0.05,O/S 0.05 |
6 | ||
| 11123-43010 |
5MGE,6MGE..MS123,125 O/S 0.05,O/S 0.05 |
6 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
5M#,6MGE..MS12# |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-43010 |
5M,5ME..MS122,123 O/S 0.03,O/S 0.03 |
6 | ||
| 11132-43020 |
5MGE,6MGE..MS123,125 O/S 0.03,O/S 0.03 |
6 | ||
| 11131-43010 |
5M,5ME..MS122,123 STD,STD |
6 | ||
| 11131-43020 |
5MGE,6MGE..MS123,125 STD,STD |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-45010 |
5M,5ME..MS122,123 STD,STD |
6 | ||
| 11136-43010 |
5MGE,6MGE..MS123,125 O/S 0.03,O/S 0.03 |
6 | ||
| 11135-43010 |
5MGE,6MGE..MS123,125 STD,STD |
6 | ||
| 11136-45010 |
5M,5ME..MS122,123 O/S 0.03,O/S 0.03 |
6 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10003 |
5MGE,6MGE..MS123,125 |
2 | ||
| 11185A - COVER, CAMSHAFT REAR HOUSING, NO.1 | ||||
| 11185-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11185B - RING, O | ||||
| 90301-56001 |
5MGE,6MGE..MS123,125 |
2 | ||
| 11186A - COVER, CAMSHAFT REAR HOUSING, NO.2 | ||||
| 11185-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-49146 |
5M,5ME..MS122,123 |
1 | ||
| 11201-49195 |
5MGE,6MGE..MS123,125 NO.1 |
1 | ||
| 11212-49015 |
5MGE,6MGE..MS123,125 NO.2 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-49146 |
5M,5ME..MS122,123 |
1 | ||
| 11201-49195 |
5MGE,6MGE..MS123,125 NO.1 |
1 | ||
| 11212-49015 |
5MGE,6MGE..MS123,125 NO.2 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09002 |
5M,5ME..MS122,123 CTR,RR |
2 | ||
| 90210-09009 |
5M,5ME..MS122,123 FR |
1 | ||
| 90210-06003 |
5MGE,6MGE..MS123,125 |
8 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09002 |
5M,5ME..MS122,123 CTR,RR |
2 | ||
| 90210-09009 |
5M,5ME..MS122,123 FR |
1 | ||
| 90210-06003 |
5MGE,6MGE..MS123,125 |
8 | ||
| 11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION) | ||||
| 90406-14002 |
5MGE,6MGE..MS123,125 NO.2 |
1 | ||
| 17361-41010 |
5MGE,6MGE..MS123,125 NO.1 |
1 | ||
| 11201F - UNION(FOR POSITIVE CRANKCASE VENTILATION) | ||||
| 90406-14002 |
5MGE,6MGE..MS123,125 NO.2 |
1 | ||
| 17361-41010 |
5MGE,6MGE..MS123,125 NO.1 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-43020 |
5MGE,6MGE..MS123,125 |
2 | ||
| 11213-41020 |
5M,5ME..MS122,123 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-43020 |
5MGE,6MGE..MS123,125 |
2 | ||
| 11213-41020 |
5M,5ME..MS122,123 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-70010 |
5M#,6MGE..MS12# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
5M#,6MGE..MS12# |
1 | ||
| 15320 - REGULATOR ASSY, OIL PRESSURE | ||||
| 15320-43020 |
5MGE,6MGE..MS123,125 |
1 | ||
| 15320A - SPRING, OIL PRESSURE REGULATOR VALVE | ||||
| 90029-60004 |
5MGE,6MGE..MS123,125 |
1 | ||
| 15321A - VALVE, OIL PRESSURE REGULATOR | ||||
| 15131-38030 |
5MGE,6MGE..MS123,125 |
1 | ||
| 15323B - BOLT, OIL PRESSURE REGULATOR | ||||
| 15133-20010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 15323C - GASKET, OIL PRESSURE REGULATOR BOLT | ||||
| 15134-20010 |
5MGE,6MGE..MS123,125 |
1 | ||
| 15328 - GASKET, OIL PRESSURE REGULATOR | ||||
| 15328-43010 |
5MGE,6MGE..MS123,125 |
1 | ||
| Common parts | ||||
| 90105-08032 | ||||
| 90116-08145 | ||||
| 90119-06095 | ||||
| 90158-60004 | ||||
| 90179-08040 | ||||
| 91611-60635 | ||||
| 92122-40825 | ||||

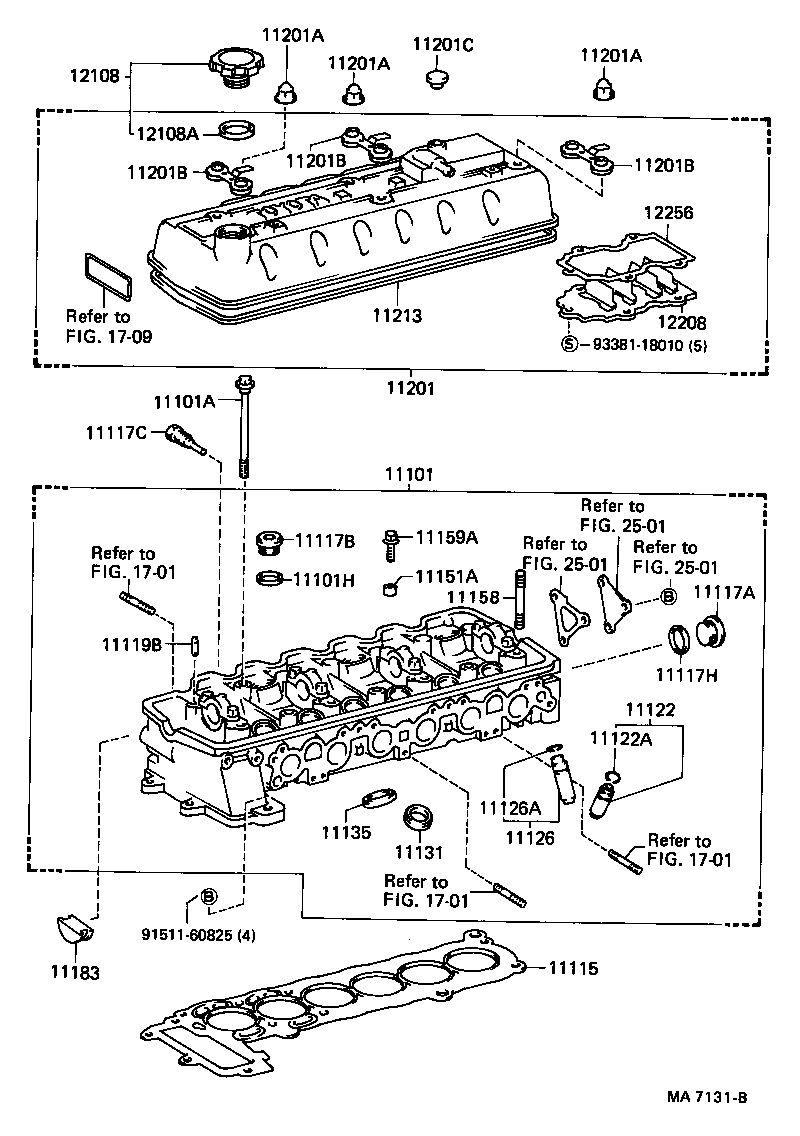

(8308- )5M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-43040 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02058 |
5M,5ME..MS122,123 *12-1.25PX166.5-21 |
14 | ||
| 90110-12001 |
5MGE,6MGE..MS123,125 |
14 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-33133 |
5M,5ME..MS122,123 |
3 | ||
| 90430-20004 |
5MGE,6MGE..MS123,125 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-43021 |
5M,5ME..MS122,123 |
1 | ||
| 11115-43030 |
5MGE,6MGE..MS123,125 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-36001 |
5M,5ME..MS122,123 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-32070 |
5M,5ME..MS122,123 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-36001 |
5M#,6MGE..MS12# |
1 | ||
| 11119B - PIN, STRAIGHT, NO.2 | ||||
| 90253-08001 |
5M,5ME..MS122,123 L=18,OD=7.9 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-43010 |
5MGE,6MGE..MS123,125 O/S 0.05,O/S 0.05 |
6 | ||
| 11122-41020 |
5M,5ME..MS122,123 STD,STD |
6 | ||
| 11123-41020 |
5M,5ME..MS122,123 O/S 0.05,O/S 0.05 |
6 | ||
| 11122-43010 |
5MGE,6MGE..MS123,125 STD,STD |
6 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
5M#,6MGE..MS12# |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-41040 |
5M,5ME..MS122,123 STD,STD |
6 | ||
| 11122-43010 |
5MGE,6MGE..MS123,125 STD,STD |
6 | ||
| 11127-41040 |
5M,5ME..MS122,123 O/S 0.05,O/S 0.05 |
6 | ||
| 11123-43010 |
5MGE,6MGE..MS123,125 O/S 0.05,O/S 0.05 |
6 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
5M#,6MGE..MS12# |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-43010 |
5M,5ME..MS122,123 O/S 0.03,O/S 0.03 |
6 | ||
| 11132-43020 |
5MGE,6MGE..MS123,125 O/S 0.03,O/S 0.03 |
6 | ||
| 11131-43010 |
5M,5ME..MS122,123 STD,STD |
6 | ||
| 11131-43020 |
5MGE,6MGE..MS123,125 STD,STD |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-45010 |
5M,5ME..MS122,123 STD,STD |
6 | ||
| 11136-43010 |
5MGE,6MGE..MS123,125 O/S 0.03,O/S 0.03 |
6 | ||
| 11135-43010 |
5MGE,6MGE..MS123,125 STD,STD |
6 | ||
| 11136-45010 |
5M,5ME..MS122,123 O/S 0.03,O/S 0.03 |
6 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
5M,5ME..MS122,123 L=8,OD=11,L=8,OD=11 |
8 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-08003 |
5M,5ME..MS122,123 L=51,L=51,S=14&8.5 |
6 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91611-60825 |
5M,5ME..MS122,123 |
8 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-45020 |
5M,5ME..MS122,123 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-49146 |
5M,5ME..MS122,123 |
1 | ||
| 11201-49195 |
5MGE,6MGE..MS123,125 NO.1 |
1 | ||
| 11212-49015 |
5MGE,6MGE..MS123,125 NO.2 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08015 |
5M,5ME..MS122,123 |
6 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08015 |
5M,5ME..MS122,123 |
6 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08015 |
5M,5ME..MS122,123 |
6 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09002 |
5M,5ME..MS122,123 CTR,RR |
2 | ||
| 90210-09009 |
5M,5ME..MS122,123 FR |
1 | ||
| 90210-06003 |
5MGE,6MGE..MS123,125 |
8 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09002 |
5M,5ME..MS122,123 CTR,RR |
2 | ||
| 90210-09009 |
5M,5ME..MS122,123 FR |
1 | ||
| 90210-06003 |
5MGE,6MGE..MS123,125 |
8 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09002 |
5M,5ME..MS122,123 CTR,RR |
2 | ||
| 90210-09009 |
5M,5ME..MS122,123 FR |
1 | ||
| 90210-06003 |
5MGE,6MGE..MS123,125 |
8 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-43020 |
5MGE,6MGE..MS123,125 |
2 | ||
| 11213-41020 |
5M,5ME..MS122,123 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-70010 |
5M#,6MGE..MS12# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
5M#,6MGE..MS12# |
1 | ||
| 12208 - PLATE SUB-ASSY, VENTILATION BAFFLE | ||||
| 12208-41010 |
5M,5ME..MS122,123 |
1 | ||
| 12256 - GASKET, VENTILATION BAFFLE | ||||
| 12256-41021 |
5M,5ME..MS122,123 |
1 | ||
| Common parts | ||||
| 91511-60825 | ||||
| 93381-18010 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1709 | ||||
| 2501 | ||||
