MS123L-SEPGFW (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

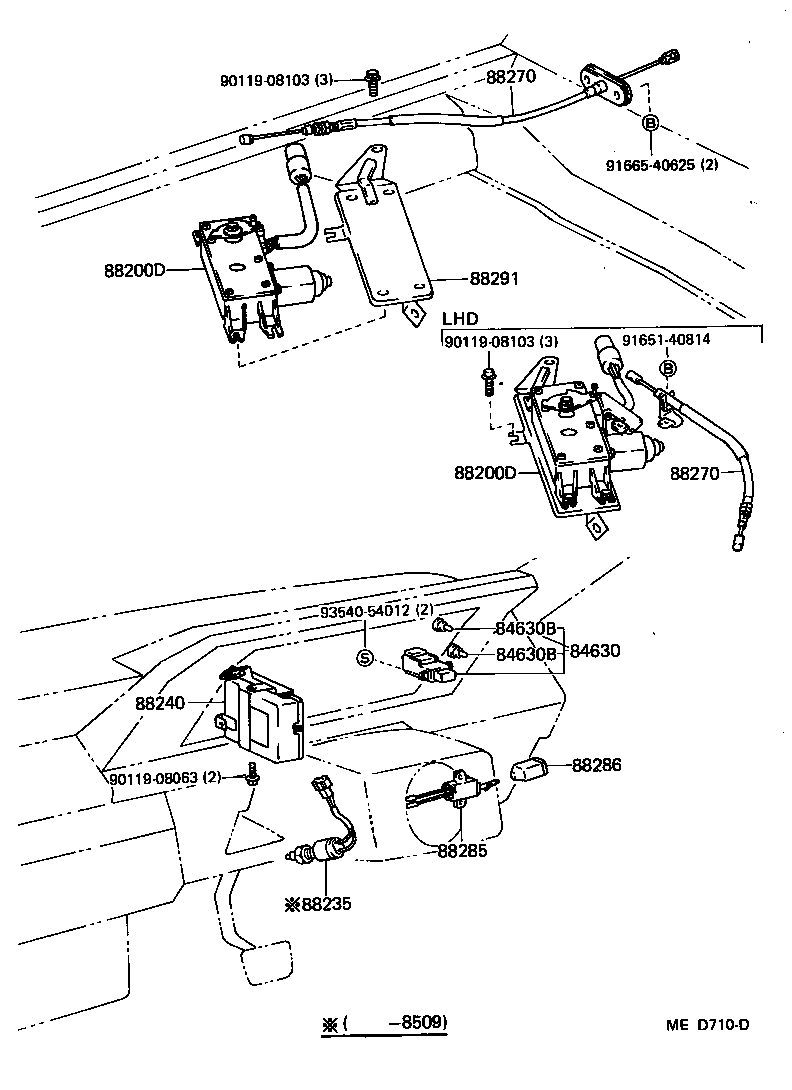

Click highlighted areas on diagram

diagram 84630 84630B 84630B 88200D 88200D 88235 88240 88270 88270 88285 88286 88291 9011908063 9011908103 9011908103 9165140814 9166540625 9354054012
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-30030

MS123,125..ARL,EUG,GEN,SAA

 1
84630B - BULB(FOR CRUISE CONTROL SWITCH)
84999-10170

MS123,125..ARL,EUG,GEN,SAA

12V 1.12W,12V 1.1W

 2
84630B - BULB(FOR CRUISE CONTROL SWITCH)
84999-10170

MS123,125..ARL,EUG,GEN,SAA

12V 1.12W,12V 1.1W

 2
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-30121

MS123..LHD..(EUG,GEN,SAA)

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-30121

MS123..LHD..(EUG,GEN,SAA)

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-30110

MS123..LHD..(EUG,GEN,SAA)

 1
88270 - CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)
83731-30081

MS123,125..LHD..(EUG,GEN,SAA)

 1
88270 - CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)
83731-30081

MS123,125..LHD..(EUG,GEN,SAA)

 1
88285 - SWITCH, CRUISE CONTROL
88285-30011

MS123,125..ARL,EUG,GEN,SAA

 1
88286 - KNOB, SPEED CONTROL SWITCH
88286-30021

MS123,125..ARL,EUG,GEN,SAA

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-30050

MS123,125..ARL,EUG,GEN,SAA

 1
Common parts
90119-08063
90119-08103
91651-40814
91665-40625
93540-54012
