MS122R-SEPQS (1983)
Toyota Crown
(8308- )

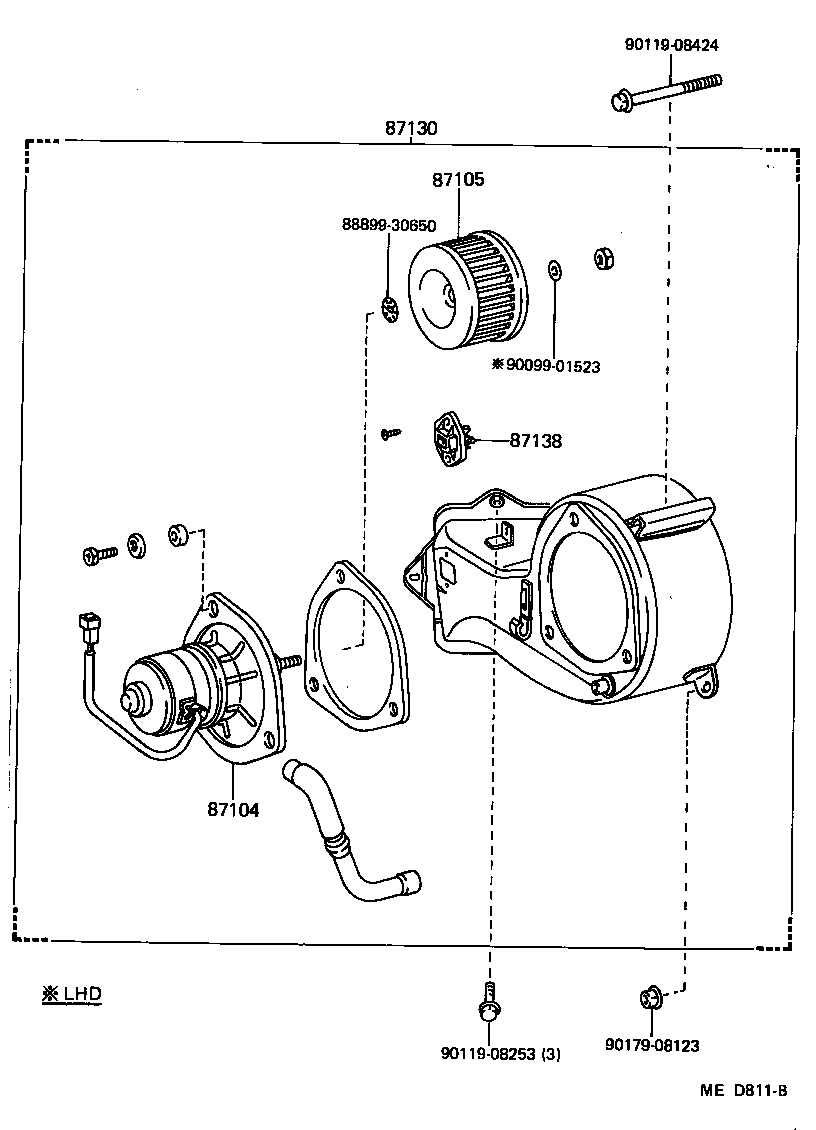

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-30360 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 87104-30361 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87134-30010 |
LS120,MS12#,YS120..RHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-30350 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-30300 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| Common parts | ||||
| 88899-30650 | ||||
| 90099-01523 | ||||
| 90119-08253 | ||||
| 90119-08424 | ||||
| 90179-08123 | ||||

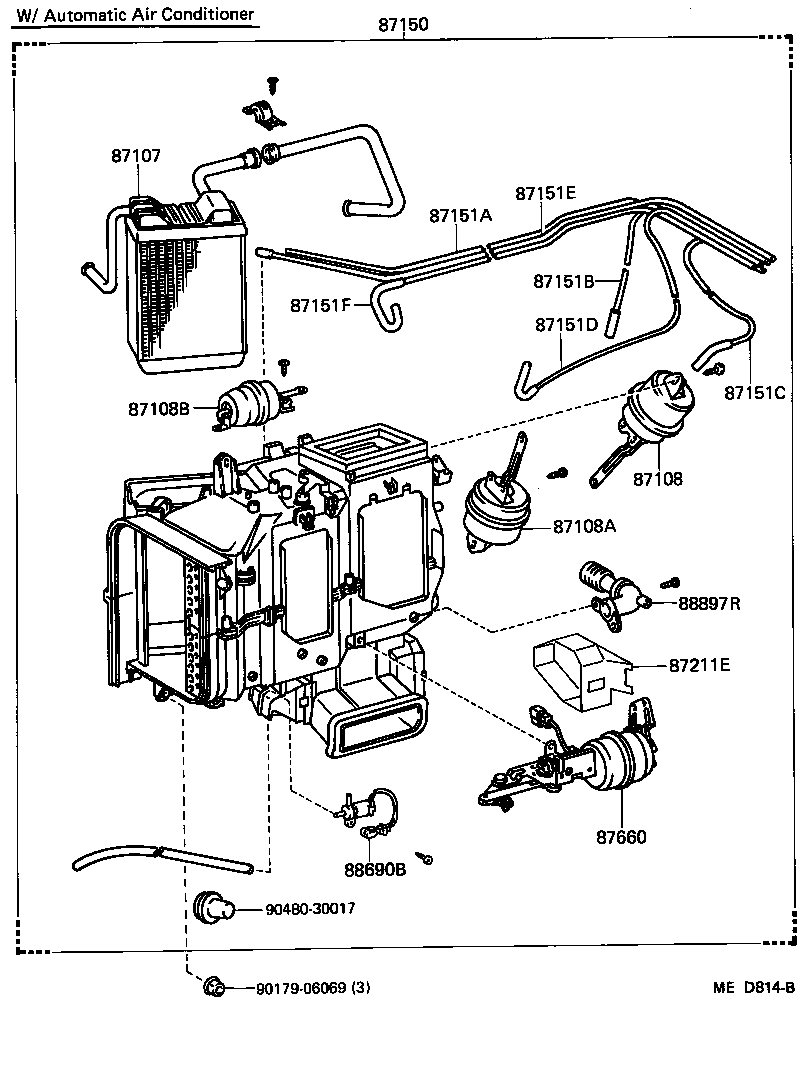

(8308- )RHD..ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30360 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30390 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL | ||||
| 87108-30380 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL | ||||
| 87108-30400 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30440 |
MS12#..RHD..ROY |
1 | ||
| 87150-30480 |
MS12#..RHD..ROY |
1 | ||
| 87151A - HOSE, VACUUM, A | ||||
| 90447-04005 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 90447-04073 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 87151B - HOSE, VACUUM, B | ||||
| 90447-04011 |
MS12#..ROY W/*AAC |
1 | ||
| 87151C - HOSE, VACUUM, C | ||||
| 90447-04014 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 87151D - HOSE, VACUUM, D | ||||
| 90447-04018 |
MS12#..ROY W/*AAC |
1 | ||
| 90447-04018 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 87151E - HOSE, VACUUM, E | ||||
| 90447-04020 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 90447-04074 |
MS12#..ROY W/*AAC |
1 | ||
| 87151F - HOSE, VACUUM, F | ||||
| 90447-04023 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-30140 |
LS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F) |
1 | ||
| 87660 - SERVO ASSY, AIR CONDITIONER | ||||
| 88660-30340 |
MS12#..RHD..ROY |
1 | ||
| 88690B - VALVE ASSY, COOLER MAGNET | ||||
| 88690-30600 |
MS12#..ROY |
1 | ||
| 88897R - ASPIRATOR | ||||
| 88897-30640 |
MS12#..RHD..ROY |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 90480-30017 | ||||

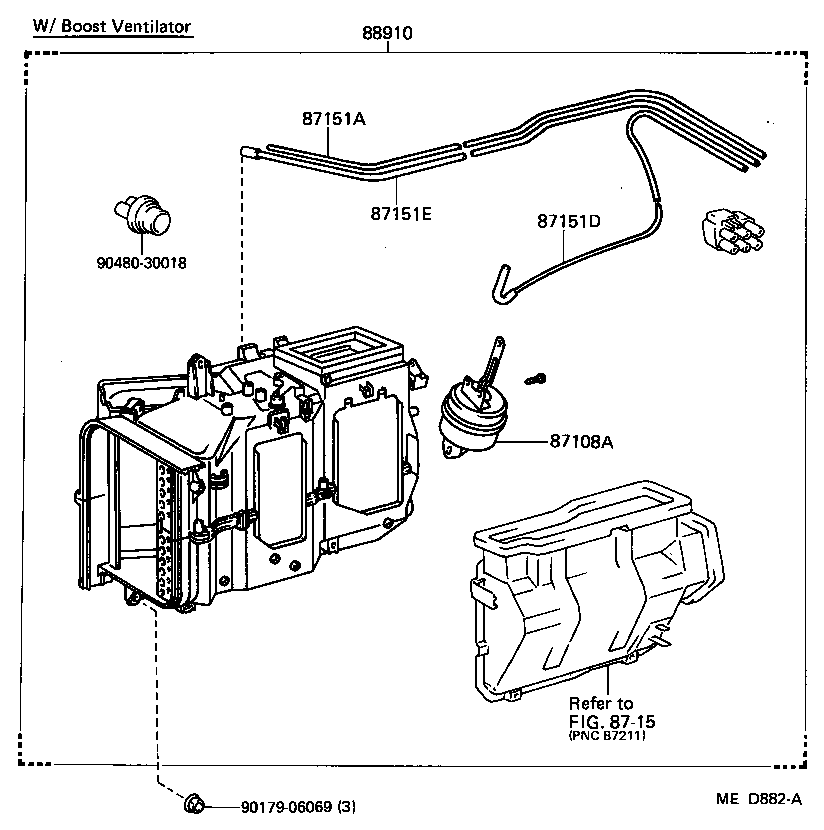

(8308- )LS120..4F,5F ; (8308- )LS120..LHD..STD ; (8308- )MS122,123,YS120..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL | ||||
| 87108-30380 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 87151A - HOSE, VACUUM, A | ||||
| 90447-04005 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 90447-04073 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 87151D - HOSE, VACUUM, D | ||||
| 90447-04018 |
MS12#..ROY W/*AAC |
1 | ||
| 90447-04018 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 87151E - HOSE, VACUUM, E | ||||
| 90447-04020 |
MS12#..RHD..ROY W/*AAC |
1 | ||
| 90447-04074 |
MS12#..ROY W/*AAC |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 90480-30018 | ||||
| Linked diagrams | ||||
| 8715 | ||||
