MS122R-SEPQS (1983)
Toyota Crown

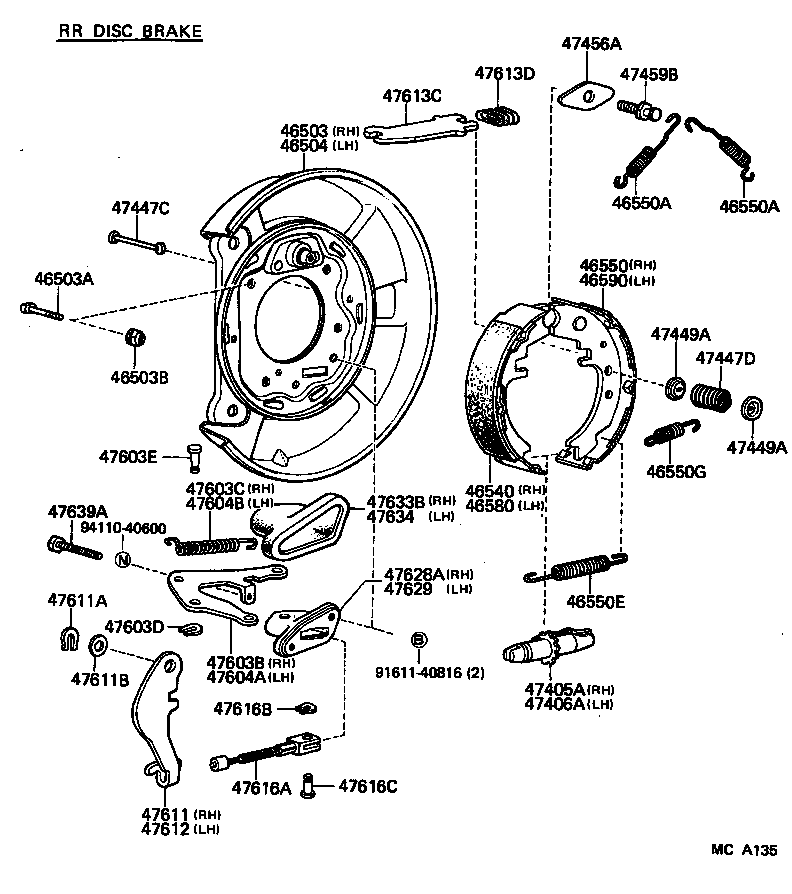

(8308- )MS122..ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30040 |
MS122..ROY |
1 | ||
| 46503A - BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 42184-30030 |
MS122..ROY |
8 | ||
| 46503B - NUT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) | ||||
| 90179-10030 |
MS122..ROY |
8 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30040 |
MS122..ROY |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-30021 |
MS122..ROY |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-30021 |
MS122..ROY |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20031 |
MS122..ROY |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-20031 |
MS122..ROY |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14033 |
MS122..ROY |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12029 |
MS122..ROY |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46580-30021 |
MS122..ROY |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46550-30021 |
MS122..ROY |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
MS123;MS122,125..ROY |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
MS123;MS122,125..ROY |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-22010 |
MS122..ROY |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16050 |
MS122..ROY |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
MS122..ROY |
8 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
MS122..ROY |
8 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-22010 |
MS123;MS122,125..ROY |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
MS123;MS122,125..ROY |
2 | ||
| 47603B - CRANK SUB-ASSY, PARKING BRAKE BELL, RH | ||||
| 47603-30010 |
MS122..ROY |
1 | ||
| 47603C - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RH) | ||||
| 90506-20001 |
MS122..ROY |
1 | ||
| 47603D - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) | ||||
| 90213-06013 |
MS122..ROY |
2 | ||
| 47603E - PIN(FOR PARKING BRAKE BELL CRANK) | ||||
| 90249-08075 |
MS122..ROY |
2 | ||
| 47604A - CRANK SUB-ASSY, PARKING BRAKE BELL,LH | ||||
| 47604-30010 |
MS122..ROY |
1 | ||
| 47604B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK LH) | ||||
| 90506-20002 |
MS122..ROY |
1 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-30050 |
MS122..ROY |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
MS122..ROY |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09185 |
MS122..ROY T=0.6,T=0.6 |
2 | ||
| 90564-09184 |
MS122..ROY T=0.3,T=0.3 |
2 | ||
| 90564-09186 |
MS122..ROY T=0.9,T=0.9 |
2 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-30050 |
MS122..ROY |
1 | ||
| 47613C - STRUT, PARKING BRAKE SHOE | ||||
| 47613-30040 |
MS122..ROY |
2 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90501-12043 |
MS122..ROY |
2 | ||
| 47616A - WIRE, PARKING BRAKE | ||||
| 47616-30050 |
MS122..ROY |
2 | ||
| 47616B - WASHER, TYPE C(FOR PARKING BRAKE WIRE) | ||||
| 90213-04008 |
MS122..ROY |
2 | ||
| 47616C - PIN(FOR PARKING BRAKE WIRE) | ||||
| 90249-07074 |
MS122..ROY |
2 | ||
| 47628A - BRACKET, BELLCRANK, RH(FOR PARKING BRAKE) | ||||
| 47628-30060 |
MS122..ROY |
1 | ||
| 47629 - BRACKET, BELLCRANK, LH(FOR PARKING BRAKE) | ||||
| 47629-30050 |
MS122..ROY |
1 | ||
| 47633B - BOOT, BELLCRANK, RH(FOR PARKING BRAKE) | ||||
| 47633-30040 |
MS122..ROY |
1 | ||
| 47634 - BOOT, BELLCRANK, LH(FOR PARKING BRAKE) | ||||
| 47634-30030 |
MS122..ROY |
1 | ||
| 47639A - BOLT, BELLCRANK STOPPER(FOR PARKING BRAKE) | ||||
| 47639-30020 |
MS122..ROY |
2 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-40600 | ||||

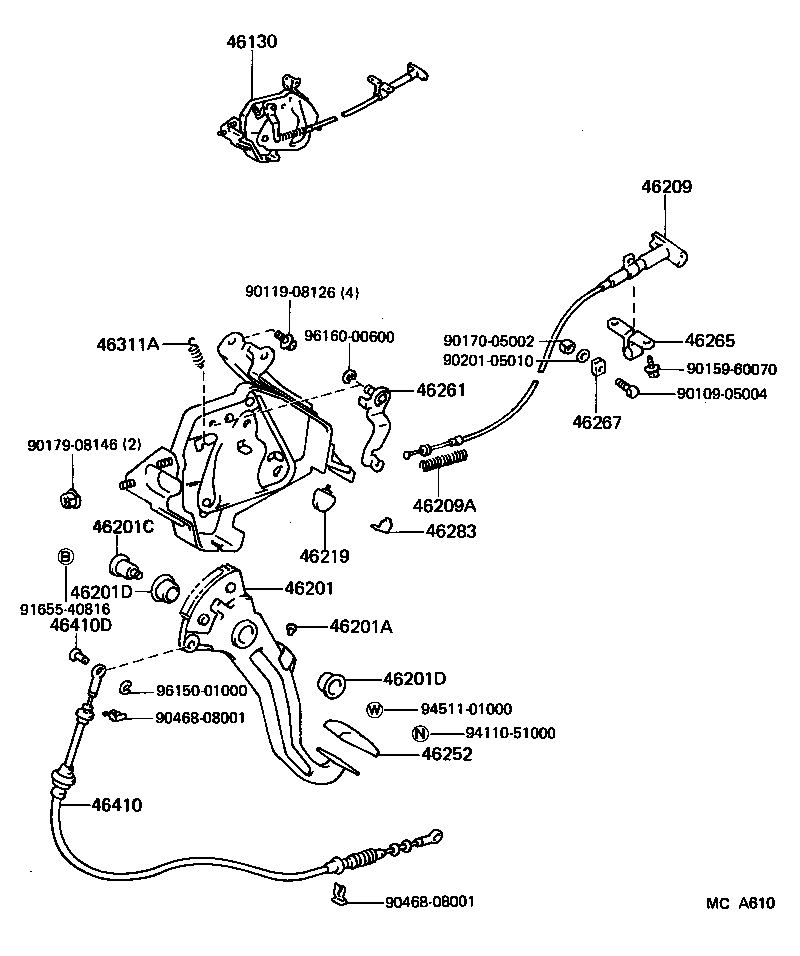

(8308- )RHD..ATM..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30030 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30070 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
MS12#..RHD..ATM..GEN |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
MS12#..RHD..ATM..GEN |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30020 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE) | ||||
| 90501-08030 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 90541-07008 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46261 - LEVER, PARKING BRAKE RELEASE INTERMEDIATE | ||||
| 46261-30020 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46261-22010 |
MS122,125..RHD..ATM |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-30030 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46267 - CUSHION, RELEASE ROD GUIDE INTERMEDIATE | ||||
| 46266-30010 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46283 - PROTECTOR, PARKING BRAKE SIGNAL SWITCH | ||||
| 46283-30010 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90506-07007 |
MS12#..RHD..ATM..GEN |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30330 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 46410-30370 |
MS122..RHD..ATM |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08021 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 90249-10012 |
MS12#..RHD..ATM..GEN |
1 | ||
| Common parts | ||||
| 90109-05004 | ||||
| 90119-08126 | ||||
| 90159-60070 | ||||
| 90170-05002 | ||||
| 90179-08146 | ||||
| 90201-05010 | ||||
| 90468-08001 | ||||
| 91655-40816 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
| 96160-00600 | ||||

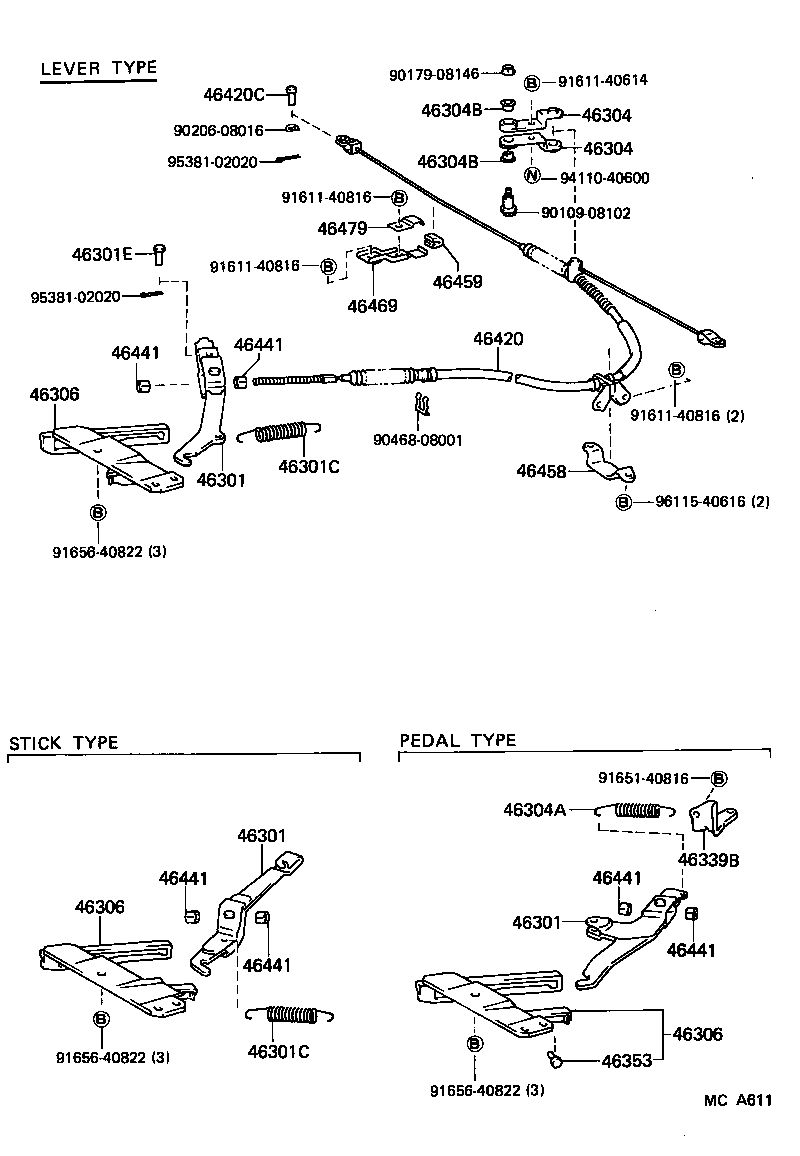

(8308- )LS120,MS122,YS120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30180 |
MS122..RHD..ATM |
1 | ||
| 46301-30170 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30180 |
MS122..RHD..ATM |
1 | ||
| 46301-30170 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30180 |
MS122..RHD..ATM |
1 | ||
| 46301-30170 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08028 |
LS120,MS122,YS120..4F,4FC,4HC,5F |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
LS120,MS122,YS120 |
2 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
LS120,MS122,YS120 |
2 | ||
| 46304A - SPRING, TENSION(FOR PARKING BRAKE EQUALIZER) | ||||
| 90507-20012 |
MS122..RHD..ATM |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LS120,MS122,YS120 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LS120,MS122,YS120 |
2 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30060 |
MS122..RHD..ATM |
1 | ||
| 46306-30050 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30060 |
MS122..RHD..ATM |
1 | ||
| 46306-30050 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30060 |
MS122..RHD..ATM |
1 | ||
| 46306-30050 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 46339B - HANGER, INTERMEDIATE LEVER RETURN SPRING | ||||
| 46339-30010 |
MS122..RHD..ATM |
1 | ||
| 46353 - CUSHION, INTERMEDIATE LEVER | ||||
| 46353-30020 |
MS122..RHD..ATM |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30280 |
LS120,MS122,YS120..4F,5F |
1 | ||
| 46420-30300 |
MS122..ROY |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
LS120,MS12#,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
LS120,MS12#,YS120 |
2 | ||
| 46441-30050 |
LS120,MS122,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
LS120,MS12#,YS120 |
2 | ||
| 46441-30050 |
LS120,MS122,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
LS120,MS12#,YS120 |
2 | ||
| 46441-30050 |
LS120,MS122,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
LS120,MS12#,YS120 |
2 | ||
| 46441-30050 |
LS120,MS122,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
LS120,MS12#,YS120 |
2 | ||
| 46441-30050 |
LS120,MS122,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
LS120,MS12#,YS120 |
2 | ||
| 46441-30050 |
LS120,MS122,YS120 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30042 |
LS120,MS122,YS120 |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
LS120,MS122,YS120 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-31011 |
LS120,MS122,YS120 |
1 | ||
| 46479 - LEVER, CABLE GUIDE SAPPORT, NO.2 | ||||
| 46479-30010 |
LS120,MS122,YS120 |
1 | ||
| Common parts | ||||
| 90109-08102 | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 91611-40614 | ||||
| 91611-40816 | ||||
| 91651-40816 | ||||
| 91656-40822 | ||||
| 94110-40600 | ||||
| 95381-02020 | ||||
| 96115-40616 | ||||
