MS122LG-SWMGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 5M
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5M

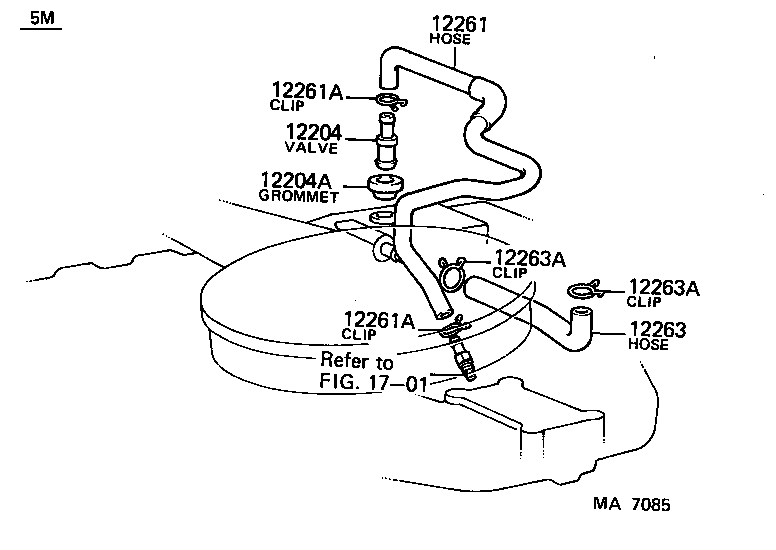

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12263 12263A 12263A 1701
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-45010

5M..MS122

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

5M..MS122

 1
12261 - HOSE, VENTILATION
12261-41070

5M..MS122

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

5M,5MGE,6MGE..MS12#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

5M,5MGE,6MGE..MS12#

 2
12263 - HOSE, VENTILATION, NO.3
12262-41060

5M..MS122

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20002

5M..MS122

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-20002

5M..MS122

 2
Linked diagrams
1701

(8308- )2L

Click highlighted areas on diagram

diagram 12261 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-41070

5M..MS122

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

5M,5MGE,6MGE..MS12#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-16035

5M,5MGE,6MGE..MS12#

 2
