MS122LG-SWJGS (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 5M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )WG

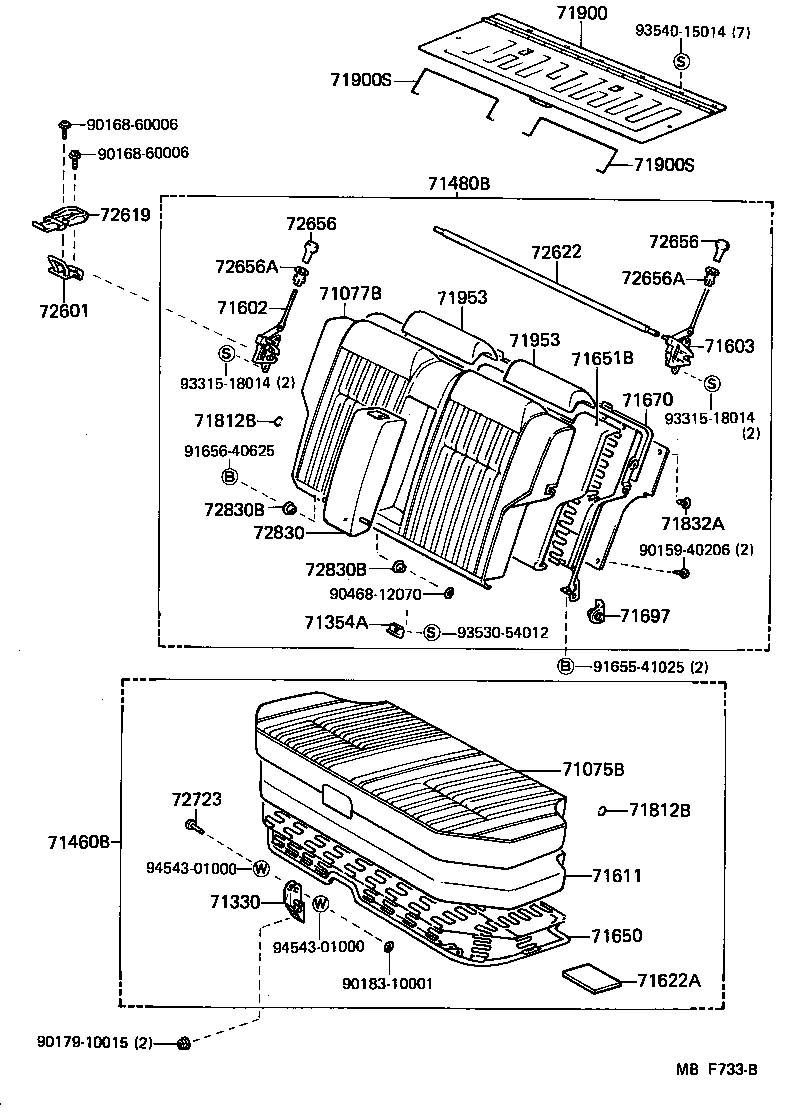

Click highlighted areas on diagram

diagram 71075B 71077B 71330 71354A 71460B 71480B 71602 71603 71611 71622A 71650 71651B 71670 71697 71812B 71812B 71832A 71900 71900S 71900S 71953 71953 72601 72619 72622 72656 72656 72656A 72656A 72723 72830 72830B 72830B 9015940206 9016860006 9016860006 9017910015 9018310001 9046812070 9165541025 9165640625 9331518014 9331518014 9353054012 9354015014 9454301000 9454301000
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9173705

MS122..WG

FB,BEIGE,BEIGE,TRIM4#

 1
71075-9173702

MS122..WG

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-9174002

MS122..WG

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71077-9174005

MS122..WG

FB,BEIGE,BEIGE,TRIM4#

 1
71330 - HINGE ASSY, REAR SEAT CUSHION
71301-91702

MS122..WG

 2
71354A - PLATE, REAR SEAT BACK SET
71354-91602

MS122..WG

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9173805

MS122..WG

FB,BEIGE,BEIGE,TRIM4#

 1
71460-9173802

MS122..WG

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-9177902

MS122..WG

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71480-9177905

MS122..WG

FB,BEIGE,BEIGE,TRIM4#

 1
71602 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-91702

MS122..WG

 1
71603 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-91702

MS122..WG

 1
71611 - PAD, REAR SEAT CUSHION
71503-91702

MS122..WG

 1
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-91701

MS122..WG

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-91707

MS122..WG

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-91716

MS122..WG

 1
71697 - PROTECTOR, REAR SEAT BACK EDGE
71695-91701

MS122..WG

 2
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

LS120,MS12#,YS120

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

LS120,MS12#,YS120

 1
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-0601615

MS122..WG

BEIGE,BEIGE,TRIM4#

 5
90467-0601615

MS122..WG

BEIGE,BEIGE,TRIM4#

 6
90467-0601622

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 5
90467-0601622

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 6
71900 - FLOOR ASSY, REAR SEAT
73505-91703

MS122..WG

 1
71900S - SPRING (FOR REAR SEAT FLOOR)
58489-91701

MS122..WG

LH

 1
58488-91701

MS122..WG

RH

 1
71900S - SPRING (FOR REAR SEAT FLOOR)
58489-91701

MS122..WG

LH

 1
58488-91701

MS122..WG

RH

 1
71953 - PAD, REAR SEAT HEADREST
71953-91701

MS122..WG

 2
71953 - PAD, REAR SEAT HEADREST
71953-91701

MS122..WG

 2
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-91701

MS122..WG

 2
72619 - COVER, REAR SEAT BACK LOCK STRIKER
72619-1401102

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 2
72619-1401105

MS122..WG

BEIGE,BEIGE,TRIM4#

 2
72622 - ROD, REAR SEAT BACK STOPPER CONNECTING
72659-91701

MS122..WG

 1
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72658-9170102

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 2
72658-9170105

MS122..WG

BEIGE,BEIGE,TRIM4#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72658-9170102

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 2
72658-9170105

MS122..WG

BEIGE,BEIGE,TRIM4#

 2
72656A - GROMMET, REAR SEAT BACK STOP BUTTON
72655-2002022

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 2
72655-2002035

MS122..WG

BEIGE,BEIGE,TRIM4#

 2
72656A - GROMMET, REAR SEAT BACK STOP BUTTON
72655-2002022

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 2
72655-2002035

MS122..WG

BEIGE,BEIGE,TRIM4#

 2
72723 - PIN, REAR SEAT CUSHION, NO.2
90240-10119

MS122..WG

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-9170305

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
72830-9170302

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

MS122..WG

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

MS122..WG

 2
Common parts
90159-40206
90168-60006
90179-10015
90183-10001
90468-12070
91655-41025
91656-40625
93315-18014
93530-54012
93540-15014
94543-01000

(8308- )WG

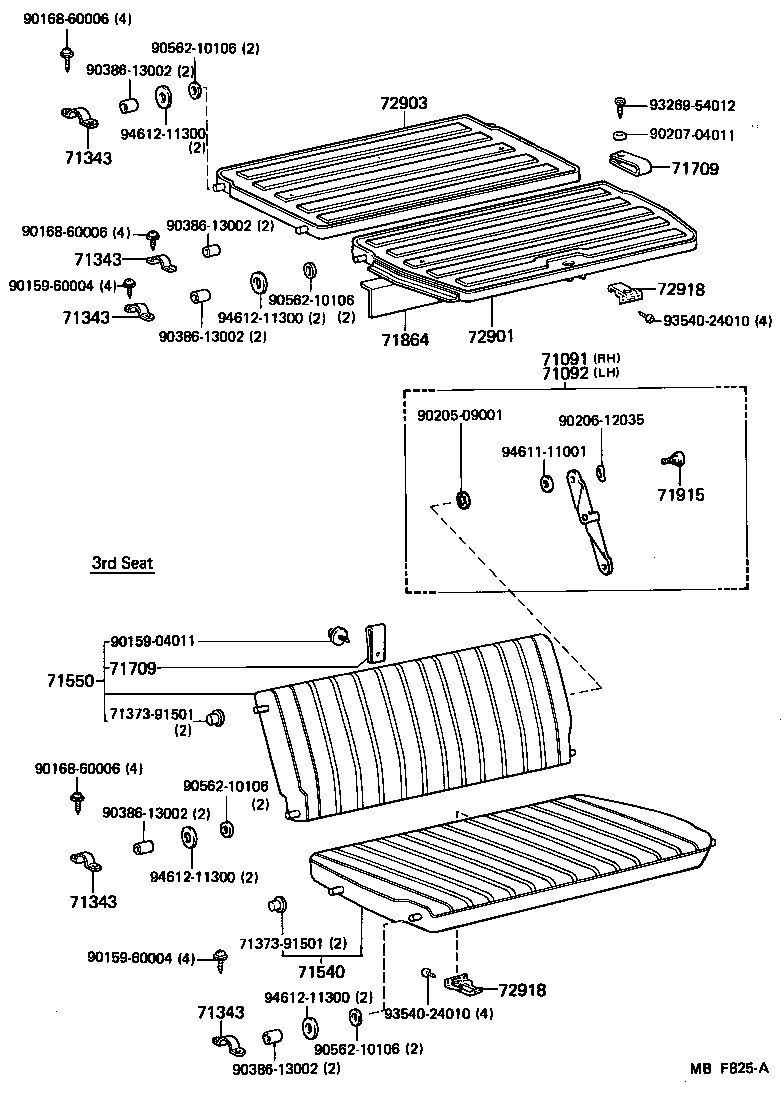

Click highlighted areas on diagram

diagram 71091 71092 71343 71343 71343 71343 71343 7137391501 7137391501 71540 71550 71709 71709 71864 71915 72901 72903 72918 72918 9015904011 9015960004 9015960004 9016860006 9016860006 9016860006 9020509001 9020612035 9020704011 9038613002 9038613002 9038613002 9038613002 9038613002 9056210106 9056210106 9056210106 9056210106 9326954012 9354024010 9354024010 9461111001 9461211300 9461211300 9461211300 9461211300
Part # Description Qty Price
71091 - LINK SUB-ASSY, 3RD SEAT, RH
72905-9170302

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#,4#

 1
71092 - LINK SUB-ASSY, 3RD SEAT, LH
72906-9170302

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#,4#

 1
71343 - BRACKET, 3RD SEAT BACK
72955-91701

MS122..WG

 6
71343 - BRACKET, 3RD SEAT BACK
72955-91701

MS122..WG

 6
71343 - BRACKET, 3RD SEAT BACK
72955-91701

MS122..WG

 6
71343 - BRACKET, 3RD SEAT BACK
72955-91701

MS122..WG

 6
71343 - BRACKET, 3RD SEAT BACK
72955-91701

MS122..WG

 6
71540 - CUSHION ASSY, 3RD SEAT
72910-9170602

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
72910-9170605

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
71550 - BACK SUB-ASSY, SIDE SEAT
72940-9170502

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
72940-9170505

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
71709 - STRAP SUB-ASSY, 3RD SEAT BACK
72921-9170105

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
72921-9170102

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
71709 - STRAP SUB-ASSY, 3RD SEAT BACK
72921-9170105

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
72921-9170102

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
71864 - PANEL, DECK COMPARTMENT BOX PARTITION
71864-91701

MS122..WG

 1
71915 - BOLT, SEAT LINK CONNECTING
90109-10043

MS122..WG

 4
72901 - FRAME SUB-ASSY, 3RD SEAT CUSHION
72901-91704

MS122..WG

 1
72903 - FRAME SUB-ASSY, 3RD SEAT BACK
72903-91704

MS122..WG

 1
72918 - COVER, 3RD SEAT CUSHION LOCK
72918-9170102

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
72918-9170115

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
72918 - COVER, 3RD SEAT CUSHION LOCK
72918-9170102

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
72918-9170115

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
Common parts
71373-91501
90159-04011
90159-60004
90168-60006
90205-09001
90206-12035
90207-04011
90386-13002
90562-10106
93269-54012
93540-24010
94611-11001
94612-11300

(8308- )

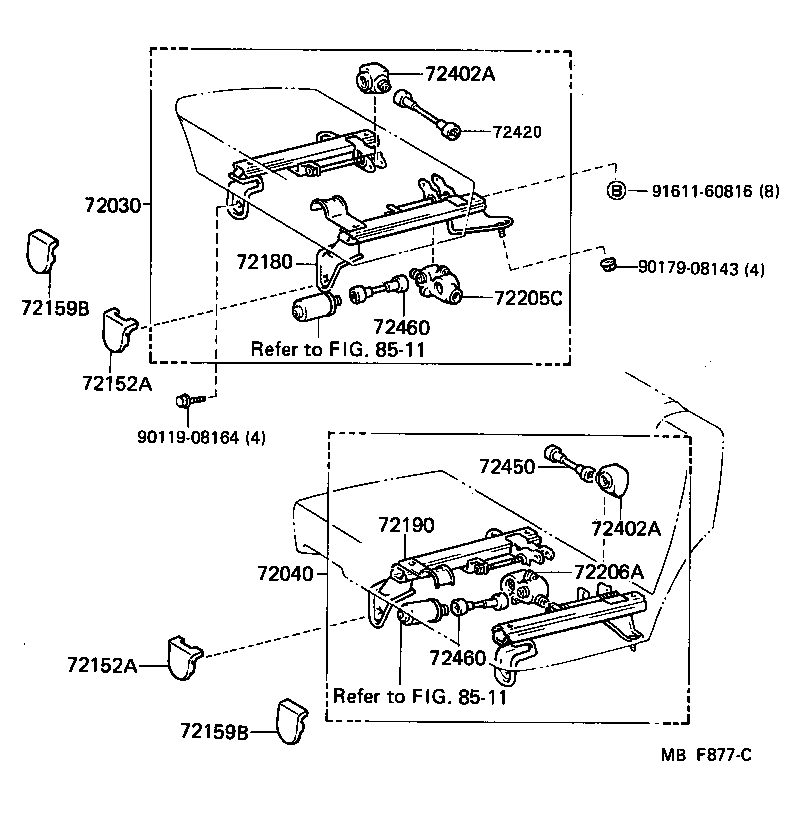

Click highlighted areas on diagram

diagram 72030 72040 72152A 72152A 72159B 72159B 72180 72190 72205C 72206A 72402A 72402A 72420 72450 72460 72460 8511 8511 9011908164 9017908143 9161160816
Part # Description Qty Price
Common parts
90119-08164
90179-08143
91611-60816
Linked diagrams
8511
