MS122LG-SWJGS (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 5M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )WG

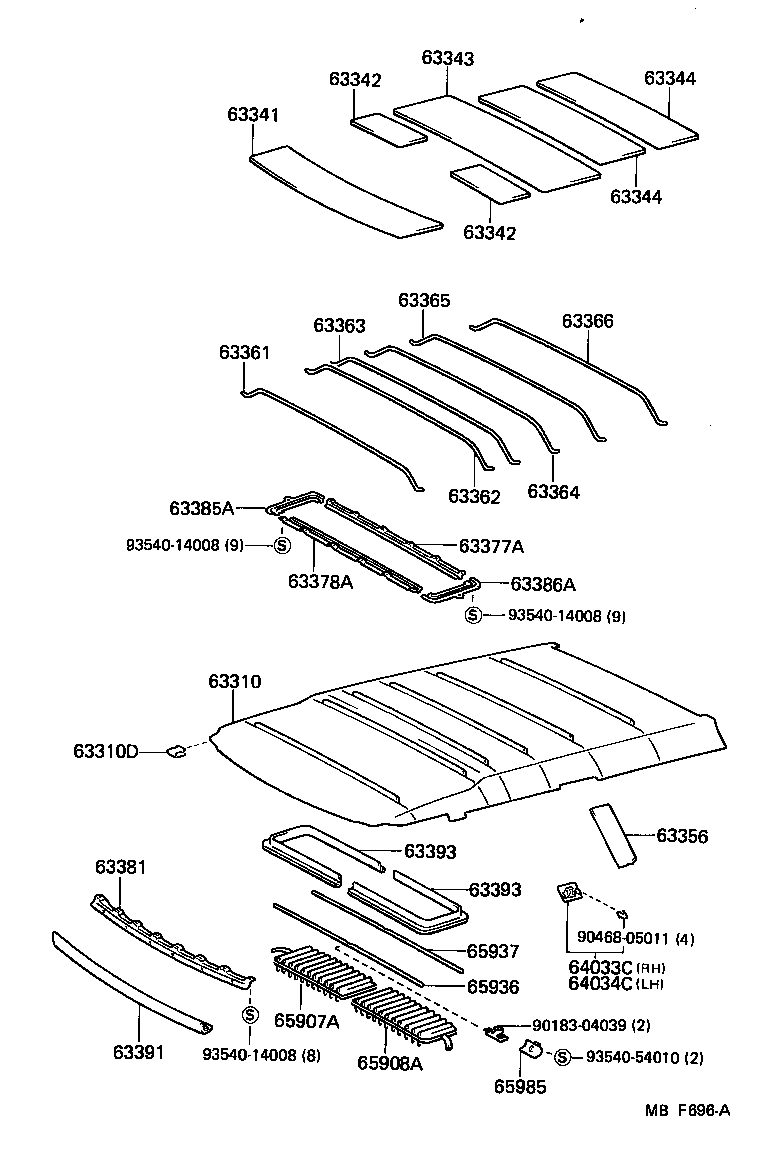

Click highlighted areas on diagram

diagram 63310 63310D 63341 63342 63342 63343 63344 63344 63356 63361 63362 63363 63364 63365 63366 63377A 63378A 63381 63385A 63386A 63391 63393 63393 64033C 64034C 65907A 65908A 65936 65937 65985 9018304039 9046805011 9354014008 9354014008 9354014008 9354054010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-9171005

MS122..WG

BEIGE,BEIGE,TRIM3#,4#

 1
63310D - CLIP, ROOF HEADLINING
90468-04010

MS122..WG

 22
63341 - PAD, ROOF SILENCER, NO.1
63341-91705

MS122..WG

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-91704

MS122..WG

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-91704

MS122..WG

 2
63343 - PAD, ROOF SILENCER, NO.3
63342-91703

MS122..WG

 1
63344 - PAD, ROOF SILENCER, NO.4
63343-91703

MS122..WG

 1
63344 - PAD, ROOF SILENCER, NO.4
63343-91703

MS122..WG

 1
63356 - PAD, ROOF SIDE INNER GARNISH
62475-91701

MS122..WG

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-91704

MS122..WG

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-91704

MS122..WG

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63362-91704

MS122..WG

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63363-91704

MS122..WG

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63363-91704

MS122..WG

 1
63366 - SUPPORT, ROOF HEADLINING, NO.6
63363-91704

MS122..WG

 1
63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1
63377-91702

MS122..WG

 1
63378A - RETAINER, ROOF HEADLINING SUPPORT, NO.2
63378-91701

MS122..WG

 1
63381 - RETAINER, HEADLINING, FRONT
63381-30050

LS120,MS12#,YS120

 1
63385A - RETAINER, ROOF HEADLINING TRIM SIDE, RH
63385-91701

MS122..WG

 1
63386A - RETAINER, ROOF HEADLINING TRIM SIDE, LH
63386-91701

MS122..WG

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-3006005

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
63391-3006002

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
63393 - TRIM, ROOF HEADLINING, CENTER
63393-9170105

MS122..WG

RH,BEIGE,BEIGE,TRIM4#

 1
63393-9170102

MS122..WG

RH,DEEP MAROON,RED/MAROON,TRIM3#

 1
63394-9170105

MS122..WG

LH,BEIGE,BEIGE,TRIM4#

 1
63394-9170102

MS122..WG

LH,DEEP MAROON,RED/MAROON,TRIM3#

 1
63393 - TRIM, ROOF HEADLINING, CENTER
63393-9170105

MS122..WG

RH,BEIGE,BEIGE,TRIM4#

 1
63393-9170102

MS122..WG

RH,DEEP MAROON,RED/MAROON,TRIM3#

 1
63394-9170105

MS122..WG

LH,BEIGE,BEIGE,TRIM4#

 1
63394-9170102

MS122..WG

LH,DEEP MAROON,RED/MAROON,TRIM3#

 1
64033C - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-9170105

MS122..WG

BEIGE,BEIGE,TRIM3#,4#

 1
64034C - GRILLE SUB-ASSY, REAR SPEAKER, LH
64033-9170105

MS122..WG

BEIGE,BEIGE,TRIM3#,4#

 1
65907A - CURTAIN SUB-ASSY, REAR RH
65907-9170105

MS122..WG

BEIGE,BEIGE,TRIM3#,4#

 1
65908A - CURTAIN SUB-ASSY, REAR LH
65908-9170105

MS122..WG

BEIGE,BEIGE,TRIM3#,4#

 1
65936 - RAIL, CURTAIN, NO.1
65936-91701

MS122..WG

 1
65937 - RAIL, CURTAIN, NO.2
65937-91701

MS122..WG

 1
65985 - HOLDER, CURTAIN RAIL
65985-9170105

MS122..WG

BEIGE,BEIGE,TRIM4#

 1
65985-9170102

MS122..WG

DEEP MAROON,RED/MAROON,TRIM3#

 1
Common parts
90183-04039
90468-05011
93540-14008
93540-54010
