MS122LG-SWJGS (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 5M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5M#,6MGE

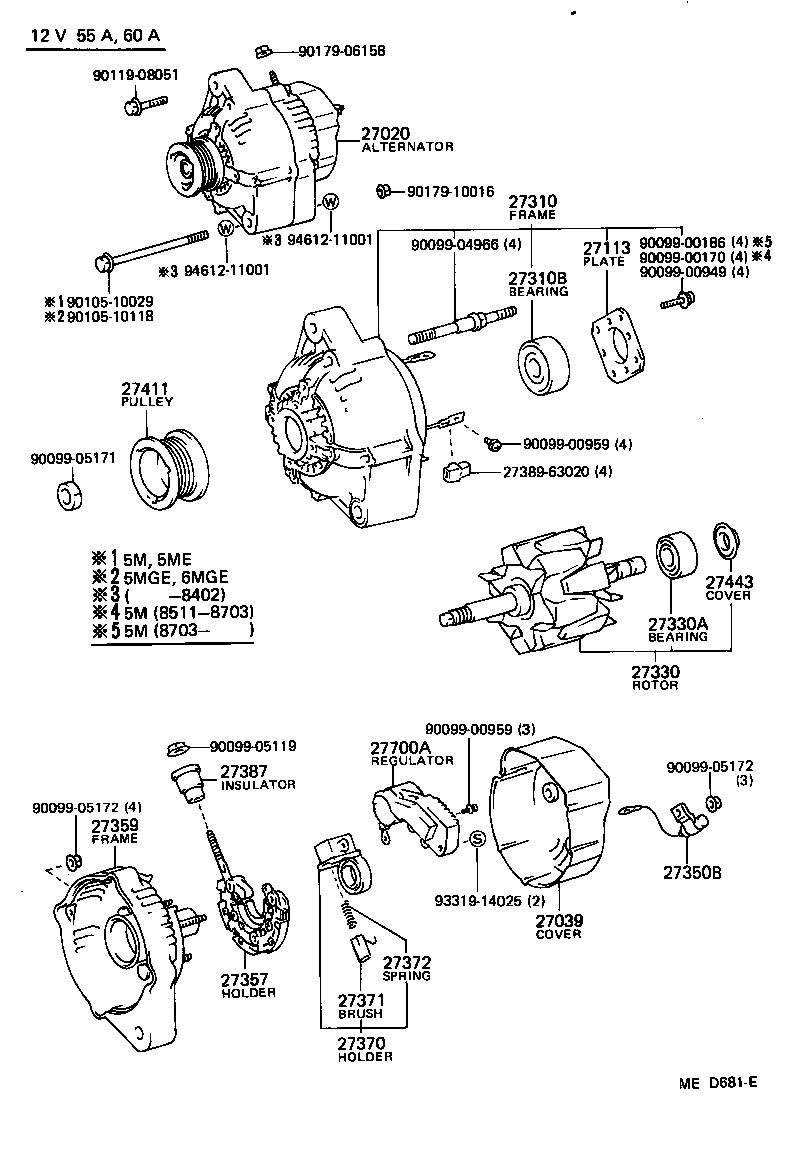

Click highlighted areas on diagram

diagram 27020 27039 27113 27310 27310B 27330 27330A 27350B 27357 27359 27370 27371 27372 27387 2738963020 27411 27443 27700A 9009900170 9009900186 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9010510029 9010510118 9011908051 9017906158 9017910016 9331914025 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-43070

5M..MS122

12V 55A

 1
27039 - COVER, ALTERNATOR REAR END
27039-63040

5M..MS122

12V 55A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-63020

5M,5ME..MS122,123

12V 55A,60A

 1
27312-63020

5M#..MS12#

12V 55A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-43080

5M..MS122

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10156

5M#..MS12#

12V 55A,60A

 1
90099-10152

5M#..MS12#

12V 55A,60A

 1
90099-10156

5M,5ME..MS122,123

12V 55A,60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63041

5M..MS122

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

5M#,6MGE..MS12#

12V 55A,60A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63040

5M..MS122

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-43080

5M..MS122

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

5M#,6MGE..MS12#

12V 55A,60A

 1
27370-63020

5M#..MS12#

12V 55A,60A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

5M#,6MGE..MS12#

12V 55A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

5M#,6MGE..MS12#

12V 55A,60A

 2
27387 - INSULATOR, TERMINAL
27387-63020

5M,5ME..MS122,123

12V 55A,60A

 1
27411 - PULLEY, ALTERNATOR
27411-43080

5M..MS122

12V 55A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

5M#,6MGE..MS12#

12V 55A,60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

5M#,6MGE..MS12#

12V 55A,60A

 1
Common parts
27389-63020
90099-00170
90099-00186
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10029
90105-10118
90119-08051
90179-06158
90179-10016
93319-14025
94612-11001

(8308- )2L

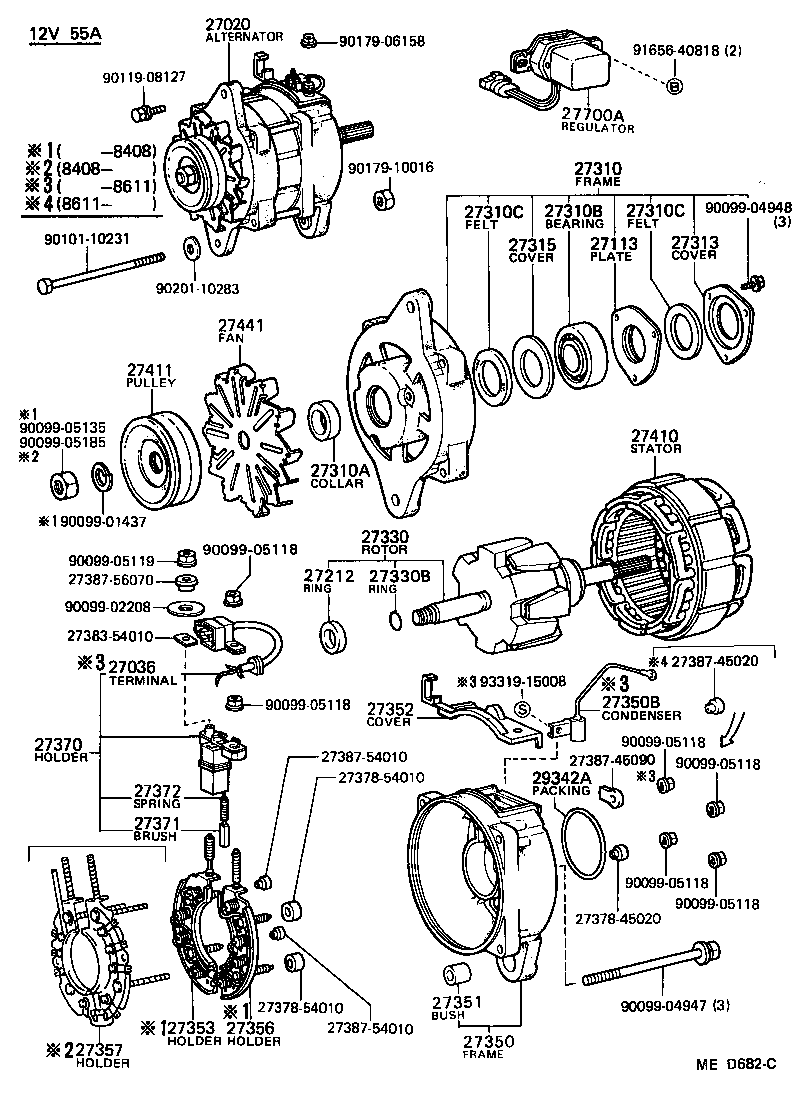

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27353 27356 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745020 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 29342A 9009901437 9009902208 9009904947 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9009905185 9010110231 9011908127 9017906158 9017910016 9020110283 9165640818 9331915008
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-43070

5M..MS122

12V 55A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-63020

5M,5ME..MS122,123

12V 55A,60A

 1
27312-63020

5M#..MS12#

12V 55A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-43080

5M..MS122

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10156

5M#..MS12#

12V 55A,60A

 1
90099-10152

5M#..MS12#

12V 55A,60A

 1
90099-10156

5M,5ME..MS122,123

12V 55A,60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63041

5M..MS122

12V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63040

5M..MS122

12V 55A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

5M#,6MGE..MS12#

12V 55A,60A

 1
27370-63020

5M#..MS12#

12V 55A,60A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

5M#,6MGE..MS12#

12V 55A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

5M#,6MGE..MS12#

12V 55A,60A

 2
27411 - PULLEY, ALTERNATOR
27411-43080

5M..MS122

12V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

5M#,6MGE..MS12#

12V 55A,60A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45020
27387-45090
27387-54010
27387-56070
90099-01437
90099-02208
90099-04947
90099-04948
90099-05118
90099-05119
90099-05135
90099-05185
90101-10231
90119-08127
90179-06158
90179-10016
90201-10283
91656-40818
93319-15008
