MS122L-STPGEV (1985)
Toyota Crown
(8509- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3080005 |
LS120,MS122,123,YS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67650-3080002 |
LS120,MS122,123,YS120..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67610-3A75006 |
MS122..HT BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3A75004 |
MS122..HT BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3A75002 |
MS122..HT MAROON,MAROON,TRIM3# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3A54005 |
LS120,MS122,123,YS120..SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3A54002 |
LS120,MS122,123,YS120..SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67620-3A71002 |
MS122..HT MAROON,MAROON,TRIM3# |
1 | ||
| 67620-3A71004 |
MS122..HT BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3A71006 |
MS122..HT BROWN,BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-3004104 |
MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67770-3004002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67770-3004005 |
LS120,MS12#,YS120..ROY,SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67770-3004102 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 67770-3004106 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67780-3001102 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 67780-3001104 |
MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
1 | ||
| 67780-3001106 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
1 | ||
| 67780-3001005 |
LS120,MS12#,YS120..ROY,SAL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67785-3006002 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
2 | ||
| 67785-3006006 |
MS123,125..SED;MS122..(HT,SED)..(ROY,SAL) BROWN,BROWN,TRIM4# |
2 | ||
| 67785-3005002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 67785-3006004 |
MS12#..ROY,SAL BLUE,BLUE,TRIM8# |
2 | ||
| 67785-3005005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-30190 |
MS122,125..HT RH |
1 | ||
| 68220-30140 |
MS122,125..HT LH |
1 | ||
| Common parts | ||||
| 67771-30060 | ||||
| 90168-40068 | ||||
| 90183-04042 | ||||
| 90541-02001 | ||||
| Linked diagrams | ||||
| 7401 | ||||

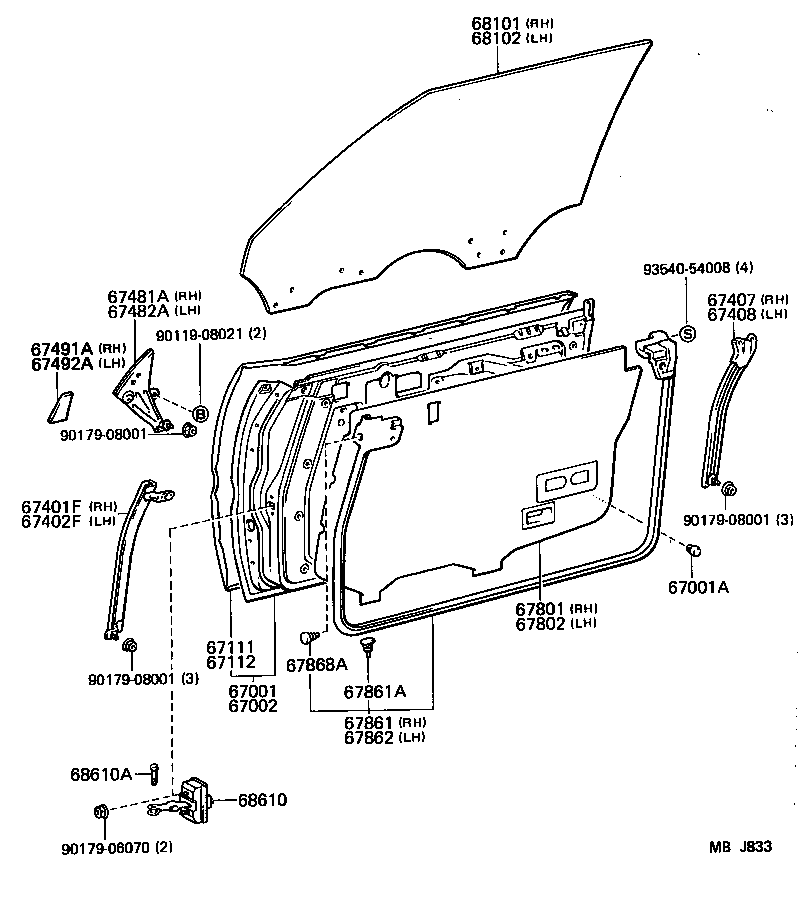

(8509- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30480 |
MS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL *SAA |
1 | ||
| 67001-30510 |
MS122,125..HT |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09121 |
LS120,MS12#,YS120 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30560 |
MS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL *SAA |
1 | ||
| 67002-30590 |
MS122,125..HT |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-30905 |
MS122,125..HT |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-30250 |
LS120,MS12#,YS120 |
1 | ||
| 67112-30905 |
MS122,125..HT |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-30170 |
MS122,125..HT |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-30170 |
MS122,125..HT |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30080 |
MS122,125..HT |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30080 |
MS122,125..HT |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-30070 |
MS122,125..HT |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-30060 |
MS122,125..HT |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-30060 |
MS122,125..HT |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-30060 |
MS122,125..HT |
1 | ||
| 67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH | ||||
| 67831-30220 |
LS120,MS12#,YS120..ROY,SAL |
1 | ||
| 67831-30230 |
MS122,125..HT |
1 | ||
| 67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH | ||||
| 67832-30090 |
LS120,MS12#,YS120..ROY,SAL |
1 | ||
| 67832-30100 |
MS122,125..HT |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30160 |
MS122,125..HT |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
MS122,125..HT |
40 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30160 |
MS122,125..HT |
1 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-30020 |
MS122,125..HT |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-30400 |
MS122,125..HT *TT,T=5.0 |
1 | ||
| 68111-30410 |
MS122,125..HT BRONZE,*TT,T=5.0 |
1 | ||
| 68111-30340 |
LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) BRONZE,*TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-30340 |
MS122,125..HT BRONZE,*TT,T=5.0 |
1 | ||
| 68112-30270 |
LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA) BRONZE,*TT,T=4.0 |
1 | ||
| 68112-30330 |
MS122,125..HT *TT,T=5.0 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-30020 |
LS120,MS12#,YS120 |
2 | ||
| 68610-30030 |
LS120,MS12#,YS120 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-30010 |
LS120,MS12#,YS120 |
2 | ||
| Common parts | ||||
| 90119-08021 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 93540-54008 | ||||
