MS122L-STPGEV (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )HT

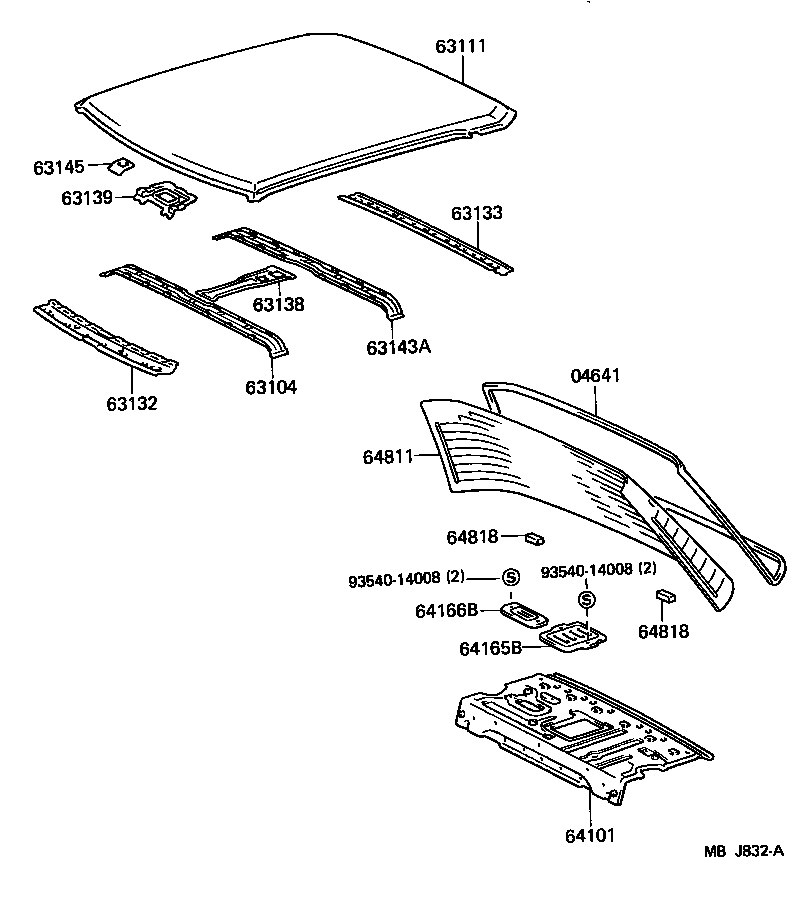

Click highlighted areas on diagram

diagram 04641 63104 63111 63132 63133 63138 63139 63143A 63145 64101 64165B 64166B 64811 64818 64818 9354014008 9354014008
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-30040

LS120,MS12#,YS120..HT,SED

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63142-30020

MS122,125..(HT,SED)..(ROY,SAL)

W/MOON ROOF

 1
63141-30080

MS122,125..HT

 1
63111 - PANEL, ROOF
63111-30180

MS122,125..HT

 1
63111-30190

MS122,125..HT

W/MOON ROOF

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-30130

MS122,125..HT

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-30120

MS122,125..HT

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-30040

MS122,125..HT

 1
63139 - BRACKET, DOME LAMP, NO.3
63137-30070

MS12#..(HT,SED)..(ROY,SAL)

 1
63143A - REINFORCEMENT, ROOF PANEL
63143-30050

MS122,125..HT

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-30050

MS122,125..HT

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30150

MS122,125..HT

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-30010

LS120,MS122,123,YS120..(HT,SED)..(DLX,SAL,STD)

 1
64166B - COVER, UPPER BACK PANEL HOLE, NO.2
64166-30010

LS120,MS122,123,YS120..(HT,SED)..(DLX,SAL,STD)

 1
64811 - GLASS, BACK WINDOW
64801-30280

MS122,125..HT

*EHTT,T=4.0

 1
64801-30240

LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)

BRONZE,*EHTT,T=4.0

 1
64801-30290

MS122,125..HT

BRONZE,*EHTT,T=4.0

 1
64818 - SPACER, BACK WINDOW GLASS
64818-30050

LS120,MS12#,YS120..HT,SED

 2
64818 - SPACER, BACK WINDOW GLASS
64818-30050

LS120,MS12#,YS120..HT,SED

 2
Common parts
93540-14008
