MS122L-SEPQS (1983)
Toyota Crown

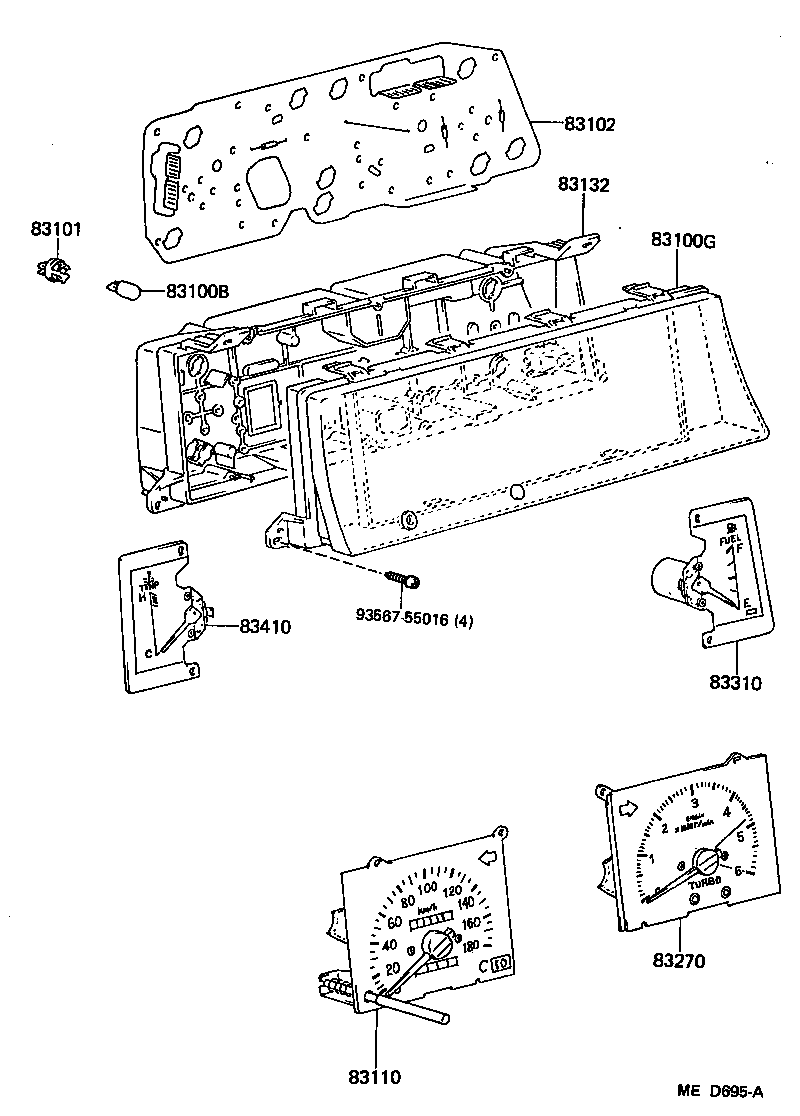

(8308- )YS120 ; (8308- )LS120..4F,5F ; (8308- )LS120..LHD..STD ; (8509-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V3.4W W(GREEN CAP) |
5 | ||
| 83109-24040 |
MS12#..LHD..(ROY,SAL) 12V1.4W W(GREEN CAP) |
1 | ||
| 99132-12034 |
LS120,MS12#,YS120 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A350 |
MS122..LHD..(ROY,SAL) |
1 | ||
| 83138-3A090 |
MS122,123..LHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 3.4W,GREEN |
5 | ||
| 83101-87001 |
MS122,123..LHD 12V 1.4W,GREEN |
1 | ||
| 83101-14030 |
LS120,MS12#,YS120 12V 3.4W,BLACK |
4 | ||
| 83101-14040 |
MS122,125..LHD..(ROY,SAL) 12V 1.4W,BLACK |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30570 |
MS122,123..LHD..(ROY,SAL)..(EUG,GEN,SWZ) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A180 |
MS122..LHD..GEN KM |
1 | ||
| 83110-3A190 |
MS122..LHD..GEN MILE/KM |
1 | ||
| 83110-3A181 |
MS122..LHD..(ROY,SAL)..GEN KM |
1 | ||
| 83110-3A191 |
MS122..LHD..(ROY,SAL)..GEN MILE/KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30350 |
MS122,123..LHD..(ROY,SAL) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30090 |
MS122,123..LHD |
1 | ||
| 83243-30290 |
MS122..LHD..(ROY,SAL) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30090 |
MS122,123..LHD |
1 | ||
| 83244-30370 |
MS122..LHD..(ROY,SAL)..GEN |
1 | ||
| 83244-30350 |
MS122..LHD..(ROY,SAL)..GEN *ME |
1 | ||
| Common parts | ||||
| 90099-00954 | ||||
| 93567-55016 | ||||
(8308- )DLX..GEN ; (8308- )MS12#..ROY,SAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V3.4W W(GREEN CAP) |
5 | ||
| 83109-24040 |
MS12#..LHD..(ROY,SAL) 12V1.4W W(GREEN CAP) |
1 | ||
| 99132-12034 |
LS120,MS12#,YS120 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-3A350 |
MS122..LHD..(ROY,SAL) |
1 | ||
| 83138-3A090 |
MS122,123..LHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-28010 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD 12V 3.4W,GREEN |
5 | ||
| 83101-87001 |
MS122,123..LHD 12V 1.4W,GREEN |
1 | ||
| 83101-14030 |
LS120,MS12#,YS120 12V 3.4W,BLACK |
4 | ||
| 83101-14040 |
MS122,125..LHD..(ROY,SAL) 12V 1.4W,BLACK |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-30570 |
MS122,123..LHD..(ROY,SAL)..(EUG,GEN,SWZ) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A180 |
MS122..LHD..GEN KM |
1 | ||
| 83110-3A190 |
MS122..LHD..GEN MILE/KM |
1 | ||
| 83110-3A181 |
MS122..LHD..(ROY,SAL)..GEN KM |
1 | ||
| 83110-3A191 |
MS122..LHD..(ROY,SAL)..GEN MILE/KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30350 |
MS122,123..LHD..(ROY,SAL) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-30730 |
MS122..LHD..(ROY,SAL) |
1 | ||
| 83242-30310 |
MS122..LHD;MS123..SWZ |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30090 |
MS122,123..LHD |
1 | ||
| 83243-30290 |
MS122..LHD..(ROY,SAL) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-30090 |
MS122,123..LHD |
1 | ||
| 83244-30370 |
MS122..LHD..(ROY,SAL)..GEN |
1 | ||
| 83244-30350 |
MS122..LHD..(ROY,SAL)..GEN *ME |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

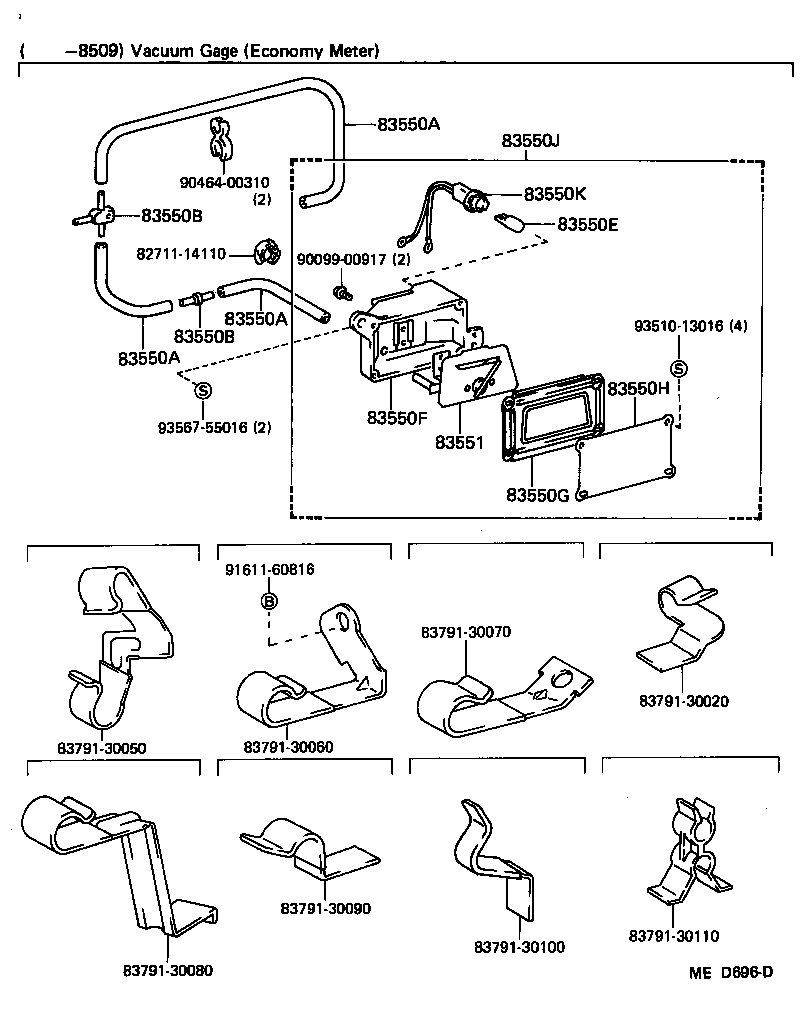

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 83791-30020 | ||||
| 83791-30050 | ||||
| 83791-30060 | ||||
| 83791-30070 | ||||
| 83791-30080 | ||||
| 83791-30090 | ||||
| 83791-30100 | ||||
| 83791-30110 | ||||
| 90099-00917 | ||||
| 90464-00310 | ||||
| 91611-60816 | ||||
| 93510-13016 | ||||
| 93567-55016 | ||||

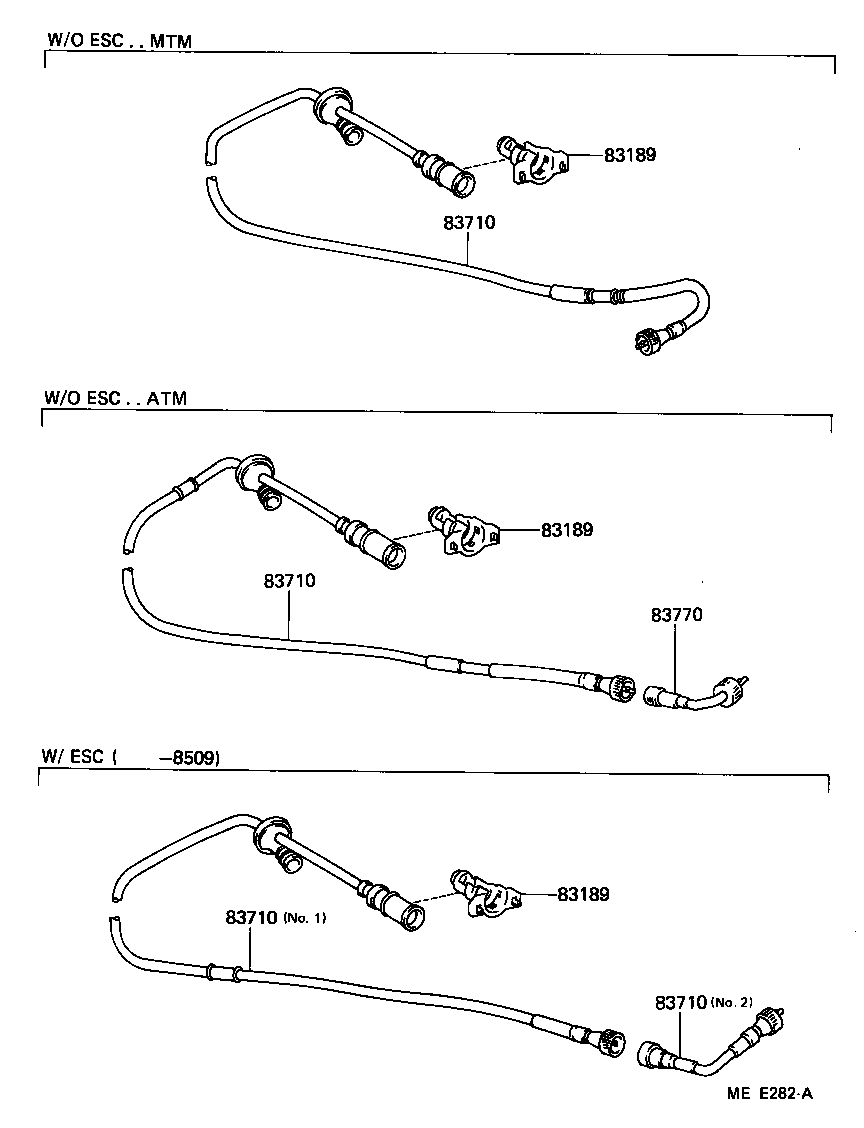

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30620 |
MS12#..LHD..4FC..(GEN,SAA) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30620 |
MS12#..LHD..4FC..(GEN,SAA) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30620 |
MS12#..LHD..4FC..(GEN,SAA) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30620 |
MS12#..LHD..4FC..(GEN,SAA) |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
MS12#..ATM |
1 | ||

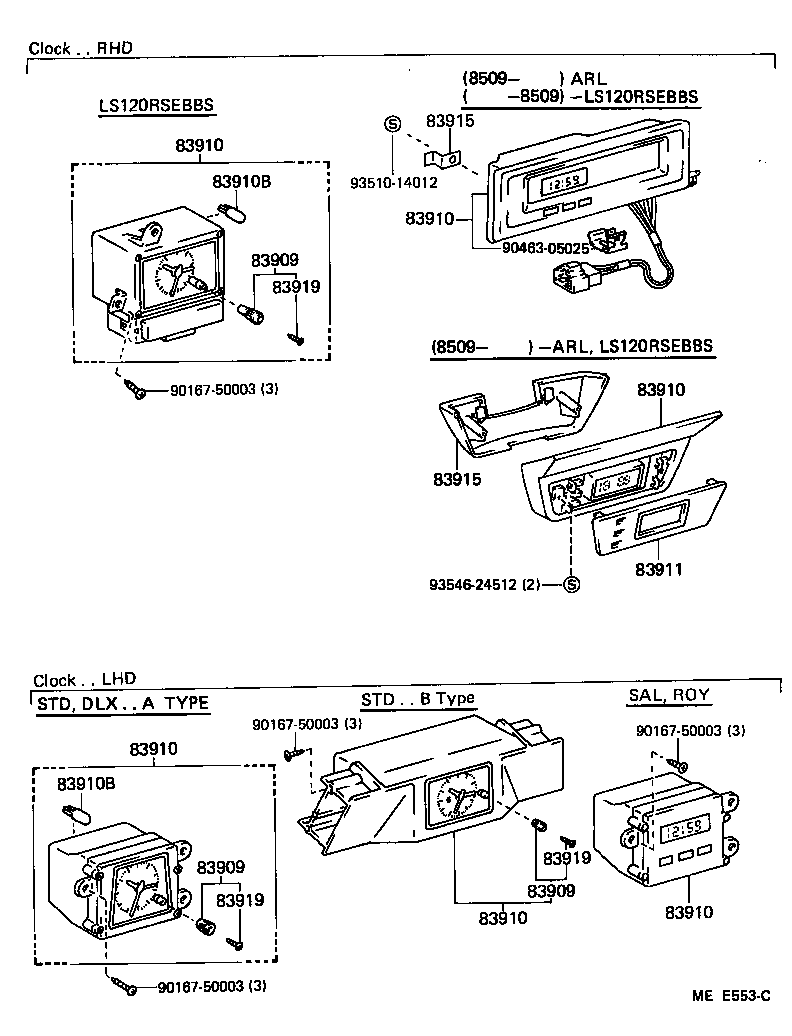

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-30340 |
LS120,MS12#,YS120..LHD..(ROY,SAL) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30340 |
LS120,MS12#,YS120..LHD..(ROY,SAL) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30340 |
LS120,MS12#,YS120..LHD..(ROY,SAL) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30340 |
LS120,MS12#,YS120..LHD..(ROY,SAL) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30340 |
LS120,MS12#,YS120..LHD..(ROY,SAL) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30340 |
LS120,MS12#,YS120..LHD..(ROY,SAL) |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90463-05025 | ||||
| 93510-14012 | ||||
| 93546-24512 | ||||
