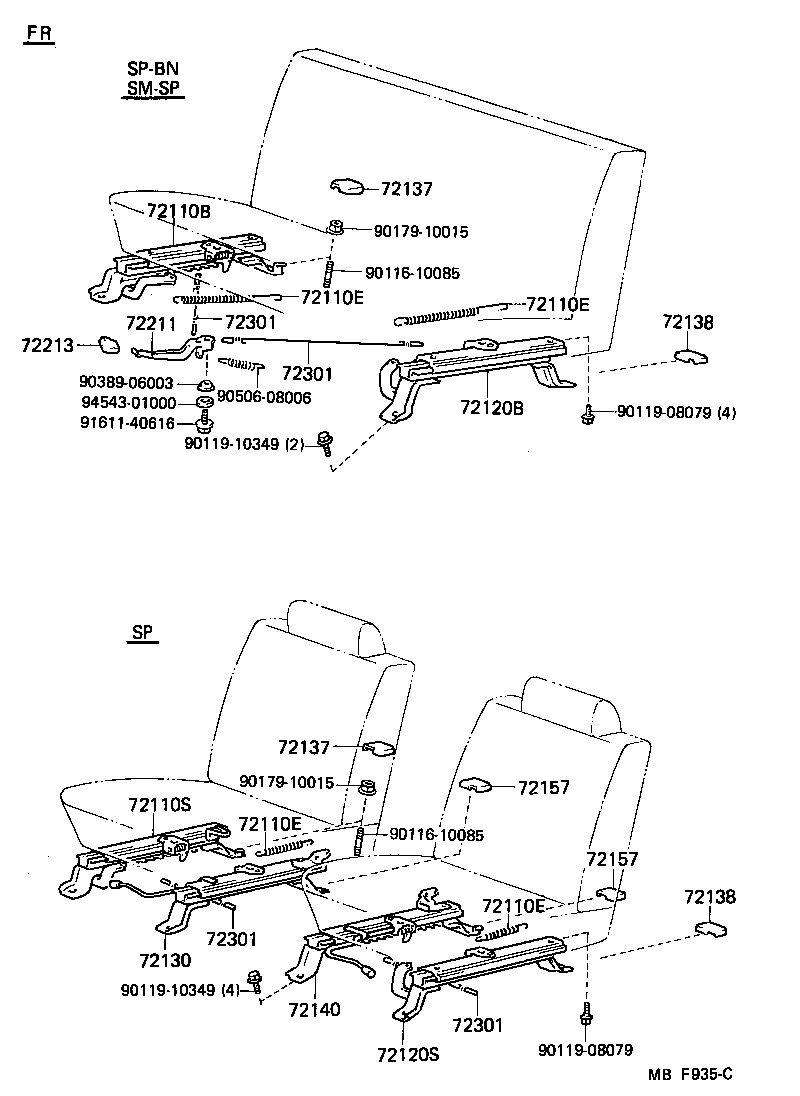

MS122L-SEPQS (1983)
Toyota Crown
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL | ||||
| 72310-30040 |
MS123..ARL,SAA;MS123..LHD..GEN;MS122,125..LHD..ROY |
1 | ||
| 72310-30040 |
MS122,125..SED..LHD..ROY |
1 | ||
| 72310-30040 |
MS122,125..LHD..ROY..GEN |
1 | ||
| 72043B - LEVER SUB-ASSY, SEAT LIFTER, RH | ||||
| 72043-3001002 |
MS123..ARL,SAA;MS123..LHD..GEN;MS122,125..LHD..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043-3001004 |
MS123..ARL,SAA;MS123..LHD..GEN;MS122,125..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 72043-3001006 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 72043-3001005 |
MS123..ARL,SAA;MS123..LHD..GEN;MS122,125..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 72043-3001004 |
MS122,125..SED..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 72043-3001012 |
MS122,125..SED..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 72043-3001012 |
MS122,125..LHD..ROY..GEN MAROON,MAROON,TRIM3# |
1 | ||
| 72043-3001006 |
MS122,125..LHD..ROY..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 72043-3001004 |
MS122,125..LHD..ROY..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18043 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-30330 |
MS122,125..SED..LHD..ROY |
1 | ||
| 72110-30330 |
MS12#..LHD..ROY |
1 | ||
| 72110-30330 |
MS122,125..LHD..ROY..GEN |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-30120 |
MS12#..LHD..ROY |
1 | ||
| 72130-30120 |
MS122,125..LHD..ROY..GEN |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72138-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-30100 |
MS122,YS120..LHD..4F |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-3001002 |
LS120,MS12#,YS120..4FC,5F RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157-3001004 |
LS120,MS12#,YS120..SED..(4F,4FC,5F) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001002 |
LS120,MS12#,YS120..4FC,5F LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157-3001004 |
LS120,MS12#,YS120..4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72157-3001006 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72158-3001005 |
LS120,MS12#,YS120..4F,4FC,5F LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72157-3001012 |
MS12#..(4FC,5F)..(ROY,SAL) RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3001012 |
MS12#..(4FC,5F)..(ROY,SAL) LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3001004 |
LS120,MS12#,YS120..SED..(4F,4FC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001004 |
LS120,MS12#,YS120..4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001006 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72157-3001005 |
LS120,MS12#,YS120..4F,4FC,5F RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30100 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-3002002 |
LS120,MS12#,YS120..4FC,5F DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 72459-3002004 |
LS120,MS12#,YS120..SED..(4FC,5F) BLUE,BLUE,TRIM8# |
1 | ||
| 72459-3002004 |
MS125..4FC..GEN;MS122,123..(HT,SED)..(4FC,5F)..(ROY,SAL) BLUE,BLUE,TRIM8# |
2 | ||
| 72459-3002005 |
LS120,MS12#,YS120..4FC,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 72459-3002004 |
MS12#..(4FC,5F)..(ROY,SAL) BLUE,BLUE,TRIM8# |
2 | ||
| 72459-3002012 |
MS12#..(4FC,5F)..(ROY,SAL) MAROON,MAROON,TRIM3# |
2 | ||
| 72459-3002006 |
MS125..4FC..GEN;MS122,123..(HT,SED)..(4FC,5F)..(ROY,SAL) BROWN,BROWN,TRIM4# |
2 | ||
| 72459-3002006 |
MS125..SED..4FC;MS122,123..(HT,SED)..(4FC,5F)..(ROY,SAL) BROWN,BROWN,TRIM4# |
2 | ||
| 72459-3002012 |
MS125..4FC..GEN;MS122,123..(HT,SED)..(4FC,5F)..(ROY,SAL) MAROON,MAROON,TRIM3# |
2 | ||
| 72480 - ADJUSTER ASSY, FRONT SEAT VERTICAL, NO.2 RH | ||||
| 72480-30010 |
MS123..ARL,SAA;MS123..LHD..GEN;MS122,125..LHD..ROY |
1 | ||
| 72480-30010 |
MS122,125..LHD..ROY..GEN |
1 | ||
| 72480-30010 |
MS122,125..SED..LHD..ROY |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-06230 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-10349 | ||||
| 90179-06034 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90540-17004 | ||||

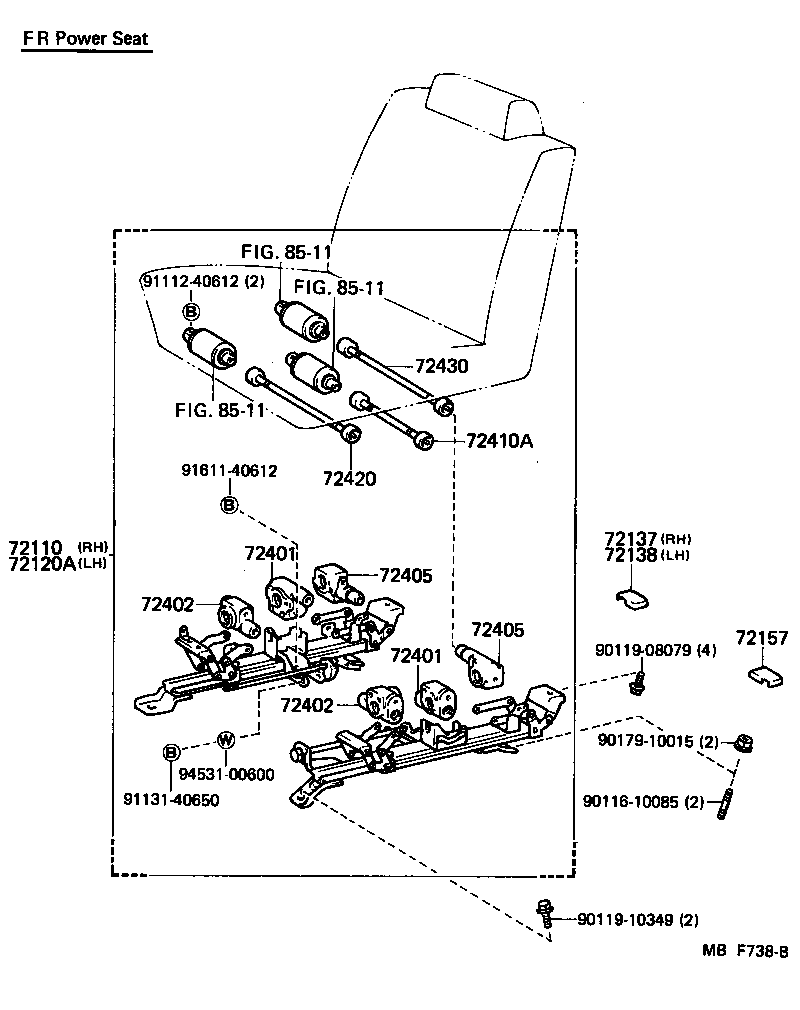

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72120A - REGULATOR ASSY, POWER SEAT, LH | ||||
| 72120-30210 |
MS12#..LHD..ROY |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72138-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-3001002 |
LS120,MS12#,YS120..4FC,5F RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157-3001004 |
LS120,MS12#,YS120..SED..(4F,4FC,5F) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001002 |
LS120,MS12#,YS120..4FC,5F LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157-3001004 |
LS120,MS12#,YS120..4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72157-3001006 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72158-3001005 |
LS120,MS12#,YS120..4F,4FC,5F LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72157-3001012 |
MS12#..(4FC,5F)..(ROY,SAL) RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3001012 |
MS12#..(4FC,5F)..(ROY,SAL) LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3001004 |
LS120,MS12#,YS120..SED..(4F,4FC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001004 |
LS120,MS12#,YS120..4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001006 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72157-3001005 |
LS120,MS12#,YS120..4F,4FC,5F RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72401 - HOUSING SUB-ASSY, FRONT SEAT MOTOR SIDE | ||||
| 72401-30030 |
MS12#..4FC..ROY..(GEN,SAA) |
1 | ||
| 72401 - HOUSING SUB-ASSY, FRONT SEAT MOTOR SIDE | ||||
| 72401-30030 |
MS12#..4FC..ROY..(GEN,SAA) |
1 | ||
| 72402 - HOUSING SUB-ASSY, CABLE SIDE | ||||
| 72402-30040 |
MS12#..4FC..ROY..(GEN,SAA) FR VERTICAL |
1 | ||
| 72402-30060 |
MS12#..4FC..ROY..(GEN,SAA) RR VERTICAL |
1 | ||
| 72402-30050 |
MS12#..4FC..ROY..(GEN,SAA) SEAT SLIDE |
1 | ||
| 72402 - HOUSING SUB-ASSY, CABLE SIDE | ||||
| 72402-30040 |
MS12#..4FC..ROY..(GEN,SAA) FR VERTICAL |
1 | ||
| 72402-30060 |
MS12#..4FC..ROY..(GEN,SAA) RR VERTICAL |
1 | ||
| 72402-30050 |
MS12#..4FC..ROY..(GEN,SAA) SEAT SLIDE |
1 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-30040 |
MS12#..4FC..ROY..(GEN,SAA) |
2 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-30040 |
MS12#..4FC..ROY..(GEN,SAA) |
2 | ||
| 72410A - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.1 | ||||
| 72410-30030 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72420 - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.2 | ||||
| 72420-30010 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| 72430 - CABLE ASSY, SEAT ADJUST DRIVE, NO.3 | ||||
| 72430-30030 |
MS12#..ROY..(GEN,SAA) |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08079 | ||||
| 90119-10349 | ||||
| 90179-10015 | ||||
| 91112-40612 | ||||
| 91131-40650 | ||||
| 91611-40612 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 8511 | ||||

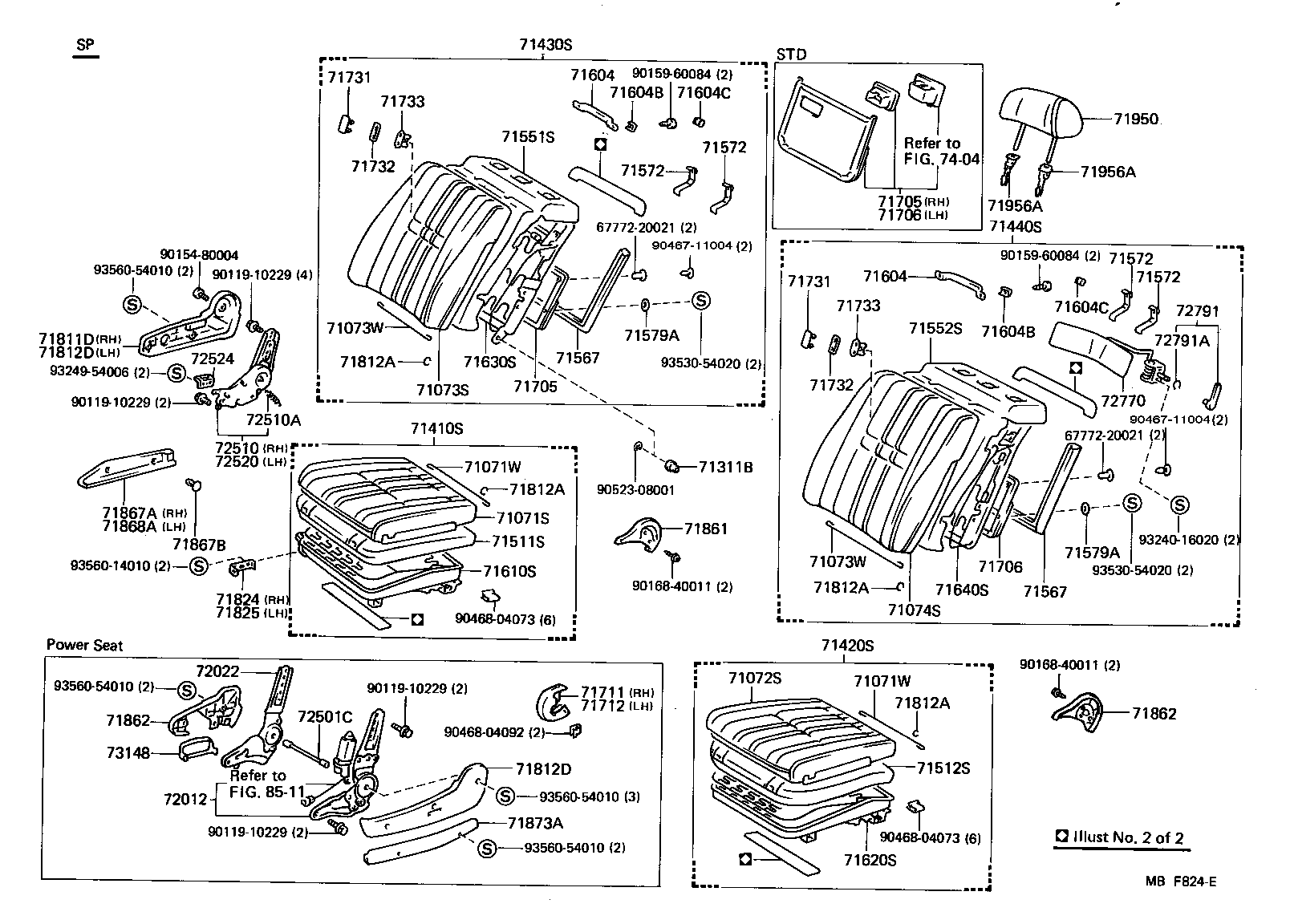

(8308- )LHD..4F,4FC,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3A22002 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-3A22004 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A41002 |
MS12#..LHD..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-3A41004 |
MS12#..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A22005 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A22106 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-3A41102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3A22104 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A41106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-3A22102 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3A41005 |
MS12#..LHD..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A41104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A22104 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A22106 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-3A22102 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3A41104 |
MS122,125..LHD..ROY..GEN FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A41106 |
MS122,125..LHD..ROY..GEN FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-3A41102 |
MS122,125..LHD..ROY..GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20126 |
LS120,MS12#,YS120..4FC,5F L=380 |
2 | ||
| 90580-20011 |
LS120,MS12#,YS120..4FC,5F L=360 |
2 | ||
| 90580-29010 |
LS120,MS12#,YS120..4FC,5F L=280 |
4 | ||
| 90580-20076 |
LS120,MS12#,YS120..4FC,5F L=340 |
4 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20126 |
LS120,MS12#,YS120..4FC,5F L=380 |
2 | ||
| 90580-20011 |
LS120,MS12#,YS120..4FC,5F L=360 |
2 | ||
| 90580-29010 |
LS120,MS12#,YS120..4FC,5F L=280 |
4 | ||
| 90580-20076 |
LS120,MS12#,YS120..4FC,5F L=340 |
4 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-3A39002 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-3A39005 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A40004 |
MS12#..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A39004 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A40005 |
MS12#..LHD..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3A40002 |
MS12#..LHD..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71071-3A39102 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3A39104 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A40104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A40102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3A39106 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-3A40106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3A10004 |
MS12#..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A10005 |
MS12#..LHD..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3A10002 |
MS12#..LHD..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-3A32002 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-3A32005 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3A10102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A32004 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A10104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A10106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-3A32102 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A32104 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A32106 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-3A10102 |
MS122,125..LHD..ROY..GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A32104 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A10106 |
MS122,125..LHD..ROY..GEN FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-3A10104 |
MS122,125..LHD..ROY..GEN FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A32102 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A32106 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20072 |
LS120,MS12#,YS120..4FC,5F L=230 |
4 | ||
| 90580-20023 |
LS120,MS12#,YS120..4FC,5F L=110 |
4 | ||
| 90580-26013 |
LS120,MS12#,YS120..4FC,5F *H,L=450 |
2 | ||
| 90580-20076 |
LS120,MS12#,YS120..4FC,5F L=340 |
4 | ||
| 90580-29010 |
LS120,MS12#,YS120..4FC,5F L=280 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20072 |
LS120,MS12#,YS120..4FC,5F L=230 |
4 | ||
| 90580-20023 |
LS120,MS12#,YS120..4FC,5F L=110 |
4 | ||
| 90580-26013 |
LS120,MS12#,YS120..4FC,5F *H,L=450 |
2 | ||
| 90580-20076 |
LS120,MS12#,YS120..4FC,5F L=340 |
4 | ||
| 90580-29010 |
LS120,MS12#,YS120..4FC,5F L=280 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3A34002 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-3A35002 |
MS12#..LHD..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71073-3A34005 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3A35004 |
MS12#..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A35005 |
MS12#..LHD..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3A35102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A34106 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-3A34004 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A35104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3A35106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-3A34102 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3A34104 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
LS120,MS12#,YS120 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3A41002 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A41004 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A60005 |
MS12#..LHD..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A41005 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A60004 |
MS12#..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A41104 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A41102 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-3A60106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-3A41106 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-3A60104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A60002 |
MS12#..LHD..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71410-3A60102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-3A41102 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-3A41106 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-3A41104 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A60102 |
MS122,125..LHD..ROY..GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-3A60104 |
MS122,125..LHD..ROY..GEN FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A60106 |
MS122,125..LHD..ROY..GEN FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-3A59002 |
MS12#..LHD..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71420-3062002 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71420-3062005 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A59005 |
MS12#..LHD..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A59004 |
MS12#..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-3062004 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A59102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-3A59104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A59106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-3062102 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-3062106 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-3062104 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3A70002 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A70004 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A70005 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A89004 |
MS12#..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A70102 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-3A89005 |
MS12#..LHD..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A89002 |
MS12#..LHD..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71430-3A70104 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A70106 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-3A89102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-3A89106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-3A89104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A68004 |
MS122,YS120..LHD..4F FB,W/*HR,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A68006 |
MS122,YS120..LHD..4F FB,W/*HR,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-3A70102 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-3A70104 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A89104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A70106 |
MS122,125..LHD..ROY..GEN FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-3A89106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-3A89102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3A40002 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-3A60002 |
MS12#..LHD..ROY FB,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71440-3A40005 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A60004 |
MS12#..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A40004 |
MS12#..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A60005 |
MS12#..LHD..ROY FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3A60106 |
MS122,125..SED..LHD..ROY FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-3A60102 |
MS122,125..SED..LHD..ROY FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-3A40102 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-3A40104 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A40106 |
MS122,125..SED..LHD..ROY FB,RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-3A60104 |
MS122,125..SED..LHD..ROY FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A38006 |
MS122,YS120..LHD..4F FB,W/*HR,BROWN,BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30630 |
MS12#..(4FC,5F)..(ROY,SAL) |
1 | ||
| 71511-30630 |
LS120,MS12#,YS120..4FC,5F |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-30630 |
MS12#..(4FC,5F)..(ROY,SAL) |
1 | ||
| 71511-30630 |
LS120,MS12#,YS120..4FC,5F |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30470 |
LS120,MS12#,YS120..4FC,5F |
1 | ||
| 71551-30500 |
MS12#..4FC..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71551-30470 |
MS12#..(SED,WG)..(4FC,5F)..(ROY,SAL) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30500 |
MS12#..4FC..ROY..(GEN,SAA) RR SLIDE SEAT |
1 | ||
| 71551-30470 |
LS120,MS12#,YS120..4FC,5F |
1 | ||
| 71551-30470 |
MS12#..(SED,WG)..(4FC,5F)..(ROY,SAL) |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71328-30010 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3005002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74620-3005004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
2 | ||
| 74620-3005006 |
MS12#..SED..ROY BROWN,BROWN,TRIM4# |
2 | ||
| 74620-3005005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
2 | ||
| 74620-3005012 |
MS12#..ROY MAROON,MAROON,TRIM3# |
2 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3005002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74620-3005004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
2 | ||
| 74620-3005006 |
MS12#..SED..ROY BROWN,BROWN,TRIM4# |
2 | ||
| 74620-3005005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
2 | ||
| 74620-3005012 |
MS12#..ROY MAROON,MAROON,TRIM3# |
2 | ||
| 71604B - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
MS12#..ROY |
4 | ||
| 71604B - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
MS12#..ROY |
4 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-3002016 |
MS12#..SED..ROY BROWN,BROWN,TRIM4# |
4 | ||
| 74617-3002012 |
MS12#..ROY MAROON,MAROON,TRIM3# |
4 | ||
| 74617-3002015 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
4 | ||
| 74617-3002024 |
MS12#..ROY BLUE,BLUE,TRIM8# |
4 | ||
| 74617-3002002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74617-3002016 |
MS12#..SED..ROY BROWN,BROWN,TRIM4# |
4 | ||
| 74617-3002012 |
MS12#..ROY MAROON,MAROON,TRIM3# |
4 | ||
| 74617-3002015 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
4 | ||
| 74617-3002024 |
MS12#..ROY BLUE,BLUE,TRIM8# |
4 | ||
| 74617-3002002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30440 |
MS12#..LHD..ROY |
1 | ||
| 71610-30440 |
MS122,125..SED..LHD..ROY |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-30450 |
MS12#..LHD..ROY |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-30560 |
MS12#..LHD..ROY |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-30530 |
MS12#..LHD..ROY |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3018002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3018004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018012 |
MS12#..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3018005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3018006 |
MS12#..SED..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3018002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3018004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018012 |
MS12#..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3018005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3018006 |
MS12#..SED..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3018002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3018005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3018004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018012 |
MS12#..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3018006 |
MS12#..SED..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3018002 |
MS12#..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-3018005 |
MS12#..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3018004 |
MS12#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3018012 |
MS12#..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3018006 |
MS12#..SED..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71711 - LEATHER, FOR SEAT, A RH | ||||
| 71711-3014002 |
MS122,125..LHD..ROY LH SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71711-3014006 |
MS122,125..LHD..ROY LH SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71711-3014004 |
MS122,125..SED..LHD..ROY LH SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71712 - LEATHER, FOR SEAT, B RH | ||||
| 71712-3016002 |
MS122,125..SED..LHD..ROY LH SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 71712-3016004 |
MS122,125..LHD..ROY LH SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71712-3016006 |
MS122,125..SED..LHD..ROY LH SEAT,BROWN,BROWN,TRIM4# |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-3008002 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 71731-3008006 |
MS122,125..SED..ROY RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
4 | ||
| 71731-3008005 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
4 | ||
| 71731-3008004 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
4 | ||
| 71731-3008012 |
MS122,125..ROY RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
4 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71731-3008002 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 71731-3008006 |
MS122,125..SED..ROY RR SLIDE SEAT,BROWN,BROWN,TRIM4# |
4 | ||
| 71731-3008005 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BEIGE,BEIGE,TRIM4# |
4 | ||
| 71731-3008004 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT,BLUE,BLUE,TRIM8# |
4 | ||
| 71731-3008012 |
MS122,125..ROY RR SLIDE SEAT,MAROON,MAROON,TRIM3# |
4 | ||
| 71732 - FASTENER, SEAT COVER, B (FOR FRONT SEAT) | ||||
| 71732-30020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71732 - FASTENER, SEAT COVER, B (FOR FRONT SEAT) | ||||
| 71732-30020 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30080 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71733-30080 |
MS12#..ROY..(GEN,SAA) RR SLIDE SEAT |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3019004 |
MS12#..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3019002 |
MS12#..LHD..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-3019005 |
MS12#..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3019102 |
MS122,125..SED..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71811-3019104 |
MS122,125..SED..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3019106 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71811-3019104 |
MS122,125..LHD..ROY..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3019102 |
MS122,125..LHD..ROY..GEN MAROON,MAROON,TRIM3# |
1 | ||
| 71811-3019106 |
MS122,125..LHD..ROY..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3009005 |
MS12#..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3009002 |
MS12#..LHD..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3009006 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71812-3009004 |
MS12#..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3009012 |
MS122,125..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3009005 |
MS12#..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-3009002 |
MS12#..LHD..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-3009006 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71812-3009004 |
MS12#..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3009012 |
MS122,125..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30280 |
MS123;MS122,125..SED..LHD..ROY |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71875-3002002 |
MS122,125..SED..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71875-3002006 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71875-3002004 |
MS122,125..SED..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71875-3002004 |
MS122,125..LHD..ROY..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 71875-3002002 |
MS122,125..LHD..ROY..GEN MAROON,MAROON,TRIM3# |
1 | ||
| 71875-3002006 |
MS122,125..LHD..ROY..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3002004 |
MS12#..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71862-3002006 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71862-3002005 |
MS12#..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-3002002 |
MS12#..LHD..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862-3002012 |
MS122,125..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3002004 |
MS12#..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71862-3002006 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71862-3002005 |
MS12#..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-3002002 |
MS12#..LHD..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862-3002012 |
MS122,125..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71867B - CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) | ||||
| 90467-1004504 |
MS12#..4FC..ROY..(GEN,SAA) BLUE,BLUE,TRIM8# |
2 | ||
| 90467-1303102 |
MS12#..4FC..ROY..(GEN,SAA) DEEP MAROON,DEEP MAROON,TRIM3# |
2 | ||
| 90467-1004502 |
MS12#..4FC..ROY..(GEN,SAA) DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 90467-1303112 |
MS122,125..4FC..ROY MAROON,MAROON,TRIM3# |
2 | ||
| 90467-1303104 |
MS12#..4FC..ROY..(GEN,SAA) BLUE,BLUE,TRIM8# |
2 | ||
| 90467-1303105 |
MS12#..4FC..ROY..(GEN,SAA) BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-1303106 |
MS122,125..4FC..ROY BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 90467-1004505 |
MS12#..4FC..ROY..(GEN,SAA) BEIGE,BEIGE,TRIM4# |
2 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-3004112 |
MS122,125..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71868-3004102 |
MS12#..LHD..ROY DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 71868-3004106 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71868-3004005 |
MS12#..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71868-3004002 |
MS12#..LHD..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71868-3004105 |
MS12#..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 71868-3004104 |
MS12#..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71868-3004004 |
MS12#..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-3001002 |
MS12#..4FC..ROY..(GEN,SAA) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71873-3001004 |
MS12#..4FC..ROY..(GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 71873-3001006 |
MS122,125..4FC..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 71873-3001005 |
MS12#..4FC..ROY..(GEN,SAA) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71873-3001012 |
MS122,125..4FC..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3040002 |
MS12#..ROY..(GEN,SAA) RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71910-3040004 |
MS12#..ROY..(GEN,SAA) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3040005 |
MS12#..ROY..(GEN,SAA) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3016004 |
MS12#..ROY..(GEN,SAA) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3016002 |
MS12#..ROY..(GEN,SAA) LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71920-3016005 |
MS12#..ROY..(GEN,SAA) LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71910-3040102 |
MS122,125..SED..ROY RH,MAROON,MAROON,TRIM3# |
1 | ||
| 71910-3040106 |
MS122,125..SED..ROY RH,BROWN,BROWN,TRIM4# |
1 | ||
| 71920-3016102 |
MS122,125..SED..ROY LH,MAROON,MAROON,TRIM3# |
1 | ||
| 71910-3040104 |
MS122,125..SED..ROY RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3016106 |
MS122,125..SED..ROY LH,BROWN,BROWN,TRIM4# |
1 | ||
| 71920-3016104 |
MS122,125..SED..ROY LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..SED W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
LS120,MS12#,YS120..ROY,SAL W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120..SED W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..ROY,SAL W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120..SED W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
LS120,MS12#,YS120..ROY,SAL W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001036 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 71930-1006004 |
LS120,MS12#,YS120 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS120,MS12#,YS120..SED W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001002 |
LS120,MS12#,YS120..ROY,SAL W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72520-30220 |
MS12#..LHD..ROY |
1 | ||
| 72520-30221 |
MS122,125..LHD..ROY |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72540-30011 |
MS122,125..LHD..ROY |
1 | ||
| 72540-30010 |
MS12#..LHD..ROY |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-30010 |
MS12#..4FC..ROY..(GEN,SAA) |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30280 |
LS120,MS12#,YS120..LHD..(4F,4FC,5F) |
1 | ||
| 72510-30281 |
MS122,125,YS120..4F,4FC,5F |
1 | ||
| 72510-30281 |
MS125..4FC..GEN;MS122,YS120..4F,4FC,5F |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005012 |
LS120,MS12#,YS120..LHD..(ROY,SAL) RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005045 |
YS120..LHD..(4F,5F);LS120,MS12#..LHD..(ROY,SAL) RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005022 |
MS122,125..LHD..(ROY,SAL) RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2005024 |
YS120..LHD..(4F,5F);LS120,MS12#..SED..LHD..(ROY,SAL) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005024 |
MS122,125,YS120..LHD..(4F,4FC,5F) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005006 |
MS125..SED..LHD;MS122,YS120..(HT,SED)..LHD..(4F,4FC,5F) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005022 |
MS125..LHD..GEN;MS122..LHD..(ROY,SAL) RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2005024 |
MS125..LHD..GEN;MS122,YS120..LHD..(4F,4FC,5F) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005006 |
MS125..LHD..GEN;MS122,YS120..(HT,SED)..LHD..(4F,4FC,5F) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72770 - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-30070 |
MS12#..LHD..ROY |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001012 |
LS120,MS12#,YS120..(4FC,5F)..(ARL,GEN) DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 72791-3001035 |
LS120,MS12#,YS120..(4F,4FC,5F)..(ARL,GEN) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3001024 |
LS120,MS12#,YS120..SED..(4F,4FC,5F)..(ARL,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001036 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72791-3001022 |
MS12#..(4FC,5F)..(ROY,SAL) MAROON,MAROON,TRIM3# |
1 | ||
| 72791-3001024 |
LS120,MS122,YS120..4F,5F BLUE,BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
LS120,MS12#,YS120..4F,4FC,5F |
1 | ||
| 73148 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, LH | ||||
| 73148-3001005 |
MS12#..LHD..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 73148-3001012 |
MS122,125..LHD..ROY MAROON,MAROON,TRIM3# |
1 | ||
| 73148-3001006 |
MS122,125..SED..LHD..ROY BROWN,BROWN,TRIM4# |
1 | ||
| 73148-3001002 |
MS12#..LHD..ROY DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73148-3001004 |
MS12#..LHD..ROY BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10229 | ||||
| 90154-80004 | ||||
| 90159-60084 | ||||
| 90168-40011 | ||||
| 90467-11004 | ||||
| 90468-04073 | ||||
| 90468-04092 | ||||
| 90523-08001 | ||||
| 93240-16020 | ||||
| 93249-54006 | ||||
| 93530-54020 | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8511 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

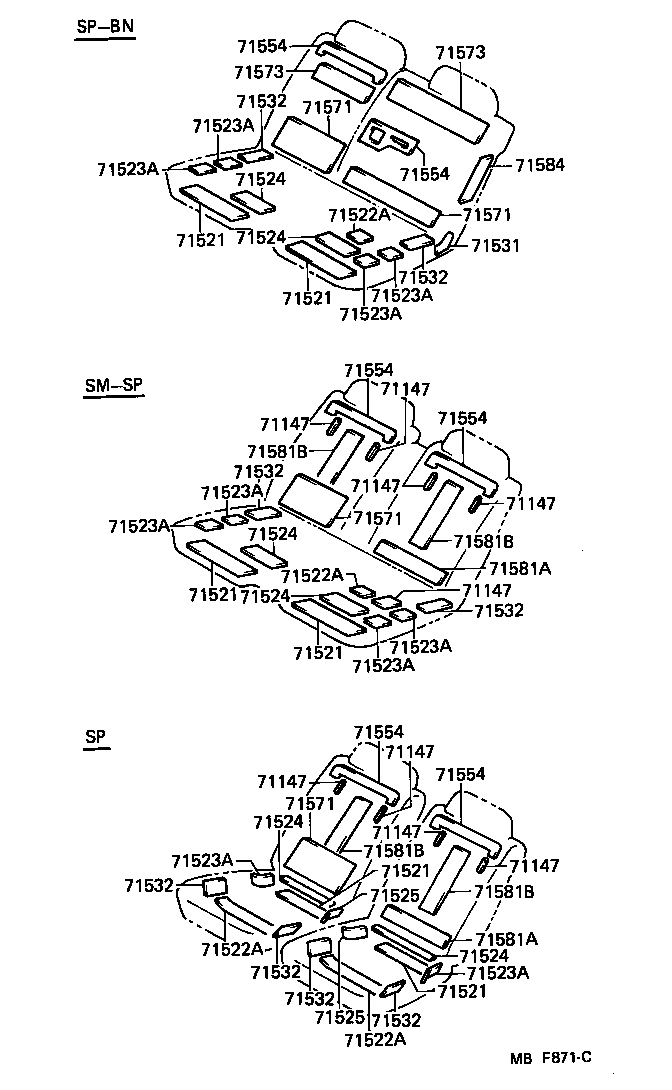

| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-30010 |
MS122,125..ROY SEAT BACK,RR SLIDE SEAT |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71521-30260 |
LS120,MS12#,YS120 |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30130 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30130 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30130 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30130 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30040 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71525 - PAD, FRONT SEAT CUSHION SILENCER, E | ||||
| 71556-30010 |
MS12#..4FC..ROY..(GEN,SAA) ASSISTANT SIDE |
1 | ||
| 71672-30030 |
MS122,125..4FC..ROY ASSISTANT SIDE |
1 | ||
| 71672-30030 |
MS122,125..4FC..ROY..GEN ASSISTANT SIDE |
1 | ||
| 71523-30030 |
MS12#..4FC..ROY..(GEN,SAA) DRIVER SIDE |
1 | ||
| 71525 - PAD, FRONT SEAT CUSHION SILENCER, E | ||||
| 71556-30010 |
MS12#..4FC..ROY..(GEN,SAA) ASSISTANT SIDE |
1 | ||
| 71672-30030 |
MS122,125..4FC..ROY ASSISTANT SIDE |
1 | ||
| 71672-30030 |
MS122,125..4FC..ROY..GEN ASSISTANT SIDE |
1 | ||
| 71523-30030 |
MS12#..4FC..ROY..(GEN,SAA) DRIVER SIDE |
1 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS120,MS12#,YS120..4F,4FC,5F |
4 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30300 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
LS120,MS12#,YS120 DRIVER SIDE |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
LS120,MS12#,YS120 DRIVER SIDE |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
LS120,MS12#,YS120 DRIVER SIDE |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30130 |
LS120,MS12#,YS120 DRIVER SIDE |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-30080 |
LS120,MS12#,YS120..4F,4FC,5F |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-30080 |
LS120,MS12#,YS120..4F,4FC,5F |
1 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-30030 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18043 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18043 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18043 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18043 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-30330 |
MS122,125..SED..LHD..ROY |
1 | ||
| 72110-30330 |
MS12#..LHD..ROY |
1 | ||
| 72110-30330 |
MS122,125..LHD..ROY..GEN |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-30120 |
MS12#..LHD..ROY |
1 | ||
| 72130-30120 |
MS122,125..LHD..ROY..GEN |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72137-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72137-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72138-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 72138-3001004 |
LS120,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138-3001006 |
LS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC) BROWN,BROWN,TRIM4# |
1 | ||
| 72138-3001012 |
MS12#..ROY,SAL MAROON,MAROON,TRIM3# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-30100 |
MS122,YS120..LHD..4F |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-3001002 |
LS120,MS12#,YS120..4FC,5F RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157-3001004 |
LS120,MS12#,YS120..SED..(4F,4FC,5F) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001002 |
LS120,MS12#,YS120..4FC,5F LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157-3001004 |
LS120,MS12#,YS120..4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72157-3001006 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72158-3001005 |
LS120,MS12#,YS120..4F,4FC,5F LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72157-3001012 |
MS12#..(4FC,5F)..(ROY,SAL) RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3001012 |
MS12#..(4FC,5F)..(ROY,SAL) LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3001004 |
LS120,MS12#,YS120..SED..(4F,4FC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001004 |
LS120,MS12#,YS120..4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001006 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72157-3001005 |
LS120,MS12#,YS120..4F,4FC,5F RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-3001002 |
LS120,MS12#,YS120..4FC,5F RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157-3001004 |
LS120,MS12#,YS120..SED..(4F,4FC,5F) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001002 |
LS120,MS12#,YS120..4FC,5F LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72157-3001004 |
LS120,MS12#,YS120..4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72157-3001006 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72158-3001005 |
LS120,MS12#,YS120..4F,4FC,5F LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72157-3001012 |
MS12#..(4FC,5F)..(ROY,SAL) RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3001012 |
MS12#..(4FC,5F)..(ROY,SAL) LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3001004 |
LS120,MS12#,YS120..SED..(4F,4FC,5F) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001004 |
LS120,MS12#,YS120..4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72158-3001006 |
MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F) LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72157-3001005 |
LS120,MS12#,YS120..4F,4FC,5F RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30100 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30100 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30100 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30100 |
LS120,MS12#,YS120..4F,4FC,5F |
2 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08079 | ||||
| 90119-10349 | ||||
| 90179-10015 | ||||
| 90389-06003 | ||||
| 90506-08006 | ||||
| 91611-40616 | ||||
| 94543-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
