MS122L-SEPQS (1983)
Toyota Crown

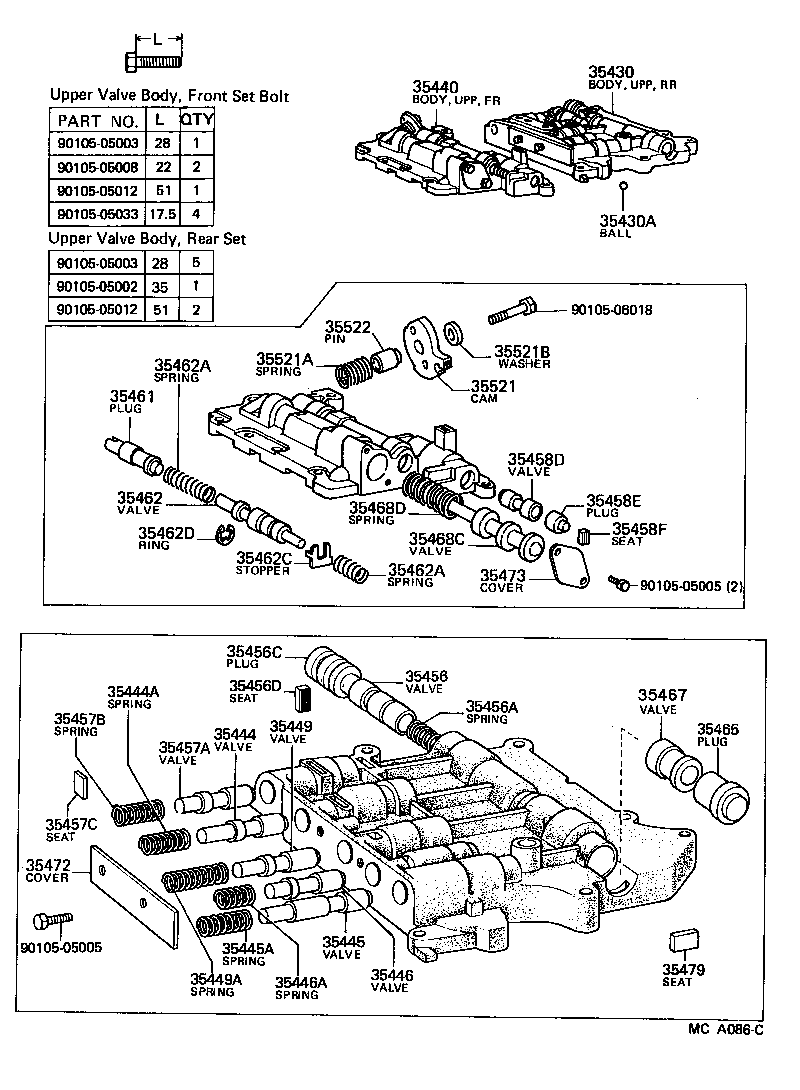

(8308- )MS122,123..ATM..GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-30140 |
MS122..SED..ATM |
1 | ||
| 35430-22140 |
MS122..SED..ATM |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 35495-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) OD=5.535,RUBBER,OD=5.56,GUM |
3 | ||
| 35495-22010 |
MS122..ATM OD=5.535,RUBBER,OD=5.56,GUM |
3 | ||
| 90360-06023 |
MS122,123..ATM 0D=5.56,OD=5.56,STEEL |
6 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22101 |
MS122..SED..ATM |
1 | ||
| 35440-30090 |
MS122,123..SED..ATM..(GEN,SAA) |
1 | ||
| 35440-30091 |
MS122..SED..ATM |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
MS122,123..ATM |
2 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11009 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 90501-11009 |
MS122..ATM |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
MS122..ATM |
1 | ||
| 35445-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
MS122..ATM |
1 | ||
| 90501-08725 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35446 - VALVE, GOVERNOR MODULATOR | ||||
| 35446-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35446-22010 |
MS122..ATM |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
MS122..ATM |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35447-22010 |
MS122..ATM |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12055 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 90501-12055 |
MS122,123..SED..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35456-22010 |
MS122..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08724 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 90501-08724 |
MS122..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-22010 |
MS122..ATM |
1 | ||
| 35452-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35493-22020 |
MS122..ATM |
1 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35457-22010 |
MS122..ATM |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09007 |
MS122..ATM |
1 | ||
| 90501-09007 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35457C - SEAT (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
MS122..ATM |
1 | ||
| 35438-22020 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-22010 |
MS122..ATM |
1 | ||
| 35458-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
MS122,123..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
MS122,123..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22020 |
MS122..ATM |
1 | ||
| 35408-22020 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
MS122,123..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) L=39.71,PRIMARY |
1 | ||
| 90501-12011 |
MS122..ATM L=39.71,PRIMARY |
1 | ||
| 90501-07680 |
MS122,123..ATM L=19.24,SECONDARY |
1 | ||
| 90501-12077 |
MS122..ATM L=39.76,PRIMARY |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) L=39.71,PRIMARY |
1 | ||
| 90501-12011 |
MS122..ATM L=39.71,PRIMARY |
1 | ||
| 90501-07680 |
MS122,123..ATM L=19.24,SECONDARY |
1 | ||
| 90501-12077 |
MS122..ATM L=39.76,PRIMARY |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
MS122,123..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
MS12#..ATM |
6 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-22010 |
MS122..ATM |
1 | ||
| 35465-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35467-22010 |
MS122..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-14010 |
MS122,123..ATM |
1 | ||
| 35468-14010 |
MS122,123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35204-30010 |
MS122,123..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
MS122,123..ATM |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
MS122..ATM |
1 | ||
| 35472-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
MS122,123..ATM |
1 | ||
| 35479 - SEAT, INTERMEDIATE SHIFT VALVE | ||||
| 35479-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35479-22010 |
MS122..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30010 |
MS122..ATM |
1 | ||
| 35521-30010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35521-30010 |
MS122..SED..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
MS122,123..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
MS12#..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
MS12#..ATM |
1 | ||
| Common parts | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05008 | ||||
| 90105-05012 | ||||
| 90105-05033 | ||||
| 90105-06018 | ||||

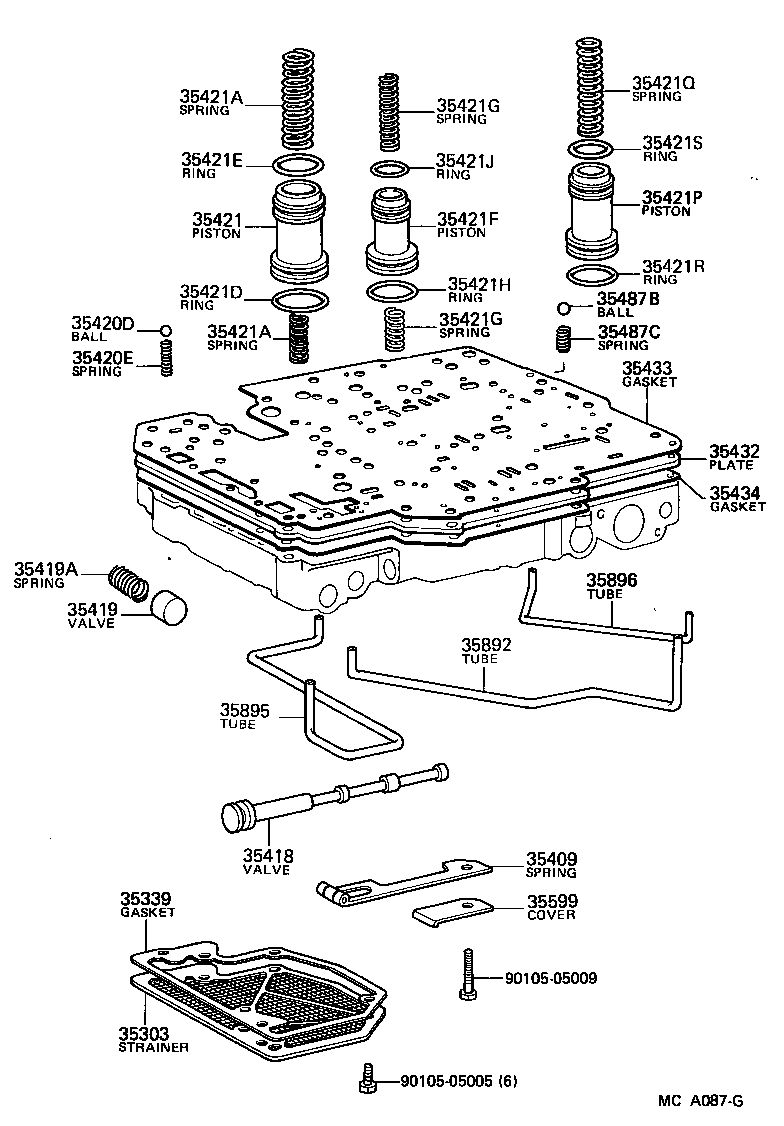

(8308- )MS122,123..ATM..GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
MS122,123..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30050 |
MS122..ATM |
1 | ||
| 35418-30050 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
MS122,123..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
MS122,123..ATM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35496-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) OD=6.35,RUBBER,OD=6.35,GUM |
2 | ||
| 35496-22010 |
MS122..ATM OD=6.35,RUBBER,OD=6.35,GUM |
2 | ||
| 35495-22010 |
MS122..ATM OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
MS122..ATM |
1 | ||
| 90501-04727 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-30020 |
MS122,123..ATM |
1 | ||
| 35421-30020 |
MS122..ATM |
1 | ||
| 35421-30020 |
MS122..SED..ATM |
1 | ||
| 35421-24010 |
MS122..ATM |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-26014 |
MS122..SED..ATM |
1 | ||
| 90501-29009 |
MS122..ATM |
1 | ||
| 90501-26050 |
MS122..ATM UPR |
1 | ||
| 90501-13012 |
MS122..ATM LWR |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-26014 |
MS122..SED..ATM |
1 | ||
| 90501-29009 |
MS122..ATM |
1 | ||
| 90501-26050 |
MS122..ATM UPR |
1 | ||
| 90501-13012 |
MS122..ATM LWR |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
MS122,123..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
MS122,123..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35423-30010 |
MS122..ATM |
1 | ||
| 35441-30010 |
MS122..ATM |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-15003 |
MS122..ATM LWR |
1 | ||
| 90501-18062 |
MS122..SED..ATM UPR |
1 | ||
| 90501-16093 |
MS122..SED..ATM LWR |
1 | ||
| 90501-20038 |
MS122..ATM UPR |
1 | ||
| 90501-16093 |
MS122,123..ATM LWR |
1 | ||
| 90501-27013 |
MS122..ATM UPR |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-15003 |
MS122..ATM LWR |
1 | ||
| 90501-18062 |
MS122..SED..ATM UPR |
1 | ||
| 90501-16093 |
MS122..SED..ATM LWR |
1 | ||
| 90501-20038 |
MS122..ATM UPR |
1 | ||
| 90501-16093 |
MS122,123..ATM LWR |
1 | ||
| 90501-27013 |
MS122..ATM UPR |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
MS122,123..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
MS122,123..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
MS122,123..ATM |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20016 |
MS122..SED..ATM |
1 | ||
| 90501-20063 |
MS122,123..ATM |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
MS122,123..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
MS122,123..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-30121 |
MS122..SED..ATM |
1 | ||
| 35432-30091 |
MS122..ATM |
1 | ||
| 35432-30090 |
MS122..ATM |
1 | ||
| 35432-30122 |
MS122..SED..ATM |
1 | ||
| 35432-30121 |
MS122..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-14011 |
MS12#..ATM..(GEN,SAA) |
1 | ||
| 35433-14012 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-14011 |
MS12#..ATM..(GEN,SAA) |
1 | ||
| 35434-14012 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
MS122,123..ATM |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
MS122,123..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30010 |
MS122,123..ATM |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-14011 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35896 - TUBE, OVERDRIVE SWITCH APPLY | ||||
| 35896-30020 |
MS122..ATM |
1 | ||
| 35896-30020 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||

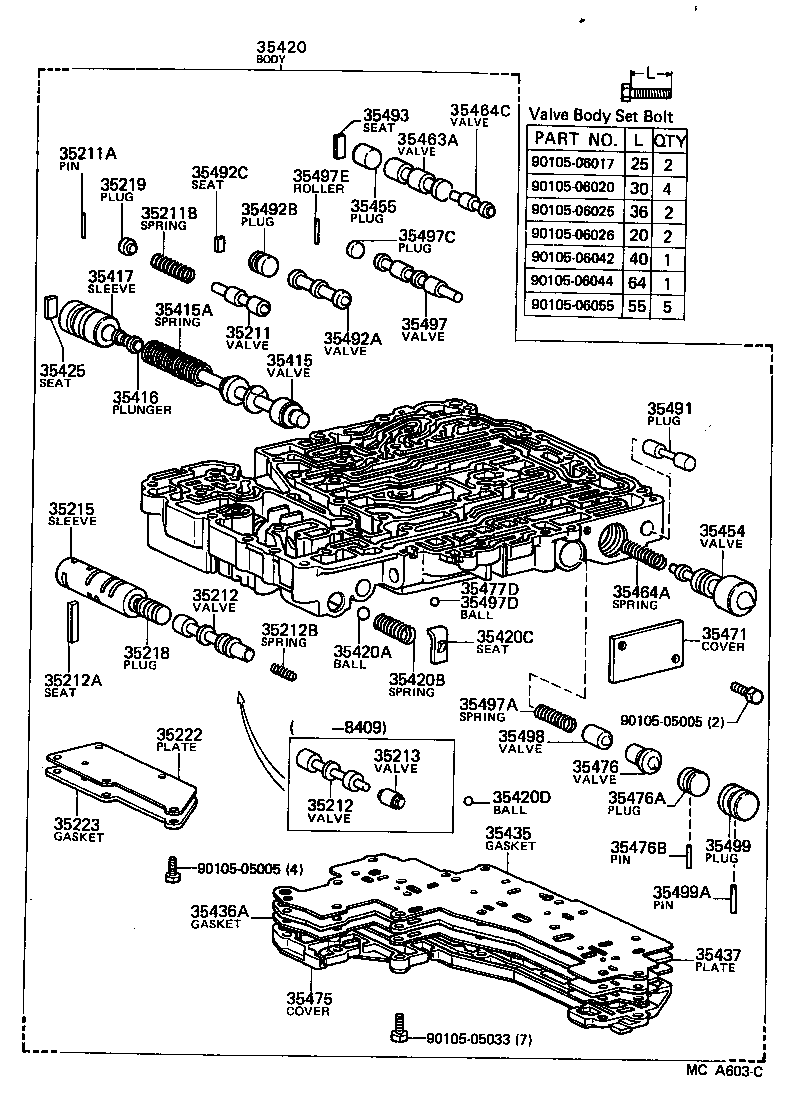

(8308- )MS122,123..ATM..GEN,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-02007 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-09024 |
MS122,123..SED..ATM..(GEN,SAA) |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35202-30020 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35212-14010 |
MS12#..ATM..(GEN,SAA) |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35202-30020 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35212-14010 |
MS12#..ATM..(GEN,SAA) |
1 | ||
| 35212A - SEAT, PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 35493-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07017 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-14010 |
MS12#..ATM..(GEN,SAA) |
1 | ||
| 35213-30030 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35218 - PLUG, LOCK UP RELAY VALVE | ||||
| 35218-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35219 - PLUG, LOCK UP SIGNAL VALVE | ||||
| 35219-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-22020 |
MS122..ATM |
1 | ||
| 35203-30010 |
MS122,123..ATM |
1 | ||
| 35415-22020 |
MS122,123..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-16682 |
MS122..SED..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-22010 |
MS122..SED..ATM |
1 | ||
| 35416-24010 |
MS122..SED..ATM |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-24010 |
MS122..SED..ATM |
1 | ||
| 35417-22020 |
MS122..SED..ATM |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-30150 |
MS122..ATM |
1 | ||
| 35420-30151 |
MS122..SED..ATM |
1 | ||
| 35420-30152 |
MS122..SED..ATM |
1 | ||
| 35420-30153 |
MS122..SED..ATM |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
MS122,123..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
MS122,123..ATM |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-22011 |
MS122..ATM |
1 | ||
| 35427-22011 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35496-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) OD=6.35,RUBBER,OD=6.35,GUM |
2 | ||
| 35496-22010 |
MS122..ATM OD=6.35,RUBBER,OD=6.35,GUM |
2 | ||
| 35495-22010 |
MS122..ATM OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35425-22010 |
MS122..ATM |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35437 - PLATE, 3-4 SHIFT VALVE SEPARATOR | ||||
| 35437-30070 |
MS122..ATM |
1 | ||
| 35437-22020 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-30010 |
MS122..ATM |
1 | ||
| 35454-30010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-22010 |
MS122..ATM |
1 | ||
| 35455-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35463A - VALVE, 1-2 SHIFT, LOWER | ||||
| 35463-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35463-22010 |
MS122..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06684 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 90501-06684 |
MS122..ATM |
1 | ||
| 35464C - VALVE, 1-2 SHIFT, UPPER | ||||
| 35464-22020 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35464-22020 |
MS122..ATM |
1 | ||
| 35471 - COVER, VALVE BODY, NO.1 | ||||
| 35471-22010 |
MS122..ATM |
1 | ||
| 35471-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-14010 |
MS122,123..ATM..(GEN,SAA) |
1 | ||
| 35476 - VALVE, 3RD COAST SHIFT | ||||
| 35476-30010 |
MS122..ATM |
1 | ||
| 35476-30010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT) | ||||
| 90334-12001 |
MS122..ATM |
1 | ||
| 90334-12001 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35476B - PIN, LOCATING (FOR 3RD COAST SHIFT) | ||||
| 90250-02012 |
MS122..ATM |
1 | ||
| 90250-02012 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35477D - BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 35495-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
2 | ||
| 35495-22010 |
MS122..ATM |
2 | ||
| 35491 - PLUG, REVERSE BRAKE | ||||
| 35491-22010 |
MS122..ATM |
1 | ||
| 35491-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35492A - VALVE, MANUAL DOWN TIMING | ||||
| 35492-30010 |
MS122..ATM |
1 | ||
| 35492-30010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35492B - PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35494-30010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35494-30010 |
MS122..ATM |
1 | ||
| 35492C - SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30040 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35493-30040 |
MS122..ATM |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-22010 |
MS122..ATM |
1 | ||
| 35493-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30020 |
MS122..ATM |
1 | ||
| 35497-30020 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-11006 |
MS122..ATM |
1 | ||
| 90501-11006 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90334-13001 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 90334-13001 |
MS122..ATM |
1 | ||
| 35497D - BALL, CHECK (FOR 3-4 SHIFT VALVE) | ||||
| 35495-22010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
2 | ||
| 35495-22010 |
MS122..ATM |
2 | ||
| 35497E - ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE) | ||||
| 90361-02051 |
MS122..ATM |
1 | ||
| 90361-02051 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35498 - VALVE, 3-4 COAST SHIFT | ||||
| 35498-30010 |
MS122..ATM |
1 | ||
| 35498-30010 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35499 - PLUG, 3-4 SHIFT VALVE | ||||
| 35499-30030 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| 35499-30030 |
MS122..ATM |
1 | ||
| 35499A - PIN, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90250-02012 |
MS122..ATM |
1 | ||
| 90250-02012 |
MS122,123..ATM..(ARL,GEN,SAA,SWZ) |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05033 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 90105-06042 | ||||
| 90105-06044 | ||||
| 90105-06055 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
