MS122L-SEPGS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
5M
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

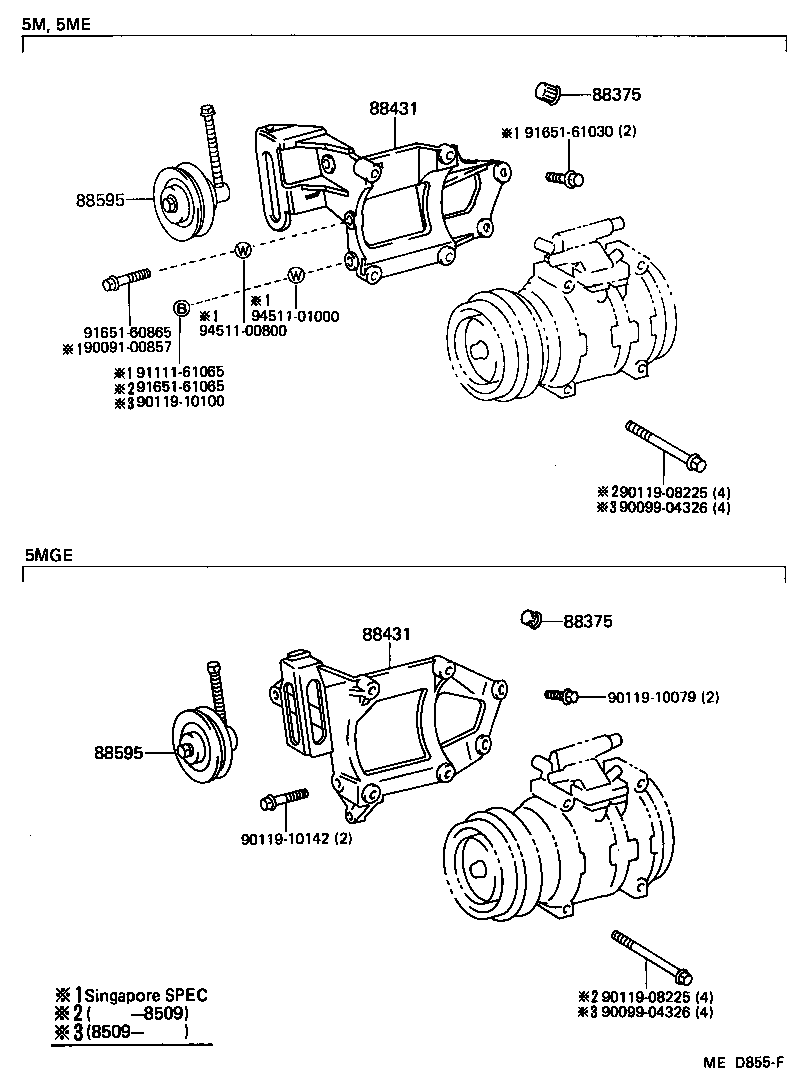

(8308- )MS12#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LS120,MS12#,YS120 |
1 | ||
| 88375-30270 |
MS12#,YS120 |
2 | ||
| 88375-30270 |
MS12# |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LS120,MS12#,YS120 |
1 | ||
| 88375-30270 |
MS12#,YS120 |
2 | ||
| 88375-30270 |
MS12# |
2 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30530 |
MS122 |
1 | ||
| 88431-22180 |
MS122;MS123..ARL,SWZ |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30530 |
MS122 |
1 | ||
| 88431-22180 |
MS122;MS123..ARL,SWZ |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
MS12# |
1 | ||
| 88440-30290 |
MS12# |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
MS12# |
1 | ||
| 88440-30290 |
MS12# |
1 | ||
| Common parts | ||||
| 90091-00857 | ||||
| 90099-04326 | ||||
| 90119-08225 | ||||
| 90119-10079 | ||||
| 90119-10100 | ||||
| 90119-10142 | ||||
| 91111-61065 | ||||
| 91651-60865 | ||||
| 91651-61030 | ||||
| 91651-61065 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||

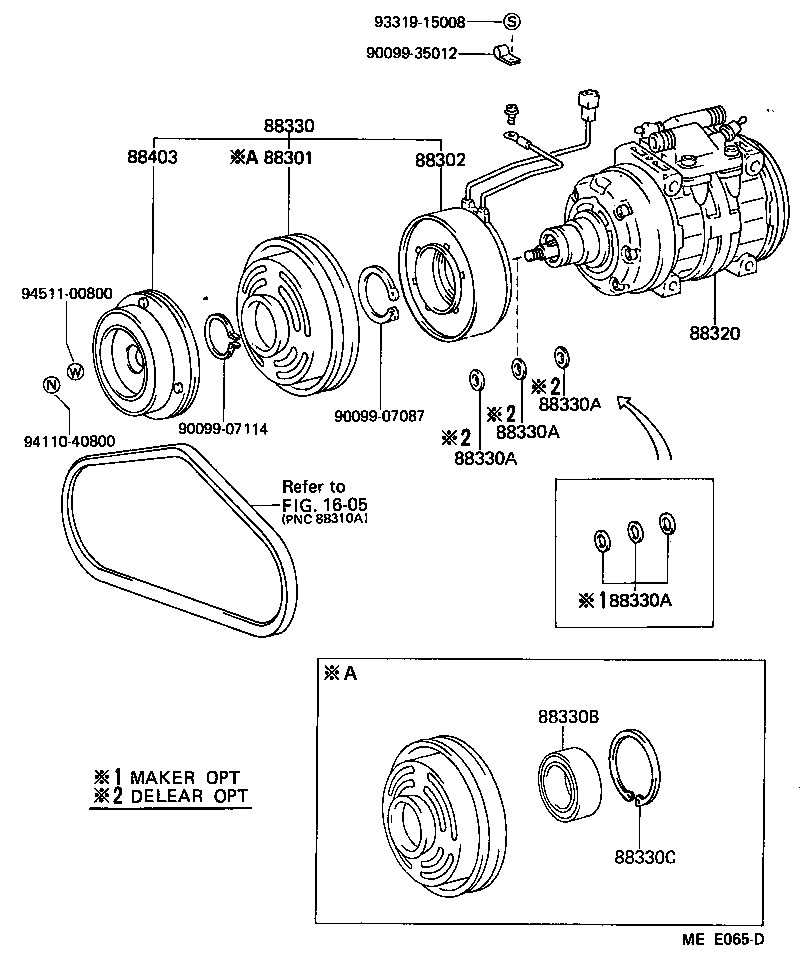

(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30290 |
MS122 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30370 |
MS122 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30330 |
MS12# |
1 | ||
| 88320-30510 |
MS122 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-30370 |
MS122 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
MS122 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
MS122 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
MS122 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
MS122 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
LS120,MS12#,YS120 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
MS122 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30280 |
MS122 |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-35012 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||

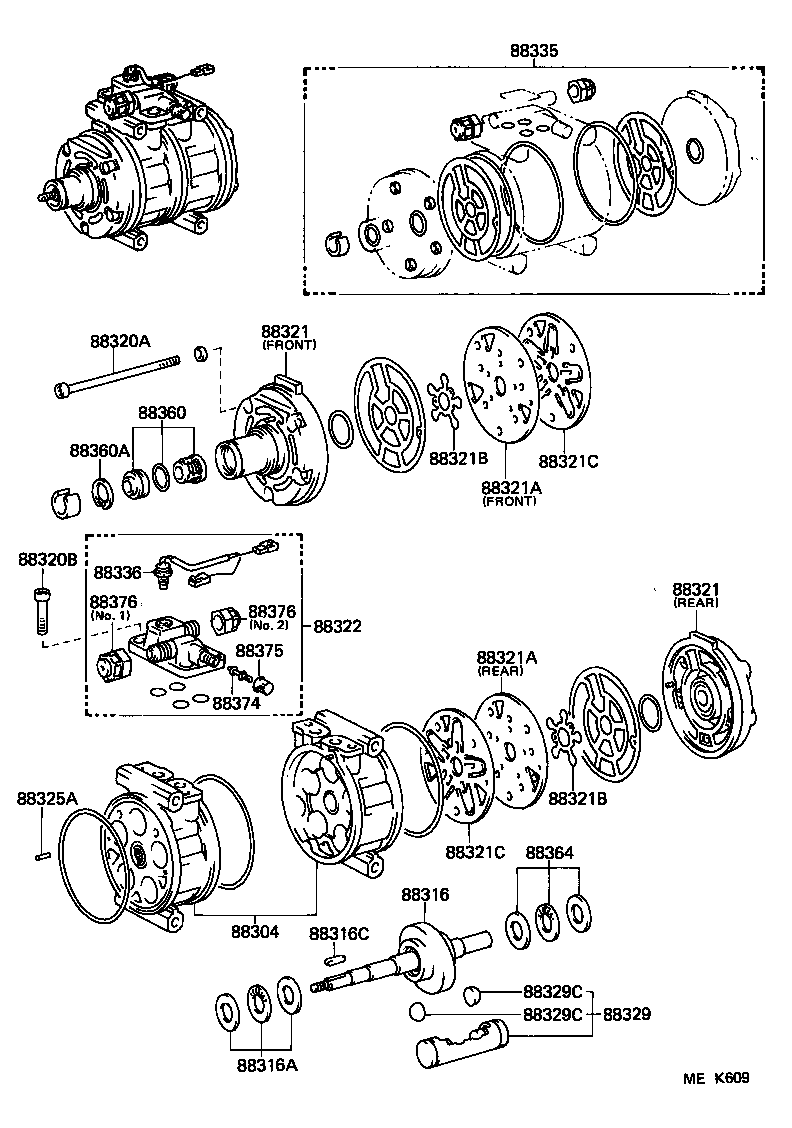

(8308- )MS12#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-40010 |
MS12# |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-40011 |
MS12# |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
MS12# |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13012 |
LS120,MS12#,YS120 |
1 | ||
| 90099-13024 |
MS122 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04304 |
MS12# |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04307 |
MS12# |
2 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-40010 |
MS12# RR |
1 | ||
| 88321-40010 |
MS12# FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-40010 |
MS12# RR |
1 | ||
| 88321-40010 |
MS12# FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-40010 |
MS12# RR |
1 | ||
| 88341-40010 |
MS12# FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-40010 |
MS12# RR |
1 | ||
| 88341-40010 |
MS12# FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-40010 |
MS12# |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-40010 |
MS12# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-40010 |
MS12# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-40010 |
MS12# |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-30340 |
MS12# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LS120,MS12#,YS120 |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-40010 |
MS12# |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
LS120,MS12#,YS120 |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
LS120,MS12#,YS120 |
10 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-40010 |
MS12# |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-30030 |
MS122 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
LS120,MS12#,YS120 |
1 | ||
| 88360-14020 |
LS120,MS12#,YS120 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
LS120,MS12#,YS120 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20050 |
MS12# |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LS120,MS12#,YS120 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
LS120,MS12#,YS120 |
1 | ||
| 88375-30270 |
MS12#,YS120 |
2 | ||
| 88375-30270 |
MS12# |
2 | ||
| 88376 - CAP, BLIND | ||||
| 88376-26020 |
MS12# NO.2 |
1 | ||
| 88376-26010 |
MS12# NO.1 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-26020 |
MS12# NO.2 |
1 | ||
| 88376-26010 |
MS12# NO.1 |
1 | ||
