MS122L-SEPGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 5M
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

diagram 87104 87105 87130 87138 8889930650 9009901523 9011908253 9011908424 9017908123
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-30370

LS120,MS12#,YS120..LHD

 1
87104-30371

LS120,MS12#,YS120..LHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87134-30020

LS120,MS12#,YS120..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-30360

LS120,MS12#,YS120..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-30300

MS12#,YS120;LS120..4F,5F;LS120..LHD..STD

 1
Common parts
88899-30650
90099-01523
90119-08253
90119-08424
90179-08123

(8308- )LS120..4F,5F ; (8308- )LS120..LHD..STD ; (8308- )MS122,123,YS120..

Click highlighted areas on diagram

diagram 87108A 8715 87151A 87151D 87151E 88910 9017906069 9048030018
Part # Description Qty Price
87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL
87108-30380

MS12#,YS120;LS120..4F,5F;LS120..LHD..STD

 1
87151A - HOSE, VACUUM, A
90447-04004

LS120,MS12#,YS120..LHD..(SAL,STD)

 1
90447-04048

LS120,MS122,123,YS120..LHD..(SAL,STD)

 1
87151D - HOSE, VACUUM, D
90447-04017

LS120,MS122,123,YS120..LHD..(DLX,SAL,STD)

 1
87151E - HOSE, VACUUM, E
90447-04042

LS120,MS122,123,YS120..LHD..(SAL,STD)

 1
90447-04019

LS120,MS12#,YS120..LHD..(SAL,STD)

 1
88910 - VENTILATOR ASSY, BOOST
88910-30060

LS120,MS122,YS120..LHD..(SAL,STD)

 1
88910-30060

LS120,MS122,YS120..LHD..(DLX,SAL,STD)..GEN

 1
Common parts
90179-06069
90480-30018
Linked diagrams
8715

(8308- )LHD..SAL,STD

Click highlighted areas on diagram

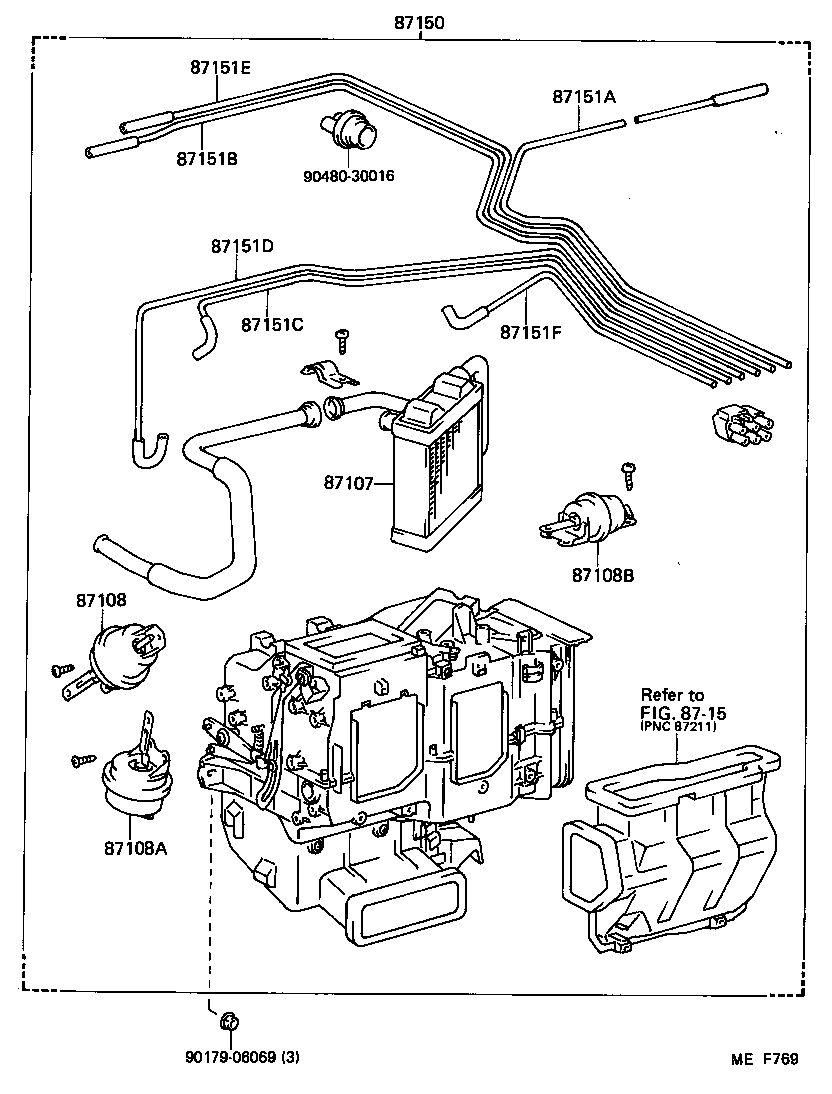

diagram 87107 87108 87108A 87108B 8715 87150 87151A 87151B 87151C 87151D 87151E 87151F 9017906069 9048030016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-30370

LS120,MS12#,YS120..LHD

 1
87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL
87108-30410

LS120,MS12#,YS120..LHD

 1
87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL
87108-30380

MS12#,YS120;LS120..4F,5F;LS120..LHD..STD

 1
87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL
87108-30460

LS120,MS12#,YS120..LHD

 1
87150 - RADIATOR ASSY, HEATER
87150-30400

LS120,MS122,123,YS120..LHD..(SAL,STD)

 1
87150-30500

LS120,MS122,YS120..LHD..(DLX,SAL,STD)

 1
87151A - HOSE, VACUUM, A
90447-04004

LS120,MS12#,YS120..LHD..(SAL,STD)

 1
90447-04048

LS120,MS122,123,YS120..LHD..(SAL,STD)

 1
87151B - HOSE, VACUUM, B
90447-04008

LS120,MS122,123,YS120..LHD..(DLX,SAL,STD)

 1
87151C - HOSE, VACUUM, C
90447-04013

LS120,MS122,123,YS120..LHD..(DLX,SAL,STD)

 1
87151D - HOSE, VACUUM, D
90447-04017

LS120,MS122,123,YS120..LHD..(DLX,SAL,STD)

 1
87151E - HOSE, VACUUM, E
90447-04042

LS120,MS122,123,YS120..LHD..(SAL,STD)

 1
90447-04019

LS120,MS12#,YS120..LHD..(SAL,STD)

 1
87151F - HOSE, VACUUM, F
90447-04021

LS120,MS122,123,YS120..LHD..(DLX,SAL,STD)

 1
Common parts
90179-06069
90480-30016
Linked diagrams
8715
