MS122L-SEPGS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 5M
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)5M#

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9011610109 9011910062 9011910062 9011910079 9017910009 9017910009 9017910015 9161161020 9165161022 9165161022 9166140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41070

5M#..MS12#

 1
12311-42010

5M#,6MGE..MS12#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41080

5M#..MS12#

 1
12315-42010

5M#,6MGE..MS12#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42010

5M#,6MGE..MS12#..ARL,GEN,SAA

 2
12361-41100

5M#..MS12#..ARL,GEN,SAA

 2
12361-43060

5M#,6MGE..MS12#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42010

5M#,6MGE..MS12#..ARL,GEN,SAA

 2
12361-41100

5M#..MS12#..ARL,GEN,SAA

 2
12361-43060

5M#,6MGE..MS12#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

5M#,6MGE..MS12#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-43010

5M#,6MGE..MS12#

 1
12511-41050

5M,5ME..MS122

 1
Common parts
90116-10109
90119-10062
90119-10079
90179-10009
90179-10015
91611-61020
91651-61022
91661-40814

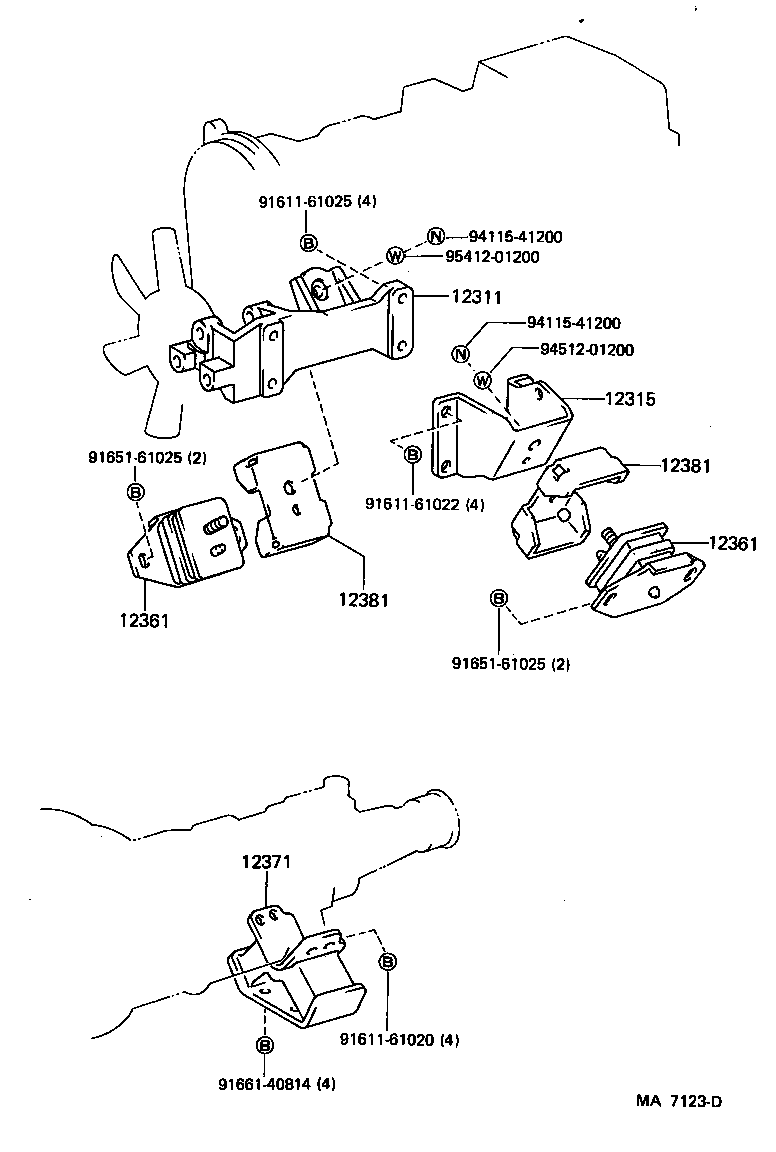

(8308- )2L

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 9161161020 9161161022 9161161025 9165161025 9165161025 9166140814 9411541200 9411541200 9451201200 9541201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41070

5M#..MS12#

 1
12311-42010

5M#,6MGE..MS12#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41080

5M#..MS12#

 1
12315-42010

5M#,6MGE..MS12#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42010

5M#,6MGE..MS12#..ARL,GEN,SAA

 2
12361-41100

5M#..MS12#..ARL,GEN,SAA

 2
12361-43060

5M#,6MGE..MS12#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42010

5M#,6MGE..MS12#..ARL,GEN,SAA

 2
12361-41100

5M#..MS12#..ARL,GEN,SAA

 2
12361-43060

5M#,6MGE..MS12#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

5M#,6MGE..MS12#

 1
Common parts
91611-61020
91611-61022
91611-61025
91651-61025
91661-40814
94115-41200
94512-01200
95412-01200

(8408- )5M#,6MGE

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9010510093 9011610097 9011610097 9011610109 9011910062 9011910062 9017910015 9017910016 9017910016 9017910016 9017910016 9161161020 9165161025 9165161025 9166140814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41070

5M#..MS12#

 1
12311-42010

5M#,6MGE..MS12#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41080

5M#..MS12#

 1
12315-42010

5M#,6MGE..MS12#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42010

5M#,6MGE..MS12#..ARL,GEN,SAA

 2
12361-41100

5M#..MS12#..ARL,GEN,SAA

 2
12361-43060

5M#,6MGE..MS12#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42010

5M#,6MGE..MS12#..ARL,GEN,SAA

 2
12361-41100

5M#..MS12#..ARL,GEN,SAA

 2
12361-43060

5M#,6MGE..MS12#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

5M#,6MGE..MS12#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-43010

5M#,6MGE..MS12#

 1
12511-41050

5M,5ME..MS122

 1
Common parts
90105-10093
90116-10097
90116-10109
90119-10062
90179-10015
90179-10016
91611-61020
91651-61025
91661-40814
