MS112R-SENQE (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
5ME
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )RHD..ROY

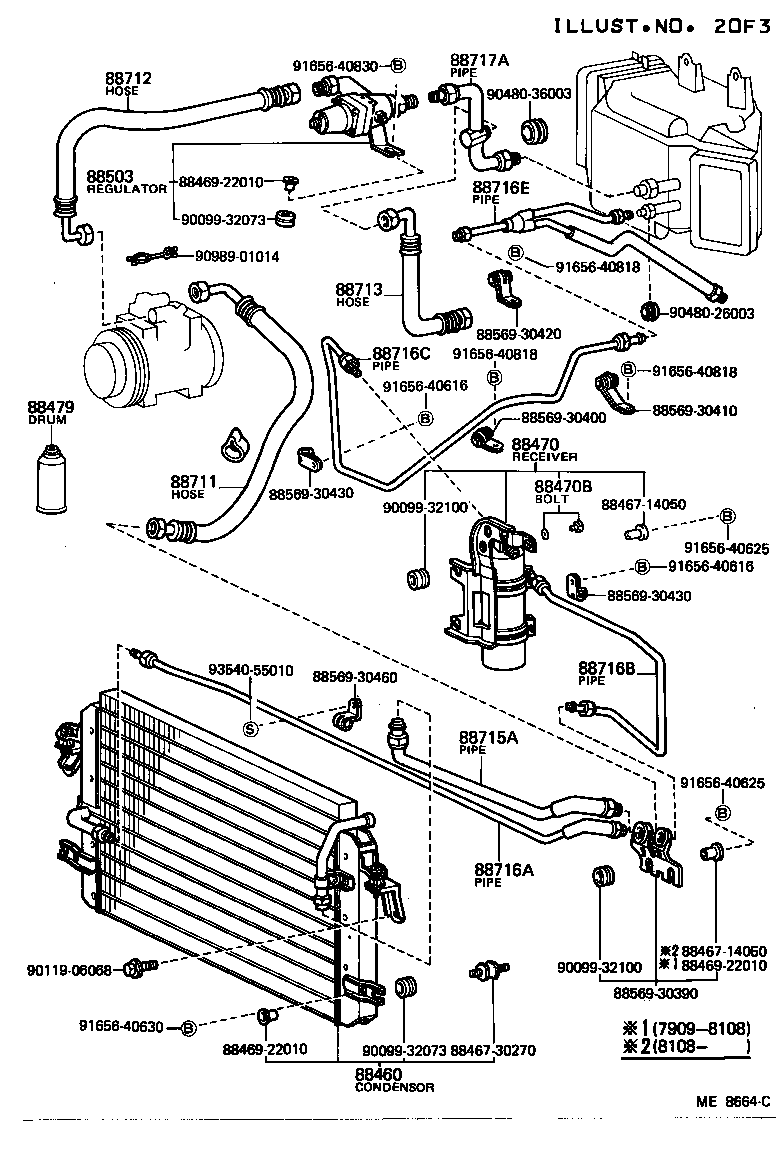

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30430 |
MS11#..ROY |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30460 |
MS11#..ROY |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
LS110,MS11#,RS110 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02002 |
LS110,MS11#,RS110 300G |
3 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-30310 |
MS11#..RHD..ROY |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30490 |
MS11#..ROY |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-30640 |
MS112..RHD..ROY |
1 | ||
| 88712-30530 |
MS11#..RHD |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-30520 |
MS11#..SED..RHD W/RR COOLER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-30300 |
MS11# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-30290 |
MS11# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-30300 |
LS110,MS11#,RS110 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-30310 |
MS11#..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-30350 |
MS11#..SED..RHD W/RR COOLER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88727-30260 |
MS11#..SED..RHD W/RR COOLER |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88467-30270 | ||||
| 88469-22010 | ||||
| 88569-30390 | ||||
| 88569-30400 | ||||
| 88569-30410 | ||||
| 88569-30420 | ||||
| 88569-30430 | ||||
| 88569-30460 | ||||
| 90099-32073 | ||||
| 90099-32100 | ||||
| 90119-06068 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 90989-01014 | ||||
| 91656-40616 | ||||
| 91656-40625 | ||||
| 91656-40630 | ||||
| 91656-40818 | ||||
| 91656-40830 | ||||
| 93540-55010 | ||||
(7909- )RHD..ROY

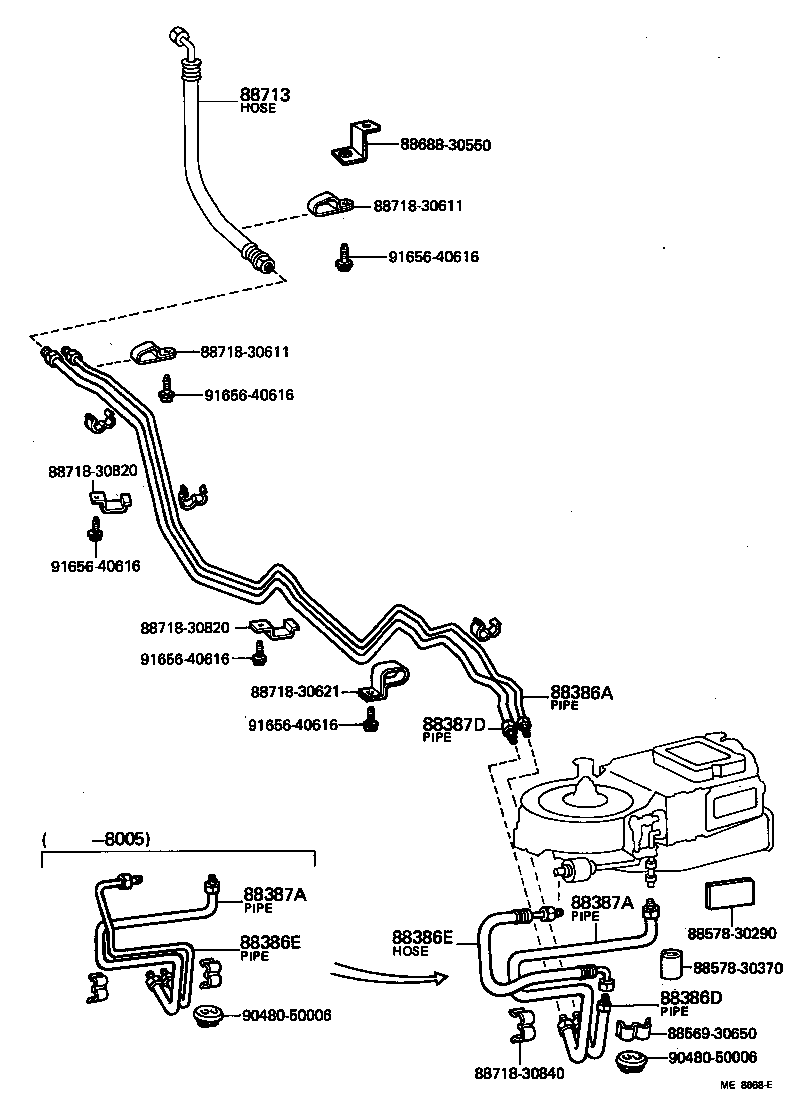

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88386A - PIPE, REAR COOLER REFRIGERANT LIQUID, A (FROM CONDENSER | ||||
| 88726-30361 |
MS11#..ROY |
1 | ||
| 88726-30550 |
MS112..ROY |
1 | ||
| 88726-30360 |
MS11#..ROY |
1 | ||
| 88386D - PIPE, REAR COOLER REFRIGERANT LIQUID, D | ||||
| 88726-30540 |
MS11#..SED |
1 | ||
| 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT | ||||
| 88726-30330 |
MS11#..SED |
1 | ||
| 88721-30250 |
MS11#..SED |
1 | ||
| 88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT | ||||
| 88726-30330 |
MS11#..SED |
1 | ||
| 88721-30250 |
MS11#..SED |
1 | ||
| 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI | ||||
| 88727-30291 |
MS11#..SED |
1 | ||
| 88727-30290 |
MS11#..SED |
1 | ||
| 88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI | ||||
| 88727-30291 |
MS11#..SED |
1 | ||
| 88727-30290 |
MS11#..SED |
1 | ||
| 88387D - PIPE, REAR COOLER REFRIGERANT SUCTION, D | ||||
| 88727-30301 |
MS11#..ROY |
1 | ||
| 88727-30440 |
MS112..ROY |
1 | ||
| 88727-30300 |
MS11#..ROY |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-30520 |
MS11#..SED..RHD W/RR COOLER |
1 | ||
| Common parts | ||||
| 88569-30650 | ||||
| 88578-30290 | ||||
| 88578-30370 | ||||
| 88688-30550 | ||||
| 88718-30611 | ||||
| 88718-30621 | ||||
| 88718-30820 | ||||
| 88718-30840 | ||||
| 90480-50006 | ||||
| 91656-40616 | ||||
