MS112R-SENQE (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MS11#

Click highlighted areas on diagram

diagram 88031 88031A 88031P 88645B 88645B 88646 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691D 9046400139 9338516010 9338516030 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020

MS112..EFI

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS112..EFI

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS112..EFI

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS112..EFI

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS112..EFI

*H,L=330,MARK=#0

 1
95411-19960

MS112..EFI

*H,L=330,MARK=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-22010

MS112..EFI

 1
Common parts
90464-00139
93385-16010
93385-16030
96132-30600

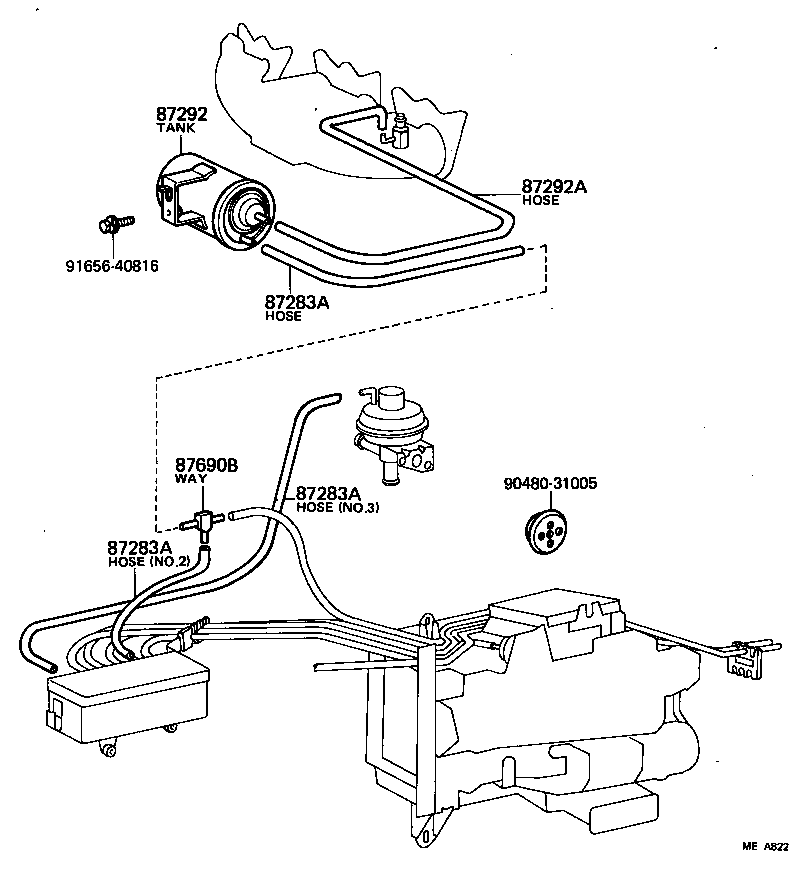

(7909- )ROY

Click highlighted areas on diagram

diagram 87283A 87283A 87283A 87292 87292A 87690B 9048031005 9165640816
Part # Description Qty Price
87283A - HOSE, NO.1
90445-06004

MS11#,RS110

L=500

 1
90445-06008

MS11#..RHD..ROY

NO.3,L=430

 1
90445-06003

MS11#..ROY

NO.2,L=270

 1
90445-06035

MS112..RHD..ROY

NO.3,L=430

 1
90445-06036

MS112,RS110

L=500

 1
90445-06032

MS112..ROY

NO.2,L=270

 1
87283A - HOSE, NO.1
90445-06004

MS11#,RS110

L=500

 1
90445-06008

MS11#..RHD..ROY

NO.3,L=430

 1
90445-06003

MS11#..ROY

NO.2,L=270

 1
90445-06035

MS112..RHD..ROY

NO.3,L=430

 1
90445-06036

MS112,RS110

L=500

 1
90445-06032

MS112..ROY

NO.2,L=270

 1
87283A - HOSE, NO.1
90445-06004

MS11#,RS110

L=500

 1
90445-06008

MS11#..RHD..ROY

NO.3,L=430

 1
90445-06003

MS11#..ROY

NO.2,L=270

 1
90445-06035

MS112..RHD..ROY

NO.3,L=430

 1
90445-06036

MS112,RS110

L=500

 1
90445-06032

MS112..ROY

NO.2,L=270

 1
87292 - TANK, VACUUM
87292-30280

MS11#..ROY

 1
87292A - HOSE, VACUUM TANK
90445-06001

MS11#..RHD

L=700

 1
90445-06038

MS112..RHD

L=700

 1
90445-06001

MS11#,RS110..RHD

L=700

 1
87690B - WAY, 3
90413-03001

MS11#..ROY

 1
Common parts
90480-31005
91656-40816
