MS112R-SENQE (1979)
Toyota Crown
(7909- )ROY

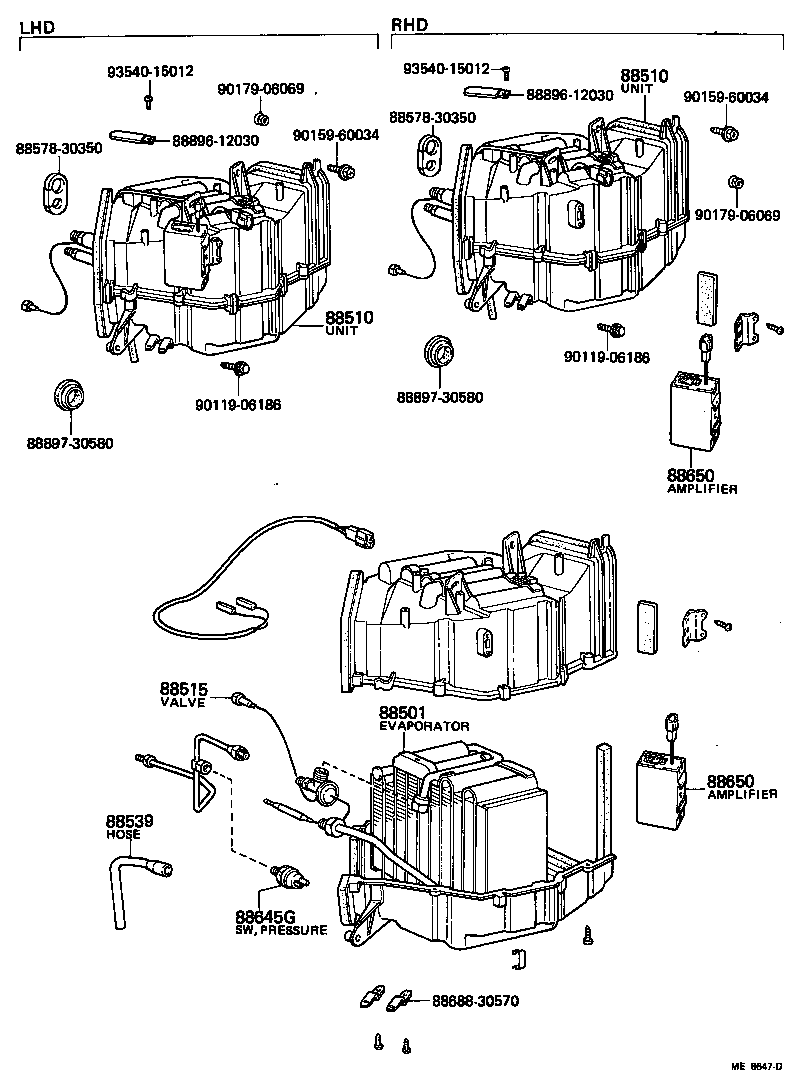

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30550 |
LS110,MS11#,RS110..RHD |
1 | ||
| 88501-30540 |
MS11#..SED RR COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30690 |
MS11#..RHD..ROY |
1 | ||
| 88510-30720 |
MS11#..ROY RR COOLER |
1 | ||
| 88510-30810 |
MS112..ROY RR COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30690 |
MS11#..RHD..ROY |
1 | ||
| 88510-30720 |
MS11#..ROY RR COOLER |
1 | ||
| 88510-30810 |
MS112..ROY RR COOLER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30310 |
MS11#..SED RR COOLER |
1 | ||
| 88515-30320 |
MS11# W/HEATER |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30530 |
LS110,MS11#,RS110 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22010 |
MS11#..ROY |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30370 |
MS11#..ROY FR |
1 | ||
| 88650-30410 |
MS112..SED RR |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30370 |
MS11#..ROY FR |
1 | ||
| 88650-30410 |
MS112..SED RR |
1 | ||
| Common parts | ||||
| 88578-30350 | ||||
| 88688-30570 | ||||
| 88896-12030 | ||||
| 88897-30580 | ||||
| 90119-06186 | ||||
| 90159-60034 | ||||
| 90179-06069 | ||||
| 93540-15012 | ||||
(7909- )ROY

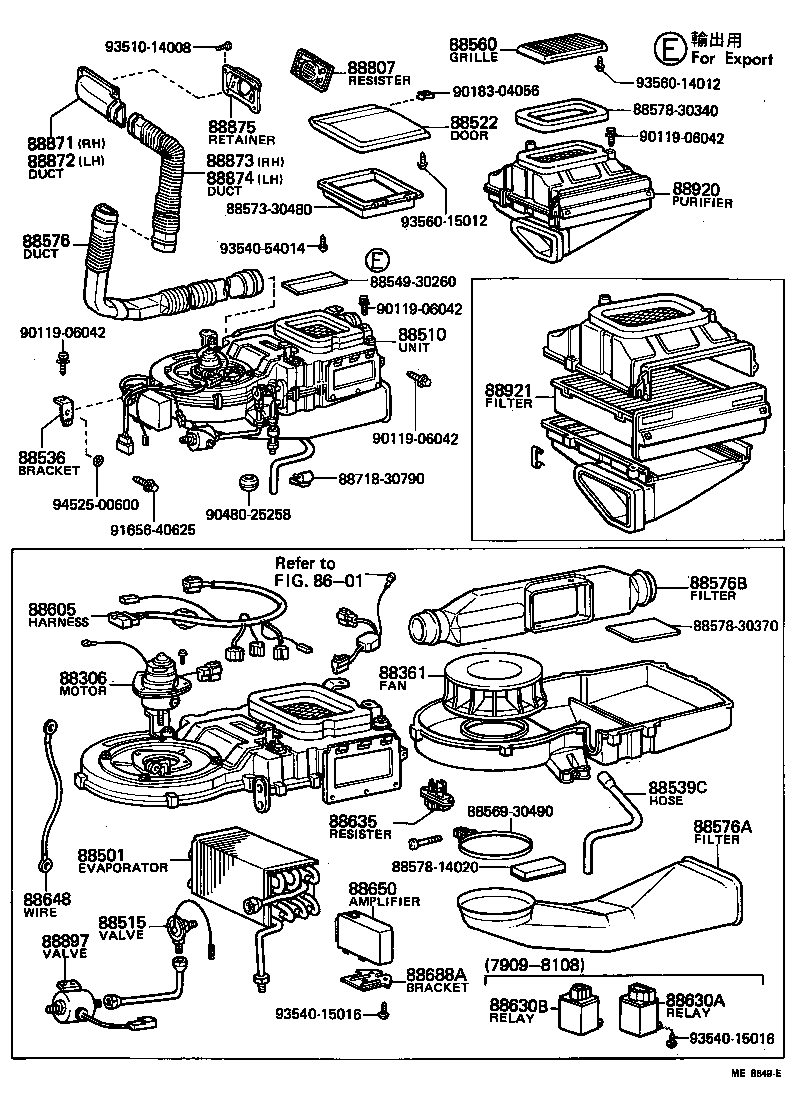

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-30310 |
MS11#..SED RR COOLER |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-30270 |
MS11#..SED RR COOLER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30550 |
LS110,MS11#,RS110..RHD |
1 | ||
| 88501-30540 |
MS11#..SED RR COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30690 |
MS11#..RHD..ROY |
1 | ||
| 88510-30720 |
MS11#..ROY RR COOLER |
1 | ||
| 88510-30810 |
MS112..ROY RR COOLER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30310 |
MS11#..SED RR COOLER |
1 | ||
| 88515-30320 |
MS11# W/HEATER |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-3044003 |
MS112..ROY GRAY,GRAY,TRIM1# |
1 | ||
| 88522-3044015 |
MS112..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 88522-3044002 |
MS11#..ROY DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 88522-3044005 |
MS11#..ROY GREIGE,BEIGE,TRIM4# |
1 | ||
| 88522-3044004 |
MS11#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-30660 |
MS11#..SED RR COOLER |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-30540 |
MS11#..SED |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88561-3030002 |
MS11#..ROY DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 88561-3030004 |
MS11#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 88561-3030003 |
MS112..ROY GRAY,GRAY,TRIM1# |
1 | ||
| 88561-3030005 |
MS11#..ROY GREIGE,BEIGE,TRIM4# |
1 | ||
| 88561-3030015 |
MS112..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 88576 - DUCT, COOLER REAR INLET AIR | ||||
| 88576-30700 |
MS11#..ROY RH |
1 | ||
| 88576-30710 |
MS11#..ROY LH |
1 | ||
| 88576A - FILTER, EXPANSION, NO.1 | ||||
| 88576-30680 |
MS11#..ROY RR COOLER |
1 | ||
| 88576B - FILTER, EXPANSION, NO.2 | ||||
| 88576-30690 |
MS11#..ROY RR COOLER |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-30330 |
MS112..SED RR COOLER |
1 | ||
| 88608-30250 |
MS11#..ROY |
1 | ||
| 88608-30370 |
MS112..ROY |
1 | ||
| 88608-30260 |
MS11#..SED RR COOLER |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02001 |
MS11# W/HEATER |
1 | ||
| 90987-02004 |
MS112 W/HEATER |
1 | ||
| 88630-30360 |
MS11#..SED RR COOLER |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-30370 |
MS11#..SED RR COOLER |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 87138-30290 |
MS11#..SED RR COOLER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30500 |
MS11#..SED RR COOLER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30370 |
MS11#..ROY FR |
1 | ||
| 88650-30410 |
MS112..SED RR |
1 | ||
| 88807 - RESISTER ASSY, ROOF SIDE AIR OUTLET | ||||
| 62907-3002004 |
MS11#..ROY BLUE,BLUE,TRIM8# |
1 | ||
| 62907-3002005 |
MS112..ROY BEIGE,BEIGE,TRIM4# |
1 | ||
| 62907-3002003 |
MS112..ROY GRAY,GRAY,TRIM1#,8# |
1 | ||
| 62907-3002008 |
MS11#..ROY IVORE,IVORY,TRIM3#,4# |
1 | ||
| 88871 - DUCT, ROOF SIDE AIR, NO.1 RH | ||||
| 62971-30020 |
MS11#..ROY |
1 | ||
| 88872 - DUCT, ROOF SIDE AIR, NO.1 LH | ||||
| 62972-30020 |
MS11#..ROY |
1 | ||
| 88873 - DUCT, ROOF SIDE AIR, NO.2 RH | ||||
| 62973-30020 |
MS11#..ROY |
1 | ||
| 88874 - DUCT, ROOF SIDE AIR, NO.2 LH | ||||
| 62974-30020 |
MS11#..ROY |
1 | ||
| 88875 - RETAINER, ROOF SIDE AIR DUCT | ||||
| 62975-30020 |
MS11#..ROY |
2 | ||
| 88897 - VALVE, COOLER MAGNET | ||||
| 88897-30570 |
MS11#..SED L=92.5,RR COOLER |
1 | ||
| 88691-30440 |
MS112..SED L=80,RR COOLER |
1 | ||
| 88920 - PURIFIER ASSY, AIR | ||||
| 88920-30040 |
MS11#..SED |
1 | ||
| 88920-30041 |
MS112..SED |
1 | ||
| 88921 - FILTER, AIR PURIFIER, NO.1 | ||||
| 88926-30070 |
MS11#..SED |
1 | ||
| 88926-30071 |
MS112..SED |
1 | ||
| Common parts | ||||
| 88549-30260 | ||||
| 88569-30490 | ||||
| 88573-30480 | ||||
| 88578-14020 | ||||
| 88578-30340 | ||||
| 88578-30370 | ||||
| 88718-30790 | ||||
| 90119-06042 | ||||
| 90183-04056 | ||||
| 90480-25258 | ||||
| 91656-40625 | ||||
| 93510-14008 | ||||
| 93540-15016 | ||||
| 93540-54014 | ||||
| 93560-14012 | ||||
| 93560-15012 | ||||
| 94525-00600 | ||||
| Linked diagrams | ||||
| 8601 | ||||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88600C - PANEL ASSY, CONTROL | ||||
| 88600-30610 |
MS112..ROY |
1 | ||
| 88600-30580 |
MS11#..SED W/RR COOLER |
1 | ||
| 88600D - BULB, CONTROL PANEL | ||||
| 90981-11018 |
MS11#..SED 12V 1.2W W/O SOCKET |
4 | ||
| 88600D - BULB, CONTROL PANEL | ||||
| 90981-11018 |
MS11#..SED 12V 1.2W W/O SOCKET |
4 | ||
| 88600D - BULB, CONTROL PANEL | ||||
| 90981-11018 |
MS11#..SED 12V 1.2W W/O SOCKET |
4 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88600-30600 |
MS11#..SED..(3HC,4H,4HC) W/RR COOLER |
1 | ||
| 88600-30630 |
MS112..SED..(4H,4HC) W/RR COOLER |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88600-30600 |
MS11#..SED..(3HC,4H,4HC) W/RR COOLER |
1 | ||
| 88600-30630 |
MS112..SED..(4H,4HC) W/RR COOLER |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88600-30600 |
MS11#..SED..(3HC,4H,4HC) W/RR COOLER |
1 | ||
| 88600-30630 |
MS112..SED..(4H,4HC) W/RR COOLER |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88600-30600 |
MS11#..SED..(3HC,4H,4HC) W/RR COOLER |
1 | ||
| 88600-30630 |
MS112..SED..(4H,4HC) W/RR COOLER |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-30330 |
MS112..SED RR COOLER |
1 | ||
| 88608-30250 |
MS11#..ROY |
1 | ||
| 88608-30370 |
MS112..ROY |
1 | ||
| 88608-30260 |
MS11#..SED RR COOLER |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
MS11#..ROY |
3 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
MS11#..ROY |
3 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
MS11#..ROY |
3 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02001 |
MS11# W/HEATER |
1 | ||
| 90987-02004 |
MS112 W/HEATER |
1 | ||
| 88630-30360 |
MS11#..SED RR COOLER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30500 |
MS11#..SED RR COOLER |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 82550-20020 |
MS11# W/BOOST VENTILATOR |
1 | ||
| Common parts | ||||
| 90463-15454 | ||||
| 90467-05006 | ||||
| 93540-14012 | ||||
| 93540-15010 | ||||
| 93540-55014 | ||||
