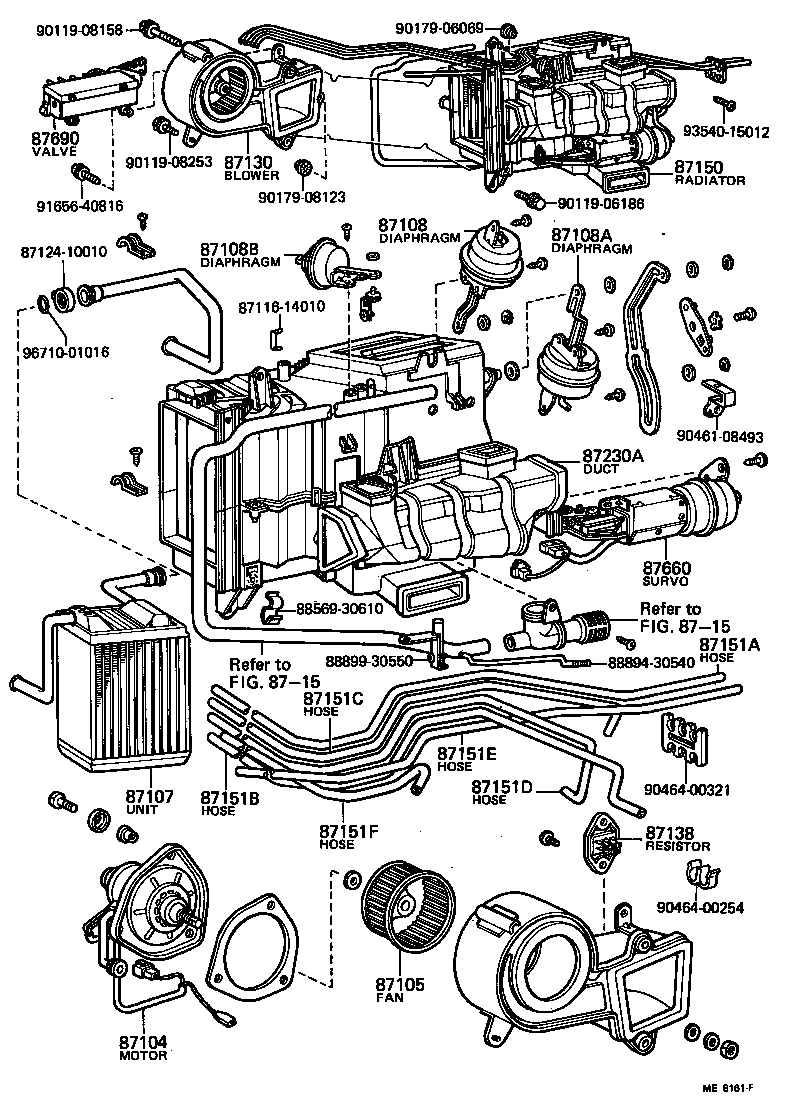

Toyota Crown MS112 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-30350	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87134-30010	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-30350	LS110,MS112,RS110..RHD	07/1981 - 07/1983	1
87107-30310	LS110,MS11#,RS110..RHD	09/1979 - 07/1981	1
87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL
87108-30310	LS110,MS11#	09/1979 - 07/1983	1
87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL
87108-30300	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL
87108-30320	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-30320	MS11#..RHD..ROY	09/1979 - 07/1983	1
87138 - RESISTOR, HEATER BLOWER
87138-30270	MS11#..ROY	09/1979 - 07/1983	1
87150 - RADIATOR ASSY, HEATER
87150-30310	MS11#..RHD..ROY	09/1979 - 08/1981	1
87150-30350	MS112..RHD..ROY	08/1981 - 07/1983	1
87151A - HOSE, VACUUM, A
90445-06043	LS110,MS112,RS110 NO.2,L=1000	04/1981 - 07/1983	1
90445-06007	LS110,MS11#,RS110 NO.2,L=1000	12/1979 - 04/1981	1
90445-06007	MS11#..ROY NO.2,L=1000	09/1979 - 12/1979	1
87151B - HOSE, VACUUM, B
90445-06016	MS11#..ROY NO.9,L=1200	09/1979 - 04/1981	1
90445-06048	MS112..ROY NO.9,L=1200	04/1981 - 07/1983	1
87151C - HOSE, VACUUM, C
90445-06012	MS11#..ROY NO.5,L=930	09/1979 - 04/1981	1
90445-06041	MS112..ROY NO.5,L=930	04/1981 - 07/1983	1
87151D - HOSE, VACUUM, D
90445-06014	MS11#..ROY NO.6,L=1070	09/1979 - 04/1981	1
90445-06045	MS112..ROY NO.6,L=1070	04/1981 - 07/1983	1
87151E - HOSE, VACUUM, E
90445-06015	LS110,MS11#,RS110 NO.7,L=1300	09/1979 - 04/1981	1
90445-06049	LS110,MS112,RS110 NO.7,L=1300	04/1981 - 07/1983	1
87151F - HOSE, VACUUM, F
90445-06018	MS11#..ROY NO.10,L=730	09/1979 - 04/1981	1
90445-06039	MS112..ROY NO.10,L=730	04/1981 - 07/1983	1
87230A - DUCT ASSY, HEATER AIR
87201-30360	LS110,MS11#,RS110..RHD	09/1979 - 07/1983	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-30280	MS11#..RHD..ROY	09/1979 - 08/1981	1
88660-30310	MS112..RHD..ROY	08/1981 - 07/1983	1
87690 - VALVE ASSY, MAGNET
88690-30370	MS11#..RHD..ROY	09/1979 - 07/1983	1
Common parts
87116-14010
87124-10010
88569-30610
88894-30540
88899-30550
90119-06186
90119-08158
90119-08253
90179-06069
90179-08123
90461-08493
90464-00254
90464-00321
91656-40816
93540-15012
96710-01016
Linked diagrams
8715

MS112R-SENQE (1979)

(7909- )RHD..ROY
