MS112R-SENQE (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
5ME
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )MS11#..RHD..EUR,GEN

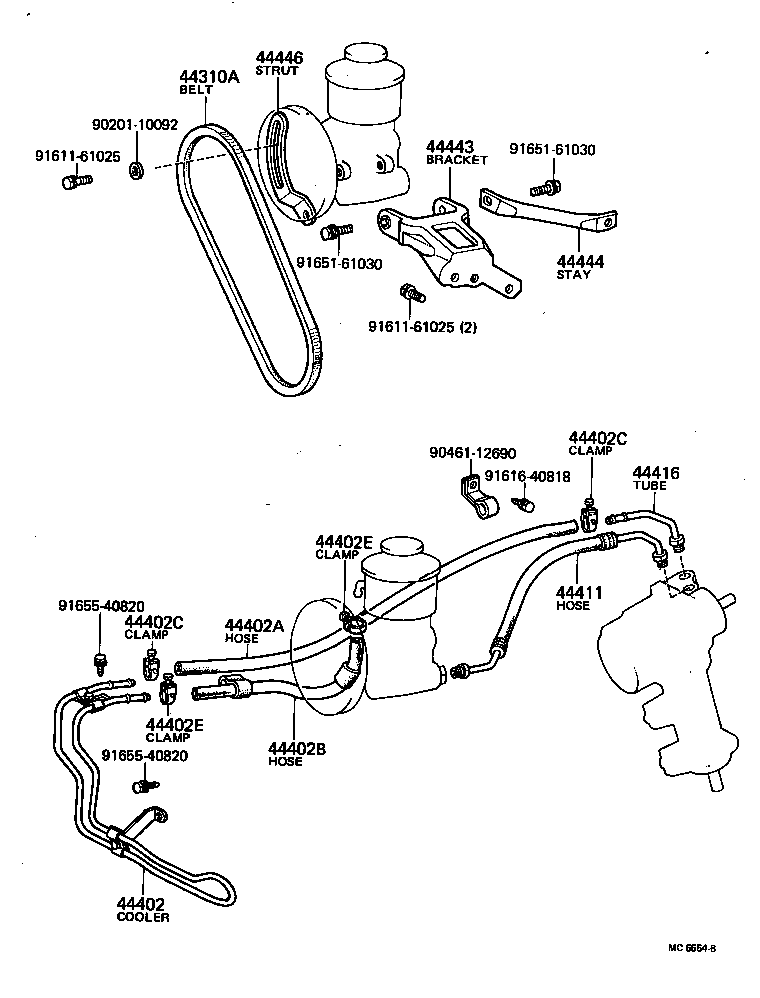

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02078 |
MS11#..EUR,GEN |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-30060 |
MS112..EUR,GEN |
1 | ||
| 44402-30060 |
MS11# |
1 | ||
| 44402-30081 |
MS112 |
1 | ||
| 44402A - HOSE, POWER STEERING OIL COOLER INLET | ||||
| 90445-18065 |
MS112..RHD..(EUR,GEN) |
1 | ||
| 90445-18065 |
MS11#..RHD |
1 | ||
| 90445-18065 |
LS110,MS112..RHD |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90447-18007 |
MS112 |
1 | ||
| 90447-18002 |
MS11# |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
LS110,MS11# |
2 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
LS110,MS11# |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
LS110,MS11# |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
LS110,MS11# |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-30130 |
MS11#..RHD..(EUR,GEN) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-30030 |
LS110,MS11#..RHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-30050 |
MS11#..EUR,GEN |
1 | ||
| 44443-30051 |
MS11#..EUR,GEN |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-30061 |
MS11#..EUR,GEN |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30040 |
MS11#..EUR,GEN |
1 | ||
| Common parts | ||||
| 90201-10092 | ||||
| 90461-12690 | ||||
| 91611-61025 | ||||
| 91616-40818 | ||||
| 91651-61030 | ||||
| 91655-40820 | ||||
