Toyota Crown MS112 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
CROWN
MS112LG-SWHDEW (1979)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983

Engine 5ME

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(7909- )BTP,DLX,SAL

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-30450	MS11#..BTP,DLX,SAL	09/1979 - 07/1983	1
88460 - CONDENSER ASSY, COOLER
88460-30450	MS11#..BTP,DLX,SAL	09/1979 - 07/1983	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30280	MS11#..BTP,DLX,SAL	09/1979 - 07/1983	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30280	MS11#..BTP,DLX,SAL	09/1979 - 07/1983	1
88470B - BOLT, FUSE
90099-04579	LS110,MS11#,RS110	09/1979 - 07/1983	1
88470B - BOLT, FUSE
90099-04579	LS110,MS11#,RS110	09/1979 - 07/1983	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30250	LS110,MS11#,RS110..BTP,DLX,SAL	09/1979 - 07/1983	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30250	LS110,MS11#,RS110..BTP,DLX,SAL	09/1979 - 07/1983	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LS110,MS11#,RS110 300G	09/1979 - 07/1983	3
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002	LS110,MS11#,RS110 300G	09/1979 - 07/1983	3
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30300	MS11#	09/1979 - 07/1983	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30300	MS11#	09/1979 - 07/1983	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30290	MS11#	09/1979 - 07/1983	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30290	MS11#	09/1979 - 07/1983	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-30300	LS110,MS11#,RS110	09/1979 - 07/1983	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-30300	LS110,MS11#,RS110	09/1979 - 07/1983	1
Common parts
88467-14050
88467-22040
88467-30270
88569-30430
88569-30460
88569-30550
88569-30590
88569-30600
88688-30670
88688-30680
90099-32073
90099-32100
90179-06032
93385-16016
93385-16025
93385-16030
93385-46016
93385-46025
93385-46030
93385-56012
93540-55010

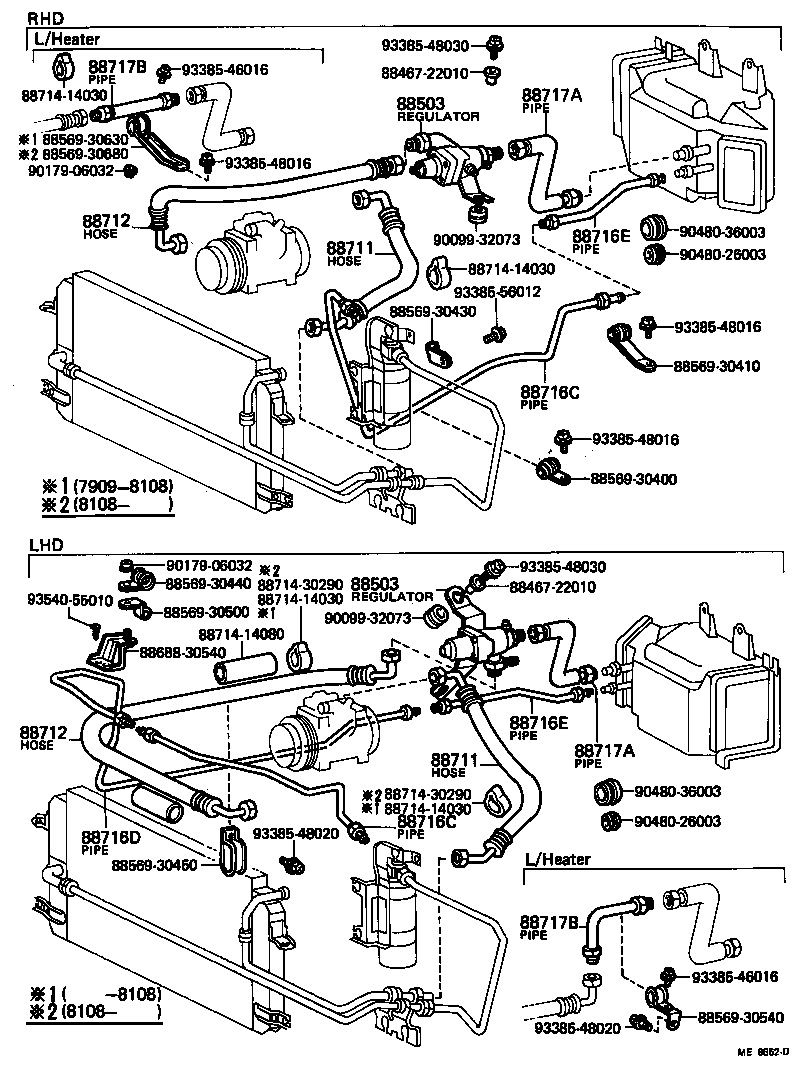

(7909- )MS11#..BTP,DLX,SAL

Click highlighted areas on diagram

Part #	Description	Period	Qty
88503 - REGULATOR ASSY, PRESSURE
88503-30340	MS11#..LHD..(BTP,DLX,SAL) W/HEATER	09/1979 - 07/1983	1
88503 - REGULATOR ASSY, PRESSURE
88503-30340	MS11#..LHD..(BTP,DLX,SAL) W/HEATER	09/1979 - 07/1983	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30520	MS11#..BTP,DLX,SAL	09/1979 - 07/1983	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30520	MS11#..BTP,DLX,SAL	09/1979 - 07/1983	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30540	MS11#..LHD	09/1979 - 07/1983	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30540	MS11#..LHD	09/1979 - 07/1983	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-30430	MS11#..LHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-30430	MS11#..LHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88726-30420	MS11#..LHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30410	MS11#..LHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30410	MS11#..LHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30410	MS11#..LHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30410	MS11#..LHD..(BTP,DLX,SAL)	09/1979 - 07/1983	1
Common parts
88467-22010
88569-30400
88569-30410
88569-30430
88569-30440
88569-30450
88569-30500
88569-30540
88569-30630
88569-30680
88688-30540
88714-14030
88714-14080
88714-30290
90099-32073
90179-06032
90480-26003
90480-36003
93385-46016
93385-48016
93385-48020
93385-48030
93385-56012
93540-55010

MS112LG-SWHDEW (1979)

(7909- )BTP,DLX,SAL

(7909- )MS11#..BTP,DLX,SAL
