MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )LS110,MS112..ATM

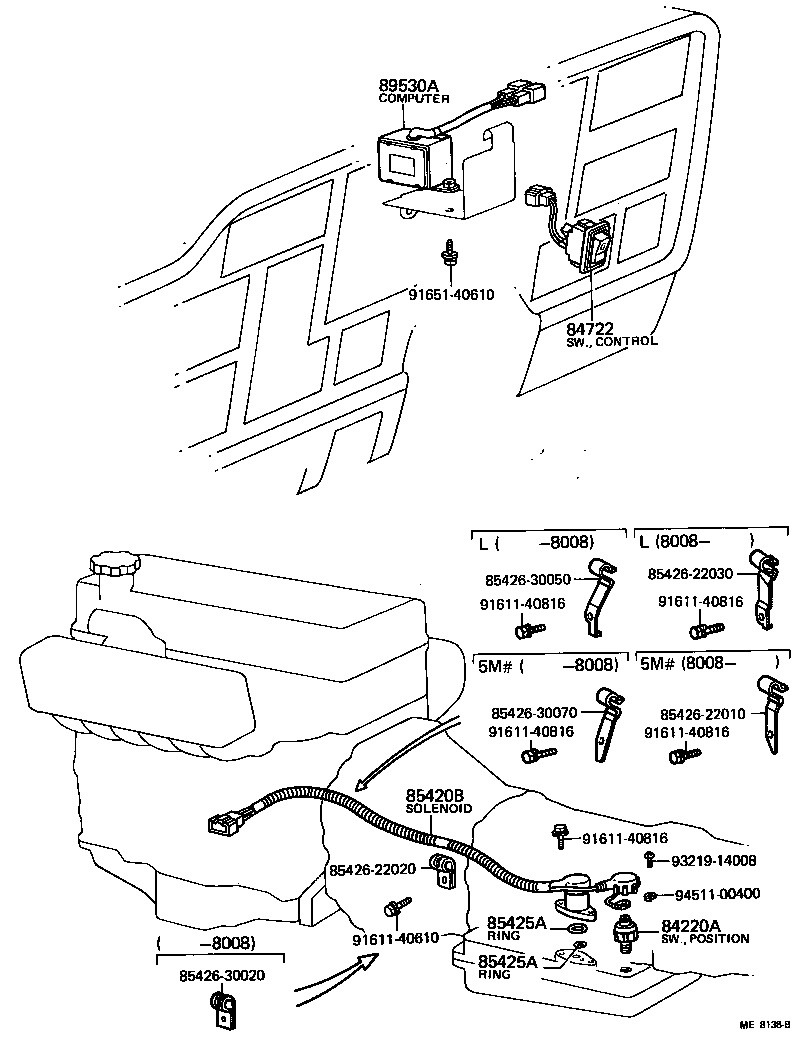

Click highlighted areas on diagram

diagram 84220A 84722 85420B 85425A 85425A 8542622010 8542622020 8542622030 8542630020 8542630050 8542630070 89530A 9161140610 9161140816 9161140816 9161140816 9161140816 9161140816 9165140610 9321914008 9451100400
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

LS110,MS112..4FC..(ARL,EUR)

 1
84220-30050

MS112..4FC..(ARL,EUR)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-30050

LS110,MS112..ATM

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-14040

MS112..4FC..(ARL,EUR)

 1
85420-22040

MS112..4FC..(ARL,EUR)

 1
85420-22040

LS110,MS112..4FC..(ARL,EUR)

 1
85420-30022

MS112..4FC..EUR

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

LS110,MS112..ATM

OD=11

 1
90301-23001

LS110,MS112..ATM

OD=23.5

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

LS110,MS112..ATM

OD=11

 1
90301-23001

LS110,MS112..ATM

OD=23.5

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-30040

MS112..4FC..(ARL,EUR)

 1
Common parts
85426-22010
85426-22020
85426-22030
85426-30020
85426-30050
85426-30070
91611-40610
91611-40816
91651-40610
93219-14008
94511-00400
