MS112LG-SWHDEW (1979)
Toyota Crown
(7909- )WG

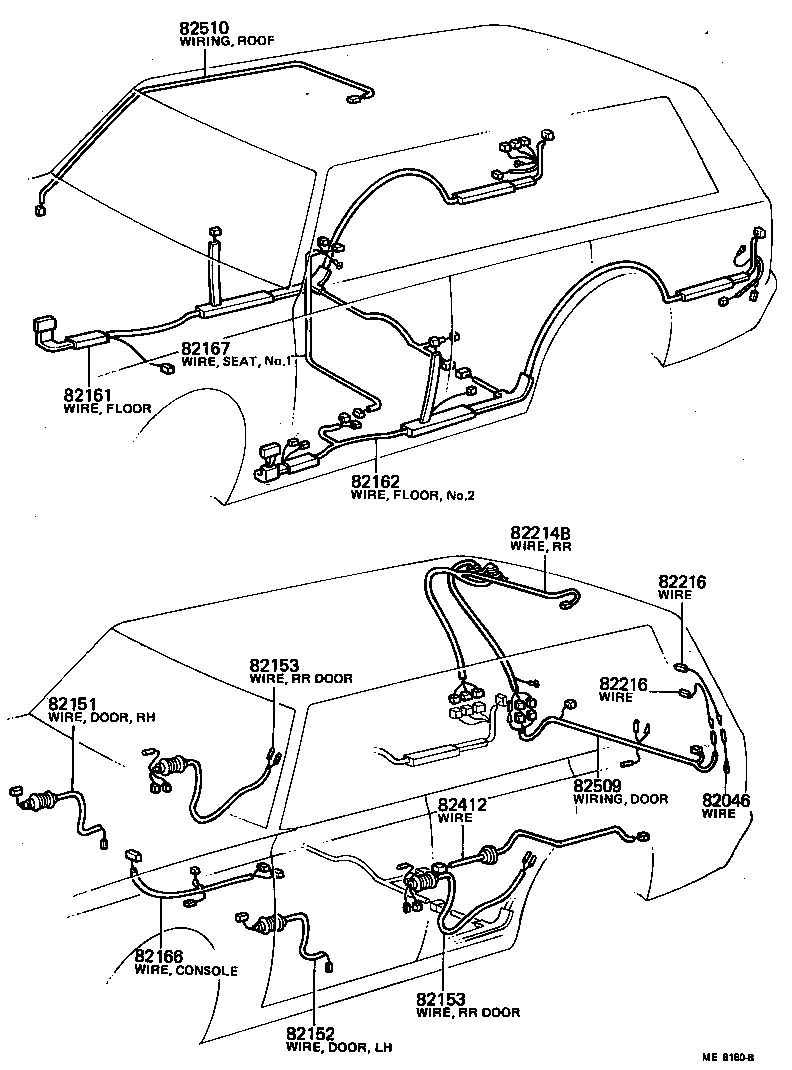

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-91255 |
LS110,MS11#..WG W/RR WINDOW DEFOGGER |
1 | ||
| 82046-91701 |
LS110,MS11#..WG W/RR WINDOW DEFOGGER |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82505-30280 |
LS110,MS11#,RS110..DLX |
1 | ||
| 82151-30060 |
LS110,MS112,RS110..DLX W/ELECTRICAL DOOR MIRROR |
1 | ||
| 82505-30310 |
LS110,MS11#,RS110..DLX W/RADIO |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82506-30110 |
LS110,MS11#,RS110..DLX |
1 | ||
| 82506-30140 |
LS110,MS11#,RS110..DLX W/RADIO |
1 | ||
| 82152-30060 |
LS110,MS112,RS110..DLX W/ELECTRICAL DOOR MIRROR |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30050 |
LS110,MS112,RS110..DLX |
2 | ||
| 82507-30160 |
LS110,MS11#,RS110..DLX |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30050 |
LS110,MS112,RS110..DLX |
2 | ||
| 82507-30160 |
LS110,MS11#,RS110..DLX |
2 | ||
| 82161 - WIRE, FLOOR | ||||
| 82420-91708 |
MS112..WG..DLX..EFI |
1 | ||
| 82420-91729 |
MS112..WG..EFI |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82420-91718 |
MS112..WG..DLX..EFI |
1 | ||
| 82420-91731 |
MS112..WG..EFI |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82390-30260 |
MS11#..WG..(3FC,4F,4FC,5F) |
1 | ||
| 82166-30020 |
MS112..WG..(4F,4FC,5F) |
1 | ||
| 82214B - WIRE, LAMP, REAR | ||||
| 82214-91701 |
MS11#..WG..DLX W/RR WIPER |
1 | ||
| 82214-91702 |
MS11#..WG..DLX |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-91701 |
LS110,MS11#..WG W/RR WINDOW DEFOGGER |
2 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-91701 |
LS110,MS11#..WG W/RR WINDOW DEFOGGER |
2 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-91703 |
MS11#..WG..DLX |
1 | ||
| 82509 - WIRING SUB-ASSY, BACK DOOR | ||||
| 82509-91702 |
MS11#..WG..DLX W/RR WIPER |
1 | ||
| 82509-91710 |
MS112..WG W/RR WIPER |
1 | ||
| 82509-91704 |
MS11#..WG..DLX |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-91703 |
LS110,MS11#..WG |
1 | ||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210C - FUSIBLE LINK | ||||
| 90982-08111 |
MS112..LHD..EFI L=110,0.5 GREEN |
1 | ||
| 90982-08109 |
LS110,MS11#,RS110 L=110,1.25 BLACK |
1 | ||
| 90982-08127 |
LS110,MS11#,RS110 L=110,0.85 RED |
1 | ||
| 90982-08112 |
LS110,MS11#,RS110 L=110,0.3 PINK |
1 | ||
| 90982-08109 |
MS112 L=110,1.25 BLACK |
1 | ||
| 90982-08130 |
LS110,MS11#,RS110 L=110,0.5 GREEN |
1 | ||
| 90982-08129 |
MS112..EFI L=110,0.3 PINK |
1 | ||
| Common parts | ||||
| 90982-08109 | ||||
| 90982-08110 | ||||
| 90982-08111 | ||||
| 90982-08112 | ||||
| 90982-08123 | ||||
| 90982-08127 | ||||
| 90982-08128 | ||||
| 90982-08129 | ||||
| 90982-08130 | ||||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-22120 | ||||
| 82711-22140 | ||||
| 82711-22150 | ||||
| 82711-30040 | ||||
| 82711-30050 | ||||
| 82711-30070 | ||||
| 82711-30110 | ||||
| 82711-30130 | ||||
| 82711-30150 | ||||
| 82711-30160 | ||||
| 82711-30170 | ||||
| 82711-30200 | ||||
| 82711-91701 | ||||
| 82711-91703 | ||||
| 82817-20200 | ||||
| 82817-22220 | ||||
| 82817-91255 | ||||
| 90461-06032 | ||||
| 90461-06086 | ||||
| 90461-06303 | ||||
| 90461-06804 | ||||
| 90461-08483 | ||||
| 90461-10296 | ||||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30410 | ||||
| 82817-30290 | ||||
| 82817-30300 | ||||
| 82817-30310 | ||||
| 82817-30320 | ||||
| 82821-30060 | ||||
| 90461-08200 | ||||
| 90461-08214 | ||||
| 90461-10617 | ||||
| 90463-04029 | ||||
| 90463-06348 | ||||
| 90463-06357 | ||||
| 90463-08169 | ||||
| 90463-10010 | ||||
| 90463-10336 | ||||
| 90463-15067 | ||||
| 90463-15298 | ||||
| 90464-00042 | ||||
| 90464-00052 | ||||
| 90464-00166 | ||||
| 90480-23006 | ||||
| 90480-32001 | ||||
| 90950-01251 | ||||
| 90950-01282 | ||||
| 90950-03103 | ||||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06049 | ||||
| 90119-06114 | ||||
| 90119-08103 | ||||
| 90159-40147 | ||||
| 90159-40206 | ||||
| 90159-50069 | ||||
| 90159-60102 | ||||
| 90168-40040 | ||||
| 90168-60010 | ||||
| 90179-05095 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90179-06164 | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 90189-04007 | ||||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14160 | ||||
| 82711-22100 | ||||
| 82711-22350 | ||||
| 82711-22480 | ||||
| 82711-30020 | ||||
| 82817-23010 | ||||
| 82817-30330 | ||||
| 82817-91601 | ||||
| 82819-30040 | ||||
| 90183-05005 | ||||
| 90339-04001 | ||||
| 90461-08183 | ||||
| 90461-08218 | ||||
| 90461-08493 | ||||
| 90463-04340 | ||||
| 90463-08076 | ||||
| 90463-10024 | ||||
| 90463-10521 | ||||
| 90463-15003 | ||||
| 90464-00108 | ||||
| 90464-00165 | ||||
| 90464-00190 | ||||
| 90464-00260 | ||||
| 90467-05006 | ||||
| 90950-01131 | ||||
(7909-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12060 |
MS112..EFI |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82020-30820 |
MS112..LHD..EFI |
1 | ||
| 82111-30181 |
MS112..LHD..EFI |
1 | ||
| 82111-30180 |
MS112..LHD..EFI |
1 | ||
| 82111-30182 |
MS112..LHD..EFI |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82230-30130 |
MS112..LHD..EFI |
1 | ||
| 82112-30060 |
MS112..LHD..EFI |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30050 |
MS112..LHD..EFI |
1 | ||
| 82291-30160 |
MS112..LHD..EFI |
1 | ||
| 82121-30051 |
MS112..LHD..EFI |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82220-3A360 |
MS112..LHD |
1 | ||
| 82220-3A361 |
MS112..LHD..EFI |
1 | ||
| 82131-30220 |
MS112..LHD..EFI |
1 | ||
| 82131-30221 |
MS112..LHD..EFI |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-30060 |
MS112..4FC..(ARL,EUR) |
1 | ||
| 82201-30340 |
MS112..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08111 |
MS112..LHD..EFI L=110,0.5 GREEN |
1 | ||
| 90982-08109 |
LS110,MS11#,RS110 L=110,1.25 BLACK |
1 | ||
| 90982-08127 |
LS110,MS11#,RS110 L=110,0.85 RED |
1 | ||
| 90982-08112 |
LS110,MS11#,RS110 L=110,0.3 PINK |
1 | ||
| 90982-08109 |
MS112 L=110,1.25 BLACK |
1 | ||
| 90982-08130 |
LS110,MS11#,RS110 L=110,0.5 GREEN |
1 | ||
| 90982-08129 |
MS112..EFI L=110,0.3 PINK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08111 |
MS112..LHD..EFI L=110,0.5 GREEN |
1 | ||
| 90982-08109 |
LS110,MS11#,RS110 L=110,1.25 BLACK |
1 | ||
| 90982-08127 |
LS110,MS11#,RS110 L=110,0.85 RED |
1 | ||
| 90982-08112 |
LS110,MS11#,RS110 L=110,0.3 PINK |
1 | ||
| 90982-08109 |
MS112 L=110,1.25 BLACK |
1 | ||
| 90982-08130 |
LS110,MS11#,RS110 L=110,0.5 GREEN |
1 | ||
| 90982-08129 |
MS112..EFI L=110,0.3 PINK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08111 |
MS112..LHD..EFI L=110,0.5 GREEN |
1 | ||
| 90982-08109 |
LS110,MS11#,RS110 L=110,1.25 BLACK |
1 | ||
| 90982-08127 |
LS110,MS11#,RS110 L=110,0.85 RED |
1 | ||
| 90982-08112 |
LS110,MS11#,RS110 L=110,0.3 PINK |
1 | ||
| 90982-08109 |
MS112 L=110,1.25 BLACK |
1 | ||
| 90982-08130 |
LS110,MS11#,RS110 L=110,0.5 GREEN |
1 | ||
| 90982-08129 |
MS112..EFI L=110,0.3 PINK |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08182 |
LS110,MS112,RS110 0.5G,0.5G & 2L |
1 | ||
| 90982-08182 |
LS110,MS112 0.5G,0.5G & 2L |
1 | ||
| 90982-08182 |
MS112 0.5G,0.5G & 2L |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-30070 |
MS112..(BTP,DLX)..EFI |
1 | ||
| 82214-30070 |
MS112..EUR |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22380 | ||||
| 82711-22490 | ||||
| 82711-22640 | ||||
| 82711-24090 | ||||
| 82711-30210 | ||||
| 82711-30350 | ||||
| 82711-30360 | ||||
| 82711-30370 | ||||
| 82711-30380 | ||||
| 82711-30400 | ||||
| 90461-10472 | ||||
| 90463-06050 | ||||
| 90463-08183 | ||||
| 90464-00137 | ||||
| 90467-15005 | ||||
| 90480-25009 | ||||
| 90929-01013 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07033 |
MS11#,RS110 L=510 |
1 | ||
| 90980-07119 |
MS11#,RS110 L=320 |
1 | ||
| 90980-07083 |
MS11#,RS110 L=350 |
1 | ||
| 90980-07064 |
MS11#,RS110 L=170 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12060 |
MS112..EFI |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82020-30820 |
MS112..LHD..EFI |
1 | ||
| 82111-30181 |
MS112..LHD..EFI |
1 | ||
| 82111-30180 |
MS112..LHD..EFI |
1 | ||
| 82111-30182 |
MS112..LHD..EFI |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82230-30130 |
MS112..LHD..EFI |
1 | ||
| 82112-30060 |
MS112..LHD..EFI |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30050 |
MS112..LHD..EFI |
1 | ||
| 82291-30160 |
MS112..LHD..EFI |
1 | ||
| 82121-30051 |
MS112..LHD..EFI |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82220-3A360 |
MS112..LHD |
1 | ||
| 82220-3A361 |
MS112..LHD..EFI |
1 | ||
| 82131-30220 |
MS112..LHD..EFI |
1 | ||
| 82131-30221 |
MS112..LHD..EFI |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-30060 |
MS112..4FC..(ARL,EUR) |
1 | ||
| 82201-30340 |
MS112..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08111 |
MS112..LHD..EFI L=110,0.5 GREEN |
1 | ||
| 90982-08109 |
LS110,MS11#,RS110 L=110,1.25 BLACK |
1 | ||
| 90982-08127 |
LS110,MS11#,RS110 L=110,0.85 RED |
1 | ||
| 90982-08112 |
LS110,MS11#,RS110 L=110,0.3 PINK |
1 | ||
| 90982-08109 |
MS112 L=110,1.25 BLACK |
1 | ||
| 90982-08130 |
LS110,MS11#,RS110 L=110,0.5 GREEN |
1 | ||
| 90982-08129 |
MS112..EFI L=110,0.3 PINK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08111 |
MS112..LHD..EFI L=110,0.5 GREEN |
1 | ||
| 90982-08109 |
LS110,MS11#,RS110 L=110,1.25 BLACK |
1 | ||
| 90982-08127 |
LS110,MS11#,RS110 L=110,0.85 RED |
1 | ||
| 90982-08112 |
LS110,MS11#,RS110 L=110,0.3 PINK |
1 | ||
| 90982-08109 |
MS112 L=110,1.25 BLACK |
1 | ||
| 90982-08130 |
LS110,MS11#,RS110 L=110,0.5 GREEN |
1 | ||
| 90982-08129 |
MS112..EFI L=110,0.3 PINK |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08182 |
LS110,MS112,RS110 0.5G,0.5G & 2L |
1 | ||
| 90982-08182 |
LS110,MS112 0.5G,0.5G & 2L |
1 | ||
| 90982-08182 |
MS112 0.5G,0.5G & 2L |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08182 |
LS110,MS112,RS110 0.5G,0.5G & 2L |
1 | ||
| 90982-08182 |
LS110,MS112 0.5G,0.5G & 2L |
1 | ||
| 90982-08182 |
MS112 0.5G,0.5G & 2L |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-30070 |
MS112..(BTP,DLX)..EFI |
1 | ||
| 82214-30070 |
MS112..EUR |
1 | ||
| Common parts | ||||
| 90179-06184 | ||||
| 91651-40814 | ||||
| 94120-40600 | ||||
| 94541-00600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
