MS112LG-SWHDEW (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
5ME
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )MS11#

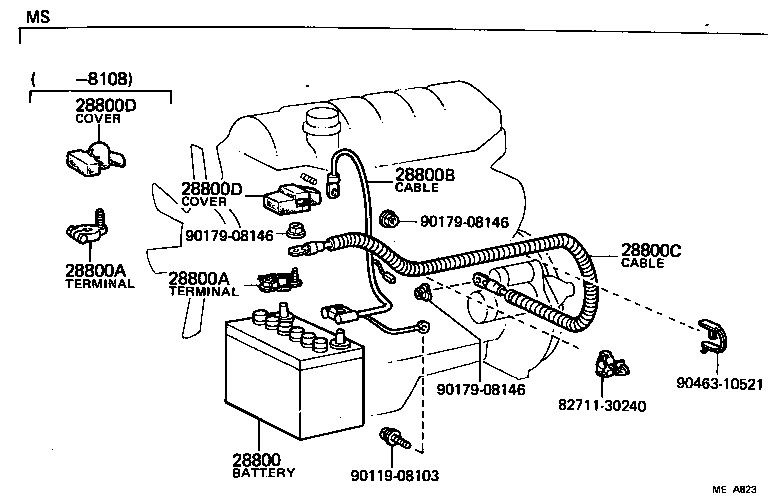

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-41110 |
4M,5M,5R..MS11#,RS110 55D26L,N50ZL-MF |
1 | ||
| 28800-41110 |
5ME..MS112..ARL,EUR 55D26L,N50ZL-MF |
1 | ||
| 28800-45050 |
5ME..MS112..EUR 75D31L,N70ZL-MF |
1 | ||
| 28800-43100 |
5ME..MS112..ARL,EUR 55D23L |
1 | ||
| 28800-45050 |
4M,5M,5R..MS11#,RS110..EUR,GEN 75D31L,N70ZL-MF |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05023 |
5M,5R..MS112,RS110 ID=17.5 |
1 | ||
| 90982-05005 |
L,4M,5M#,5R..LS110,MS11#,RS110 ID=17.5 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05023 |
5M,5R..MS112,RS110 ID=17.5 |
1 | ||
| 90982-05005 |
L,4M,5M#,5R..LS110,MS11#,RS110 ID=17.5 |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02191 |
5ME..MS112..ARL,EUR |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01350 |
5M#..MS112 L=1100 |
1 | ||
| 90982-01350 |
5ME..MS112..EUR L=1100,COLD SPEC |
1 | ||
| 90982-01314 |
4M,5M#..MS11# L=980 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-30080 |
5M#,5R..MS112,RS110 |
1 | ||
| 82821-30080 |
L,4M,5M#,5R..LS110,MS11#,RS110 |
1 | ||
| 82821-12150 |
5M#,5R..MS112,RS110 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-30080 |
5M#,5R..MS112,RS110 |
1 | ||
| 82821-30080 |
L,4M,5M#,5R..LS110,MS11#,RS110 |
1 | ||
| 82821-12150 |
5M#,5R..MS112,RS110 |
1 | ||
| Common parts | ||||
| 82711-30240 | ||||
| 90119-08103 | ||||
| 90179-08146 | ||||
| 90463-10521 | ||||
