MS112LG-SWHDEW (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
5ME
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )MS11#..LHD

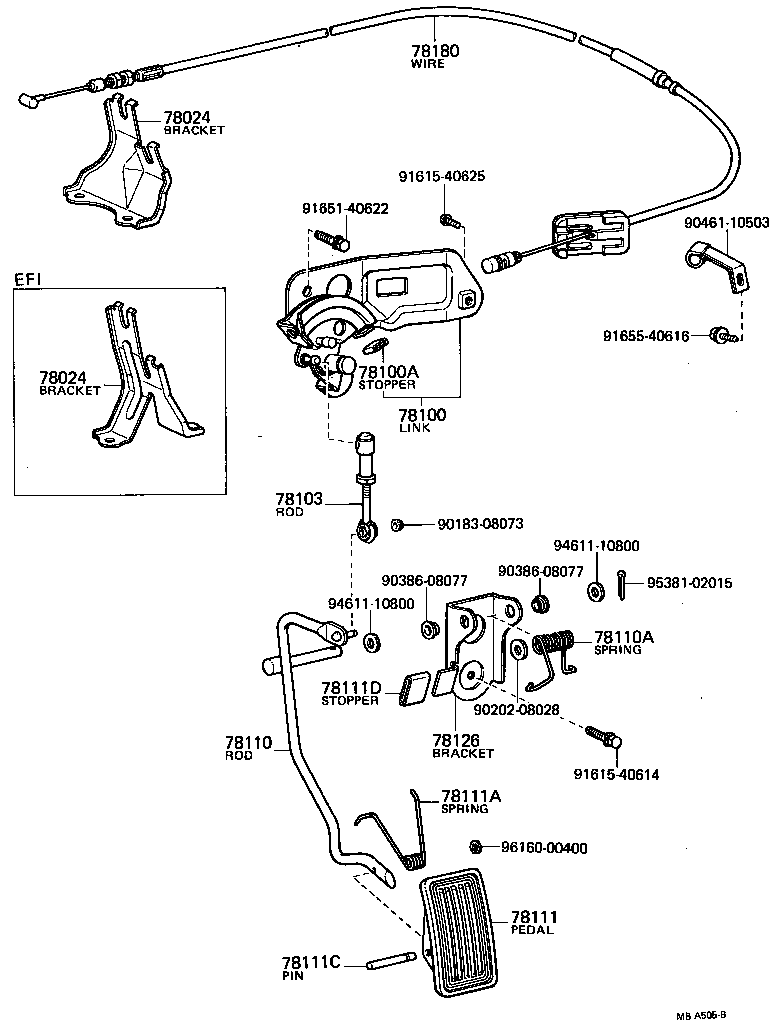

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-30070 |
MS112..EFI |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-30070 |
MS112..EFI |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-30430 |
MS11#,RS110..LHD |
1 | ||
| 78100A - STOPPER, ACCELERATOR LINK | ||||
| 78118-12010 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-30220 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78102-30130 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23025 |
MS112..LHD..4FC..EFI |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-16002 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78111D - STOPPER (FOR ACCELERATOR PEDAL) | ||||
| 78119-30040 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78126 - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-30050 |
LS110,MS11#,RS110..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-30090 |
MS112..LHD..EFI |
1 | ||
| Common parts | ||||
| 90183-08073 | ||||
| 90202-08028 | ||||
| 90386-08077 | ||||
| 90461-10503 | ||||
| 91615-40614 | ||||
| 91615-40625 | ||||
| 91651-40622 | ||||
| 91655-40616 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
| 96160-00400 | ||||
