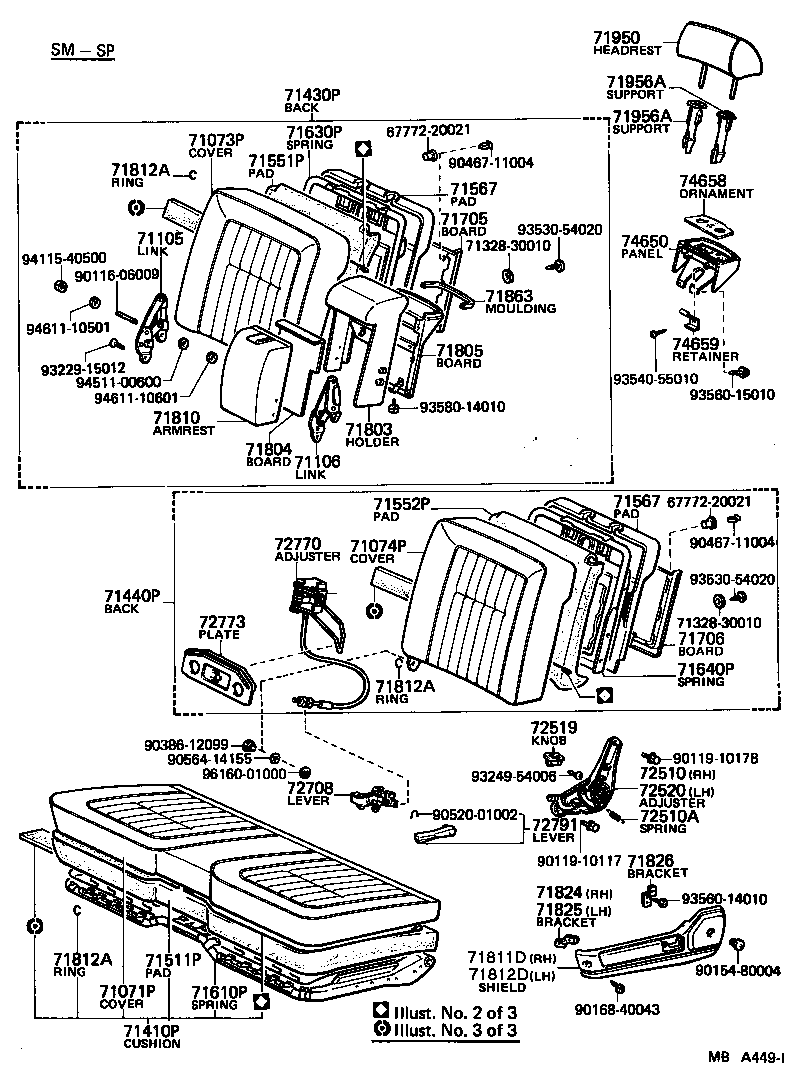

MS112LG-SWHDEW (1979)
Toyota Crown
(7909- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP |
2 | ||
| 71567-30040 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP |
2 | ||
| 71567-30040 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
2 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30240 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3022005 |
LS110,MS11#..WG GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3022004 |
LS110,MS11#..WG BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3034004 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3034003 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71910-3034015 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3011004 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3011003 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71920-3011015 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006015 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
LS110,MS112,RS110 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001015 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006015 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
LS110,MS112,RS110 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001015 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
LS110,MS11#,RS110..DLX,ROY,SAL |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2004004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004015 |
LS110,MS11#,RS110..3FC,4F,4FC,5F LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005015 |
LS110,MS11#,RS110..3FC,4F,4FC,5F RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005013 |
LS110,MS112,RS110..4F,4FC,5F RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005004 |
LS110,MS112,RS110..4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005035 |
LS110,MS112,RS110..4F,4FC,5F RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004013 |
LS110,MS112,RS110..4F,4FC,5F LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004035 |
LS110,MS112,RS110..4F,4FC,5F LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004004 |
LS110,MS112,RS110..4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30180 |
LS110,MS11#,RS110..3FC,4F,4FC,5F |
1 | ||
| 72770 - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-30020 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F) SP |
1 | ||
| 72760-30021 |
LS110,MS112,RS110..LHD..(4F,4FC,5F) SP |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-30020 |
LS110,MS11#,RS110..DLX,ROY,SAL |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001002 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3001004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001013 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,GRAY,GRAY,TRIM1# |
1 | ||
| 72791-3001005 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3003005 |
MS112..WG..EFI SP,WEST GERMANY SPEC,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3001004 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001025 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3003004 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3003004 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3003015 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10177 | ||||
| 90119-10178 | ||||
| 90154-80004 | ||||
| 90168-40043 | ||||
| 90386-12099 | ||||
| 90520-01002 | ||||
| 90564-14155 | ||||
| 91611-60614 | ||||
| 93249-54006 | ||||
| 93510-14010 | ||||
| 93540-55010 | ||||
| 93560-14010 | ||||
| 96160-01000 | ||||

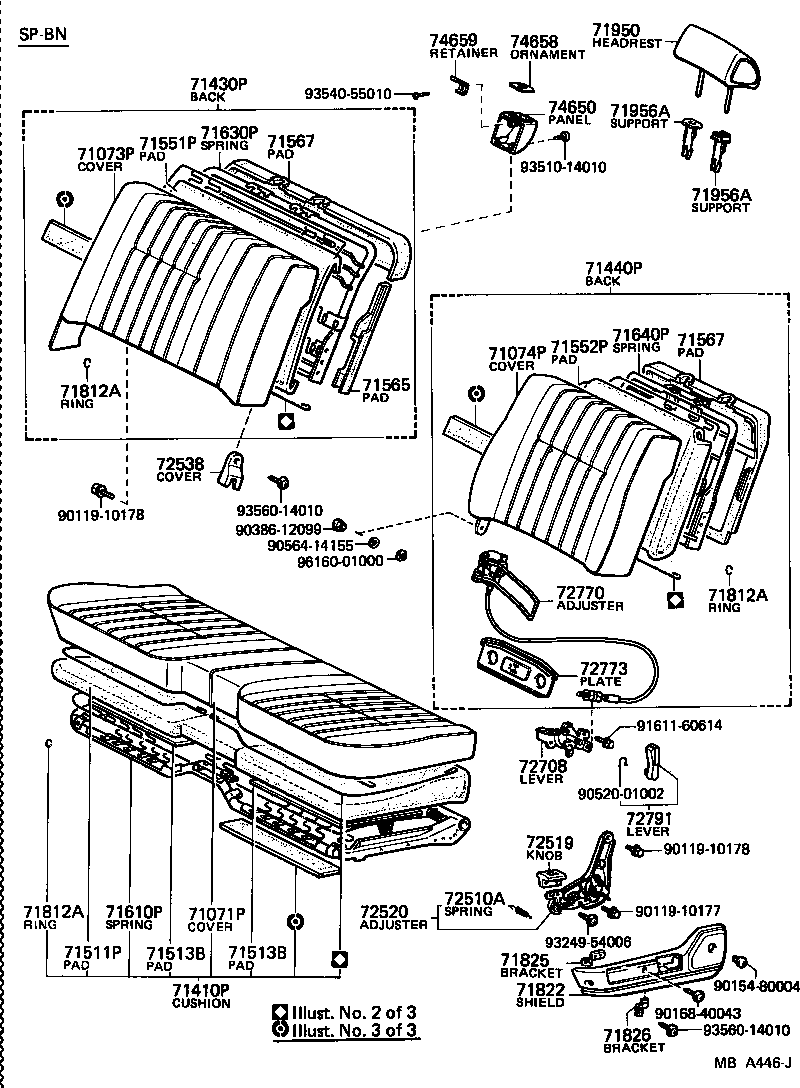

(7909- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP |
2 | ||
| 71567-30040 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP |
2 | ||
| 71567-30040 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
2 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3013004 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) W/MOULDING,BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3013005 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) W/MOULDING,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3008015 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3008014 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3008003 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) GRAY,GRAY,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-3007005 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) W/MOULDING,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71706-3004003 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) GRAY,GRAY,TRIM1# |
1 | ||
| 71706-3007004 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) W/MOULDING,BLUE,BLUE,TRIM8# |
1 | ||
| 71706-3004015 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71706-3004014 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3009005 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) SP,GREIGE,BEIGE |
1 | ||
| 71811-3009004 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE |
1 | ||
| 71811-3009003 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,GRAY,GRAY |
1 | ||
| 71811-3009015 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BEIGE,BEIGE |
1 | ||
| 71811-3009015 |
MS112,RS110..LHD..(4F,4FC,5F) SP,BEIGE,BEIGE |
1 | ||
| 71811-3009004 |
MS112,RS110..LHD..(4F,4FC,5F) SP,BLUE,BLUE |
1 | ||
| 71811-3009003 |
MS112,RS110..LHD..(4F,4FC,5F) SP,GRAY,GRAY |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3008002 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,DARK WINE,RED/MAROON |
1 | ||
| 71812-3007005 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) SP,GREIGE,BEIGE |
1 | ||
| 71812-3008005 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,GREIGE,BEIGE |
1 | ||
| 71812-3008004 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,BLUE,BLUE |
1 | ||
| 71812-3007004 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE |
1 | ||
| 71812-3007004 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE |
1 | ||
| 71812-3007015 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BEIGE,BEIGE |
1 | ||
| 71812-3008004 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,BLUE,BLUE |
1 | ||
| 71812-3008003 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,GRAY,GRAY |
1 | ||
| 71812-3007003 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,GRAY,GRAY |
1 | ||
| 71812-3008015 |
MS112,RS110..LHD..(4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,BEIGE,BEIGE |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30250 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30240 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3022005 |
LS110,MS11#..WG GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3022004 |
LS110,MS11#..WG BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3034004 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3034003 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71910-3034015 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3011004 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3011003 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71920-3011015 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006015 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
LS110,MS112,RS110 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001015 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006015 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
LS110,MS112,RS110 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001015 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30220 |
LS110,MS11#,RS110..3FC,4F,4FC,5F |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
LS110,MS11#,RS110..DLX,ROY,SAL |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2004004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004015 |
LS110,MS11#,RS110..3FC,4F,4FC,5F LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005015 |
LS110,MS11#,RS110..3FC,4F,4FC,5F RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005013 |
LS110,MS112,RS110..4F,4FC,5F RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005004 |
LS110,MS112,RS110..4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005035 |
LS110,MS112,RS110..4F,4FC,5F RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004013 |
LS110,MS112,RS110..4F,4FC,5F LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004035 |
LS110,MS112,RS110..4F,4FC,5F LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004004 |
LS110,MS112,RS110..4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30180 |
LS110,MS11#,RS110..3FC,4F,4FC,5F |
1 | ||
| 72770 - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-30020 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F) SP |
1 | ||
| 72760-30021 |
LS110,MS112,RS110..LHD..(4F,4FC,5F) SP |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-30020 |
LS110,MS11#,RS110..DLX,ROY,SAL |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001002 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3001004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001013 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,GRAY,GRAY,TRIM1# |
1 | ||
| 72791-3001005 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3003005 |
MS112..WG..EFI SP,WEST GERMANY SPEC,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3001004 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001025 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3003004 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3003004 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3003015 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 71328-30010 | ||||
| 90116-06009 | ||||
| 90119-10117 | ||||
| 90119-10178 | ||||
| 90154-80004 | ||||
| 90168-40043 | ||||
| 90386-12099 | ||||
| 90467-11004 | ||||
| 90520-01002 | ||||
| 90564-14155 | ||||
| 93229-15012 | ||||
| 93249-54006 | ||||
| 93530-54020 | ||||
| 93540-55010 | ||||
| 93560-14010 | ||||
| 93560-15010 | ||||
| 93580-14010 | ||||
| 94115-40500 | ||||
| 94511-00600 | ||||
| 94611-10501 | ||||
| 94611-10601 | ||||
| 96160-01000 | ||||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3070004 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3070005 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3070104 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3070103 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-3070105 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3043004 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC)..DLX FB,W/VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3043005 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC)..DLX FB,W/VERTICAL,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3043005 |
LS110,MS112,RS110..(BTP,DLX)..EUR FB,W/VERTICAL,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3043004 |
LS110,MS112,RS110..(BTP,DLX)..EUR FB,W/VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3043104 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..DLX FB,W/VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3043103 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..DLX FB,W/VERTICAL,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-3043105 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..DLX FB,W/VERTICAL,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3062005 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3073105 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3073103 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-3062004 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3073104 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3021004 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3021005 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3073104 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3073105 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3073103 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3A13004 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A13005 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A13105 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-3A13104 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A13103 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3047004 |
LS110,MS112,RS110..(BTP,DLX)..EUR PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-3047005 |
LS110,MS112,RS110..(BTP,DLX)..EUR PF,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71420-3047105 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..DLX FB,W/VERTICAL,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-3047104 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..DLX FB,W/VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-3047103 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..DLX FB,W/VERTICAL,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3A09005 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(BTP,DLX) FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3A09004 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A09104 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A09103 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(BTP,DLX) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-3A09105 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(BTP,DLX) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3075005 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(BTP,DLX) FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3075004 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3075105 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(BTP,DLX) FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3075104 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(BTP,DLX) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-9171404 |
MS112..WG..LHD FB,WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-9171405 |
MS112..WG..LHD FB,WEST GERMANY SPEC,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3075103 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(BTP,DLX) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-9171704 |
MS112..WG..EFI FB,WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-9171705 |
MS112..WG..EFI FB,WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-30550 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) |
1 | ||
| 71511-30550 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-30500 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) |
1 | ||
| 71511-30550 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-30440 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX,SAL) W/FB SEAT |
1 | ||
| 71551-30410 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-30440 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX,SAL) W/FB SEAT |
1 | ||
| 71551-30410 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL) |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP |
2 | ||
| 71567-30040 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30280 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30100 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL) W/VERTICAL |
1 | ||
| 71620-30090 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-30360 |
LS110,MS112,RS110..LHD..(4F,5F) |
1 | ||
| 71630-30360 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-30220 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F) W/RUMBER SUPPORT |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3013004 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) W/MOULDING,BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3013005 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) W/MOULDING,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3008015 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3008014 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3008003 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) GRAY,GRAY,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-3007005 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) W/MOULDING,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71706-3004003 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) GRAY,GRAY,TRIM1# |
1 | ||
| 71706-3007004 |
LS110,MS11#..WG..(3FC,4F,4FC,5F) W/MOULDING,BLUE,BLUE,TRIM8# |
1 | ||
| 71706-3004015 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71706-3004014 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3009005 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) SP,GREIGE,BEIGE |
1 | ||
| 71811-3009004 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE |
1 | ||
| 71811-3009003 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,GRAY,GRAY |
1 | ||
| 71811-3009015 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BEIGE,BEIGE |
1 | ||
| 71811-3009015 |
MS112,RS110..LHD..(4F,4FC,5F) SP,BEIGE,BEIGE |
1 | ||
| 71811-3009004 |
MS112,RS110..LHD..(4F,4FC,5F) SP,BLUE,BLUE |
1 | ||
| 71811-3009003 |
MS112,RS110..LHD..(4F,4FC,5F) SP,GRAY,GRAY |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3008002 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,DARK WINE,RED/MAROON |
1 | ||
| 71812-3007005 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) SP,GREIGE,BEIGE |
1 | ||
| 71812-3008005 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,GREIGE,BEIGE |
1 | ||
| 71812-3008004 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,BLUE,BLUE |
1 | ||
| 71812-3007004 |
LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE |
1 | ||
| 71812-3007004 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE |
1 | ||
| 71812-3007015 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BEIGE,BEIGE |
1 | ||
| 71812-3008004 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,BLUE,BLUE |
1 | ||
| 71812-3008003 |
LS110,MS112,RS110..LHD..(4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,GRAY,GRAY |
1 | ||
| 71812-3007003 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,GRAY,GRAY |
1 | ||
| 71812-3008015 |
MS112,RS110..LHD..(4F,4FC,5F)..(DLX,ROY,SAL) SP,W/VERTICAL,BEIGE,BEIGE |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30250 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
1 | ||
| 71825 - BRACKET, FRONT SEAT SIDE, NO.1 LH | ||||
| 71822-30240 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3022005 |
LS110,MS11#..WG GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3022004 |
LS110,MS11#..WG BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3034004 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3034003 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71910-3034015 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3011004 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3011003 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71920-3011015 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006015 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
LS110,MS112,RS110 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001015 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006015 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
LS110,MS112,RS110 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001015 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30220 |
LS110,MS11#,RS110..3FC,4F,4FC,5F |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
LS110,MS11#,RS110..DLX,ROY,SAL |
2 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2004004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004015 |
LS110,MS11#,RS110..3FC,4F,4FC,5F LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005015 |
LS110,MS11#,RS110..3FC,4F,4FC,5F RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005013 |
LS110,MS112,RS110..4F,4FC,5F RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005004 |
LS110,MS112,RS110..4F,4FC,5F RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005035 |
LS110,MS112,RS110..4F,4FC,5F RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004013 |
LS110,MS112,RS110..4F,4FC,5F LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004035 |
LS110,MS112,RS110..4F,4FC,5F LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004004 |
LS110,MS112,RS110..4F,4FC,5F LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-30180 |
LS110,MS11#,RS110..3FC,4F,4FC,5F |
1 | ||
| 72770 - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-30020 |
LS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F) SP |
1 | ||
| 72760-30021 |
LS110,MS112,RS110..LHD..(4F,4FC,5F) SP |
1 | ||
| 72773 - PLATE, LUMBAR SUPPORT | ||||
| 72773-30020 |
LS110,MS11#,RS110..DLX,ROY,SAL |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001002 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72791-3001004 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001013 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,GRAY,GRAY,TRIM1# |
1 | ||
| 72791-3001005 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3003005 |
MS112..WG..EFI SP,WEST GERMANY SPEC,GREIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3001004 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001025 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-3003004 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3003004 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3003015 |
MS112..WG..EFI SP,WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 71328-30010 | ||||
| 90119-10177 | ||||
| 90119-10178 | ||||
| 90154-80004 | ||||
| 90168-40043 | ||||
| 90386-12099 | ||||
| 90467-11004 | ||||
| 90520-01002 | ||||
| 90564-14155 | ||||
| 93210-16020 | ||||
| 93249-54006 | ||||
| 93530-54020 | ||||
| 93560-14010 | ||||
| 96160-01000 | ||||
(7909-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20007 | ||||
| 90580-20011 | ||||
| 90580-20029 | ||||
| 90580-20103 | ||||
| 90580-20108 | ||||
| 90580-20132 | ||||
| 90580-29010 | ||||
| 90580-29011 | ||||
(7909-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20007 | ||||
| 90580-20011 | ||||
| 90580-20105 | ||||
| 90580-20107 | ||||
| 90580-20128 | ||||
| 90580-20130 | ||||
| 90580-20165 | ||||
| 90580-20166 | ||||
| 90580-29010 | ||||
| 90580-29011 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20007 | ||||
| 90580-20011 | ||||
| 90580-20029 | ||||
| 90580-20103 | ||||
| 90580-20108 | ||||
| 90580-20132 | ||||
| 90580-29003 | ||||
| 90580-29010 | ||||
| 90580-29011 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20007 | ||||
| 90580-20011 | ||||
| 90580-20019 | ||||
| 90580-20107 | ||||
| 90580-20124 | ||||
| 90580-20128 | ||||
| 90580-20130 | ||||
| 90580-20166 | ||||
| 90580-29003 | ||||
| 90580-29010 | ||||
| 90580-29011 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30110 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30110 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30110 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30110 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71522-30110 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30030 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30030 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30030 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30030 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30030 |
LS110,MS112,RS110..4F,4FC,5F SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30270 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30270 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30270 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30270 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30270 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30120 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30120 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30120 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30120 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30120 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30120 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30030 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30030 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30030 |
LS110,MS112,RS110 W/LUMBER,SP-BN,SM-SP,SP |
1 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30060 |
LS110,MS112,RS110..4F,4FC,4HC,5F SM-SP,SP |
2 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30060 |
LS110,MS112,RS110..4F,4FC,4HC,5F SM-SP,SP |
2 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30060 |
LS110,MS112,RS110..4F,4FC,4HC,5F SM-SP,SP |
2 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30060 |
LS110,MS112,RS110..4F,4FC,4HC,5F SM-SP,SP |
2 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30060 |
LS110,MS112,RS110..4F,4FC,4HC,5F SM-SP,SP |
2 | ||
(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30040 |
LS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX) SP |
2 | ||
| 71567-30040 |
LS110,MS11#,RS110..3FC,4F,4FC,5F SP |
2 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LS110,MS11#,RS110 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3022005 |
LS110,MS11#..WG GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3022004 |
LS110,MS11#..WG BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3034004 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3034003 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71910-3034015 |
LS110,MS112..(BTP,DLX)..EUR RH,W/ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3011004 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3011003 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71920-3011015 |
LS110,MS112..(BTP,DLX)..EUR LH,W/ADJUSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006015 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
LS110,MS112,RS110 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001015 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006015 |
LS110,MS11#,RS110 W(LOCK),W/LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
LS110,MS112,RS110 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001015 |
LS110,MS11#,RS110 W/O(LOCK),W/O LOCK,GREIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001004 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
LS110,MS112,RS110 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001025 |
LS110,MS112,RS110 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 90119-10178 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
