MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )WG

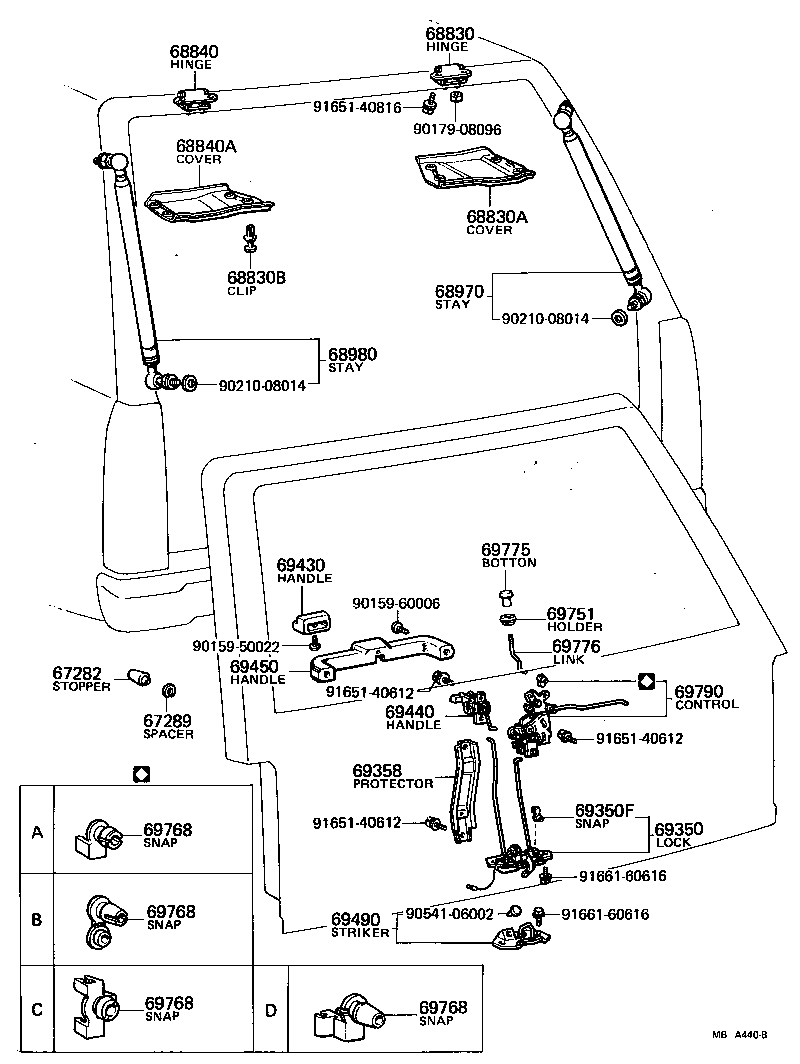

Click highlighted areas on diagram

diagram 67282 67289 68830 68830A 68830B 68840 68840A 68970 68980 69350 69350F 69358 69430 69440 69450 69490 69751 69768 69768 69768 69768 69775 69776 69790 9015950022 9015960006 9017908096 9021008014 9021008014 9054106002 9165140612 9165140612 9165140612 9165140816 9166160616 9166160616
Part # Description Qty Price
67282 - STOPPER, BACK DOOR, NO.1
67281-13030

LS110,MS11#..WG

 4
67289 - SPACER, BACK DOOR SIDE STOPPER, LOWER
90213-12019

LS110,MS11#..WG

T=1.0

 4
90213-12020

LS110,MS11#..WG

T=2.3

 4
68830 - HINGE ASSY, BACK DOOR, RH
68810-91704

LS110,MS11#..WG

 1
68830A - COVER, BACK DOOR HINGE, RH
63337-91701

MS112..WG..EFI

WEST GERMANY SPEC

 1
68830B - CLIP(FOR BACK DOOR HINGE COVER SET)
90467-08114

MS112..WG..EFI

WEST GERMANY SPEC

 8
68840 - HINGE ASSY, BACK DOOR, LH
68810-91704

LS110,MS11#..WG

 1
68840A - COVER, BACK DOOR HINGE, LH
63338-91701

MS112..WG..EFI

WEST GERMANY SPEC

 1
68970 - STAY ASSY, BACK DOOR, RH
68950-39015

LS110,MS11#..WG

 1
68950-39025

LS110,MS11#..WG

W/RR WIPER

 1
68980 - STAY ASSY, BACK DOOR
68950-39025

LS110,MS11#..WG

W/RR WIPER

 1
68950-39015

LS110,MS11#..WG

 1
68960-39015

LS110,MS11#..WG

 1
68960-39025

LS110,MS11#..WG

W/RR WIPER

 1
69350 - LOCK ASSY, BACK DOOR
69350-91701

LS110,MS11#..WG

 1
69350-91703

LS110,MS112..WG

W/3RD SEAT

 1
69350-91704

LS110,MS112..WG

 1
69350-91702

MS11#..WG..DLX

W/3RD SEAT

 1
69350F - SNAP, DOOR LOCK CONTROL ROD
69377-12010

LS110,MS11#..WG

 2
69358 - PROTECTOR, BACK DOOR LOCK
69358-91701

LS110,MS11#..WG

 1
69358-91702

LS110,MS112..WG

 1
69430 - HANDLE ASSY, BACK DOOR PULL CENTER
69403-9170104

MS11#..WG..DLX

BLUE,BLUE,TRIM8#

 1
69403-9170104

LS110,MS112..WG

BLUE,BLUE,TRIM8#

 1
69403-9170105

MS11#..WG..DLX

GREIGE,BEIGE,TRIM4#

 1
69403-9170115

LS110,MS112..WG

BEIGE,BEIGE,TRIM4#

 1
69440 - HANDLE ASSY, BACK DOOR INSIDE
69209-91701

LS110,MS112..WG

 1
69209-91701

MS11#..WG..DLX

 1
69450 - HANDLE ASSY, BACK DOOR PULL
69405-9170104

MS11#..WG..DLX

BLUE,BLUE,TRIM8#

 1
69405-9170105

MS11#..WG..DLX

GREIGE,BEIGE,TRIM4#

 1
69405-9170104

LS110,MS112..WG

BLUE,BLUE,TRIM8#

 1
69405-9170115

LS110,MS112..WG

BEIGE,BEIGE,TRIM4#

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-91701

LS110,MS11#..WG

 1
69751 - HOLDER, DOOR LOCK CONTROL KNOB
69751-91701

MS11#..WG..DLX

 1
69751-91701

LS110,MS112..WG

 1
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
64949-21020

MS11#..WG..DLX

TYPE C

 1
69377-91701

LS110,MS11#..WG

TYPE B

 1
69377-12010

LS110,MS11#..WG

TYPE D

 2
69377-30020

LS110,MS11#..WG

TYPE A

 3
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
64949-21020

MS11#..WG..DLX

TYPE C

 1
69377-91701

LS110,MS11#..WG

TYPE B

 1
69377-12010

LS110,MS11#..WG

TYPE D

 2
69377-30020

LS110,MS11#..WG

TYPE A

 3
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
64949-21020

MS11#..WG..DLX

TYPE C

 1
69377-91701

LS110,MS11#..WG

TYPE B

 1
69377-12010

LS110,MS11#..WG

TYPE D

 2
69377-30020

LS110,MS11#..WG

TYPE A

 3
69768 - SNAP, BACK DOOR LOCK CONTROL LINK
64949-21020

MS11#..WG..DLX

TYPE C

 1
69377-91701

LS110,MS11#..WG

TYPE B

 1
69377-12010

LS110,MS11#..WG

TYPE D

 2
69377-30020

LS110,MS11#..WG

TYPE A

 3
69775 - BUTTON, DOOR LOCKING(FOR BACK DOOR)
69775-91501

MS11#..WG..DLX

 1
69741-91701

MS112..WG

 1
69741-91701

LS110,MS112..WG

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-91703

LS110,MS11#..WG

 1
69790-91706

LS110,MS112..WG

W/3RD SEAT

 1
69790-91705

MS11#..WG..DLX

W/3RD SEAT

 1
69790-91707

LS110,MS112..WG

 1
Common parts
90159-50022
90159-60006
90179-08096
90210-08014
90541-06002
91651-40612
91651-40816
91661-60616
