MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )WG

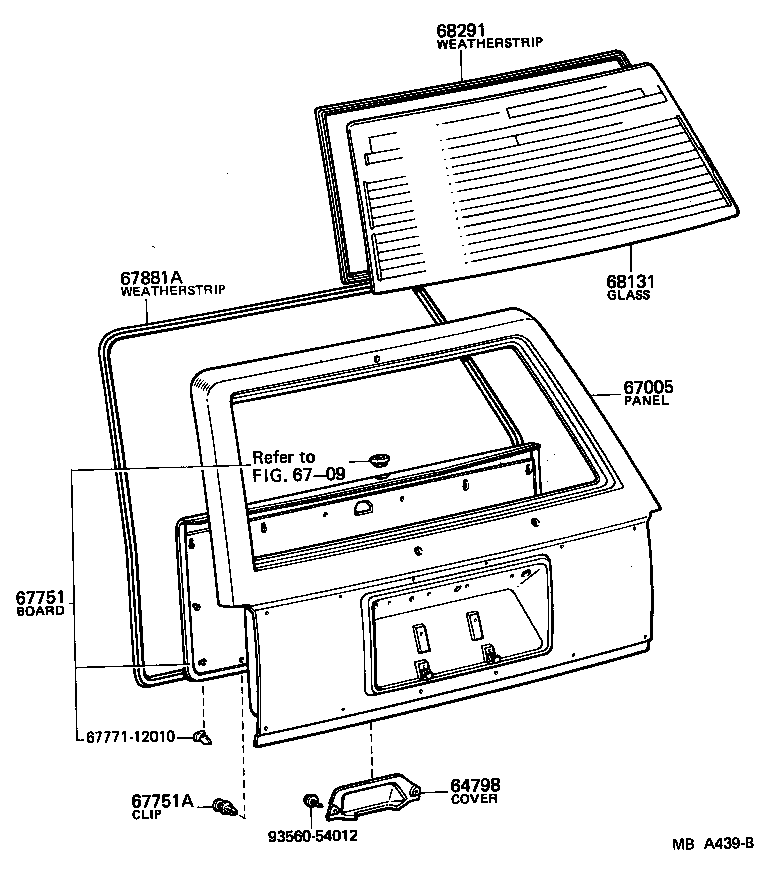

Click highlighted areas on diagram

diagram 64798 67005 6709 67751 67751A 6777112010 67881A 68131 68291 9356054012
Part # Description Qty Price
64798 - COVER, BACK DOOR LOCK
64798-9170104

LS110,MS11#..WG

BLUE,BLUE,TRIM8#

 1
64798-9170105

LS110,MS11#..WG

GREIGE,BEIGE,TRIM4#

 1
64798-9170115

LS110,MS112..WG

BEIGE,BEIGE,TRIM4#

 1
64798-9170104

LS110,MS112..WG

BLUE,BLUE,TRIM8#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-91726

MS11#..WG..DLX

 1
67005-91727

LS110,MS112..WG

W/3RD SEAT,RR WIPER

 1
67005-91727

MS11#..WG..DLX

W/RR WIPER

 1
67005-91739

LS110,MS112..WG

W/3RD SEAT,RR WIPER

 1
67005-91739

MS112..WG

W/RR WIPER

 1
67751 - BOARD, BACK DOOR TRIM
64780-9170704

MS11#..WG..DLX

W/3RD SEAT,BLUE,BLUE,TRIM8#

 1
64780-9170804

MS11#..WG..DLX

BLUE,BLUE,TRIM8#

 1
64780-9170715

LS110,MS112..WG

W/3RD SEAT,BEIGE,BEIGE,TRIM4#

 1
64780-9170705

MS11#..WG..DLX

W/3RD SEAT,GREIGE,BEIGE,TRIM4#

 1
64780-9170805

MS11#..WG..DLX

GREIGE,BEIGE,TRIM4#

 1
64780-9170814

MS112..WG

BLUE,BLUE,TRIM8#

 1
64780-9171414

MS112..WG

BLUE,BLUE,TRIM8#

 1
64780-9171415

MS112..WG

BEIGE,BEIGE,TRIM4#

 1
64780-9170815

MS112..WG

BEIGE,BEIGE,TRIM4#

 1
64780-9171314

LS110,MS112..WG

W/3RD SEAT,BLUE,BLUE,TRIM8#

 1
64780-9170714

LS110,MS112..WG

W/3RD SEAT,BLUE,BLUE,TRIM8#

 1
64780-9171315

LS110,MS112..WG

W/3RD SEAT,BEIGE,BEIGE,TRIM4#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0811424

LS110,MS11#..WG

BLUE,BLUE,TRIM8#

 4
90467-1000525

LS110,MS112..WG

BEIGE,BEIGE,TRIM4#

 4
90467-1000504

LS110,MS112..WG

BLUE,BLUE,TRIM8#

 4
90467-1000504

LS110,MS112..WG

BLUE,BLUE,TRIM8#

 6
90467-1000505

LS110,MS11#..WG

GREIGE,BEIGE,TRIM4#

 4
90467-1000504

LS110,MS11#..WG

BLUE,BLUE,TRIM8#

 4
90467-1000525

LS110,MS112..WG

BEIGE,BEIGE,TRIM4#

 6
90467-0811445

LS110,MS11#..WG

GREIGE,BEIGE,TRIM4#

 4
67881A - WEATHERSTRIP, BACK DOOR
67881-91702

LS110,MS11#..WG

 1
68131 - GLASS, BACK DOOR
68105-91708

LS110,MS11#..WG

*EHTT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-91703

LS110,MS11#..WG

W/MOULDING

 1
Common parts
67771-12010
93560-54012
Linked diagrams
6709
