MS112LG-SWHDEW (1979)
Toyota Crown
(7909-8108)MS111..ARL ; (7909-8108)MS112..WG..DLX ; (7909-8108)LS110,MS111..WG ; (7

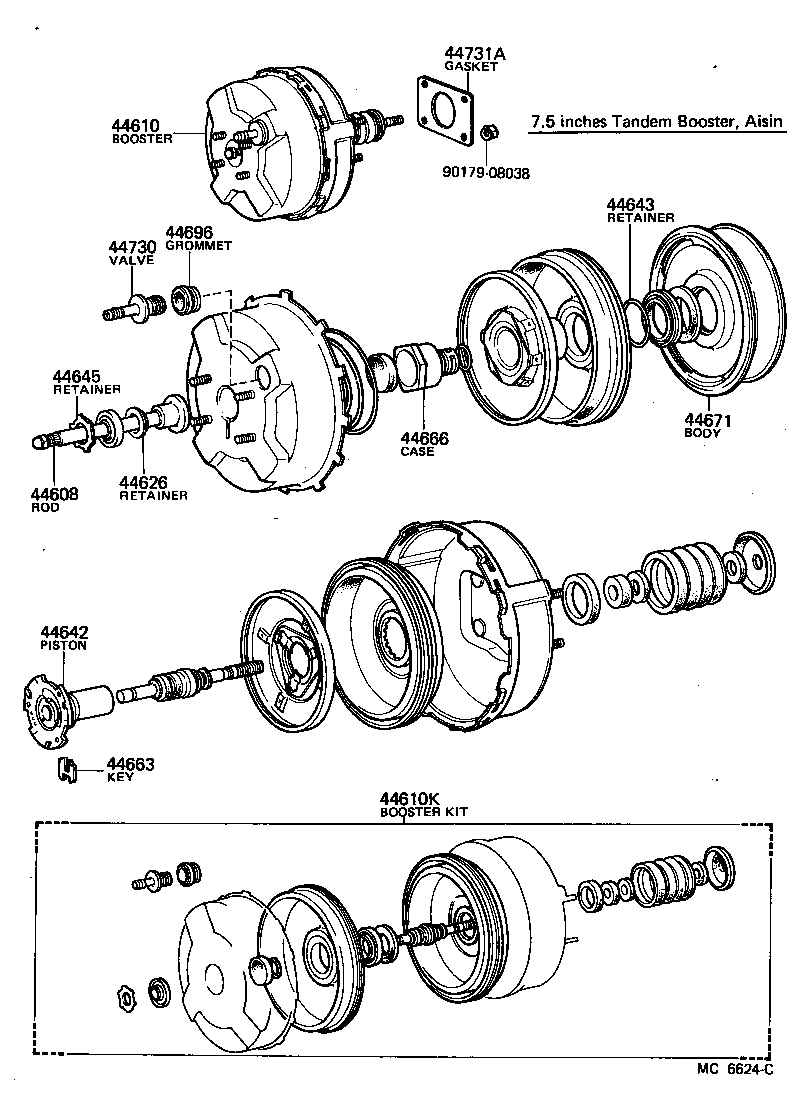

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30340 |
MS112..ARL,EUR |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30340 |
MS112..ARL,EUR AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-30280 |
MS112..ARL,EUR AISIN |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
MS112..ARL,EUR AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30340 |
MS112..ARL,EUR |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-30340 |
MS112..ARL,EUR |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
MS112..ARL,EUR AISIN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MS11#..WG AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22080 |
MS11#..WG AISIN |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
LS110,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
(7909- )MS112..ARL,EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30340 |
MS112..ARL,EUR |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30340 |
MS112..ARL,EUR AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-30280 |
MS112..ARL,EUR AISIN |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
MS112..ARL,EUR AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30340 |
MS112..ARL,EUR |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-30340 |
MS112..ARL,EUR |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
MS112..ARL,EUR AISIN |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-30340 |
MS112..ARL,EUR |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-30340 |
MS112..ARL,EUR |
1 | ||
| 44671 - BODY SUB-ASSY, NO.3 | ||||
| 44607-30340 |
MS112..ARL,EUR |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MS11#..WG AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22080 |
MS11#..WG AISIN |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
LS110,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(7909-8108)LS110,MS111..SED ; (7909-8108)MS112,RS110..SED..ARL,GEN ; (8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-30340 |
MS112..ARL,EUR |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30340 |
MS112..ARL,EUR AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-30280 |
MS112..ARL,EUR AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30340 |
MS112..ARL,EUR |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
MS112..ARL,EUR AISIN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MS11#..WG AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22080 |
MS11#..WG AISIN |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
LS110,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

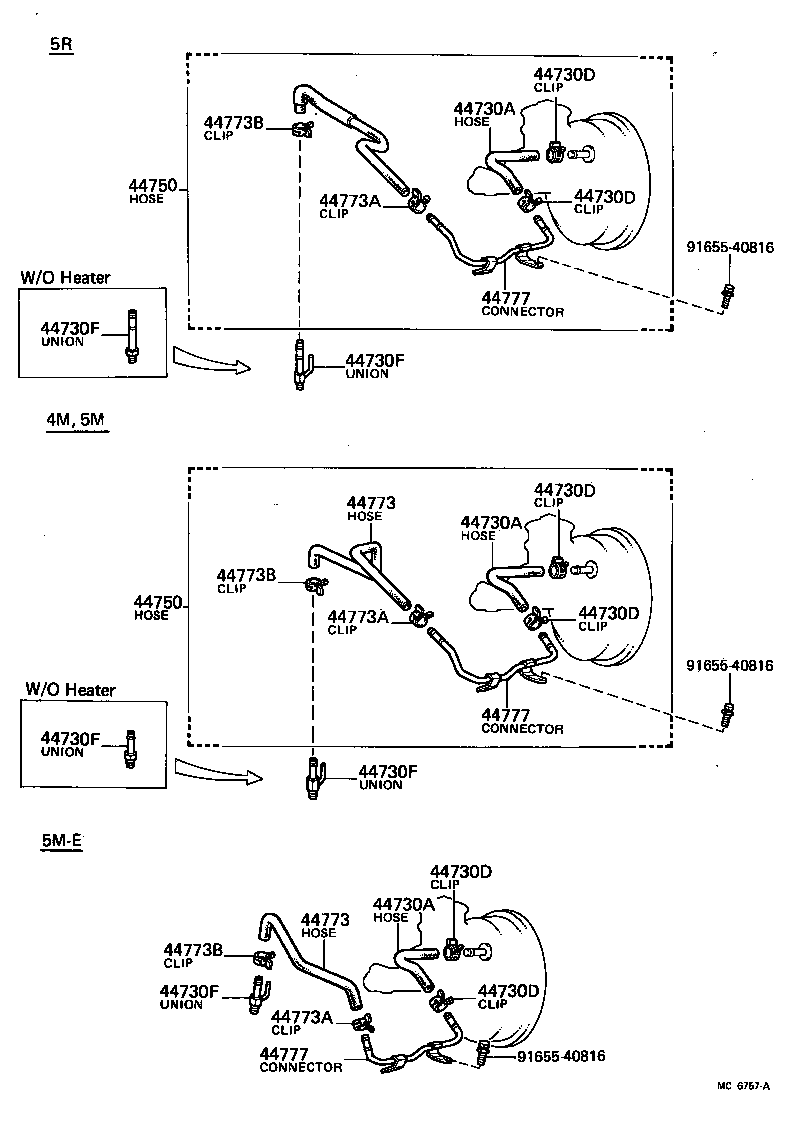

(7909- )MS11#,RS110..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44778-30020 |
MS112..LHD |
1 | ||
| 44778-30020 |
MS112..LHD..EFI |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44778-30020 |
MS112..LHD |
1 | ||
| 44778-30020 |
MS112..LHD..EFI |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44778-30020 |
MS112..LHD |
1 | ||
| 44778-30020 |
MS112..LHD..EFI |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
LS110,MS112,RS110 |
2 | ||
| 90467-16141 |
LS110,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
LS110,MS112,RS110 |
2 | ||
| 90467-16141 |
LS110,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
LS110,MS112,RS110 |
2 | ||
| 90467-16141 |
LS110,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
LS110,MS112,RS110 |
2 | ||
| 90467-16141 |
LS110,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
LS110,MS112,RS110 |
2 | ||
| 90467-16141 |
LS110,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
LS110,MS112,RS110 |
2 | ||
| 90467-16141 |
LS110,MS11#,RS110 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS112..EFI |
1 | ||
| 90404-51320 |
MS112 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS112..EFI |
1 | ||
| 90404-51320 |
MS112 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS112..EFI |
1 | ||
| 90404-51320 |
MS112 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS112..EFI |
1 | ||
| 90404-51320 |
MS112 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
MS112..EFI |
1 | ||
| 90404-51320 |
MS112 |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44779-30020 |
MS112..LHD |
1 | ||
| 44779-30020 |
MS112..LHD..EFI |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44779-30020 |
MS112..LHD |
1 | ||
| 44779-30020 |
MS112..LHD..EFI |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16002 |
MS112..LHD..EFI |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16002 |
MS112..LHD..EFI |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16002 |
MS112..LHD..EFI |
1 | ||
| 90467-16141 |
MS112,RS110..LHD |
1 | ||
| 90467-16141 |
MS112..LHD..EFI |
1 | ||
| 90467-16002 |
MS112,RS110..LHD |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-30020 |
MS112..LHD..EFI |
1 | ||
| 44777-30020 |
MS112..LHD |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-30020 |
MS112..LHD..EFI |
1 | ||
| 44777-30020 |
MS112..LHD |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-30020 |
MS112..LHD..EFI |
1 | ||
| 44777-30020 |
MS112..LHD |
1 | ||
| Common parts | ||||
| 91655-40816 | ||||
