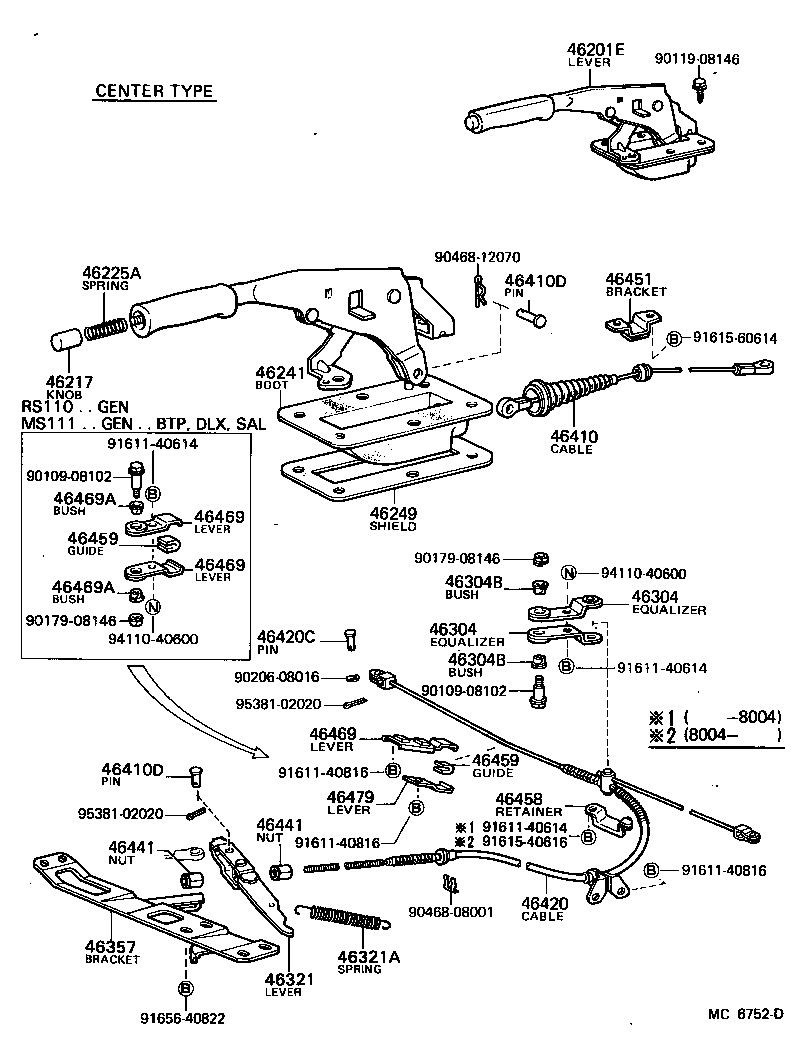

Toyota Crown MS112 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-3002004	LS110,MS11#,RS110..3FC,4F,4FC,5F BLUE,BLUE,TRIM8#	09/1979 - 08/1981	1
46201-3005004	LS110,MS112..EUR BLUE,BLUE,TRIM8#	08/1981 - 08/1982	1
46201-3005014	LS110,MS112..EUR BLUE,BLUE,TRIM8#	08/1982 - 07/1983	1
46201-3002005	LS110,MS11#,RS110..3FC,4F,4FC,5F GREIGE,BEIGE,TRIM4#	09/1979 - 08/1981	1
46201-3005003	LS110,MS112..EUR GRAY,GRAY,TRIM1#	08/1981 - 07/1983	1
46201-3005005	LS110,MS112..EUR BEIGE,BEIGE,TRIM4#	08/1981 - 07/1983	1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002004	LS110,MS11#,RS110..3FC,4F,4FC,5F BLUE,BLUE,TRIM8#	09/1979 - 08/1981	1
46217-1002015	LS110,MS112,RS110..4F,4FC,5F BEIGE,BEIGE,TRIM4#	08/1981 - 07/1983	1
46217-1002005	LS110,MS11#,RS110..3FC,4F,4FC,5F GREIGE,BEIGE,TRIM4#	09/1979 - 08/1981	1
46217-1002003	LS110,MS112,RS110..4F,4FC,5F GRAY,GRAY,TRIM1#	08/1981 - 07/1983	1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745	LS110,MS11#,RS110..3FC,4F,4FC,5F	09/1979 - 07/1983	1
46241 - BOOT, PARKING BRAKE LEVER
46241-30010	LS110,MS11#,RS110..3FC,4F,4FC,5F	09/1979 - 07/1983	1
46249 - SHIELD, PARKING BRAKE HOLE
46249-30010	LS110,MS11#,RS110..3FC,4F,4FC,5F	09/1979 - 07/1983	1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-31010	LS110,MS11#,RS110	09/1979 - 07/1983	2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-31010	LS110,MS11#,RS110	09/1979 - 07/1983	2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029	LS110,MS11#,RS110	09/1979 - 07/1983	2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029	LS110,MS11#,RS110	09/1979 - 07/1983	2
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46301-30150	LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)..(EUR,GEN)	09/1979 - 08/1981	1
46301-30150	LS110,MS112..(BTP,DLX)..EUR	08/1981 - 07/1983	1
46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90506-20010	LS110,MS11#,RS110..3FC,4F,4FC,5F	09/1979 - 07/1983	1
46357 - BRACKET, LEVER SUPPORT
46359-30080	LS110,MS11#,RS110..3FC,4F,4FC,5F	09/1979 - 07/1983	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30220	LS110,MS11#,RS110..3FC,4F,4FC,5F	09/1979 - 07/1983	1
46410D - PIN(FOR PARKING BRAKE FRONT CABLE)
90240-08021	LS110,MS11#,RS110..3FC,4F,4FC,5F HANDLE X CABLE	09/1979 - 07/1983	1
90240-08028	LS110,MS11#,RS110..3FC,4F,4FC,5F LEVER X CABLE	09/1979 - 07/1983	1
46410D - PIN(FOR PARKING BRAKE FRONT CABLE)
90240-08021	LS110,MS11#,RS110..3FC,4F,4FC,5F HANDLE X CABLE	09/1979 - 07/1983	1
90240-08028	LS110,MS11#,RS110..3FC,4F,4FC,5F LEVER X CABLE	09/1979 - 07/1983	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-30110	LS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)..(EUR,GEN)	09/1979 - 08/1981	1
46420-30110	LS110,MS112..(BTP,DLX)..EUR	08/1981 - 07/1983	1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08028	LS110,MS11#,RS110	09/1979 - 07/1983	2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030	LS110,MS11#,RS110	09/1979 - 07/1983	2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030	LS110,MS11#,RS110	09/1979 - 07/1983	2
46451 - BRACKET, CABLE SUPPORT
46451-30071	LS110,MS112	08/1981 - 07/1983	1
46451-30071	LS110,MS11#	09/1979 - 08/1981	1
46458 - RETAINER, CABLE
46458-30040	LS110,MS11#,RS110	09/1979 - 04/1980	1
46458-30042	LS110,MS11#,RS110	04/1980 - 07/1983	1
46459 - GUIDE, CABLE
46459-30020	LS110,MS112..WG	05/1982 - 07/1983	1
46459-30010	LS110,MS11#,RS110	09/1979 - 05/1982	1
46459 - GUIDE, CABLE
46459-30020	LS110,MS112..WG	05/1982 - 07/1983	1
46459-30010	LS110,MS11#,RS110	09/1979 - 05/1982	1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-31011	LS110,MS112	09/1979 - 08/1980	1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-31011	LS110,MS112	09/1979 - 08/1980	1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-31011	LS110,MS112	09/1979 - 08/1980	1
46479 - LEVER, CABLE GUIDE SAPPORT, NO.2
46479-30010	LS110,MS112	09/1979 - 08/1980	1
Common parts
90109-08102
90119-08146
90179-08146
90206-08016
90468-08001
90468-12070
91611-40614
91611-40816
91615-40616
91615-60614
91656-40822
94110-40600
95381-02020

MS112LG-SWHDEW (1979)

(7909- )3FC,4F,4FC,5F
