MS112LG-SWHDEW (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
5ME
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22010 |
LS110,MS11#..ATM |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-40010 |
MS112..DLX..EFI SWITZERLAND SPEC |
1 | ||
| 35561-40010 |
MS112..LHD..4FC..EFI SWITZERLAND SPEC |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-40010 |
MS112..DLX..EFI SWITZERLAND SPEC |
1 | ||
| 35561-40010 |
MS112..LHD..4FC..EFI SWITZERLAND SPEC |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03004 |
LS110,MS11#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11128 |
LS110,MS11#..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
LS110,MS11#..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-22010 |
LS110,MS11#..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
LS110,MS11#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-35010 |
MS112..ATM |
1 | ||
| 35557-35010 |
LS110,MS112..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-25001 |
LS110,MS112..ATM |
1 | ||
| 90508-25001 |
MS112..ATM |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35501-22020 |
LS110,MS112..ATM |
1 | ||
| 35501-22020 |
LS110,MS11#..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-22020 |
LS110,MS112..ATM |
1 | ||
| 35595-16010 |
LS110,MS112..ATM |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||
(7909- )ATM

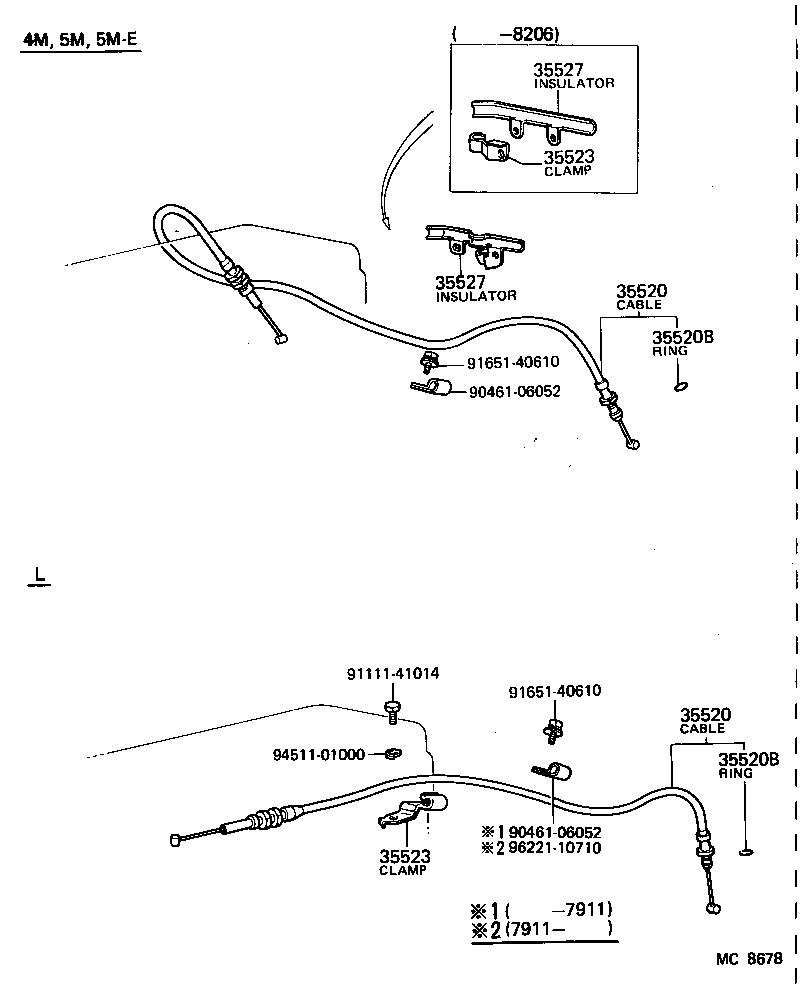

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-30030 |
MS11#..LHD..ATM |
1 | ||
| 35520-30030 |
MS112..ATM |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-30030 |
MS11#..LHD..ATM |
1 | ||
| 35520-30030 |
MS112..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
LS110,MS112..ATM |
1 | ||
| 90301-09063 |
LS110,MS11#..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
LS110,MS112..ATM |
1 | ||
| 90301-09063 |
LS110,MS11#..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-22020 |
MS11#..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-22020 |
MS11#..ATM |
1 | ||
| 35527 - INSULATOR, THROTTLE CABLE HEAT | ||||
| 35527-22011 |
MS11#..ATM |
1 | ||
| 35527-24020 |
MS112..ATM |
1 | ||
| 35527 - INSULATOR, THROTTLE CABLE HEAT | ||||
| 35527-22011 |
MS11#..ATM |
1 | ||
| 35527-24020 |
MS112..ATM |
1 | ||
| Common parts | ||||
| 90461-06052 | ||||
| 91111-41014 | ||||
| 91651-40610 | ||||
| 94511-01000 | ||||
| 96221-10710 | ||||
