MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )4M,5M,5R..BTP,DLX,SAL

Click highlighted areas on diagram

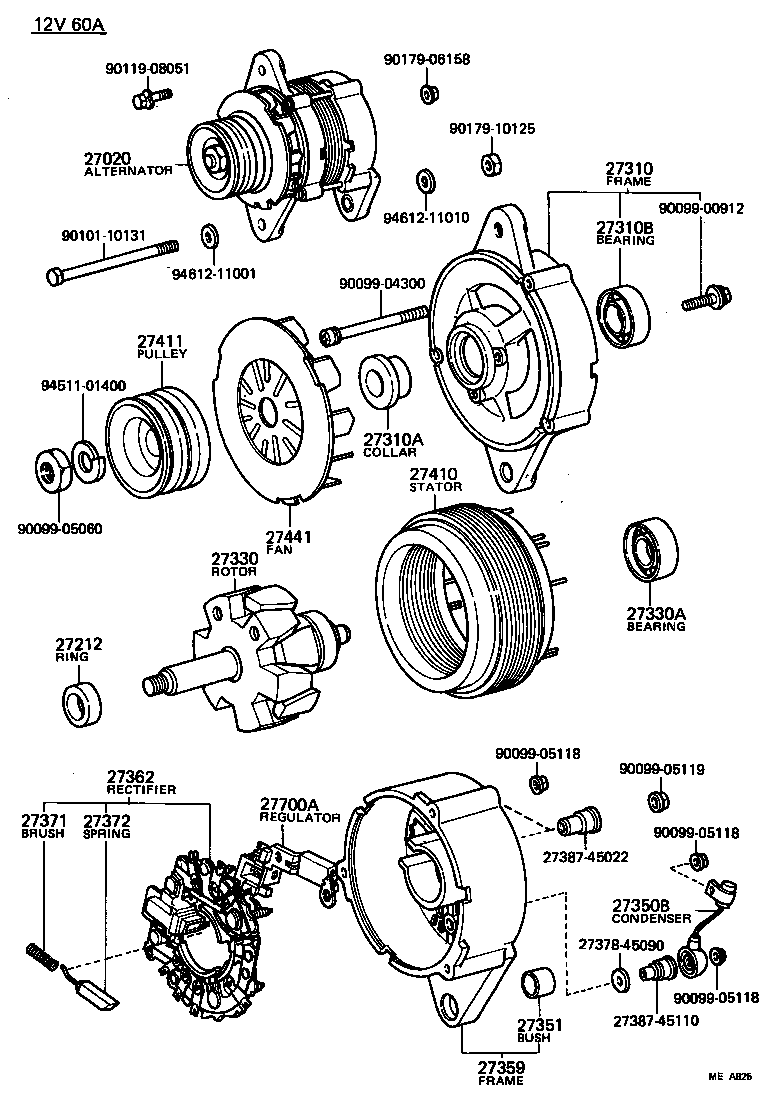

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27353 27356 27359 27362 27371 27372 2737838040 2737845090 2737845090 2738745022 2738745110 27410 27411 27441 8401 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9010110131 9011908051 9011908051 9017906158 9017910125 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-45082

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27060-43020

5ME..MS112

12V 60A

 1
27020-45140

5ME..MS112

12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-45110

4M,5M#..MS11#

12V 50A,60A

 1
27039-45110

5M..MS112..DLX,SAL

12V 50A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-45070

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

5M#..MS112

12V 50A,60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

4M,5M#..MS11#

12V 50A,60A

 3
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-34051

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-34051

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-24100

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15021

5M..MS112..BTP,DLX,SAL

12V 50A

 1
27362-43040

5ME..MS112

12V 60A

 1
27362-70021

5ME..MS112

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-44070

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27371-31011

5M#..MS112

12V 50A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5M#..MS112

12V 50A,60A

 2
90099-17114

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27411 - PULLEY, ALTERNATOR
27411-41071

4M,5M#..MS11#

12V 50A,60A

 1
27441 - FAN, ALTERNATOR
27441-34030

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
Common parts
27378-38040
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10131
90119-08051
90179-06158
90179-10125
94110-41000
94511-01400
94512-01000
94612-11001
Linked diagrams
8401

(7909-8108)5ME ; (7909-8108)4M,5M..ROY

Click highlighted areas on diagram

diagram 27020 27039 27061 2706345020 2706445020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2738745022 2738745090 2738745090 2738745110 27410 27411 27441 27700A 9009900912 9009900933 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9009905119 9010110131 9011908051 9017910125 9322914012 9331515014 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-45082

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27060-43020

5ME..MS112

12V 60A

 1
27020-45140

5ME..MS112

12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-45110

4M,5M#..MS11#

12V 50A,60A

 1
27039-45110

5M..MS112..DLX,SAL

12V 50A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-45070

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

5M#..MS112

12V 50A,60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

4M,5M#..MS11#

12V 50A,60A

 3
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-24100

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15021

5M..MS112..BTP,DLX,SAL

12V 50A

 1
27362-43040

5ME..MS112

12V 60A

 1
27362-70021

5ME..MS112

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-44070

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27371-31011

5M#..MS112

12V 50A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5M#..MS112

12V 50A,60A

 2
90099-17114

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27411 - PULLEY, ALTERNATOR
27411-41071

4M,5M#..MS11#

12V 50A,60A

 1
27441 - FAN, ALTERNATOR
27441-34030

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-41050

5ME..MS112

IC REGULATOR

 1
27700-43010

5ME..MS112

IC REGULATOR

 1
Common parts
27063-45020
27064-45020
27387-45022
27387-45090
27387-45110
90099-00912
90099-00933
90099-04300
90099-05060
90099-05118
90099-05119
90101-10131
90119-08051
90179-10125
93229-14012
93315-15014
94511-01400
94612-11001

(7909- )L

Click highlighted areas on diagram

diagram 27020 27036 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330B 27350 27350B 27350C 27351 27353 27356 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27388 27410 27411 27441 8401 9009901437 9009902208 9009904915 9009904916 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9010110231 9011908127 9020110283 9331915008 9411041000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-45082

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27060-43020

5ME..MS112

12V 60A

 1
27020-45140

5ME..MS112

12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-45110

4M,5M#..MS11#

12V 50A,60A

 1
27039-45110

5M..MS112..DLX,SAL

12V 50A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-45070

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

5M#..MS112

12V 50A,60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-34051

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-34051

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27371 - BRUSH, ALTERNATOR
27371-44070

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27371-31011

5M#..MS112

12V 50A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5M#..MS112

12V 50A,60A

 2
90099-17114

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27411 - PULLEY, ALTERNATOR
27411-41071

4M,5M#..MS11#

12V 50A,60A

 1
27441 - FAN, ALTERNATOR
27441-34030

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90099-01437
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05135
90101-10231
90119-08127
90201-10283
93319-15008
94110-41000
Linked diagrams
8401

(8108- )L..EUR

Click highlighted areas on diagram

diagram 27020 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330B 27350 27350B 27350C 27351 27353 27356 27370 27371 27372 27373 2737845020 2737845020 2737854010 2738745090 2738754010 2738756070 27388 27410 27411 27441 2744757100 27700A 9009900937 9009900937 9009901437 9009902208 9009904915 9009904916 9009905118 9009905118 9009905118 9009905119 9009905135 9009934013 9009934013 9010110231 9011908127 9017906158 9020110283 9331515010 9331915008 9411041000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-45082

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27060-43020

5ME..MS112

12V 60A

 1
27020-45140

5ME..MS112

12V 60A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-45070

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

5M#..MS112

12V 50A,60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-34051

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-34051

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27371 - BRUSH, ALTERNATOR
27371-44070

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27371-31011

5M#..MS112

12V 50A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5M#..MS112

12V 50A,60A

 2
90099-17114

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27411 - PULLEY, ALTERNATOR
27411-41071

4M,5M#..MS11#

12V 50A,60A

 1
27441 - FAN, ALTERNATOR
27441-34030

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-41050

5ME..MS112

IC REGULATOR

 1
27700-43010

5ME..MS112

IC REGULATOR

 1
Common parts
27378-45020
27378-54010
27387-45090
27387-54010
27387-56070
27447-57100
90099-00937
90099-01437
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05135
90099-34013
90101-10231
90119-08127
90179-06158
90201-10283
93315-15010
93319-15008
94110-41000

(8108- )5ME ; (8108- )5M..ROY

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110131 9011908051 9017906158 9017910125 9451101400 9461211001 9461211010
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-45082

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27060-43020

5ME..MS112

12V 60A

 1
27020-45140

5ME..MS112

12V 60A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-45070

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

5M#..MS112

12V 50A,60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

4M,5M#..MS11#

12V 50A,60A

 3
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

4M,5M#,5R..MS11#,RS110

12V 50A,60A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-24100

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15021

5M..MS112..BTP,DLX,SAL

12V 50A

 1
27362-43040

5ME..MS112

12V 60A

 1
27362-70021

5ME..MS112

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-44070

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27371-31011

5M#..MS112

12V 50A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5M#..MS112

12V 50A,60A

 2
90099-17114

4M,5ME,5R..MS11#,RS110

12V 50A,60A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

4M,5M..MS11#..BTP,DLX,SAL

12V 50A

 1
27411 - PULLEY, ALTERNATOR
27411-41071

4M,5M#..MS11#

12V 50A,60A

 1
27441 - FAN, ALTERNATOR
27441-34030

4M,5M,5R..MS11#,RS110..BTP,DLX,SAL

12V 50A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-41050

5ME..MS112

IC REGULATOR

 1
27700-43010

5ME..MS112

IC REGULATOR

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10131
90119-08051
90179-06158
90179-10125
94511-01400
94612-11001
94612-11010
