MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )L

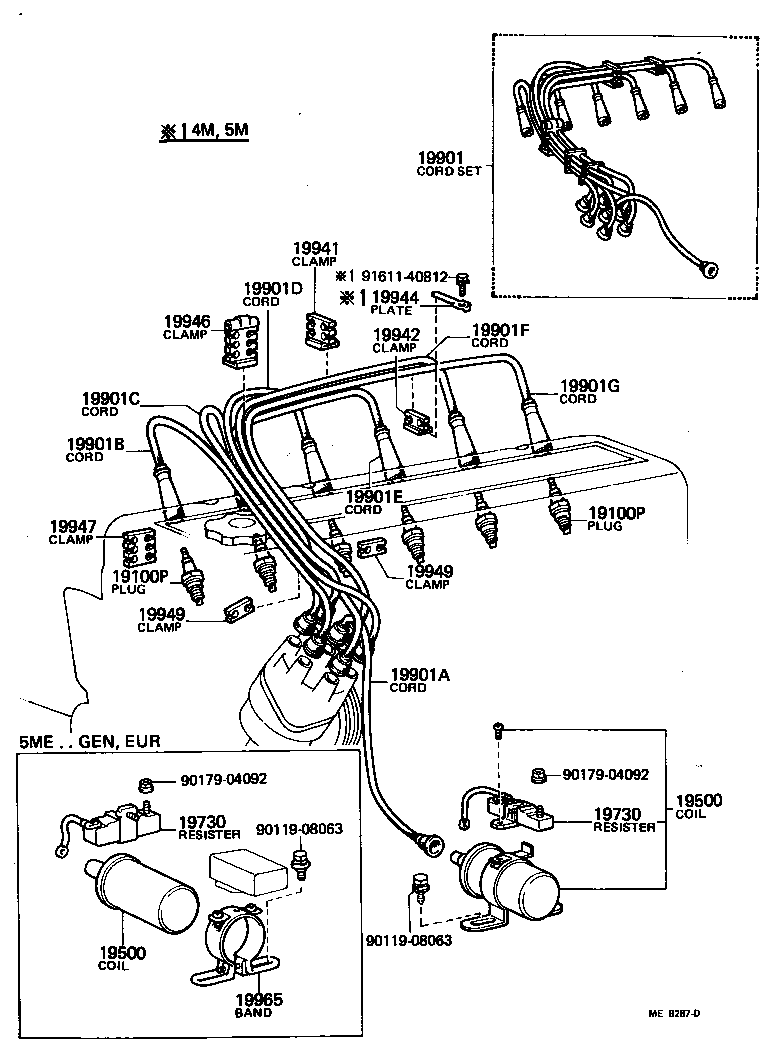

Click highlighted areas on diagram

diagram 19850 19850B 19856 19871
Part # Description Qty Price

(7909- )4M,5M#

Click highlighted areas on diagram

diagram 19100P 19100P 19500 19500 19730 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19944 19946 19947 19949 19949 19965 9011908063 9011908063 9017904092 9017904092 9161140812
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01084

5ME..MS112..EUR,GEN

W20EXR-U,W20EXR-U

 6
90919-01065

5ME..MS112..EUR

W14EXR-U,W14EXR-U,SWITZERLAND SPEC

 6
90919-01064

4M,5M..MS11#

W16EXR-U,W16EXR-U

 6
19100P - PLUG, SPARK
90919-01084

5ME..MS112..EUR,GEN

W20EXR-U,W20EXR-U

 6
90919-01065

5ME..MS112..EUR

W14EXR-U,W14EXR-U,SWITZERLAND SPEC

 6
90919-01064

4M,5M..MS11#

W16EXR-U,W16EXR-U

 6
19500 - COIL ASSY, IGNITION
90919-02088

4M,5M..MS11#

 1
90919-02083

5ME..MS112

 1
19500 - COIL ASSY, IGNITION
90919-02088

4M,5M..MS11#

 1
90919-02083

5ME..MS112

 1
19730 - RESISTOR, IGNITION COIL
90919-04017

5ME..MS112

 1
90919-04032

4M,5M..MS11#

 1
19730 - RESISTOR, IGNITION COIL
90919-04017

5ME..MS112

 1
90919-04032

4M,5M..MS11#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21261

4M,5M#..MS11#

 1
90919-21064

4M,5ME..MS11#

 1
19901A - CORD, COIL RESISTIVE
90919-13039

4M,5M#..MS11#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12180

4M,5M#..MS11#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12181

4M,5M#..MS11#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12182

4M,5M#..MS11#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12183

4M,5M#..MS11#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12184

4M,5M#..MS11#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12185

4M,5M#..MS11#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00068

4M,5M#..MS11#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00069

4M,5M#..MS11#

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-45021

5M..MS112

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00070

4M,5M#..MS11#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00071

4M,5M#..MS11#

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00116

4M,5M#..MS11#

 2
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00116

4M,5M#..MS11#

 2
19965 - BAND, IGNITION COIL, NO.1
90919-03066

5ME..MS112..EUR,GEN

 1
Common parts
90119-08063
90179-04092
91611-40812
