MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

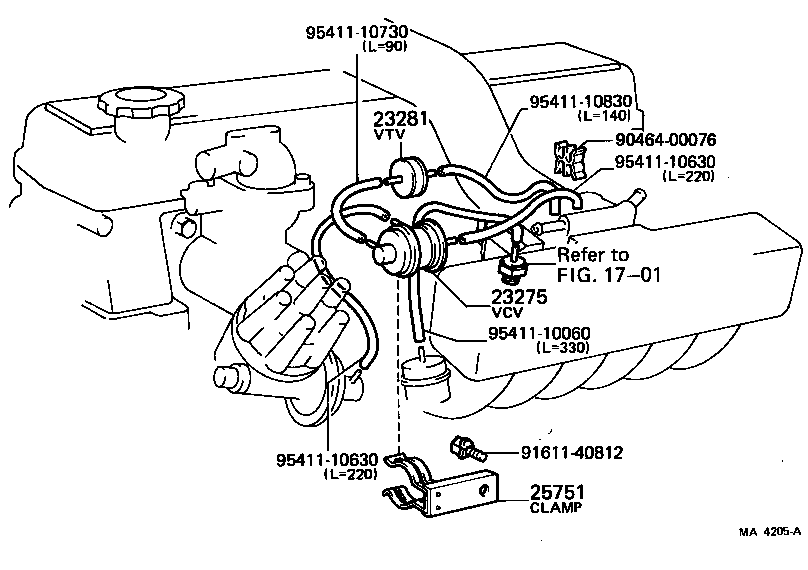

(7909- )5ME..EUR,GEN

Click highlighted areas on diagram

diagram 1701 23275 23281 25751 9046400076 9161140812 9541110060 9541110630 9541110630 9541110730 9541110830
Part # Description Qty Price
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03038

5ME..MS112..EUR,GEN

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

5ME..MS112..EUR

SWITZERLAND SPEC

 1
90925-01034

5ME..MS112..EUR,GEN

 1
25751 - CLAMP, VACUUM CONTROL VALVE, NO.1
25751-41020

5ME..MS112..EUR

SWITZERLAND SPEC

 1
25751-43010

5ME..MS112..EUR,GEN

 1
Common parts
90464-00076
91611-40812
95411-10060
95411-10630
95411-10730
95411-10830
Linked diagrams
1701

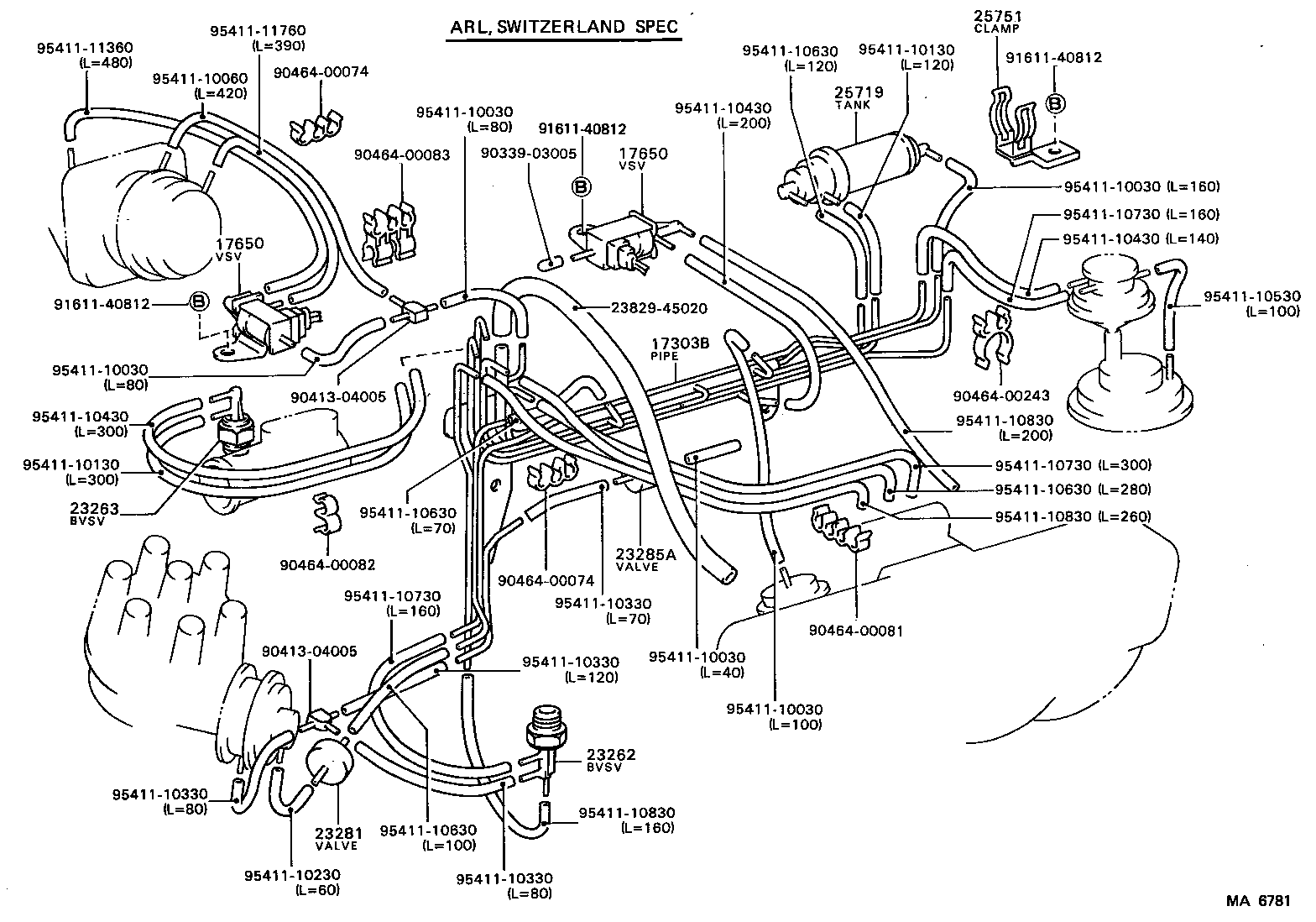

(8208- )5ME..ARL,EUR

Click highlighted areas on diagram

diagram 17303B 17650 17650 23262 23263 23281 23285A 2382945020 25719 25751 9033903005 9041304005 9041304005 9046400074 9046400074 9046400081 9046400082 9046400083 9046400243 9161140812 9161140812 9161140812 9541110030 9541110030 9541110030 9541110030 9541110030 9541110060 9541110130 9541110130 9541110230 9541110330 9541110330 9541110330 9541110330 9541110430 9541110430 9541110430 9541110530 9541110630 9541110630 9541110630 9541110630 9541110730 9541110730 9541110730 9541110830 9541110830 9541110830 9541111360 9541111760
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-43031

5ME..MS112..EUR

SWITZERLAND SPEC

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-14070

5ME..MS112..EUR

SWITZERLAND SPEC

 2
17650 - VALVE ASSY, VACUUM SWITCHING
89570-14070

5ME..MS112..EUR

SWITZERLAND SPEC

 2
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

5ME..MS112..EUR

SWITZERLAND SPEC

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

5ME..MS112..EUR

SWITZERLAND SPEC

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

5ME..MS112..EUR

SWITZERLAND SPEC

 1
90925-01034

5ME..MS112..EUR,GEN

 1
23285A - VALVE, CHECK, NO.1
90917-10055

5ME..MS112..EUR

SWITZERLAND SPEC

 1
25719 - TANK, VACUUM SURGE
25719-43010

5ME..MS112..EUR

SWITZERLAND SPEC

 1
25751 - CLAMP, VACUUM CONTROL VALVE, NO.1
25751-41020

5ME..MS112..EUR

SWITZERLAND SPEC

 1
25751-43010

5ME..MS112..EUR,GEN

 1
Common parts
23829-45020
90339-03005
90413-04005
90464-00074
90464-00081
90464-00082
90464-00083
90464-00243
91611-40812
95411-10030
95411-10060
95411-10130
95411-10230
95411-10330
95411-10430
95411-10530
95411-10630
95411-10730
95411-10830
95411-11360
95411-11760

(7909- )4M,5M#

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082 9092501004 9092501005 9092501006 9092501008 9092501018 9092501019 9092501021 9092501026 9092501027 9092501029 9092501042 9092501043 9092501053 9092501054 9092501062 9092501064
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01004
90925-01005
90925-01006
90925-01008
90925-01018
90925-01019
90925-01021
90925-01026
90925-01027
90925-01029
90925-01042
90925-01043
90925-01053
90925-01054
90925-01062
90925-01064

(7909- )L

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082 9092501004 9092501005 9092501006 9092501008 9092501018 9092501019 9092501021 9092501026 9092501027 9092501029 9092501042 9092501043 9092501053 9092501054 9092501062 9092501064
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01004
90925-01005
90925-01006
90925-01008
90925-01018
90925-01019
90925-01021
90925-01026
90925-01027
90925-01029
90925-01042
90925-01043
90925-01053
90925-01054
90925-01062
90925-01064
