MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )4M,5ME..ARL ; (8208- )5ME..EUR

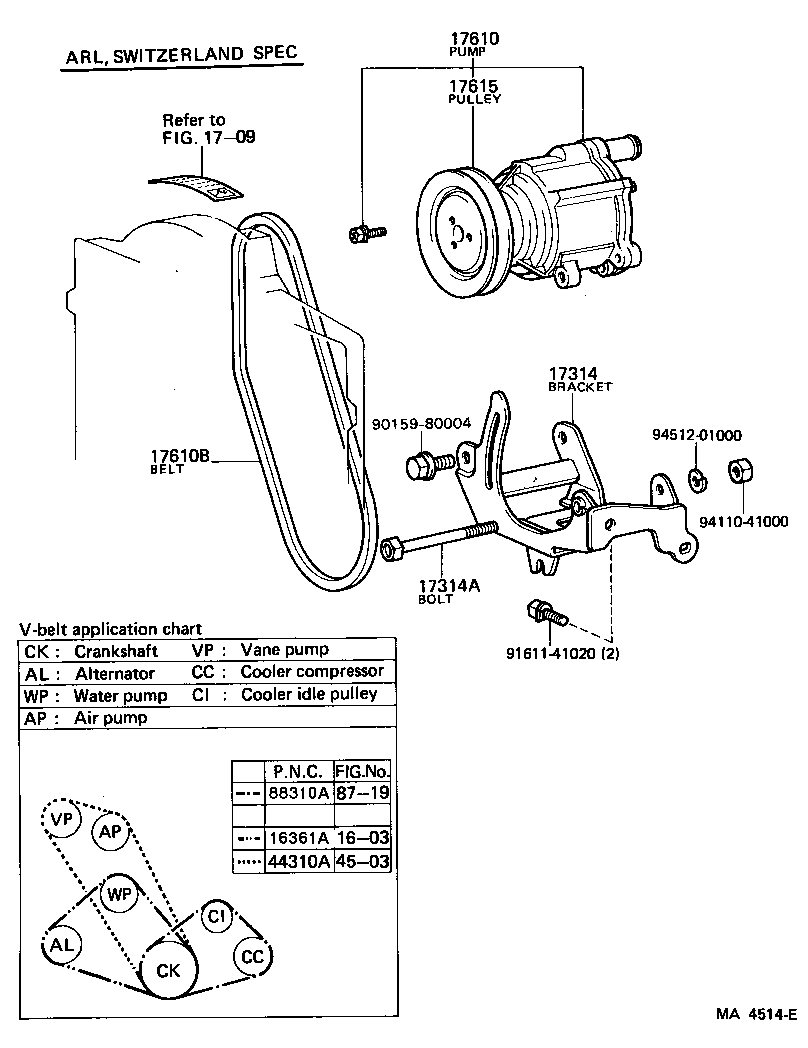

Click highlighted areas on diagram

diagram 1603 16361A 1709 17314 17314A 17610 17610B 17615 44310A 4503 8719 88310A 9015980004 9161141020 9411041000 9451201000
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

4M,5M#..MS11#

L=925

 1
17314 - BRACKET, AIR PUMP
17314-41030

5ME..MS112..EUR

SWITZERLAND SPEC

 1
17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
90110-10001

5ME..MS112..EUR

SWITZERLAND SPEC

 1
17610 - PUMP ASSY, AIR
17610-45031

5ME..MS112..EUR

SWITZERLAND SPEC

 1
17610B - BELT, V(FOR AIR PUMP)
99332-01395

5ME..MS112..EUR

SWITZERLAND SPEC

 1
17615 - PULLEY(FOR AIR PUMP)
17615-41020

5ME..MS112..EUR

SWITZERLAND SPEC

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02078

MS11#..EUR,GEN

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00950

MS11#..LHD..(BTP,DLX,SAL)

 1
Common parts
90159-80004
91611-41020
94110-41000
94512-01000
Linked diagrams
1603
1709
4503
8719
