MS112LG-SWHDEW (1979)
Toyota Crown

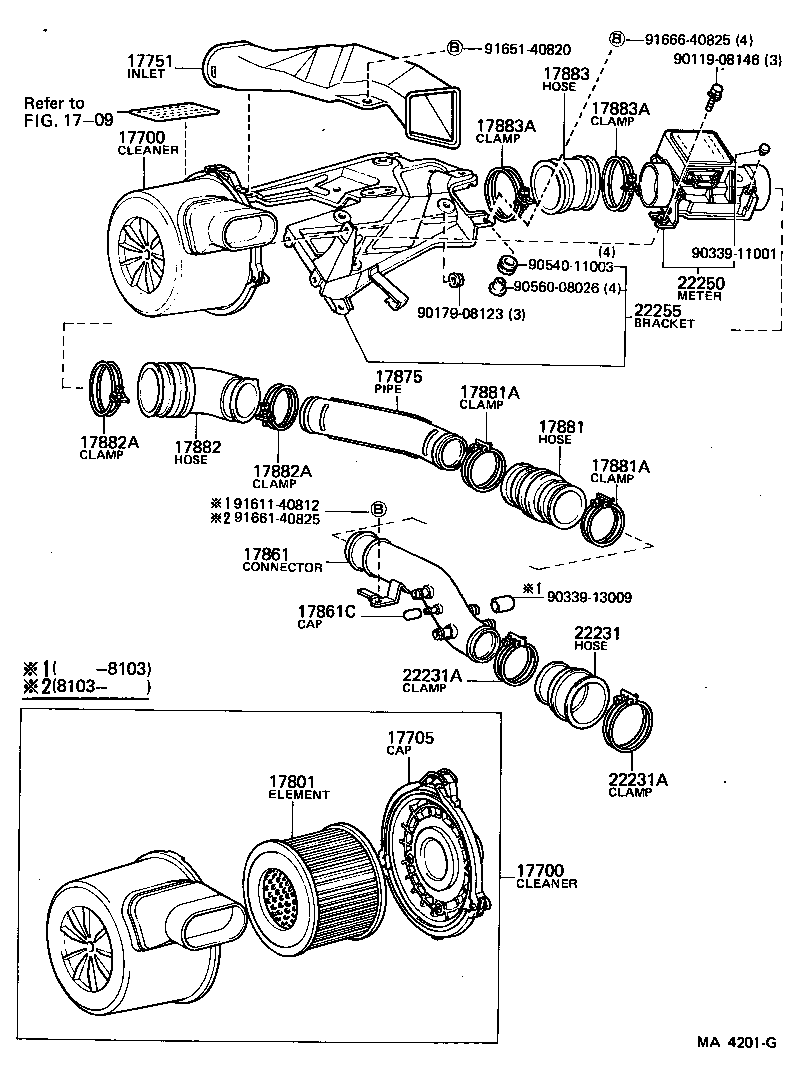

(7909- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41530 |
5ME..MS112..EUR,GEN |
1 | ||
| 17700-43030 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41130 |
4M,5M..MS11# |
1 | ||
| 17705-41140 |
5ME..MS112..EUR,GEN |
1 | ||
| 17705-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41110 |
5ME..MS112 |
1 | ||
| 17801-41090 |
4M,5M..MS11# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M,5M..MS11# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M,5M..MS11# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M,5M..MS11# |
1 | ||
| 17845-61011 |
5M..MS112 *G,L=1172 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-41060 |
5ME..MS112..EUR,GEN |
1 | ||
| 17881-41051 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17881-26010 |
4M,5M..MS11# W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MS112 ID=71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MS112 ID=71 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-41090 |
5ME..MS112..EUR,GEN |
1 | ||
| 17882-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
5ME..MS112 ID=80 |
1 | ||
| 96111-10710 |
5ME..MS112 ID=71 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
5ME..MS112 ID=80 |
1 | ||
| 96111-10710 |
5ME..MS112 ID=71 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| Linked diagrams | ||||
| 1709 | ||||

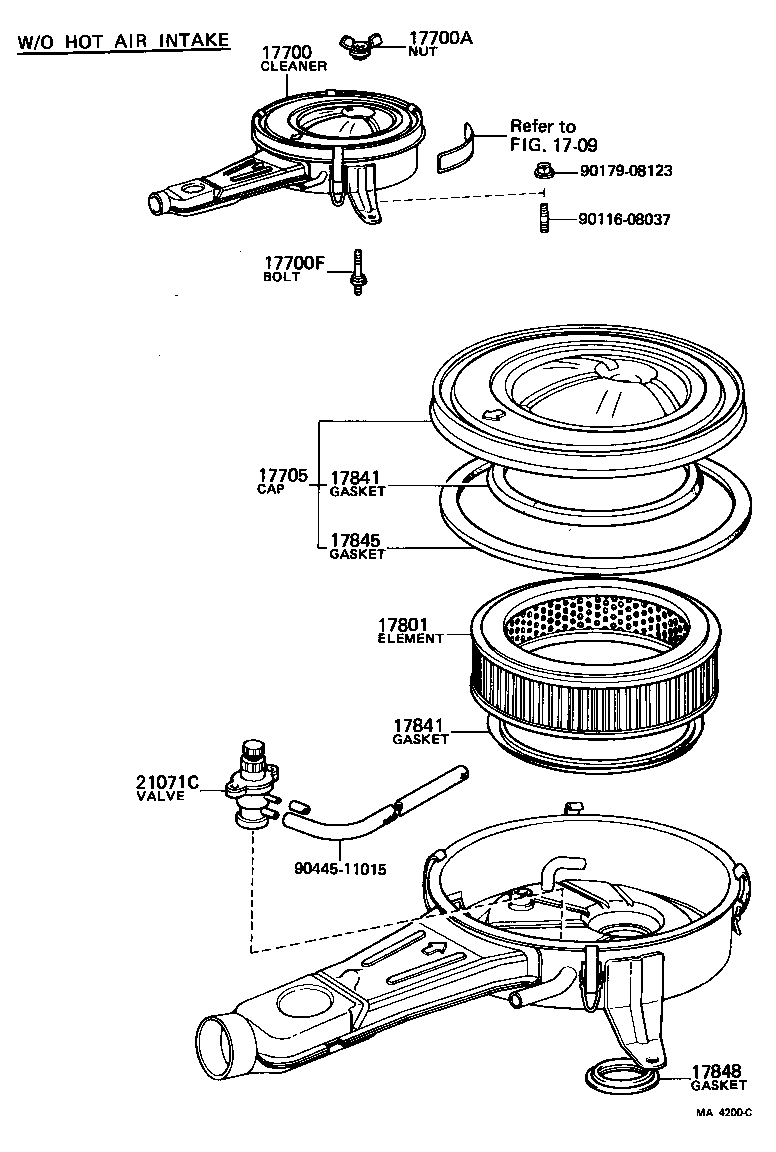

(7909- )4M,5M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41530 |
5ME..MS112..EUR,GEN |
1 | ||
| 17700-43030 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M,5M..MS11# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4M,5M..MS11# L=80,S=12&28 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41130 |
4M,5M..MS11# |
1 | ||
| 17705-41140 |
5ME..MS112..EUR,GEN |
1 | ||
| 17705-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41110 |
5ME..MS112 |
1 | ||
| 17801-41090 |
4M,5M..MS11# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M,5M..MS11# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M,5M..MS11# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M,5M..MS11# |
1 | ||
| 17845-61011 |
5M..MS112 *G,L=1172 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
4M,5M..MS11# |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41030 |
4M,5M..MS11# W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90116-08037 | ||||
| 90179-08123 | ||||
| 90445-11015 | ||||
| Linked diagrams | ||||
| 1709 | ||||

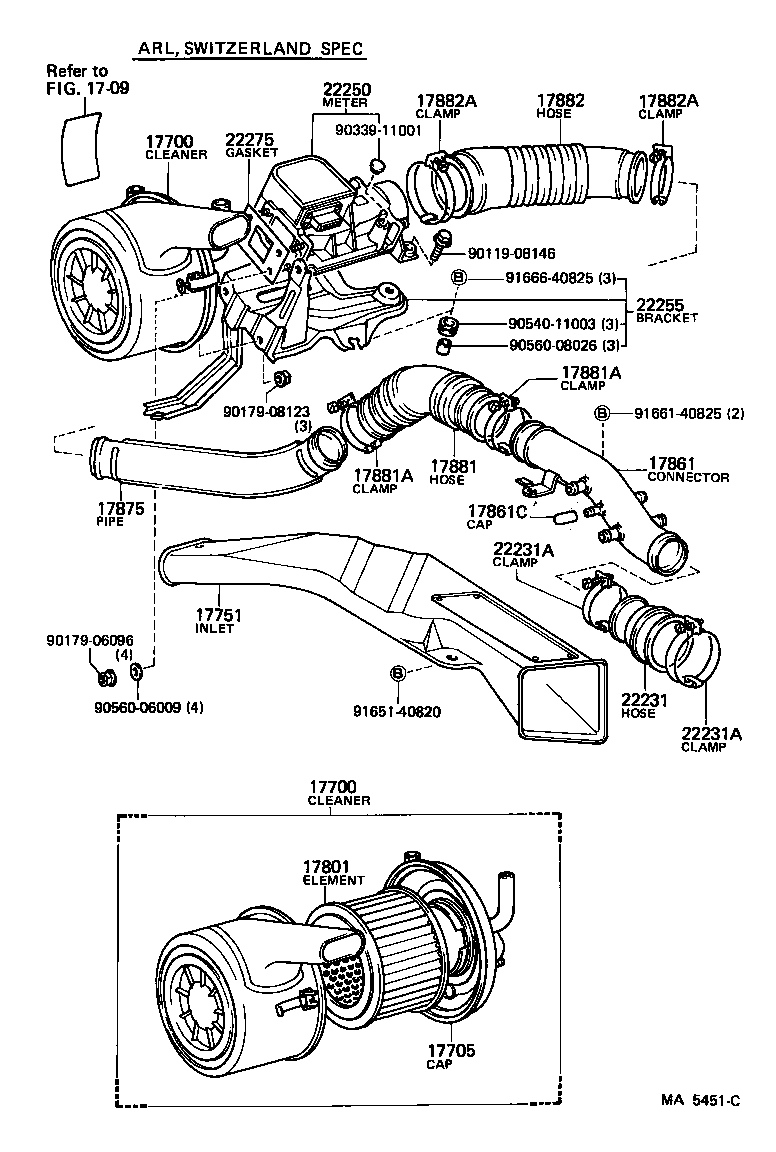

(7909- )5ME..EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41530 |
5ME..MS112..EUR,GEN |
1 | ||
| 17700-43030 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41530 |
5ME..MS112..EUR,GEN |
1 | ||
| 17700-43030 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41130 |
4M,5M..MS11# |
1 | ||
| 17705-41140 |
5ME..MS112..EUR,GEN |
1 | ||
| 17705-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 53299-30070 |
5ME..MS112..DLX SWITZERLAND SPEC |
1 | ||
| 17751-41050 |
5ME..MS112..EUR,GEN |
1 | ||
| 53299-30070 |
5ME..MS112..LHD..4FC SWITZERLAND SPEC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41110 |
5ME..MS112 |
1 | ||
| 17801-41090 |
4M,5M..MS11# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-41010 |
5ME..MS112 |
1 | ||
| 17805-41011 |
5ME..MS112 |
1 | ||
| 17861C - CAP(FOR INTAKE AIR CONNECTOR) | ||||
| 90339-07016 |
5ME..MS112 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-41070 |
5ME..MS112 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-41060 |
5ME..MS112..EUR,GEN |
1 | ||
| 17881-41051 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17881-26010 |
4M,5M..MS11# W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MS112 ID=71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MS112 ID=71 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-41090 |
5ME..MS112..EUR,GEN |
1 | ||
| 17882-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
5ME..MS112 ID=80 |
1 | ||
| 96111-10710 |
5ME..MS112 ID=71 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
5ME..MS112 ID=80 |
1 | ||
| 96111-10710 |
5ME..MS112 ID=71 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-41060 |
5ME..MS112..EUR,GEN |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10800 |
5ME..MS112..EUR,GEN ID=80 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10800 |
5ME..MS112..EUR,GEN ID=80 |
2 | ||
| 22231 - HOSE, THROTTLE BODY | ||||
| 22231-41030 |
5ME..MS112 |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10710 |
5ME..MS112 CONNECTOR SIDE |
1 | ||
| 96111-10800 |
5ME..MS112 THROTTLE BODY SIDE |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10710 |
5ME..MS112 CONNECTOR SIDE |
1 | ||
| 96111-10800 |
5ME..MS112 THROTTLE BODY SIDE |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-43081 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 22250-43020 |
5ME..MS112..EUR,GEN |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 22209-43010 |
5ME..MS112..DLX SWITZERLAND SPEC |
1 | ||
| 22209-41030 |
5ME..MS112..EUR,GEN |
1 | ||
| 22209-41031 |
5ME..MS112..EUR,GEN |
1 | ||
| 22209-43010 |
5ME..MS112..LHD..4FC SWITZERLAND SPEC |
1 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90179-08123 | ||||
| 90339-11001 | ||||
| 90339-13009 | ||||
| 90540-11003 | ||||
| 90560-08026 | ||||
| 91611-40812 | ||||
| 91651-40820 | ||||
| 91661-40825 | ||||
| 91666-40825 | ||||
| Linked diagrams | ||||
| 1709 | ||||

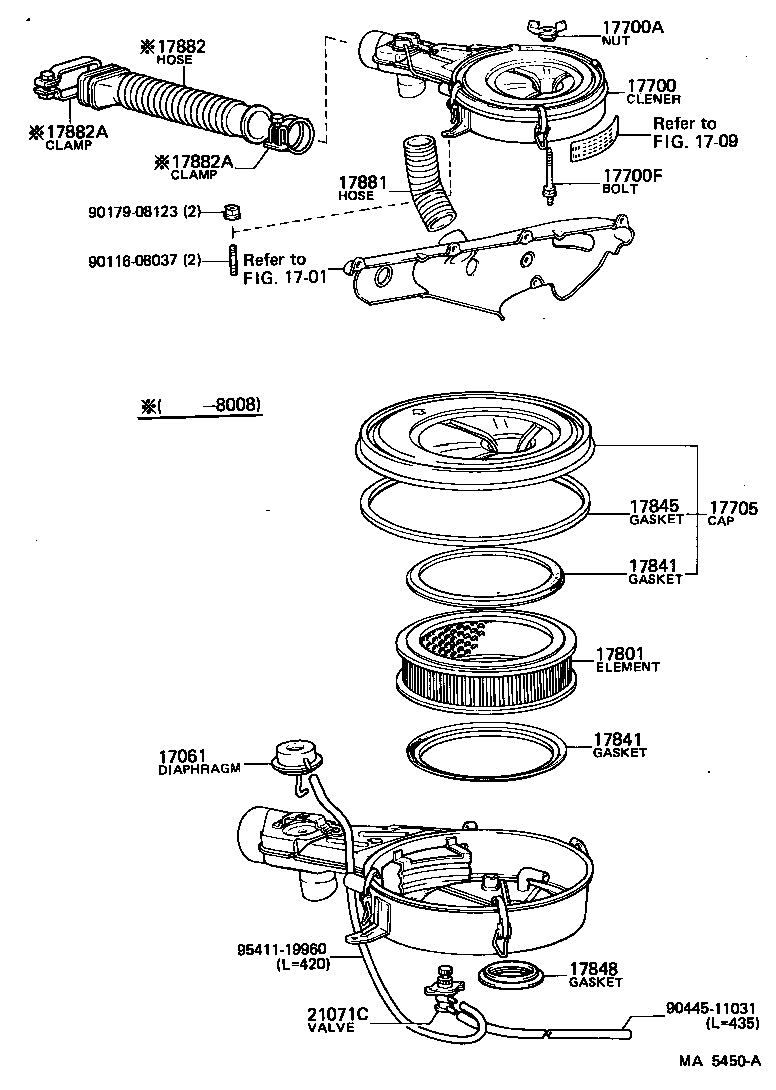

(7909- )4M,5M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-41010 |
4M,5M..MS11# W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41530 |
5ME..MS112..EUR,GEN |
1 | ||
| 17700-43030 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M,5M..MS11# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4M,5M..MS11# L=80,S=12&28 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41130 |
4M,5M..MS11# |
1 | ||
| 17705-41140 |
5ME..MS112..EUR,GEN |
1 | ||
| 17705-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41110 |
5ME..MS112 |
1 | ||
| 17801-41090 |
4M,5M..MS11# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M,5M..MS11# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
4M,5M..MS11# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M,5M..MS11# |
1 | ||
| 17845-61011 |
5M..MS112 *G,L=1172 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
4M,5M..MS11# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-41060 |
5ME..MS112..EUR,GEN |
1 | ||
| 17881-41051 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17881-26010 |
4M,5M..MS11# W/HOT AIR INTAKE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-41090 |
5ME..MS112..EUR,GEN |
1 | ||
| 17882-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
5ME..MS112 ID=80 |
1 | ||
| 96111-10710 |
5ME..MS112 ID=71 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
5ME..MS112 ID=80 |
1 | ||
| 96111-10710 |
5ME..MS112 ID=71 |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41030 |
4M,5M..MS11# W/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90116-08037 | ||||
| 90179-08123 | ||||
| 90445-11031 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1709 | ||||
(7909- )5ME..ARL ; (8208- )5ME..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41530 |
5ME..MS112..EUR,GEN |
1 | ||
| 17700-43030 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41530 |
5ME..MS112..EUR,GEN |
1 | ||
| 17700-43030 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41130 |
4M,5M..MS11# |
1 | ||
| 17705-41140 |
5ME..MS112..EUR,GEN |
1 | ||
| 17705-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 53299-30070 |
5ME..MS112..DLX SWITZERLAND SPEC |
1 | ||
| 17751-41050 |
5ME..MS112..EUR,GEN |
1 | ||
| 53299-30070 |
5ME..MS112..LHD..4FC SWITZERLAND SPEC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41110 |
5ME..MS112 |
1 | ||
| 17801-41090 |
4M,5M..MS11# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-41010 |
5ME..MS112 |
1 | ||
| 17805-41011 |
5ME..MS112 |
1 | ||
| 17861C - CAP(FOR INTAKE AIR CONNECTOR) | ||||
| 90339-07016 |
5ME..MS112 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-41070 |
5ME..MS112 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-41060 |
5ME..MS112..EUR,GEN |
1 | ||
| 17881-41051 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17881-26010 |
4M,5M..MS11# W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MS112 ID=71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
5ME..MS112 ID=71 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-41090 |
5ME..MS112..EUR,GEN |
1 | ||
| 17882-43020 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
5ME..MS112 ID=80 |
1 | ||
| 96111-10710 |
5ME..MS112 ID=71 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
5ME..MS112 ID=80 |
1 | ||
| 96111-10710 |
5ME..MS112 ID=71 |
1 | ||
| 22231 - HOSE, THROTTLE BODY | ||||
| 22231-41030 |
5ME..MS112 |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10710 |
5ME..MS112 CONNECTOR SIDE |
1 | ||
| 96111-10800 |
5ME..MS112 THROTTLE BODY SIDE |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10710 |
5ME..MS112 CONNECTOR SIDE |
1 | ||
| 96111-10800 |
5ME..MS112 THROTTLE BODY SIDE |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-43081 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| 22250-43020 |
5ME..MS112..EUR,GEN |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 22209-43010 |
5ME..MS112..DLX SWITZERLAND SPEC |
1 | ||
| 22209-41030 |
5ME..MS112..EUR,GEN |
1 | ||
| 22209-41031 |
5ME..MS112..EUR,GEN |
1 | ||
| 22209-43010 |
5ME..MS112..LHD..4FC SWITZERLAND SPEC |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-41010 |
5ME..MS112..EUR SWITZERLAND SPEC |
1 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90179-06096 | ||||
| 90179-08123 | ||||
| 90339-11001 | ||||
| 90540-11003 | ||||
| 90560-06009 | ||||
| 90560-08026 | ||||
| 91651-40820 | ||||
| 91661-40825 | ||||
| 91666-40825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
