MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )4M,5M#

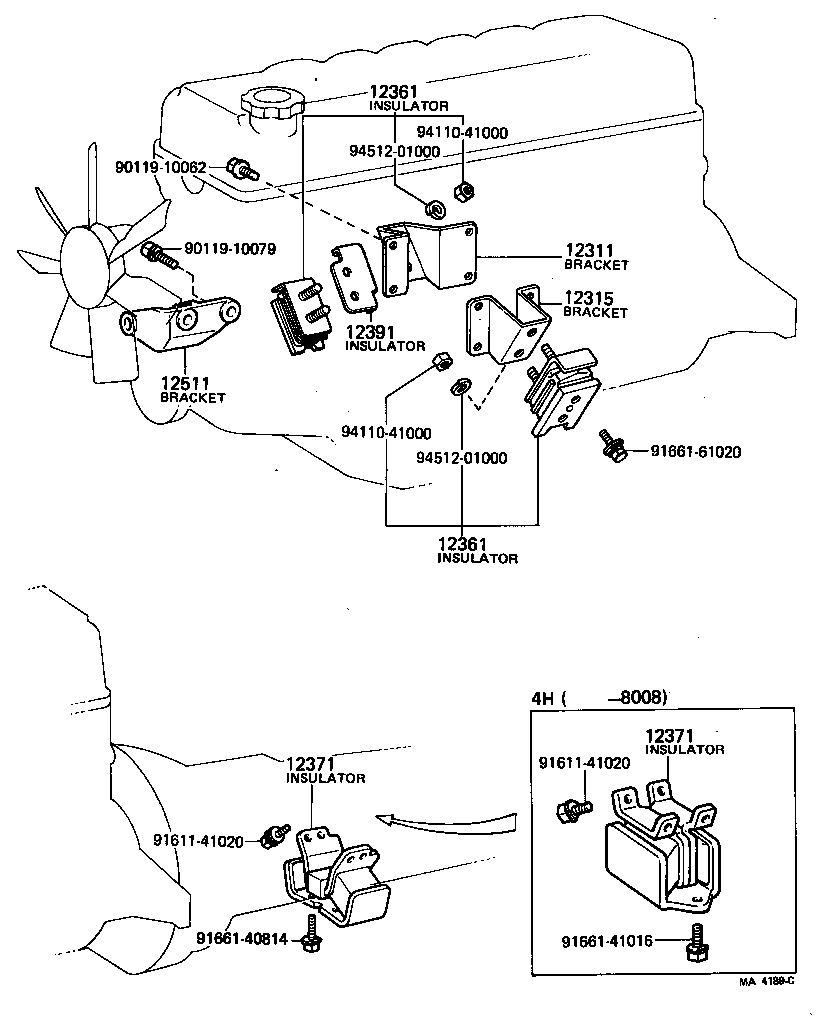

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12391 12511 9011910062 9011910079 9161141020 9161141020 9166140814 9166141016 9166161020 9411041000 9411041000 9451201000 9451201000
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41060

4M,5M#..MS11#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41050

4M,5M#..MS11#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M,5M#..MS11#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M,5M#..MS11#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

4M,5ME..MS11#..4F,5F

 1
12371-41070

5M..MS112

 1
12371-43010

5ME..MS112..ATM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

4M,5ME..MS11#..4F,5F

 1
12371-41070

5M..MS112

 1
12371-43010

5ME..MS112..ATM

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-41010

4M,5M#..MS11#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41030

4M,5M#..MS11#

 1
Common parts
90119-10062
90119-10079
91611-41020
91661-40814
91661-41016
91661-61020
94110-41000
94512-01000

(7909- )L

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12361 12361 12371 12371 12371 12381 12381 9017910015 9017910015 9017912010 9017912010 9161141020 9161141020 9161141022 9161161025 9165161022 9165161022 9165161022 9166140814 9166140814 9166141016
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41060

4M,5M#..MS11#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41050

4M,5M#..MS11#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M,5M#..MS11#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M,5M#..MS11#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M,5M#..MS11#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M,5M#..MS11#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

4M,5ME..MS11#..4F,5F

 1
12371-41070

5M..MS112

 1
12371-43010

5ME..MS112..ATM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

4M,5ME..MS11#..4F,5F

 1
12371-41070

5M..MS112

 1
12371-43010

5ME..MS112..ATM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

4M,5ME..MS11#..4F,5F

 1
12371-41070

5M..MS112

 1
12371-43010

5ME..MS112..ATM

 1
Common parts
90179-10015
90179-12010
91611-41020
91611-41022
91611-61025
91651-61022
91661-40814
91661-41016
