MS112LG-SWHDEW (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8304)L

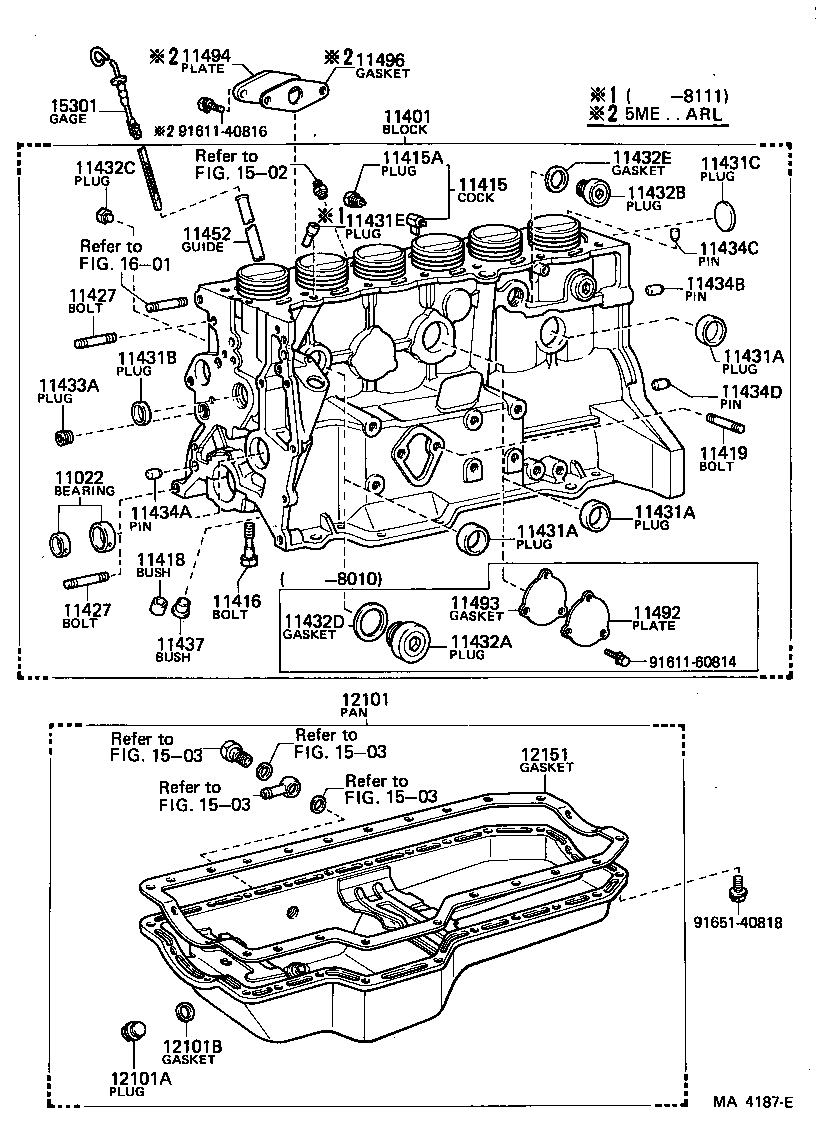

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 15301 15605 15708 9011608071 9011908156 9017908040 9338118016
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49295

5M..MS112

 1
11401-49286

5ME..MS112..EUR,GEN

 1
11401-49285

5ME..MS112..EUR,GEN

 1
11401-49296

5M..MS112

 1
11401-49287

5ME..MS112..EUR,GEN

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

4M,5M#..MS11#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

4M,5M#..MS11#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02047

4M,5M#..MS11#

*12-1.25PX67-22

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

4M,5M#..MS11#

OD=40

 7
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96412-43500

4M,5M#..MS11#

OD=35

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

4M,5M#..MS11#

OD=35

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-42066

4M,5M#..MS11#

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

4M,5M#..MS11#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10192

4M,5M#..MS11#

L=22,OD=10,L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08112

4M,5M#..MS11#

L=16,OD=8,L=16,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-10192

4M,5M#..MS11#

L=22,OD=10,L=22,OD=10

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-41020

4M,5M#..MS11#

 1
12101 - PAN SUB-ASSY, OIL
12101-49165

4M,5ME..MS11#

 1
12101-49165

5M#..MS112..EUR,GEN

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

4M,5M#..MS11#

*18-1.5PX12-10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

4M,5M#..MS11#

ID=18

 1
12151 - GASKET, OIL PAN
12151-41010

4M,5M#..MS11#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-45010

4M,5M#..MS11#

 1
Common parts
90116-08071
90119-08156
90179-08040
93381-18016
Linked diagrams
1301

(7909- )4M,5M#

Click highlighted areas on diagram

diagram 11022 11401 11415 11415A 11416 11418 11419 11427 11427 11431A 11431A 11431A 11431B 11431C 11431E 11432A 11432B 11432C 11432D 11432E 11433A 11434A 11434B 11434C 11434D 11437 11452 11492 11493 11494 11496 12101 12101A 12101B 12151 1502 1503 1503 1503 1503 15301 1601 9161140816 9161160814 9165140818
Part # Description Qty Price
11022 - BEARING SET, PUMP DRIVE SHAFT
11022-41010

4M,5M#..MS11#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49295

5M..MS112

 1
11401-49286

5ME..MS112..EUR,GEN

 1
11401-49285

5ME..MS112..EUR,GEN

 1
11401-49296

5M..MS112

 1
11401-49287

5ME..MS112..EUR,GEN

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

4M,5M#..MS11#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

4M,5M#..MS11#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02047

4M,5M#..MS11#

*12-1.25PX67-22

 14
11418 - BUSH, SOLID(FOR DISTRIBUTOR)
90999-70056

4M,5M#..MS11#

 1
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08185

4M,5M#..MS11#

L=39,S=25&9

 2
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90116-08121

4M,5M#..MS11#

L=65,S=12&12

 1
90116-08147

5M#..MS112

L=68,S=12&24

 2
90116-10010

4M,5M#..MS11#

L=80,S=12&26

 1
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90116-08121

4M,5M#..MS11#

L=65,S=12&12

 1
90116-08147

5M#..MS112

L=68,S=12&24

 2
90116-10010

4M,5M#..MS11#

L=80,S=12&26

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

4M,5M#..MS11#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

4M,5M#..MS11#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

4M,5M#..MS11#

OD=40

 7
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96412-43500

4M,5M#..MS11#

OD=35

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

4M,5M#..MS11#

OD=35

 1
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
11444-43010

5M#..MS112

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-42066

4M,5M#..MS11#

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

4M,5M#..MS11#

 3
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-51025

4M,5M#..MS11#

 1
11432D - GASKET, W/HEAD TAPER SCREW PLUG
90430-42223

4M,5M#..MS11#

 1
11432E - GASKET, W/HEAD TAPER SCREW PLUG
90430-32222

4M,5M#..MS11#

 3
11433A - PLUG, STRAIGHT, NO.1
90344-53015

4M,5M#..MS11#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10192

4M,5M#..MS11#

L=22,OD=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192

4M,5M#..MS11#

L=22,OD=10,L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08112

4M,5M#..MS11#

L=16,OD=8,L=16,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-10192

4M,5M#..MS11#

L=22,OD=10,L=22,OD=10

 2
11437 - BUSH, OIL PUMP SHAFT GUIDE
11437-45010

4M,5M#..MS11#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-41020

4M,5M#..MS11#

 1
11492 - PLATE, WATER SEAL
11492-45010

4M,5M#..MS11#

 2
11493 - GASKET, WATER SEAL PLATE
11493-45010

4M,5M#..MS11#

 2
12101 - PAN SUB-ASSY, OIL
12101-49165

4M,5ME..MS11#

 1
12101-49165

5M#..MS112..EUR,GEN

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

4M,5M#..MS11#

*18-1.5PX12-10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

4M,5M#..MS11#

ID=18

 1
12151 - GASKET, OIL PAN
12151-41010

4M,5M#..MS11#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-45010

4M,5M#..MS11#

 1
Common parts
91611-40816
91611-60814
91651-40818
Linked diagrams
1502
1503
1601

(8304- )L

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 1301 15301 15605 15708 9011608071 9011908156 9011908247 9011908247 9017908040
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49295

5M..MS112

 1
11401-49286

5ME..MS112..EUR,GEN

 1
11401-49285

5ME..MS112..EUR,GEN

 1
11401-49296

5M..MS112

 1
11401-49287

5ME..MS112..EUR,GEN

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

4M,5M#..MS11#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

4M,5M#..MS11#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02047

4M,5M#..MS11#

*12-1.25PX67-22

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

4M,5M#..MS11#

OD=40

 7
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96412-43500

4M,5M#..MS11#

OD=35

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

4M,5M#..MS11#

OD=35

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-42066

4M,5M#..MS11#

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

4M,5M#..MS11#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10192

4M,5M#..MS11#

L=22,OD=10,L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08112

4M,5M#..MS11#

L=16,OD=8,L=16,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-10192

4M,5M#..MS11#

L=22,OD=10,L=22,OD=10

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-41020

4M,5M#..MS11#

 1
12101 - PAN SUB-ASSY, OIL
12101-49165

4M,5ME..MS11#

 1
12101-49165

5M#..MS112..EUR,GEN

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

4M,5M#..MS11#

*18-1.5PX12-10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

4M,5M#..MS11#

ID=18

 1
12151 - GASKET, OIL PAN
12151-41010

4M,5M#..MS11#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-45010

4M,5M#..MS11#

 1
Common parts
90116-08071
90119-08156
90119-08247
90179-08040
Linked diagrams
1301
