MS112L-SEMGEW (1979)
Toyota Crown
(7909- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-30070 |
MS112..SED..EFI |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
MS112..EFI |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
MS112,RS110 |
1 | ||
| 77310-12100 |
LS110,MS112,RS110 |
1 | ||
| 77310-14070 |
LS110,MS11#,RS110 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LS110,MS11#,RS110 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77033-14020 |
LS110,MS112,RS110..SED..(DLX,ROY,SAL) |
1 | ||
| 77033-14020 |
MS11#..ROY,SAL |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30020 |
LS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL) |
1 | ||
| 77035-30020 |
MS11#..LHD..(ROY,SAL) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30930 |
LS110,MS112..SED..(DSL,EFI) |
1 | ||
| 77001-39025 |
LS110,MS112..SED..(DSL,EFI) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30930 |
LS110,MS112..SED..(DSL,EFI) |
1 | ||
| 77001-39025 |
LS110,MS112..SED..(DSL,EFI) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LS110,MS11#,RS110 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LS110,MS11#,RS110 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30130 |
LS110,MS11#,RS110..SED |
1 | ||
| 77201-30131 |
LS110,MS112,RS110..SED |
1 | ||
| 77201C - HOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22015 |
LS110,MS11#,RS110..SED L=150 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
LS110,MS11#,RS110..SED |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-30030 |
LS110,MS11#,RS110..SED |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
LS110,MS11#,RS110 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77051-3001005 |
MS11#..LHD..(ROY,SAL) GREIGE,BEIGE,TRIM4# |
1 | ||
| 77051-3001002 |
MS11#..LHD..(ROY,SAL) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 77051-3001005 |
LS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL) GREIGE,BEIGE,TRIM4# |
1 | ||
| 77051-3001004 |
MS11#..LHD..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 77051-3001002 |
LS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 77051-3001004 |
LS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 77051-3004003 |
LS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL) GRAY,GRAY,TRIM1# |
1 | ||
| 77051-3004005 |
LS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 77051-3004004 |
LS110,MS112,RS110..SED..LHD..(DLX,ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-30080 |
LS110,MS11#,RS110..SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
LS110,MS11#,RS110..SED |
2 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-16005 |
LS110,MS11#,RS110..SED |
1 | ||
| 77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER) | ||||
| 90249-04069 |
LS110,MS11#,RS110..SED |
1 | ||
| 77308G - BUSH(FOR FUEL INLET BOX COVER) | ||||
| 90386-06001 |
LS110,MS11#,RS110..SED |
2 | ||
| 77308G - BUSH(FOR FUEL INLET BOX COVER) | ||||
| 90386-06001 |
LS110,MS11#,RS110..SED |
2 | ||
| 77308J - RING(FOR FUEL INLET BOX COVER) | ||||
| 96160-00300 |
LS110,MS11#,RS110..SED |
1 | ||
| 77308R - SPACER(FOR FUEL INLET BOX COVER) | ||||
| 90561-04001 |
LS110,MS11#,RS110..SED |
2 | ||
| 77315 - HOSE, FUEL FILLER OPENING | ||||
| 90446-09004 |
LS110,MS11#,RS110..SED |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-30120 |
LS110,MS11#,RS110..SED..(BTP,DLX,SAL) W/BOX |
1 | ||
| 77606-30100 |
MS11#..SED W/DUAL AIR CON |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-30070 |
LS110,MS11#,RS110..SED |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77616-30050 |
LS110,MS11#,RS110..SED |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30050 |
LS110,MS11#,RS110..SED |
6 | ||
| 77653 - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
LS110,MS11#,RS110..SED |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-30030 |
LS110,MS11#,RS110..SED |
4 | ||
| 77691 - SHEET, FUEL TANK SILENCER, UPPER NO.1 | ||||
| 77691-30010 |
LS110,MS112,RS110..SED |
1 | ||
| 77692 - SHEET, FUEL TANK SILENCER, LOWER NO.1 | ||||
| 77692-30010 |
LS110,MS112,RS110..SED |
1 | ||
| 77693 - SHEET, FUEL TANK SILENCER, UPPER NO.2 | ||||
| 77693-30010 |
LS110,MS112,RS110..SED |
1 | ||
| 77694 - SHEET, FUEL TANK SILENCER, LOWER NO.2 | ||||
| 77694-30010 |
LS110,MS112,RS110..SED |
1 | ||
| 77695 - SHEET, FUEL TANK SILENCER, UPPER NO.3 | ||||
| 77695-30010 |
LS110,MS112,RS110..SED |
1 | ||
| 77696 - SHEET, FUEL TANK SILENCER, LOWER NO.3 | ||||
| 77696-30010 |
LS110,MS112,RS110..SED |
2 | ||
| 77696 - SHEET, FUEL TANK SILENCER, LOWER NO.3 | ||||
| 77696-30010 |
LS110,MS112,RS110..SED |
2 | ||
| Common parts | ||||
| 90119-06187 | ||||
| 90119-08019 | ||||
| 90159-50004 | ||||
| 90159-60207 | ||||
| 90168-50007 | ||||
| 90183-06002 | ||||
| 90463-05022 | ||||
| 90480-26005 | ||||
| 91651-60820 | ||||
| 91666-40618 | ||||
| 93319-14010 | ||||
| 93560-15012 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 94613-10400 | ||||
| 96111-10630 | ||||
| 96112-10240 | ||||

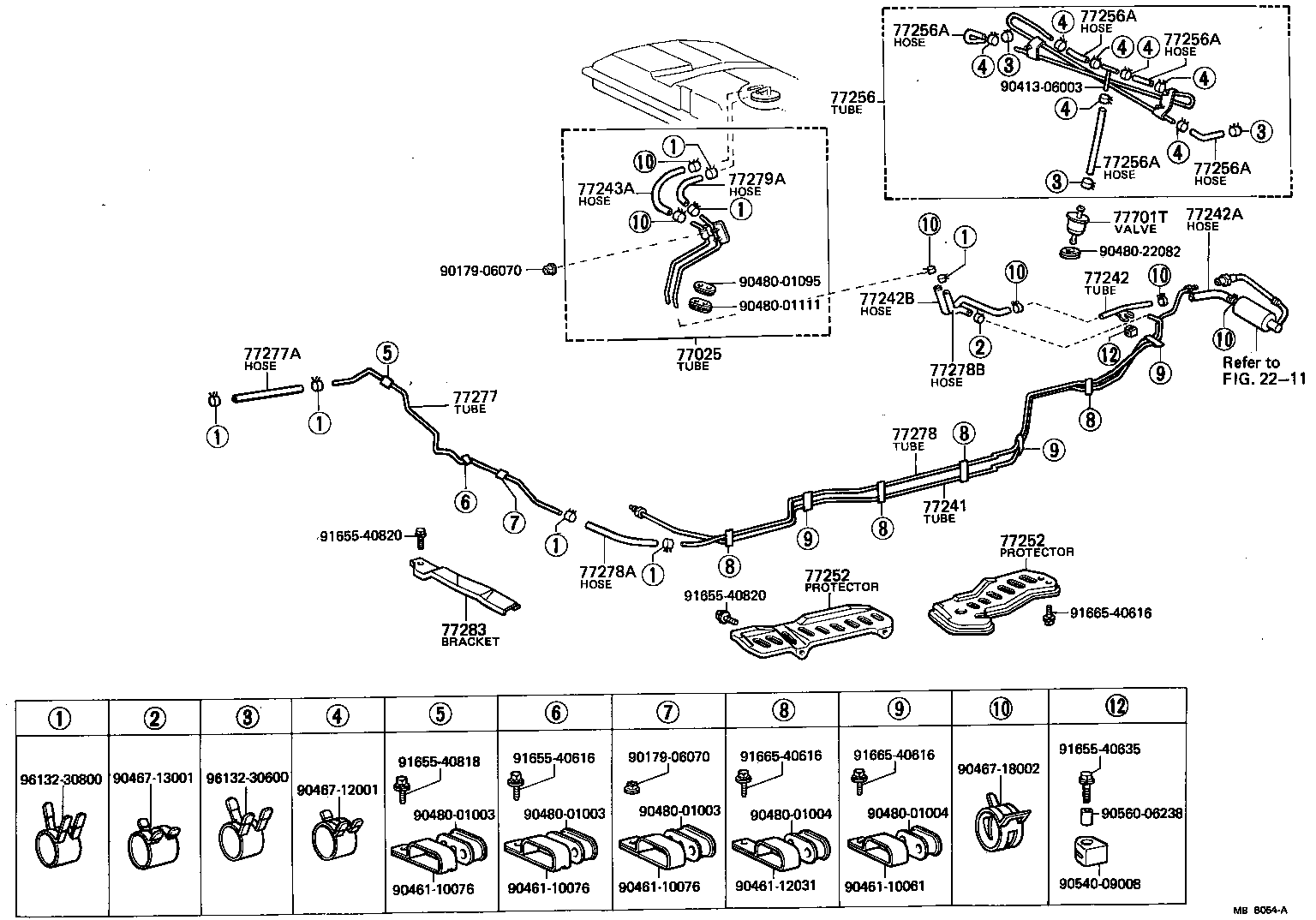

(7909- )SED..EUR,GEN..EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-30110 |
MS112..SED..EFI |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77253-30110 |
MS112..SED |
1 | ||
| 77253-30111 |
MS112..SED..EFI |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77298-30020 |
MS112..SED |
1 | ||
| 77298-30021 |
MS112..SED..EFI |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 90445-20020 |
MS112..SED |
1 | ||
| 90910-05157 |
MS112..SED..EFI |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-30080 |
MS112..SED..EFI |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95335-08016 |
MS112..SED..EFI L=160 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-30030 |
LS110,MS11#,RS110 FR |
1 | ||
| 77267-30040 |
LS110,MS11#,RS110 RR |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-30030 |
LS110,MS11#,RS110 FR |
1 | ||
| 77267-30040 |
LS110,MS11#,RS110 RR |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77028-30060 |
LS110,MS11#,RS110..SED |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=140 |
2 | ||
| 95332-06010 |
LS110,MS11#,RS110..SED *H,L=80 |
1 | ||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=150 |
1 | ||
| 95332-06030 |
LS110,MS11#,RS110..SED *H,L=260 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=140 |
2 | ||
| 95332-06010 |
LS110,MS11#,RS110..SED *H,L=80 |
1 | ||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=150 |
1 | ||
| 95332-06030 |
LS110,MS11#,RS110..SED *H,L=260 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=140 |
2 | ||
| 95332-06010 |
LS110,MS11#,RS110..SED *H,L=80 |
1 | ||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=150 |
1 | ||
| 95332-06030 |
LS110,MS11#,RS110..SED *H,L=260 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=140 |
2 | ||
| 95332-06010 |
LS110,MS11#,RS110..SED *H,L=80 |
1 | ||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=150 |
1 | ||
| 95332-06030 |
LS110,MS11#,RS110..SED *H,L=260 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=140 |
2 | ||
| 95332-06010 |
LS110,MS11#,RS110..SED *H,L=80 |
1 | ||
| 95332-06020 |
LS110,MS11#,RS110..SED *H,L=150 |
1 | ||
| 95332-06030 |
LS110,MS11#,RS110..SED *H,L=260 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77256-30070 |
MS112..EFI |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95335-08034 |
MS112..EFI L=340 |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77257-30090 |
MS112..SED..EFI |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 90445-14064 |
MS112..EFI L=210 |
1 | ||
| 95335-08020 |
MS112 L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 77279-30040 |
MS112..SED..EFI |
1 | ||
| 77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3) | ||||
| 90445-20019 |
MS112..SED..EFI |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 77284-30020 |
MS112..EFI |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
LS110,MS11#,RS110..SED..(EUR,GEN) |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90413-06003 | ||||
| 90461-10061 | ||||
| 90461-10076 | ||||
| 90461-12031 | ||||
| 90467-12001 | ||||
| 90467-13001 | ||||
| 90467-18002 | ||||
| 90480-01003 | ||||
| 90480-01004 | ||||
| 90480-01095 | ||||
| 90480-01111 | ||||
| 90480-22082 | ||||
| 90540-09008 | ||||
| 90560-06238 | ||||
| 91655-40616 | ||||
| 91655-40635 | ||||
| 91655-40818 | ||||
| 91655-40820 | ||||
| 91665-40616 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
