MS112L-SEMGEW (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
5ME
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

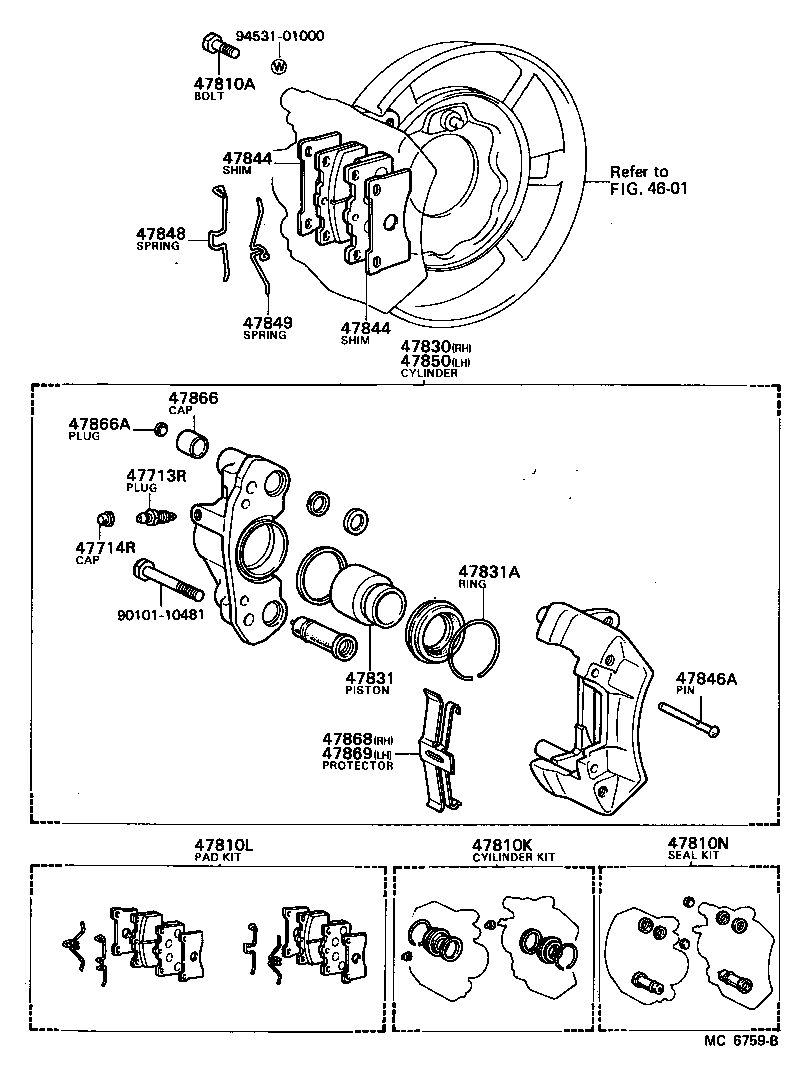

ILLUST NO. 1 OF 2(7909- )ROY ; (7909- )MS111..ARL ; (8108-)SAL..EUR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-12030 |
MS112..SAL..EUR |
2 | ||
| 47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MS112..SAL..EUR |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90101-10020 |
MS112..SAL..EUR |
4 | ||
| 47810K - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-30040 |
MS112..SAL..EUR |
1 | ||
| 47810L - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-30030 |
MS112..SAL..EUR |
1 | ||
| 47810N - SEAL KIT, DISC BRAKE, REAR | ||||
| 04498-30010 |
MS112..SAL..EUR |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47730-30070 |
MS112..SAL..EUR |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47731-30030 |
MS112..SAL..EUR |
2 | ||
| 47831A - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-48044 |
MS112..SAL..EUR |
2 | ||
| 47844 - SHIM, ANTISQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-30070 |
MS112..SAL..EUR |
4 | ||
| 47844 - SHIM, ANTISQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-30070 |
MS112..SAL..EUR |
4 | ||
| 47846A - PIN, W/HOLE(FOR REAR DISC BRAKE PAD) | ||||
| 90240-06133 |
MS112..SAL..EUR |
4 | ||
| 47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-30030 |
MS112..SAL..EUR |
2 | ||
| 47849 - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47743-30010 |
MS112..SAL..EUR |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-30070 |
MS112..SAL..EUR |
1 | ||
| 47866 - CAP, TORQUE PLATE PIN, REAR | ||||
| 47766-12010 |
MS112..SAL..EUR |
4 | ||
| 47866A - PLUG, HOLE(FOR TORQUE PLATE PIN REAR CAP) | ||||
| 90950-01121 |
MS112..SAL..EUR |
2 | ||
| 47868 - PROTECTOR, DISC BRAKE PAD, REAR RH | ||||
| 47767-30020 |
MS112..SAL..EUR |
1 | ||
| 47869 - PROTECTOR, DISC BRAKE PAD, REAR LH | ||||
| 47767-30020 |
MS112..SAL..EUR |
1 | ||
| Common parts | ||||
| 90101-10481 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 2 OF 2(7909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-30070 |
MS112..SAL..EUR |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-30040 |
MS112..SAL..EUR |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-30020 |
MS112..SAL..EUR |
1 | ||
