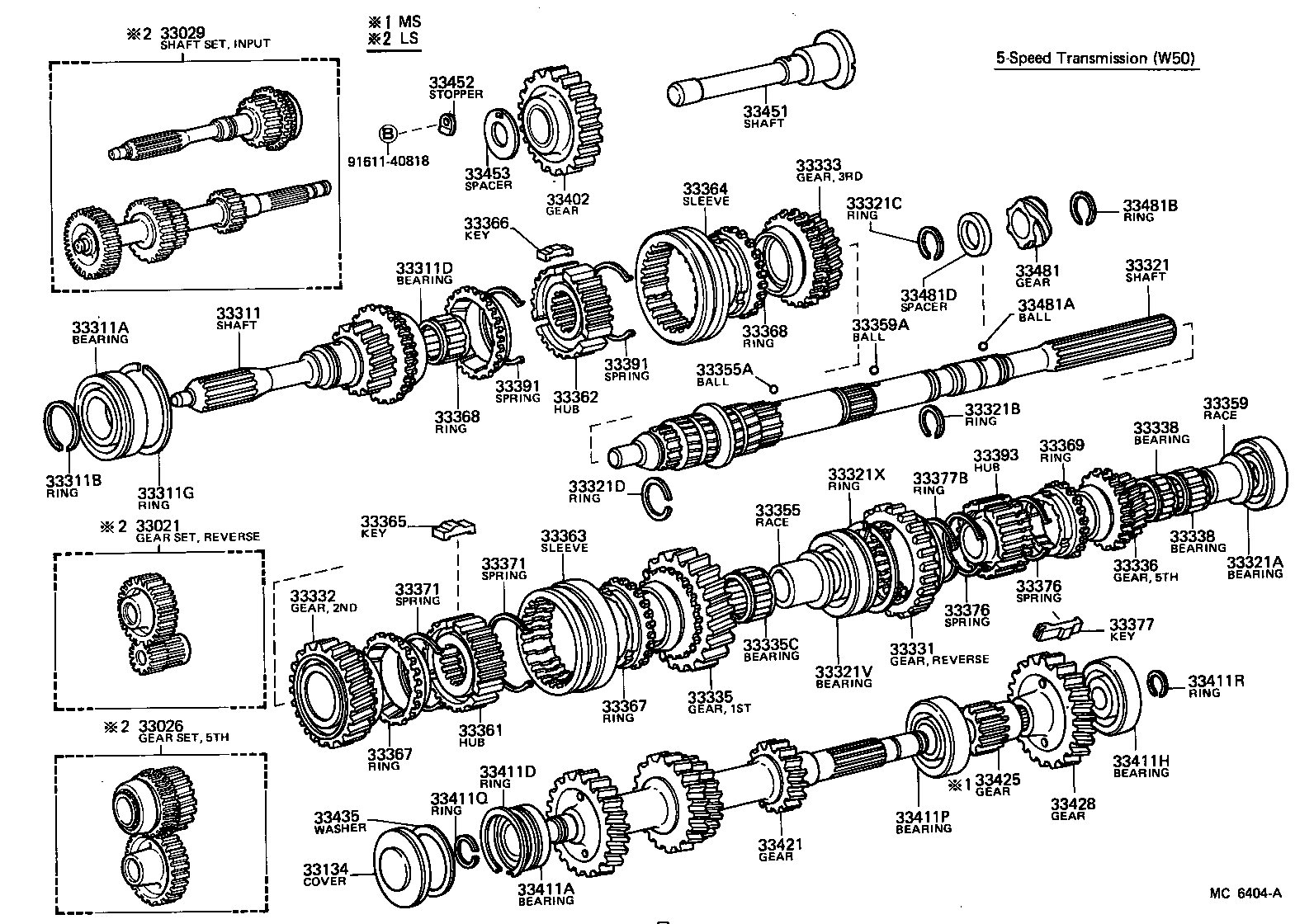

MS112L-SEMGEW (1979)
Toyota Crown
(7909-8108)5F..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33134 - COVER, TRANSMISSION COUNTERSHAFT | ||||
| 33406-31010 |
MS112..5F..EFI |
1 | ||
| 33406-31010 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-20020 |
MS112..5F |
1 | ||
| 33301-24010 |
MS112..5F..EFI |
1 | ||
| 33301-20020 |
MS112..5F..EFI |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32005 |
MS112..5F |
1 | ||
| 90363-35007 |
LS110,MS112,RS110..MTM |
1 | ||
| 90363-32005 |
MS112..5F..EFI |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30214 |
LS110,MS11#,RS110..MTM T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30217 |
LS110,MS11#,RS110..MTM T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-30215 |
LS110,MS11#,RS110..MTM T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30216 |
LS110,MS11#,RS110..MTM T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30214 |
MS112..5F..EFI T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30219 |
LS110,MS11#,RS110..MTM T=2.30,MARK 5,T=2.30-2.35 |
1 | ||
| 90520-30218 |
LS110,MS11#,RS110..MTM T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-30216 |
MS112..5F..EFI T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30217 |
MS112..5F..EFI T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-33168 |
LS110,MS112,RS110..MTM T=2.05,MARK 1,T=2.05-2.10 |
1 | ||
| 90520-30219 |
MS112..5F..EFI T=2.30,MARK 5,T=2.30-2.35 |
1 | ||
| 90520-33170 |
LS110,MS112,RS110..MTM T=2.15,MARK 3,T=2.15-2.20 |
1 | ||
| 90520-30215 |
MS112..5F..EFI T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30218 |
MS112..5F..EFI T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-33169 |
LS110,MS112,RS110..MTM T=2.10,MARK 2,T=2.10-2.15 |
1 | ||
| 90520-33132 |
LS110,MS112,RS110..MTM T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-33107 |
LS110,MS112,RS110..MTM T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33172 |
LS110,MS112,RS110..MTM T=2.25,MARK 5,T=2.25-2.30 |
1 | ||
| 90520-33171 |
LS110,MS112,RS110..MTM T=2.20,MARK 4,T=2.20-2.25 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-71221 |
MS112..5F..EFI |
1 | ||
| 90520-71221 |
LS110,MS11#,RS110..MTM |
1 | ||
| 90520-76001 |
LS110,MS112,RS110..MTM |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-20071 |
LS110,MS112..5F..EUR |
1 | ||
| 33321-22050 |
LS110,MS112,RS110..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 33350-22010 |
LS110,MS112..5F |
1 | ||
| 97104-06228 |
LS110,MS112..5F..EUR |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25272 |
LS110,MS112..5F..EUR T=2.55-2.60,MARK 12,T=2.55-2.60 |
1 | ||
| 90520-25271 |
LS110,MS112..5F..EUR T=2.49-2.54,MARK 11,T=2.49-2.54 |
1 | ||
| 90520-25270 |
LS110,MS112..5F..EUR T=2.43-2.48,MARK 10,T=2.43-2.48 |
1 | ||
| 90520-25273 |
LS110,MS112..5F..EUR T=2.61-2.66,MARK 13,T=2.61-2.66 |
1 | ||
| 90520-25277 |
LS110,MS112..5F..EUR T=1.89-1.94 |
1 | ||
| 90520-25281 |
LS110,MS112..5F..EUR T=2.13-2.18 |
1 | ||
| 90520-25279 |
LS110,MS112..5F..EUR T=2.01-2.06 |
1 | ||
| 90520-25280 |
LS110,MS112..5F..EUR T=2.07-2.12 |
1 | ||
| 90520-25282 |
LS110,MS112..5F..EUR T=2.19-2.24 |
1 | ||
| 90520-25284 |
LS110,MS112..5F..EUR T=2.31-2.36,MARK 8,T=2.31-2.36 |
1 | ||
| 90520-25278 |
LS110,MS112..5F..EUR T=1.95-2.00 |
1 | ||
| 90520-25283 |
LS110,MS112..5F..EUR T=2.25-2.30 |
1 | ||
| 90520-25285 |
LS110,MS112..5F..EUR T=2.37-2.42,MARK 9,T=2.37-2.42 |
1 | ||
| 90520-25004 |
LS110,MS112..5F T=2.74,MARK 15,T=2.74-2.79 |
1 | ||
| 90520-25003 |
LS110,MS112..5F T=2.68,MARK 14,T=2.68-2.73 |
1 | ||
| 90520-25284 |
LS110,MS112..5F T=2.31-2.36,MARK 8,T=2.31-2.36 |
1 | ||
| 90520-25273 |
LS110,MS112..5F T=2.61-2.66,MARK 13,T=2.61-2.66 |
1 | ||
| 90520-25270 |
LS110,MS112..5F T=2.43-2.48,MARK 10,T=2.43-2.48 |
1 | ||
| 90520-25285 |
LS110,MS112..5F T=2.37-2.42,MARK 9,T=2.37-2.42 |
1 | ||
| 90520-25271 |
LS110,MS112..5F T=2.49-2.54,MARK 11,T=2.49-2.54 |
1 | ||
| 90520-25272 |
LS110,MS112..5F T=2.55-2.60,MARK 12,T=2.55-2.60 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-26179 |
LS110,MS112..5F..EUR T=1.50,OD=31.3 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30216 |
LS110,MS11#,RS110..MTM T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30215 |
LS110,MS11#,RS110..MTM T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30214 |
LS110,MS11#,RS110..MTM T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30217 |
LS110,MS11#,RS110..MTM T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-30218 |
LS110,MS11#,RS110..MTM T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-30214 |
MS112..5F..EFI T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30238 |
LS110,MS11#,RS110..MTM T=2.00-2.05 |
1 | ||
| 90520-30215 |
MS112..5F..EFI T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30218 |
MS112..5F..EFI T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-28016 |
LS110,MS112,RS110..MTM T=1.98,MARK 13,T=1.98-2.03 |
1 | ||
| 90520-30238 |
MS112..5F..EFI T=2.00-2.05 |
1 | ||
| 90520-28018 |
LS110,MS112,RS110..MTM T=2.10,MARK 15,T=2.10-2.15 |
1 | ||
| 90520-30217 |
MS112..5F..EFI T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-30216 |
MS112..5F..EFI T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-28017 |
LS110,MS112,RS110..MTM T=2.04,MARK 14,T=2.04-2.09 |
1 | ||
| 90520-28014 |
LS110,MS112,RS110..MTM T=1.86,MARK 11,T=1.86-1.91 |
1 | ||
| 90520-28245 |
LS110,MS112,RS110..MTM T=1.80-1.85,MARK D,T=1.80-1.85 |
1 | ||
| 90520-28015 |
LS110,MS112,RS110..MTM T=1.92,MARK 12,T=1.92-1.97 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-32005 |
LS110,MS112..5F..EUR |
1 | ||
| 90363-35009 |
LS110,MS112,RS110..MTM |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-71221 |
LS110,MS112..5F..EUR T=1.65,ID=71.1 |
1 | ||
| 90520-33005 |
LS110,MS112,RS110..MTM T=2.85,MARK 21,T=2.85-2.90 |
1 | ||
| 90520-33003 |
LS110,MS112,RS110..MTM T=2.73,MARK 19,T=2.73-2.78 |
1 | ||
| 90520-33006 |
LS110,MS112,RS110..MTM T=2.91,MARK 22,T=2.91-2.96 |
1 | ||
| 90520-33133 |
LS110,MS112,RS110..MTM T=2.45,MARK 14,T=2.45-2.50 |
1 | ||
| 90520-33108 |
LS110,MS112,RS110..MTM T=2.40,MARK 13,T=2.40-2.45 |
1 | ||
| 90520-33107 |
LS110,MS112,RS110..MTM T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33134 |
LS110,MS112,RS110..MTM T=2.55,MARK 16,T=2.55-2.60 |
1 | ||
| 90520-33172 |
LS110,MS112,RS110..MTM T=2.25,MARK 5,T=2.25-2.30 |
1 | ||
| 90520-33002 |
LS110,MS112,RS110..MTM T=2.67,MARK 18,T=2.67-2.72 |
1 | ||
| 90520-33001 |
LS110,MS112,RS110..MTM T=2.61,MARK 17,T=2.61-2.66 |
1 | ||
| 90520-33007 |
LS110,MS112,RS110..MTM T=2.97,MARK 23,T=2.97-3.02 |
1 | ||
| 90520-33109 |
LS110,MS112,RS110..MTM T=2.50,MARK 15,T=2.50-2.55 |
1 | ||
| 90520-33132 |
LS110,MS112,RS110..MTM T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-33004 |
LS110,MS112,RS110..MTM T=2.79,MARK 20,T=2.79-2.84 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-20031 |
LS110,MS112..5F N=39 |
1 | ||
| 33331-22021 |
LS110,MS112,RS110..MTM N=39 |
1 | ||
| 33331-22020 |
LS110,MS112,RS110..MTM N=39 |
1 | ||
| 33331-20031 |
LS110,MS112..5F..EUR N=39 |
1 | ||
| 33331-22030 |
LS110,MS112,RS110..MTM N=39 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-20030 |
LS110,MS112..5F..EUR N=31 |
1 | ||
| 33033-20030 |
LS110,MS112..5F N=31 |
1 | ||
| 33033-22020 |
LS110,MS112,RS110..MTM N=35 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-20020 |
LS110,MS112..5F N=25 |
1 | ||
| 33034-20020 |
LS110,MS112..5F..EUR N=25 |
1 | ||
| 33034-22020 |
LS110,MS112,RS110..MTM N=33 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-22020 |
LS110,MS112,RS110..MTM N=34 |
1 | ||
| 33032-31011 |
MS112..5F..EFI N=34 |
1 | ||
| 33032-31011 |
LS110,MS11#,RS110..MTM N=34 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43042 |
LS110,MS11#,RS110..MTM |
1 | ||
| 90364-43002 |
LS110,MS112,RS110..MTM |
1 | ||
| 90364-43042 |
MS112..5F..EFI |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-20010 |
MS112..5F..EFI N=20 |
1 | ||
| 33036-20010 |
MS112..5F N=20 |
1 | ||
| 33336-24010 |
MS112..5F..EFI N=35 |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-35062 |
LS110,MS112..5F..EUR |
2 | ||
| 90364-27002 |
LS110,MS112..5F |
1 | ||
| 90364-35062 |
LS110,MS112..5F |
2 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-35062 |
LS110,MS112..5F..EUR |
2 | ||
| 90364-27002 |
LS110,MS112..5F |
1 | ||
| 90364-35062 |
LS110,MS112..5F |
2 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-31010 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33355-31010 |
MS112..5F..EFI |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
LS110,MS11#,RS110..MTM |
1 | ||
| 90360-06004 |
MS112..5F..EFI |
1 | ||
| 33359 - RACE, 5TH GEAR BEARING INNER | ||||
| 33338-14021 |
LS110,MS112..5F |
1 | ||
| 33338-14021 |
LS110,MS112..5F..EUR |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
LS110,MS112..5F..EUR |
1 | ||
| 90360-06004 |
LS110,MS112..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-31011 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33361-31011 |
MS112..5F..EFI |
1 | ||
| 33361-22020 |
LS110,MS112,RS110..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-22020 |
LS110,MS112,RS110..MTM |
1 | ||
| 33362-31011 |
MS112..5F..EFI |
1 | ||
| 33362-31011 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-20021 |
LS110,MS112..5F N=39 |
1 | ||
| 33363-22020 |
LS110,MS112,RS110..MTM N=42 |
1 | ||
| 33363-20021 |
LS110,MS112..5F..EUR N=39 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-20011 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33364-20012 |
MS112..5F..EFI |
1 | ||
| 33364-22020 |
LS110,MS112,RS110..MTM |
1 | ||
| 33364-20012 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-31011 |
LS110,MS11#,RS110..MTM |
3 | ||
| 33366-20011 |
LS110,MS112,RS110..MTM |
3 | ||
| 33365-31011 |
MS112..5F..EFI |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20010 |
LS110,MS11#,RS110..MTM |
3 | ||
| 33366-20011 |
LS110,MS11#,RS110..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22020 |
LS110,MS112,RS110..MTM |
2 | ||
| 33368-20012 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33368-20012 |
MS112..5F..EFI |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22020 |
LS110,MS112,RS110..MTM |
2 | ||
| 33368-20012 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33368-20012 |
MS112..5F..EFI |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
LS110,MS112..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22030 |
LS110,MS112,RS110..MTM |
2 | ||
| 33371-14031 |
MS112..5F..EFI |
2 | ||
| 33371-14031 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22030 |
LS110,MS112,RS110..MTM |
2 | ||
| 33371-14031 |
MS112..5F..EFI |
2 | ||
| 33371-14031 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
LS110,MS112..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
LS110,MS112..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-20010 |
LS110,MS112..5F |
3 | ||
| 33394-20010 |
LS110,MS112..5F..EUR |
3 | ||
| 33366-14010 |
LS110,MS112..5F |
3 | ||
| 33377B - RING, SNAP (FOR SYNCHROMESH SHIFTING KEY) | ||||
| 90521-63147 |
LS110,MS112..5F..EUR |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14031 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33371-20010 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14031 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33371-20010 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-30020 |
LS110,MS112..5F..EUR |
1 | ||
| 33393-22020 |
LS110,MS112..5F |
1 | ||
| 33393-30020 |
LS110,MS112..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-20031 |
MS112..5F..EFI N=31 |
1 | ||
| 33402-22022 |
LS110,MS112,RS110..MTM N=31 |
1 | ||
| 33402-20031 |
MS112..5F N=31 |
1 | ||
| 33402-22020 |
LS110,MS112,RS110..MTM N=31 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25002 |
MS112..5F |
1 | ||
| 90365-25014 |
LS110,MS112,RS110..MTM |
1 | ||
| 90365-25009 |
LS110,MS112,RS110..MTM |
1 | ||
| 90365-25002 |
MS112..5F..EFI |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
MS112..MTM T=1.07,OD=55.6 |
1 | ||
| 90520-49222 |
LS110,MS11#,RS110..MTM T=1.07,OD=55.6 |
1 | ||
| 90520-49222 |
MS112..5F..EFI T=1.07,OD=55.6 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-20075 |
LS110,MS112..5F |
1 | ||
| 90363-20075 |
LS110,MS112..5F..EUR |
1 | ||
| 90363-22003 |
LS110,MS112..5F KOYO |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 33430-22010 |
LS110,MS112,RS110..MTM |
1 | ||
| 90365-28015 |
LS110,MS112..5F |
1 | ||
| 90365-28015 |
LS110,MS112..5F..EUR |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23223 |
LS110,MS11#,RS110..MTM T=1.10-1.15 |
1 | ||
| 90520-23223 |
MS112..5F..EFI |
1 | ||
| 90520-23145 |
LS110,MS112,RS110..MTM T=2.30-2.35,T=2.30-2.35 |
1 | ||
| 90520-23143 |
LS110,MS112,RS110..MTM T=2.15-2.20,T=2.15-2.20 |
1 | ||
| 90520-23144 |
LS110,MS112,RS110..MTM T=2.25-2.30,T=2.25-2.30 |
1 | ||
| 90520-23089 |
LS110,MS112,RS110..MTM T=2.10-2.15,T=2.10-2.15 |
1 | ||
| 90520-23146 |
LS110,MS112,RS110..MTM T=2.35-2.40,T=2.35-2.40 |
1 | ||
| 90520-23115 |
LS110,MS112,RS110..MTM T=2.05-2.10,T=2.05-2.10 |
1 | ||
| 90520-23090 |
LS110,MS112,RS110..MTM T=2.20-2.25,T=2.20-2.25 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-18264 |
LS110,MS112..5F..EUR T=2.00-2.05 |
1 | ||
| 90520-18265 |
LS110,MS112..5F T=1.80-1.85 |
1 | ||
| 90520-18265 |
LS110,MS112..5F..EUR T=1.80-1.85 |
1 | ||
| 90520-18264 |
LS110,MS112..5F T=2.00-2.05 |
1 | ||
| 90520-18275 |
LS110,MS112..5F..EUR T=1.40-1.45 |
1 | ||
| 90520-18275 |
LS110,MS112..5F T=1.40-1.45 |
1 | ||
| 90520-20008 |
LS110,MS112..5F T=1.90-1.95,MARK 1,T=1.90-1.95 |
1 | ||
| 90520-18266 |
LS110,MS112..5F T=1.60-1.65,T=1.60-1.65 |
1 | ||
| 90520-18266 |
LS110,MS112..5F..EUR T=1.60-1.65,T=1.60-1.65 |
1 | ||
| 90520-20012 |
LS110,MS112..5F T=2.14-2.19,MARK 5,T=2.14-2.19 |
1 | ||
| 90520-20014 |
LS110,MS112..5F T=2.26-2.31,MARK 7,T=2.26-2.31 |
1 | ||
| 90520-20013 |
LS110,MS112..5F T=2.20-2.25,MARK 6,T=2.20-2.25 |
1 | ||
| 90520-20011 |
LS110,MS112..5F T=2.08-2.13,MARK 4,T=2.08-2.13 |
1 | ||
| 90520-20009 |
LS110,MS112..5F T=1.96-2.01,MARK 2,T=1.96-2.01 |
1 | ||
| 90520-20010 |
LS110,MS112..5F T=2.02-2.07,MARK 3,T=2.02-2.07 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-20050 |
MS112..5F..EFI N=29,26,22,15 |
1 | ||
| 33421-20050 |
MS112..5F N=29,26,22,15 |
1 | ||
| 33421-24010 |
MS112..5F..EFI N=46,35,25,14,14 |
1 | ||
| 33425 - GEAR, COUNTERSHAFT REVERSE | ||||
| 33425-20021 |
MS112..5F..EFI N=14 |
1 | ||
| 33425-20021 |
MS112..5F N=14 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-20020 |
MS112..5F N=34 |
1 | ||
| 33428-20020 |
MS112..5F..EFI N=34 |
1 | ||
| 33046-24010 |
MS112..5F..EFI N=55 |
1 | ||
| 33435 - WASHER, COUNTER GEAR CASE SIDE THRUST | ||||
| 90560-38332 |
LS110,MS11#,RS110..MTM T=2.10-2.20 |
1 | ||
| 90560-38334 |
LS110,MS11#,RS110..MTM T=2.40-2.50 |
1 | ||
| 90560-38331 |
MS112..5F..EFI T=1.95-2.05 |
1 | ||
| 90560-38333 |
LS110,MS11#,RS110..MTM T=2.25-2.35 |
1 | ||
| 90560-38334 |
MS112..5F..EFI T=2.40-2.50 |
1 | ||
| 90560-38331 |
LS110,MS11#,RS110..MTM T=1.95-2.05 |
1 | ||
| 90560-38333 |
MS112..5F..EFI T=2.25-2.35 |
1 | ||
| 90560-38332 |
MS112..5F..EFI T=2.10-2.20 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-22021 |
LS110,MS112,RS110..4F,5F |
1 | ||
| 33451-14020 |
LS110,MS112..5F |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-14010 |
LS110,MS112..5F..EUR |
1 | ||
| 33452-14010 |
LS110,MS112..5F |
1 | ||
| 33452-22020 |
LS110,MS112..5F |
1 | ||
| 33453 - SPACER, REVERSE IDLER GEAR SHAFT | ||||
| 33453-14010 |
LS110,MS112..5F |
1 | ||
| 33453-14010 |
LS110,MS112..5F..EUR |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-20090 |
MS112..SED..5F..EFI N=6,N=6 |
1 | ||
| 33481-20090 |
MS112..SED..5F N=6,N=6 |
1 | ||
| 33481-22020 |
MS112..5F..EFI N-11,N=11 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
LS110,MS11#,RS110..MTM |
1 | ||
| 90360-06004 |
MS112..5F..EFI |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
LS110,MS11#,RS110..MTM T=1.50,OD=31.3 |
2 | ||
| 90520-26179 |
MS112..5F..EFI T=1.50,OD=31.3 |
2 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90560-28339 |
LS110,MS112..5F..EUR |
1 | ||
| Common parts | ||||
| 91611-40818 | ||||
(8008-8108)5F..CBR ; (8108- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103G - RING, HOLE SNAP(FOR REAR BEARING SET) | ||||
| 90521-66002 |
LS110,MS112..5F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-20020 |
MS112..5F |
1 | ||
| 33301-24010 |
MS112..5F..EFI |
1 | ||
| 33301-20020 |
MS112..5F..EFI |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32005 |
MS112..5F |
1 | ||
| 90363-35007 |
LS110,MS112,RS110..MTM |
1 | ||
| 90363-32005 |
MS112..5F..EFI |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30214 |
LS110,MS11#,RS110..MTM T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30217 |
LS110,MS11#,RS110..MTM T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-30215 |
LS110,MS11#,RS110..MTM T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30216 |
LS110,MS11#,RS110..MTM T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30214 |
MS112..5F..EFI T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30219 |
LS110,MS11#,RS110..MTM T=2.30,MARK 5,T=2.30-2.35 |
1 | ||
| 90520-30218 |
LS110,MS11#,RS110..MTM T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-30216 |
MS112..5F..EFI T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30217 |
MS112..5F..EFI T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-33168 |
LS110,MS112,RS110..MTM T=2.05,MARK 1,T=2.05-2.10 |
1 | ||
| 90520-30219 |
MS112..5F..EFI T=2.30,MARK 5,T=2.30-2.35 |
1 | ||
| 90520-33170 |
LS110,MS112,RS110..MTM T=2.15,MARK 3,T=2.15-2.20 |
1 | ||
| 90520-30215 |
MS112..5F..EFI T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30218 |
MS112..5F..EFI T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-33169 |
LS110,MS112,RS110..MTM T=2.10,MARK 2,T=2.10-2.15 |
1 | ||
| 90520-33132 |
LS110,MS112,RS110..MTM T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-33107 |
LS110,MS112,RS110..MTM T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33172 |
LS110,MS112,RS110..MTM T=2.25,MARK 5,T=2.25-2.30 |
1 | ||
| 90520-33171 |
LS110,MS112,RS110..MTM T=2.20,MARK 4,T=2.20-2.25 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-71221 |
MS112..5F..EFI |
1 | ||
| 90520-71221 |
LS110,MS11#,RS110..MTM |
1 | ||
| 90520-76001 |
LS110,MS112,RS110..MTM |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-20071 |
LS110,MS112..5F..EUR |
1 | ||
| 33321-22050 |
LS110,MS112,RS110..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 33350-22010 |
LS110,MS112..5F |
1 | ||
| 97104-06228 |
LS110,MS112..5F..EUR |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25272 |
LS110,MS112..5F..EUR T=2.55-2.60,MARK 12,T=2.55-2.60 |
1 | ||
| 90520-25271 |
LS110,MS112..5F..EUR T=2.49-2.54,MARK 11,T=2.49-2.54 |
1 | ||
| 90520-25270 |
LS110,MS112..5F..EUR T=2.43-2.48,MARK 10,T=2.43-2.48 |
1 | ||
| 90520-25273 |
LS110,MS112..5F..EUR T=2.61-2.66,MARK 13,T=2.61-2.66 |
1 | ||
| 90520-25277 |
LS110,MS112..5F..EUR T=1.89-1.94 |
1 | ||
| 90520-25281 |
LS110,MS112..5F..EUR T=2.13-2.18 |
1 | ||
| 90520-25279 |
LS110,MS112..5F..EUR T=2.01-2.06 |
1 | ||
| 90520-25280 |
LS110,MS112..5F..EUR T=2.07-2.12 |
1 | ||
| 90520-25282 |
LS110,MS112..5F..EUR T=2.19-2.24 |
1 | ||
| 90520-25284 |
LS110,MS112..5F..EUR T=2.31-2.36,MARK 8,T=2.31-2.36 |
1 | ||
| 90520-25278 |
LS110,MS112..5F..EUR T=1.95-2.00 |
1 | ||
| 90520-25283 |
LS110,MS112..5F..EUR T=2.25-2.30 |
1 | ||
| 90520-25285 |
LS110,MS112..5F..EUR T=2.37-2.42,MARK 9,T=2.37-2.42 |
1 | ||
| 90520-25004 |
LS110,MS112..5F T=2.74,MARK 15,T=2.74-2.79 |
1 | ||
| 90520-25003 |
LS110,MS112..5F T=2.68,MARK 14,T=2.68-2.73 |
1 | ||
| 90520-25284 |
LS110,MS112..5F T=2.31-2.36,MARK 8,T=2.31-2.36 |
1 | ||
| 90520-25273 |
LS110,MS112..5F T=2.61-2.66,MARK 13,T=2.61-2.66 |
1 | ||
| 90520-25270 |
LS110,MS112..5F T=2.43-2.48,MARK 10,T=2.43-2.48 |
1 | ||
| 90520-25285 |
LS110,MS112..5F T=2.37-2.42,MARK 9,T=2.37-2.42 |
1 | ||
| 90520-25271 |
LS110,MS112..5F T=2.49-2.54,MARK 11,T=2.49-2.54 |
1 | ||
| 90520-25272 |
LS110,MS112..5F T=2.55-2.60,MARK 12,T=2.55-2.60 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30216 |
LS110,MS11#,RS110..MTM T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30215 |
LS110,MS11#,RS110..MTM T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30214 |
LS110,MS11#,RS110..MTM T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30217 |
LS110,MS11#,RS110..MTM T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-30218 |
LS110,MS11#,RS110..MTM T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-30214 |
MS112..5F..EFI T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30238 |
LS110,MS11#,RS110..MTM T=2.00-2.05 |
1 | ||
| 90520-30215 |
MS112..5F..EFI T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30218 |
MS112..5F..EFI T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-28016 |
LS110,MS112,RS110..MTM T=1.98,MARK 13,T=1.98-2.03 |
1 | ||
| 90520-30238 |
MS112..5F..EFI T=2.00-2.05 |
1 | ||
| 90520-28018 |
LS110,MS112,RS110..MTM T=2.10,MARK 15,T=2.10-2.15 |
1 | ||
| 90520-30217 |
MS112..5F..EFI T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-30216 |
MS112..5F..EFI T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-28017 |
LS110,MS112,RS110..MTM T=2.04,MARK 14,T=2.04-2.09 |
1 | ||
| 90520-28014 |
LS110,MS112,RS110..MTM T=1.86,MARK 11,T=1.86-1.91 |
1 | ||
| 90520-28245 |
LS110,MS112,RS110..MTM T=1.80-1.85,MARK D,T=1.80-1.85 |
1 | ||
| 90520-28015 |
LS110,MS112,RS110..MTM T=1.92,MARK 12,T=1.92-1.97 |
1 | ||
| 33321P - RING, SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-76001 |
LS110,MS112,RS110..MTM T=1.65 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-32005 |
LS110,MS112..5F..EUR |
1 | ||
| 90363-35009 |
LS110,MS112,RS110..MTM |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-33001 |
LS110,MS112,RS110..MTM T=2.61,MARK 17,T=2.61-2.66 |
1 | ||
| 90520-71221 |
LS110,MS112..5F..EUR T=1.65,ID=71.1 |
1 | ||
| 90520-33005 |
LS110,MS112,RS110..MTM T=2.85,MARK 21,T=2.85-2.90 |
1 | ||
| 90520-33003 |
LS110,MS112,RS110..MTM T=2.73,MARK 19,T=2.73-2.78 |
1 | ||
| 90520-33006 |
LS110,MS112,RS110..MTM T=2.91,MARK 22,T=2.91-2.96 |
1 | ||
| 90520-33133 |
LS110,MS112,RS110..MTM T=2.45,MARK 14,T=2.45-2.50 |
1 | ||
| 90520-33108 |
LS110,MS112,RS110..MTM T=2.40,MARK 13,T=2.40-2.45 |
1 | ||
| 90520-33107 |
LS110,MS112,RS110..MTM T=2.30-2.35,MARK 11,T=2.30-2.35 |
1 | ||
| 90520-33134 |
LS110,MS112,RS110..MTM T=2.55,MARK 16,T=2.55-2.60 |
1 | ||
| 90520-33172 |
LS110,MS112,RS110..MTM T=2.25,MARK 5,T=2.25-2.30 |
1 | ||
| 90520-33002 |
LS110,MS112,RS110..MTM T=2.67,MARK 18,T=2.67-2.72 |
1 | ||
| 90520-33007 |
LS110,MS112,RS110..MTM T=2.97,MARK 23,T=2.97-3.02 |
1 | ||
| 90520-33109 |
LS110,MS112,RS110..MTM T=2.50,MARK 15,T=2.50-2.55 |
1 | ||
| 90520-33132 |
LS110,MS112,RS110..MTM T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-33004 |
LS110,MS112,RS110..MTM T=2.79,MARK 20,T=2.79-2.84 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-20031 |
LS110,MS112..5F N=39 |
1 | ||
| 33331-22021 |
LS110,MS112,RS110..MTM N=39 |
1 | ||
| 33331-22020 |
LS110,MS112,RS110..MTM N=39 |
1 | ||
| 33331-20031 |
LS110,MS112..5F..EUR N=39 |
1 | ||
| 33331-22030 |
LS110,MS112,RS110..MTM N=39 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-20030 |
LS110,MS112..5F..EUR N=31 |
1 | ||
| 33033-20030 |
LS110,MS112..5F N=31 |
1 | ||
| 33033-22020 |
LS110,MS112,RS110..MTM N=35 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-43002 |
LS110,MS112,RS110..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-20020 |
LS110,MS112..5F N=25 |
1 | ||
| 33034-20020 |
LS110,MS112..5F..EUR N=25 |
1 | ||
| 33034-22020 |
LS110,MS112,RS110..MTM N=33 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-22020 |
LS110,MS112,RS110..MTM N=34 |
1 | ||
| 33032-31011 |
MS112..5F..EFI N=34 |
1 | ||
| 33032-31011 |
LS110,MS11#,RS110..MTM N=34 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43042 |
LS110,MS11#,RS110..MTM |
1 | ||
| 90364-43002 |
LS110,MS112,RS110..MTM |
1 | ||
| 90364-43042 |
MS112..5F..EFI |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-20010 |
MS112..5F..EFI N=20 |
1 | ||
| 33036-20010 |
MS112..5F N=20 |
1 | ||
| 33336-24010 |
MS112..5F..EFI N=35 |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-35062 |
LS110,MS112..5F..EUR |
2 | ||
| 90364-27002 |
LS110,MS112..5F |
1 | ||
| 90364-35062 |
LS110,MS112..5F |
2 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-22010 |
LS110,MS112,RS110..MTM |
1 | ||
| 33345A - BALL (FOR 1ST GEAR BUSH) | ||||
| 90360-06004 |
LS110,MS112,RS110..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-31011 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33361-31011 |
MS112..5F..EFI |
1 | ||
| 33361-22020 |
LS110,MS112,RS110..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-22020 |
LS110,MS112,RS110..MTM |
1 | ||
| 33362-31011 |
MS112..5F..EFI |
1 | ||
| 33362-31011 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-20021 |
LS110,MS112..5F N=39 |
1 | ||
| 33363-22020 |
LS110,MS112,RS110..MTM N=42 |
1 | ||
| 33363-20021 |
LS110,MS112..5F..EUR N=39 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-20011 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33364-20012 |
MS112..5F..EFI |
1 | ||
| 33364-22020 |
LS110,MS112,RS110..MTM |
1 | ||
| 33364-20012 |
LS110,MS11#,RS110..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-31011 |
LS110,MS11#,RS110..MTM |
3 | ||
| 33366-20011 |
LS110,MS112,RS110..MTM |
3 | ||
| 33365-31011 |
MS112..5F..EFI |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20010 |
LS110,MS11#,RS110..MTM |
3 | ||
| 33366-20011 |
LS110,MS11#,RS110..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22020 |
LS110,MS112,RS110..MTM |
2 | ||
| 33368-20012 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33368-20012 |
MS112..5F..EFI |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22020 |
LS110,MS112,RS110..MTM |
2 | ||
| 33368-20012 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33368-20012 |
MS112..5F..EFI |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
LS110,MS112..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22030 |
LS110,MS112,RS110..MTM |
2 | ||
| 33371-14031 |
MS112..5F..EFI |
2 | ||
| 33371-14031 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22030 |
LS110,MS112,RS110..MTM |
2 | ||
| 33371-14031 |
MS112..5F..EFI |
2 | ||
| 33371-14031 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
LS110,MS112..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
LS110,MS112..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-20010 |
LS110,MS112..5F |
3 | ||
| 33394-20010 |
LS110,MS112..5F..EUR |
3 | ||
| 33366-14010 |
LS110,MS112..5F |
3 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-22010 |
LS110,MS112..5F |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14031 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33371-20010 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14031 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33371-20010 |
LS110,MS11#,RS110..MTM |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-30020 |
LS110,MS112..5F..EUR |
1 | ||
| 33393-22020 |
LS110,MS112..5F |
1 | ||
| 33393-30020 |
LS110,MS112..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-24002 |
LS110,MS112..5F T=2.06-2.11,T=2.06-2.11 |
1 | ||
| 90520-24004 |
LS110,MS112..5F T=2.18-2.23,T=2.18-2.23 |
1 | ||
| 90520-24003 |
LS110,MS112..5F T=2.12-2.17,T=2.12-2.17 |
1 | ||
| 90520-24005 |
LS110,MS112..5F T=2.24-2.29,T=2.24-2.29 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-22010 |
LS110,MS112..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-20031 |
MS112..5F..EFI N=31 |
1 | ||
| 33402-22022 |
LS110,MS112,RS110..MTM N=31 |
1 | ||
| 33402-20031 |
MS112..5F N=31 |
1 | ||
| 33402-22020 |
LS110,MS112,RS110..MTM N=31 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25002 |
MS112..5F |
1 | ||
| 90365-25014 |
LS110,MS112,RS110..MTM |
1 | ||
| 90365-25009 |
LS110,MS112,RS110..MTM |
1 | ||
| 90365-25002 |
MS112..5F..EFI |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
MS112..MTM T=1.07,OD=55.6 |
1 | ||
| 90520-49222 |
LS110,MS11#,RS110..MTM T=1.07,OD=55.6 |
1 | ||
| 90520-49222 |
MS112..5F..EFI T=1.07,OD=55.6 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-20075 |
LS110,MS112..5F |
1 | ||
| 90363-20075 |
LS110,MS112..5F..EUR |
1 | ||
| 90363-22003 |
LS110,MS112..5F KOYO |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 33430-22010 |
LS110,MS112,RS110..MTM |
1 | ||
| 90365-28015 |
LS110,MS112..5F |
1 | ||
| 90365-28015 |
LS110,MS112..5F..EUR |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23223 |
LS110,MS11#,RS110..MTM T=1.10-1.15 |
1 | ||
| 90520-23223 |
MS112..5F..EFI |
1 | ||
| 90520-23145 |
LS110,MS112,RS110..MTM T=2.30-2.35,T=2.30-2.35 |
1 | ||
| 90520-23143 |
LS110,MS112,RS110..MTM T=2.15-2.20,T=2.15-2.20 |
1 | ||
| 90520-23144 |
LS110,MS112,RS110..MTM T=2.25-2.30,T=2.25-2.30 |
1 | ||
| 90520-23089 |
LS110,MS112,RS110..MTM T=2.10-2.15,T=2.10-2.15 |
1 | ||
| 90520-23146 |
LS110,MS112,RS110..MTM T=2.35-2.40,T=2.35-2.40 |
1 | ||
| 90520-23115 |
LS110,MS112,RS110..MTM T=2.05-2.10,T=2.05-2.10 |
1 | ||
| 90520-23090 |
LS110,MS112,RS110..MTM T=2.20-2.25,T=2.20-2.25 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-18264 |
LS110,MS112..5F..EUR T=2.00-2.05 |
1 | ||
| 90520-18265 |
LS110,MS112..5F T=1.80-1.85 |
1 | ||
| 90520-18265 |
LS110,MS112..5F..EUR T=1.80-1.85 |
1 | ||
| 90520-18264 |
LS110,MS112..5F T=2.00-2.05 |
1 | ||
| 90520-18275 |
LS110,MS112..5F..EUR T=1.40-1.45 |
1 | ||
| 90520-18275 |
LS110,MS112..5F T=1.40-1.45 |
1 | ||
| 90520-20008 |
LS110,MS112..5F T=1.90-1.95,MARK 1,T=1.90-1.95 |
1 | ||
| 90520-18266 |
LS110,MS112..5F T=1.60-1.65,T=1.60-1.65 |
1 | ||
| 90520-18266 |
LS110,MS112..5F..EUR T=1.60-1.65,T=1.60-1.65 |
1 | ||
| 90520-20012 |
LS110,MS112..5F T=2.14-2.19,MARK 5,T=2.14-2.19 |
1 | ||
| 90520-20014 |
LS110,MS112..5F T=2.26-2.31,MARK 7,T=2.26-2.31 |
1 | ||
| 90520-20013 |
LS110,MS112..5F T=2.20-2.25,MARK 6,T=2.20-2.25 |
1 | ||
| 90520-20011 |
LS110,MS112..5F T=2.08-2.13,MARK 4,T=2.08-2.13 |
1 | ||
| 90520-20009 |
LS110,MS112..5F T=1.96-2.01,MARK 2,T=1.96-2.01 |
1 | ||
| 90520-20010 |
LS110,MS112..5F T=2.02-2.07,MARK 3,T=2.02-2.07 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-20050 |
MS112..5F..EFI N=29,26,22,15 |
1 | ||
| 33421-20050 |
MS112..5F N=29,26,22,15 |
1 | ||
| 33421-24010 |
MS112..5F..EFI N=46,35,25,14,14 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-20020 |
MS112..5F N=34 |
1 | ||
| 33428-20020 |
MS112..5F..EFI N=34 |
1 | ||
| 33046-24010 |
MS112..5F..EFI N=55 |
1 | ||
| 33431 - SPACER, COUNTER GEAR, NO.1 | ||||
| 33431-22030 |
LS110,MS112..5F |
1 | ||
| 33431A - SPACER, COUNTER GEAR, NO.2 | ||||
| 33431-22020 |
LS110,MS112..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-22021 |
LS110,MS112,RS110..4F,5F |
1 | ||
| 33451-14020 |
LS110,MS112..5F |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-17001 |
LS110,MS112,RS110..4F,5F |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-14010 |
LS110,MS112..5F..EUR |
1 | ||
| 33452-14010 |
LS110,MS112..5F |
1 | ||
| 33452-22020 |
LS110,MS112..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-20090 |
MS112..SED..5F..EFI N=6,N=6 |
1 | ||
| 33481-20090 |
MS112..SED..5F N=6,N=6 |
1 | ||
| 33481-22020 |
MS112..5F..EFI N-11,N=11 |
1 | ||
| 33481E - CLIP (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90467-25001 |
LS110,MS112,RS110..MTM |
1 | ||
| Common parts | ||||
| 91611-41022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
