MS111RG-SWKDS (1979)
Toyota Crown

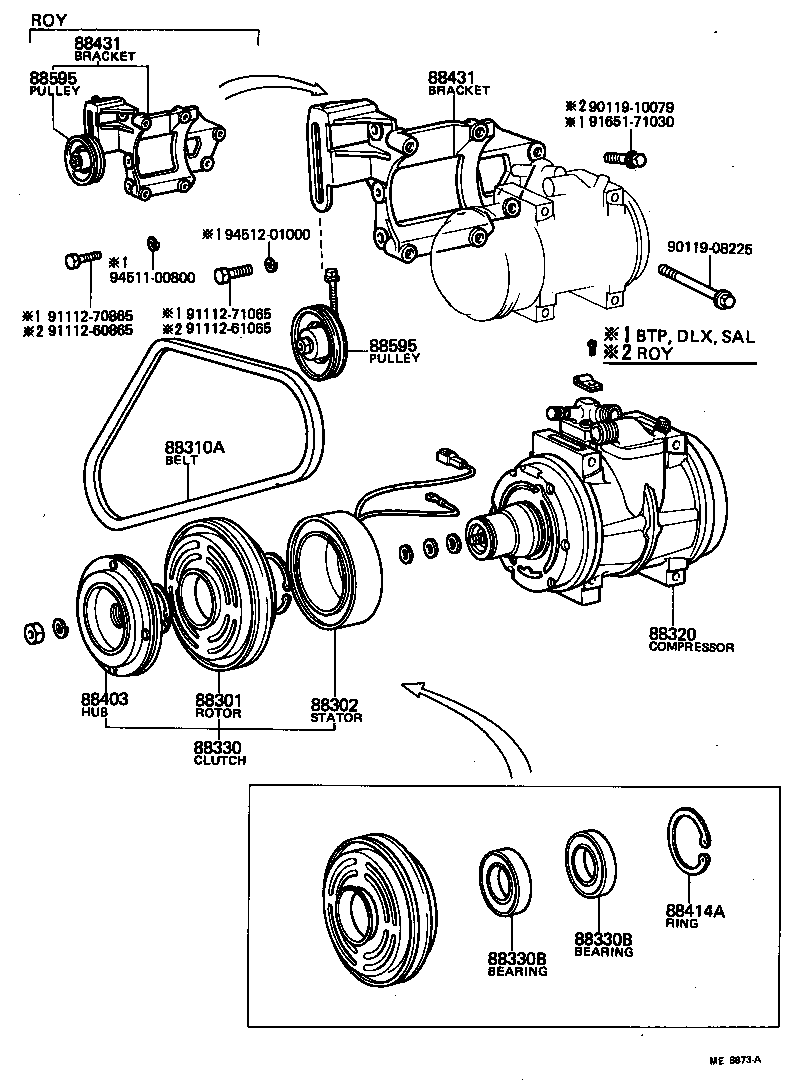

(7909- )MS11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30290 |
MS11#..RHD..(DLX,SAL) W/BOOST VENTILATOR |
1 | ||
| 88412-22020 |
MS11#..RHD W/HEATER |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30370 |
MS11#..RHD..(DLX,SAL) W/BOOST VENTILATOR |
1 | ||
| 88411-30340 |
MS11#..RHD W/HEATER |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00940 |
MS11#..RHD..(DLX,SAL) W/HEATER |
1 | ||
| 99322-00950 |
MS11#..RHD..(DLX,SAL) W/BOOST VENTILATOR |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30270 |
MS11# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-30350 |
MS11#..RHD W/HEATER |
1 | ||
| 88410-30370 |
MS11#..RHD..(DLX,SAL)..GEN..CBR W/BOOST VENTILATOR |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10127 |
MS11#..RHD..(DLX,SAL) W/BOOST VENTILATOR |
2 | ||
| 90099-10117 |
MS11#..RHD W/HEATER |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10127 |
MS11#..RHD..(DLX,SAL) W/BOOST VENTILATOR |
2 | ||
| 90099-10117 |
MS11#..RHD W/HEATER |
2 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30280 |
MS11#..RHD..(DLX,SAL)..GEN W/BOOST VENTILATOR |
1 | ||
| 88403-22030 |
MS11#..RHD W/HEATER |
1 | ||
| 88414A - RING, SHIELD SNAP | ||||
| 90099-07113 |
MS11# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30430 |
MS11#..BTP,DLX,SAL |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30430 |
MS11#..BTP,DLX,SAL |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
MS11#..RHD |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
MS11#..RHD |
1 | ||
| Common parts | ||||
| 90119-08225 | ||||
| 90119-10079 | ||||
| 91112-60865 | ||||
| 91112-61065 | ||||
| 91112-70865 | ||||
| 91112-71065 | ||||
| 91651-71030 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||

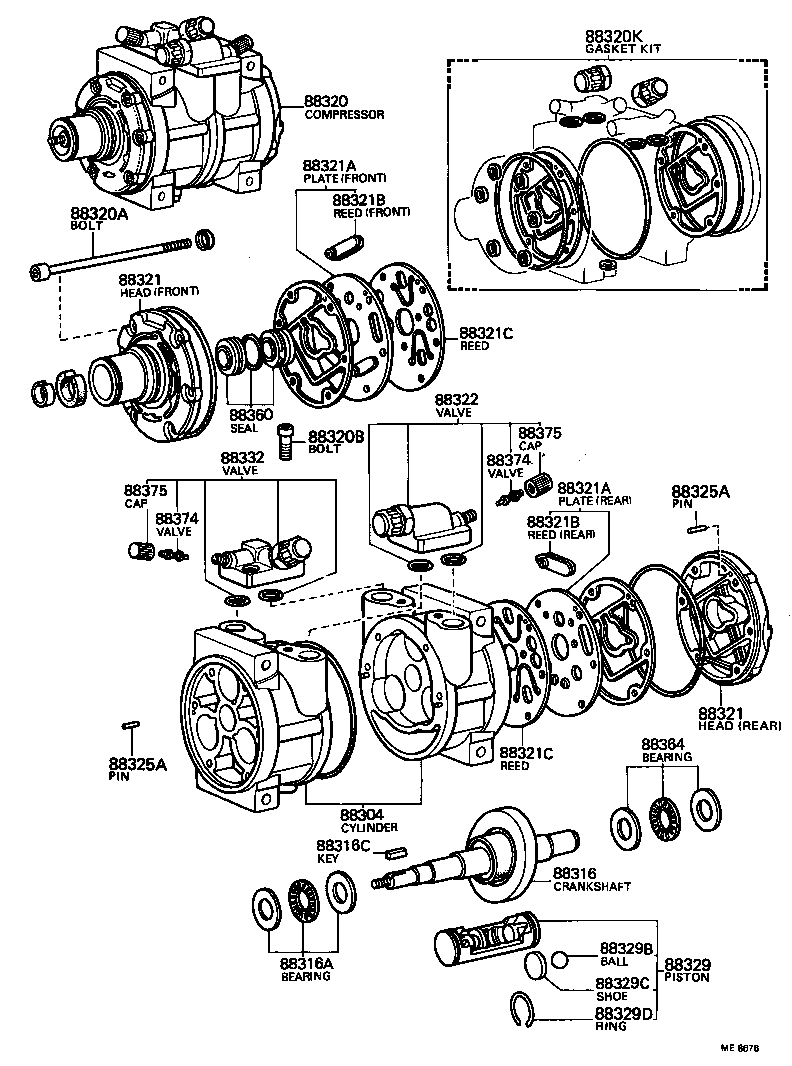

(7909- )MS11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-30300 |
MS11# |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-30270 |
LS110,MS11# |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-30261 |
MS11# |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
LS110,MS11# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30270 |
MS11# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04911 |
MS11# |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
LS110,MS11# |
1 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-30040 |
MS11# |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30280 |
MS11# FR |
1 | ||
| 88322-30280 |
MS11# RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30280 |
MS11# FR |
1 | ||
| 88322-30280 |
MS11# RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-30260 |
MS11# FR |
1 | ||
| 88306-30260 |
MS11# RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-30260 |
MS11# FR |
1 | ||
| 88306-30260 |
MS11# RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-22010 |
MS11# |
6 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-22010 |
MS11# |
6 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-30270 |
MS11# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-30270 |
MS11# |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-30290 |
MS11# |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LS110,MS11# |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LS110,MS11# |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-30270 |
MS11# |
3 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
LS110,MS11# |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
LS110,MS11# |
6 | ||
| 88329D - RING, PISTON | ||||
| 88317-30250 |
MS11# |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-30300 |
MS11# |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30270 |
LS110,MS11# |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-30261 |
MS11# |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LS110,MS11#,RS110 |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LS110,MS11#,RS110 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
LS110,MS11#,RS110 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
LS110,MS11#,RS110 |
2 | ||
