MS111RG-SWKDS (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1980
Engine
4M
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )MS11#..RHD

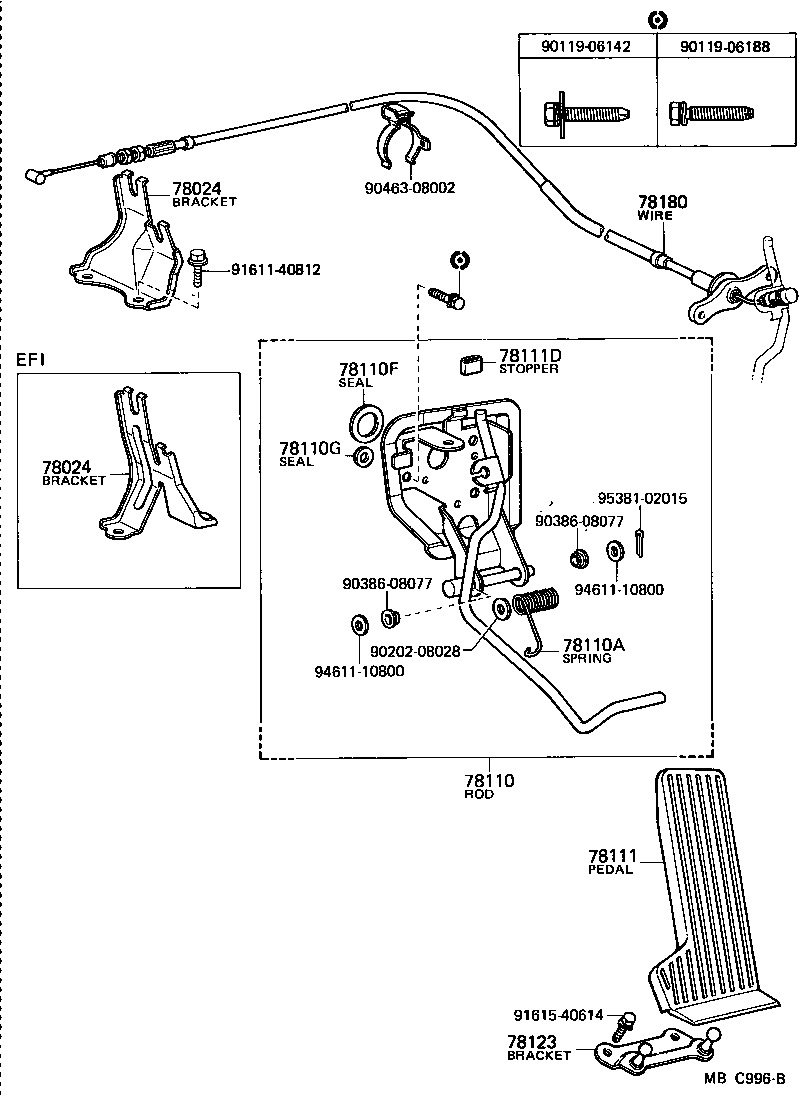

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30010 |
MS11#..CBR |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30010 |
MS11#..CBR |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30210 |
MS11#,RS110..RHD..MTM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29010 |
MS11#,RS110..RHD..MTM |
1 | ||
| 78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD) | ||||
| 78129-30050 |
LS110,MS11#,RS110..RHD |
1 | ||
| 78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD) | ||||
| 78139-30050 |
LS110,MS11#,RS110..RHD |
3 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30080 |
LS110,MS11#,RS110..RHD |
1 | ||
| 78111D - STOPPER (FOR ACCELERATOR PEDAL) | ||||
| 78119-30050 |
LS110,MS11#,RS110..RHD |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-30040 |
LS110,MS11#,RS110..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-30030 |
MS11#..RHD..CBR |
1 | ||
| Common parts | ||||
| 90119-06142 | ||||
| 90119-06188 | ||||
| 90202-08028 | ||||
| 90386-08077 | ||||
| 90463-08002 | ||||
| 91611-40812 | ||||
| 91615-40614 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
