MS111RG-SWKDS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )4M,5M

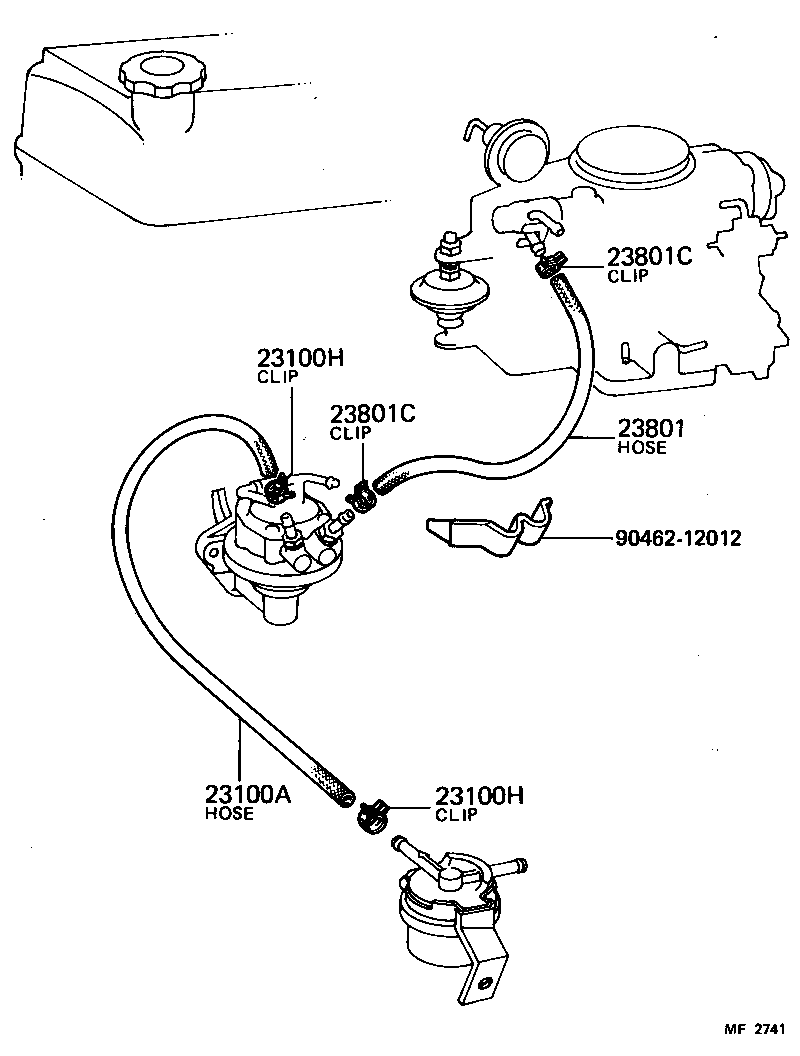

Click highlighted areas on diagram

diagram 23100A 23100H 23100H 23801 23801C 23801C 9046212012
Part # Description Qty Price
23100A - HOSE, FUEL
95332-08040

4M,5M..MS11#

*H,L=360

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30800

4M,5M..MS11#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30800

4M,5M..MS11#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-08040

4M,5M..MS11#

*H,L=340,ID=7.6

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

4M,5M..MS11#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

4M,5M..MS11#

 4
Common parts
90462-12012
