MS111RG-SWJDS (1979)

Toyota Crown

Production Sep 1979 - Aug 1980
Engine 4M
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )WG

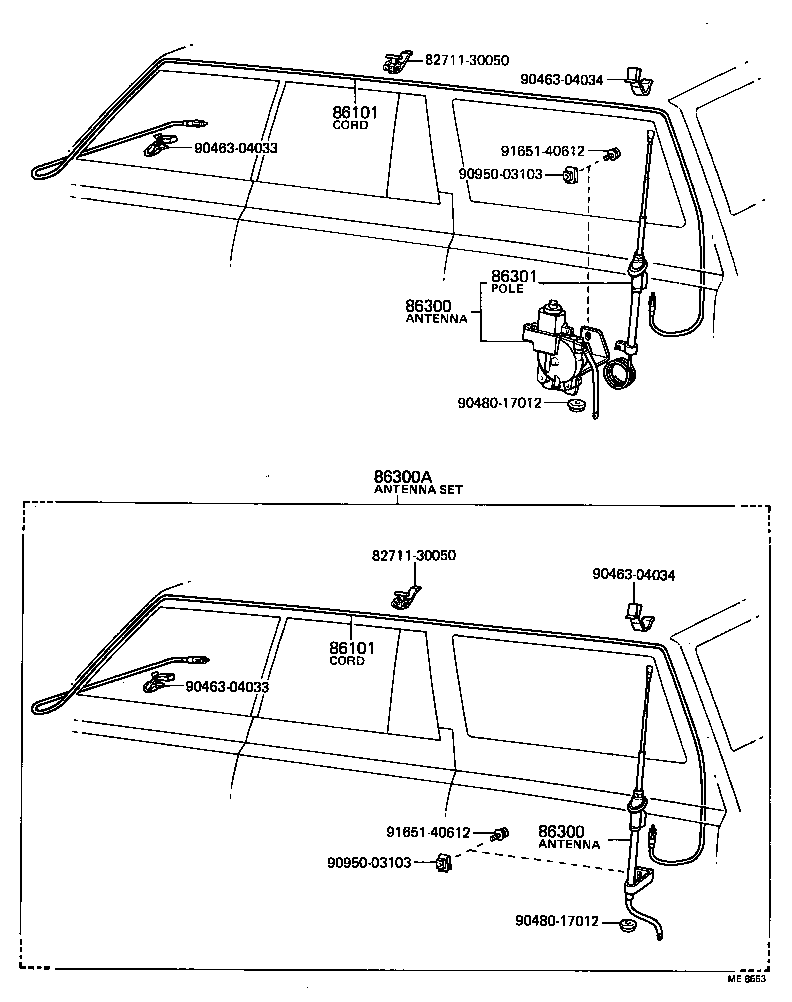

Click highlighted areas on diagram

diagram 8271130050 8271130050 86101 86101 86300 86300 86300A 86301 9046304033 9046304033 9046304034 9046304034 9048017012 9048017012 9095003103 9095003103 9165140612 9165140612
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-91702

LS110,MS11#..WG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-91702

LS110,MS11#..WG

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91702

LS110,MS11#..WG

MANUAL ANTENNA

 1
86300-91701

LS110,MS11#..WG

MOTOR ANTENNA

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91702

LS110,MS11#..WG

MANUAL ANTENNA

 1
86300-91701

LS110,MS11#..WG

MOTOR ANTENNA

 1
86300A - ANTENNA SET
86300-39065

LS110,MS11#..WG

MANUAL ANTENNA

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-91701

LS110,MS11#..WG

MOTOR ANTENNA

 1
Common parts
82711-30050
90463-04033
90463-04034
90480-17012
90950-03103
91651-40612
